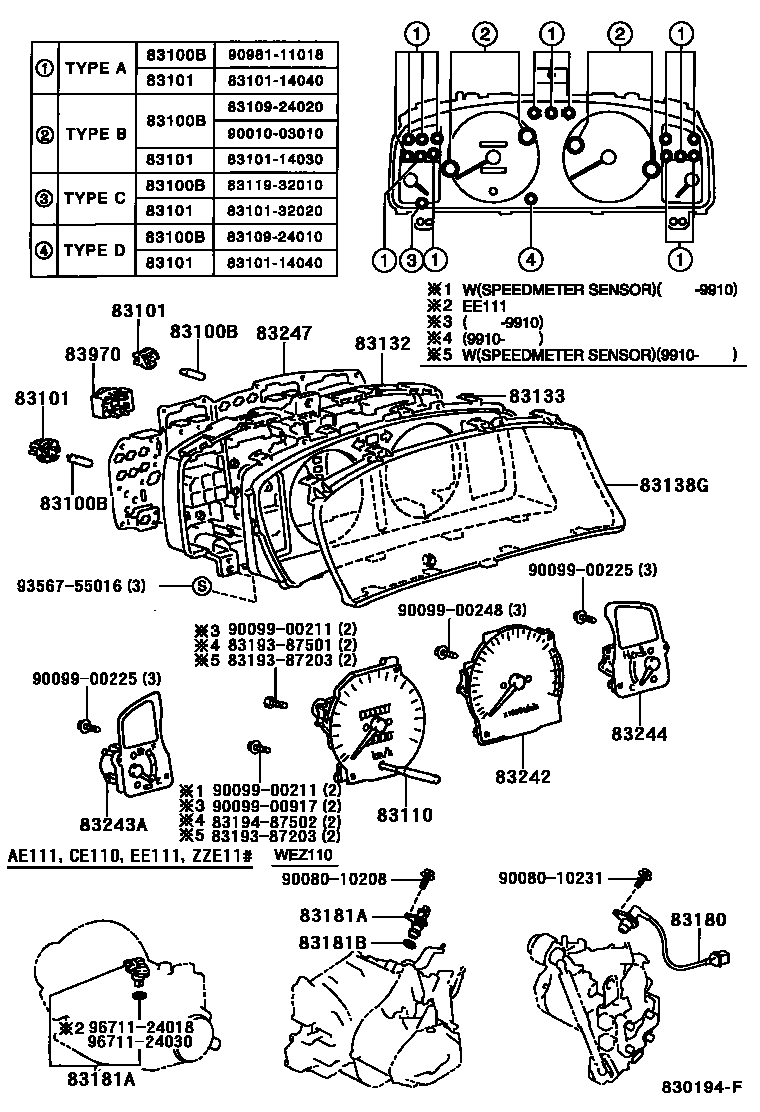

METER

0001 1W(TACHOMETER) 0002 1W/O(TACHOMETER) 0003 1W/O(SPEEDMETER SENSOR) 0004 1 0005 1

83100METER ASSY, COMBINATION

main83800-02250iAE111..UKP..TERRA199809-199911

SPEEDOMETER---KM

sub83800-02251

main83800-02260iAE111..UKP..RHD..TERRA199809-199911

sub83800-02261

main83800-02270iEE111..UKP..TERRA199809-199911

SPEEDOMETER---KM

sub83800-02271

main83800-02280iEE111..UKP..RHD..TERRA199809-199911

sub83800-02281

main83800-02330iAE111..UKP..LUNA199809-199911

SPEEDOMETER---KM & SPEED INDICATION:WHITE

sub83800-02331

main83800-02340iAE111..UKP..RHD..LUNA199809-199911

sub83800-02341

main83800-02350iEE111..UKP..LUNA199809-199911

SPEEDOMETER---KM & SPEED INDICATION:WHITE

sub83800-02351

main83800-02360iEE111..UKP..RHD..LUNA199809-199911

sub83800-02361

main83800-02390iZZE111..UKP..TERRA199911-200111

SPEEDOMETER---KM

main83800-02400iZZE111..UKP..RHD..TERRA199911-200111

main83800-02410iZZE111..UKP..SOL199911-200111

SPEEDOMETER---KM

main83800-02420iZZE111..UKP..RHD..SOL199911-200111

main83800-02430iZZE112..6F..SOL199911-200111

SPEEDOMETER---KM

main83800-02440iZZE112..RHD..6F..SOL199911-200111

main83800-02450iZZE112..UKP..TERRA199911-200111

SPEEDOMETER---KM

main83800-02460iZZE112..UKP..RHD..TERRA199911-200111

main83800-02470iZZE112..UKP..(4FC,5F)..SOL199911-200111

SPEEDOMETER---KM

main83800-02480iZZE112..UKP..RHD..(4FC,5F)..SOL199911-200111

main83800-02490iWZE110..LB..TERRA199912-200111

SPEEDOMETER---KM

main83800-02500iWZE110..RHD..LB..TERRA199912-200111

main83800-02510iWZE110..LB..SOL199912-200111

SPEEDOMETER---KM

main83800-02520iWZE110..RHD..SOL199912-200111

83100BBULB, COMBINATION METER, NO.1

main83109-24010iWZE110..HB;ZZE112..JPP..LB..4FC;ZZE112..LHD..HB..4FC199910-200109

12V 1.4W,GREEN CAP,TYPE D:REFER TO ILLUSTRATION

main83109-24020×4iAE111,CE110,EE111..JPP..(LUNA,STD,TERRA)199704-199910

12V3.4W W(GREEN CAP),TYPE B:REFER TO ILLUSTRATION

main83119-32010iCDE110200008-200109

14V 3.0W,TYPE C:REFER TO ILLUSTRATION

main90010-03010×4iAE111,EE111..G6199704-199910

14V 3.4W,W(RED CAP),TYPE B:REFER TO ILLUSTRATION

main90010-03038iCDE110200008-200109

14V 1.4W,TYPE D:REFER TO ILLUSTRATION

main90010-03039iCDE110200008-200109

14V 3.4W,TYPE B:REFER TO ILLUSTRATION

main90011-03004×23iAE111,ZZE11#..UKP..(4FC,5F)199809-200111

12V 1.12W

main90981-11018×13iZZE112..JPP..LB..4FC;ZZE112..LHD..HB..4FC199910-200109

12V 1.2W W/O SOCKET,TYPE A:REFER TO ILLUSTRATION

main99132-12034×4iZZE112..RHD..HB..4FC200008-200107

12V 3.4W

83101SOCKET SUB-ASSY, COMBINATION METER BULB

main83101-14030×4iAE111,CE110,EE111..JPP..(LUNA,STD,TERRA)199704-199910

TYPE B:REFER TO ILLUSTRATION

main83101-14040×12iZZE112..JPP..4FC199910-200109

TYPE A OR TYPE D:REFER TO ILLUSTRATION

main83101-32020iAE111,CE110,EE111..JPP199704-199910

TYPE C:REFER TO ILLUSTRATION

83110SPEEDOMETER ASSY

main83220-12090iEE111..JPP..LHD..5F..TERRA199704-199910

W(TACHOMETER)

main83220-12100iAE111,EE111..JPP..RHD..TERRA199704-199910

W(TACHOMETER)

main83220-12120iCE110..RHD..TERRA199711-199910

KM/H,W(TACHOMETER)

main83220-12130iCE110..RHD..TERRA199704-199910

W(TACHOMETER)

main83220-12140iAE111..JPP..LHD..TERRA;EE111..JPP..LHD..3FC..TERRA199704-199910

W(TACHOMETER)

main83220-12150iEE111..JPP..RHD..5F..TERRA199711-199910

KM/H

main83220-12160iAE111,EE111..JPP..RHD..TERRA199704-199910

main83220-12180iCE110..LHD..(STD,TERRA)199704-199910

main83220-12190iCE110..RHD..TERRA199704-199910

main83220-12200iAE111..JPP..LHD..TERRA;EE111..JPP..LHD..3FC..TERRA199704-199910

main83220-12340iEE111..JPP..RHD..5F..LUNA199711-199910

KM/H

main83220-12350iAE111,EE111..JPP..RHD..LUNA199704-199910

main83220-12360iZZE11#..G6199910-200107

KM/H

main83220-12370iZZE11#..RHD..G6199910-200107

main83220-12380iAE111..JPP..LHD..LUNA;EE111..JPP..LHD..3FC..LUNA199704-199910

main83220-12390iCE110..RHD..LUNA199711-199910

KM/H

main83220-12400iCE110..RHD..LUNA199704-199910

main83220-12420iAE111..LHD..G6199808-199910

main83220-12460iZZE112..JPP..LHD..4FC..SOL199910-200109

main83220-12470iZZE11#..JPP..5F..TERRA199910-200109

KM/H,W(TACHOMETER)

main83220-12480iZZE112..JPP..LHD..4FC..TERRA199910-200109

W(TACHOMETER)

main83220-12490iZZE11#..JPP..5F..SOL199910-200109

KM/H

main83220-12500iZZE11#..JPP..RHD..5F..TERRA199910-200107

W(TACHOMETER)

main83220-12510iZZE112..JPP..RHD..4FC..TERRA199910-200107

W(TACHOMETER)

main83220-12520iZZE11#..JPP..RHD..5F..SOL199910-200107

main83220-12530iZZE112..JPP..RHD..4FC..SOL199910-200107

main83220-12540iWZE110..HB..TERRA200001-200107

KM/H,W(TACHOMETER)

main83220-12550iWZE110..HB..SOL200001-200107

main83220-12560iWZE110..RHD..HB200001-200107

W(TACHOMETER)

main83220-12570iZZE11#..JPP..5F..(STD,TERRA)199910-200109

KM/H

main83220-12580iZZE112..JPP..LHD..4FC..TERRA199910-200109

main83220-12590iZZE11#..JPP..RHD..5F..TERRA199910-200107

main83220-12600iZZE112..JPP..RHD..4FC..TERRA199910-200107

main83220-12610iWZE110..HB..TERRA200001-200107

KM/H

main83220-12620iWZE110..RHD..HB200001-200107

main83220-12660iCDE110..LHD..TERRA200008-200109

main83220-12670iCDE110..RHD..SOL200008-200107

KM/H

main83220-12680iCDE110..RHD..SOL200008-200107

main83220-12690iCDE110..RHD..TERRA200008-200107

83132CASE, COMBINATION METER

main83841-12610iZZE11#..JPP..MTM..(G6,SOL,TERRA)199910-200109

W(TACHOMETER)

main83841-12640iCDE110200008-200109

main83841-12780iAE111..JPP..LHD..(G6,LUNA);EE111..JPP..LHD..3FC..LUNA199704-199910

W(TACHOMETER)

main83841-12800iCE110..LUNA;EE111..JPP..LHD..MTM..(G6,LUNA);AE111,EE111..JPP..RHD..(G6,LUNA)199704-199910

W(TACHOMETER)

main83841-1A050iCE110..STD,TERRA;AE111,EE111..RHD..TERRA;EE111..LHD..5F..(STD,TERRA)199704-199808

main83841-1A051iAE111,EE111..JPP..RHD..TERRA;EE111..JPP..LHD..5F..(STD,TERRA)199808-199910

main83841-1A081iCE110..TERRA199808-199910

main83841-1A100iAE111..LHD..TERRA;EE111..LHD..3FC..TERRA199704-199808

main83841-1A101iAE111..JPP..LHD..TERRA;EE111..JPP..LHD..3FC..TERRA199808-199910

main83841-1E310iZZE11#..JPP..5F..(STD,TERRA)199910-200109

main83841-1E320iZZE112..JPP..4FC..TERRA199910-200109

main83841-1E350iWZE110..HB..TERRA200001-200107

83133PLATE, COMBINATION METER, NO.1

main83811-12610iAE111,CE110,EE111..JPP..TERRA199704-199910

W(TACHOMETER)

main83811-12640iAE111,EE111..G6199704-199910

main83811-12720iAE111,CE110,EE111..JPP..(STD,TERRA)199704-199910

main83811-12860iCDE110,WZE110,ZZE11#..JPP..SOL199910-200109

83138GGLASS, COMBINATION METER

main83852-02250iAE111,EE111..UKP199809-199911

main83852-02390iWZE110,ZZE11#..UKP199911-200111

main83852-12700iCDE110,WZE110,ZZE11#..JPP199910-200109

83180DETECTOR ASSY, REVOLUTION

main83180-02010iWZE110199912-200111

83181ASENSOR, SPEEDOMETER

main83181-02010iWZE110199912-200111

main83181-12020iAE111..JPP..LHD199704-199910

main83181-12030iCDE110200008-200109

main83181-12040iEE111..UKP..3FC199809-199911

83181BRING, O (FOR SPEEDOMETER SENSOR)

main96711-24018iCDE110200008-200109

mainSU00100416iWZE110199912-200110

83242TACHOMETER ASSY, ENGINE

main83881-12840iAE111..JPP..TERRA199704-199910

main83881-12860iEE111..JPP..LUNA199704-199910

main83881-12890iCE110..TERRA199704-199910

main83881-1A020iEE111..RHD..G6199704-199910

main83881-1A840iAE111..JPP..LUNA199704-199910

main83881-1A850iEE111..JPP..TERRA199704-199910

main83881-1A870iCE110..LUNA199704-199910

main83881-1E090iAE111..G6199808-199910

main83881-1E180iZZE11#..JPP..TERRA199910-200109

main83881-1E200iZZE11#..G6199910-200107

main83881-1E210iZZE11#..JPP..SOL199910-200109

main83881-1E280iWZE110..HB..TERRA200001-200107

main83881-1E290iWZE110..HB..SOL200001-200107

main83881-1H190iCDE110..TERRA200008-200109

main83881-1H200iCDE110..SOL200008-200109

83243AGAUGE SUB-ASSY, FUEL RECEIVER

main83882-12700iAE111,CE110,EE111..JPP..(STD,TERRA)199704-199910

main83882-12840iAE111..RHD..TERRA;CE110,EE111..TERRA199704-199808

W(TACHOMETER)

main83882-12851iAE111,EE111..JPP..TERRA199808-199910

W(TACHOMETER)

main83882-12860iAE111..RHD..LUNA;CE110,EE111..LUNA199704-199808

main83882-12861iAE111,EE111..JPP..LUNA199808-199910

main83882-12891iCE110..TERRA199808-199910

W(TACHOMETER)

main83882-1A020iEE111..G6199704-199808

main83882-1A021iAE111,EE111..G6199808-199910

main83882-1A040iAE111..LHD..TERRA199704-199808

W(TACHOMETER)

main83882-1A871iCE110..LUNA199808-199910

main83882-1A890iAE111..LHD..LUNA199704-199808

main83882-1E160iZZE11#..JPP..TERRA199910-200109

W(TACHOMETER)

main83882-1E170iZZE11#..JPP..SOL199910-200109

main83882-1E280iCDE110..TERRA200008-200109

main83882-1E290iCDE110,WZE110..JPP..SOL200001-200109

main83882-1E310iWZE110,ZZE11#..JPP..(STD,TERRA)199910-200109

83244GAUGE SUB-ASSY, WATER TEMPERATURE RECEIVER

main83883-12840iAE111,CE110,EE111..JPP..TERRA199704-199910

main83883-12860iAE111,CE110,EE111..JPP..LUNA199704-199910

main83883-1A020iZZE11#..G6199910-200107

main83883-1E160iCDE110,ZZE11#..JPP..TERRA199910-200109

main83883-1E170iCDE110,ZZE11#..JPP..SOL199910-200109

main83883-1E280iWZE110..HB..TERRA200001-200107

main83883-1E290iWZE110..HB..SOL200001-200107

83247PLATE, METER CIRCUIT

main83861-12840iEE111..LHD..5F..(LUNA,TERRA);AE111,EE111..RHD..(LUNA,TERRA)199704-199808

W(TACHOMETER)

main83861-12851iEE111..JPP..LHD..5F..(LUNA,TERRA);AE111,EE111..JPP..RHD..(LUNA,TERRA)199808-199910

W(TACHOMETER)

main83861-12890iCE110..TERRA199704-199808

W(TACHOMETER)

main83861-12891iCE110199808-199910

W(TACHOMETER)

main83861-1A020iEE111..G6199704-199808

main83861-1A021iEE111..G6;AE111..RHD..G6199808-199910

main83861-1A040iAE111..LHD..TERRA;EE111..LHD..3FC..TERRA199704-199808

W(TACHOMETER)

main83861-1A041iEE111..JPP..LHD..3FC;AE111..JPP..LHD..(LUNA,TERRA)199808-199910

W(TACHOMETER)

main83861-1A080iCE110..STD,TERRA;AE111,EE111..JPP..RHD..TERRA;EE111..JPP..LHD..5F..(STD,TERRA)199704-199910

main83861-1A100iAE111..JPP..LHD..TERRA;EE111..JPP..LHD..3FC..TERRA199704-199910

main83861-1E090iAE111..LHD..G6199808-199910

main83861-1E160iZZE11#..JPP..5F..(SOL,TERRA)199910-200109

W(TACHOMETER)

main83861-1E170iZZE112..JPP..4FC199910-200109

W(TACHOMETER)

main83861-1E200iZZE11#..G6199910-200107

main83861-1E280iWZE110..HB200001-200107

W(TACHOMETER)

main83861-1E310iZZE11#..JPP..5F..(STD,TERRA)199910-200109

main83861-1E320iZZE112..JPP..4FC..TERRA199910-200109

main83861-1E350iWZE110..HB..TERRA200001-200107

main83861-1H190iCDE110200008-200109

83970BUZZER ASSY, REVERSE WARNING

main83970-12040iAE111,EE111..G6199704-199910

8319387203

main83193-87203

8319387501

main83193-87501

8319487502

main83194-87502

9008010208

main90080-10208

9008010231

main90080-10231

9009900211

main90099-00211

9009900225

main90099-00225

9009900248

main90099-00248

9009900917

main90099-00917

9356755016

main93567-55016

9671124018

main96711-24018

9671124030

main96711-24030

27 parts on this diagram · 5 diagrams in section
