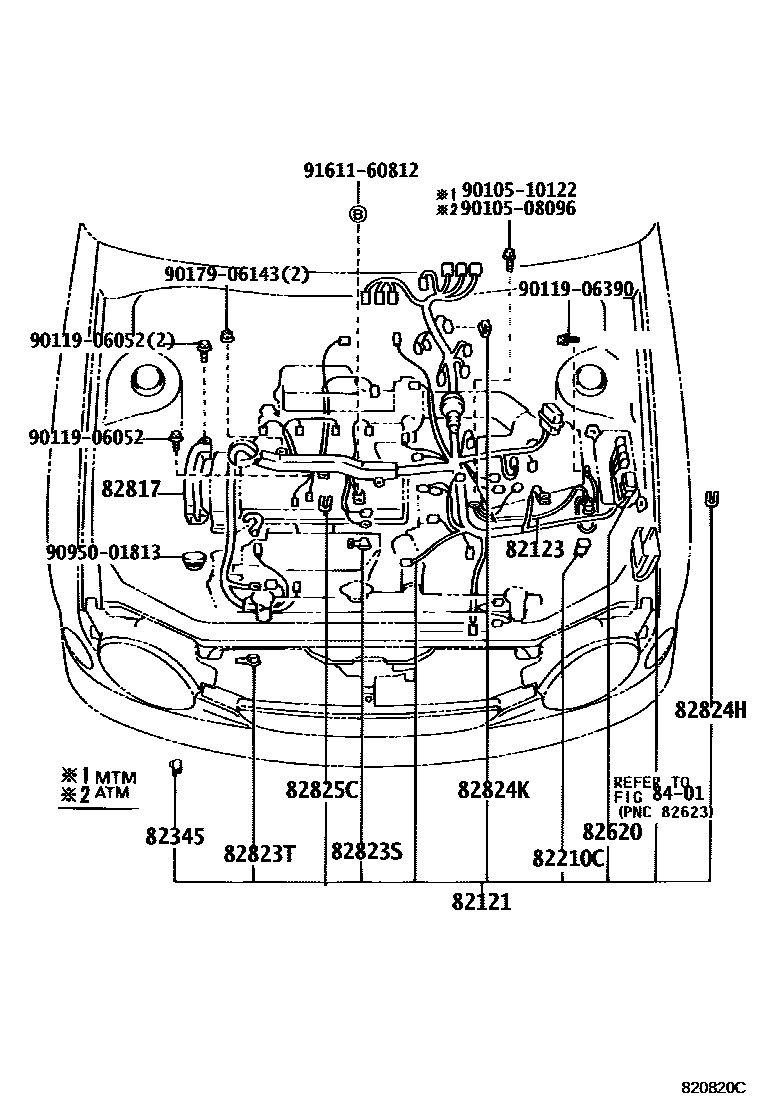

WIRING & CLAMP

0001 1ENGINE 0002 1ENGINE 0003 1ENGINE 0004 1ENGINE 0005 1ENGINE 0006 1ENGINE 0007 1ENGINE 0008 1ENGINE ROOM 0009 1COWL,INSTRUMENT 0010 1COWL,INSTRUMENT 0011 1ROOF,DOOR,FLOOR 0012 1ROOF,DOOR,FLOOR 0013 1ROOF,DOOR,FLOOR 0014 1ROOF,DOOR,FLOOR 0015 1CLAMP & BRACKET 0016 1CLAMP & BRACKET 0017 1CLAMP & BRACKET 0018 1CLAMP & BRACKET 0019 1CABLE BOND 0022 1CABLE BOND 0023 1FUSIBLE LINK REPAIR

82121WIRE, ENGINE

main82121-02190iAE111..UKP..RHD..5F199809-199911

main82121-02200iAE111..UKP..RHD..4FC199809-199911

main82121-02210iAE111..UKP..LHD..5F199809-199911

main82121-02220iAE111..UKP..LHD..4FC199809-199911

main82121-02350iZZE111..UKP..RHD199911-200111

main82121-02360iZZE111..UKP..LHD199911-200111

main82121-02370iZZE112..UKP..RHD..MTM199911-200111

main82121-02380iZZE112..UKP..RHD..4FC199911-200111

main82121-02390iZZE112..UKP..LHD..MTM199911-200002

sub82121-02391

main82121-02391iZZE112..UKP..LHD..MTM200002-200111

main82121-02400iZZE112..UKP..LHD..4FC199911-200002

sub82121-02401

main82121-02401iZZE112..UKP..LHD..4FC200002-200111

main82121-02410iWZE110..RHD..LB199912-200012

main82121-02411iWZE110..RHD..LB200012-200111

main82121-02420iWZE110..LHD..LB199912-200012

main82121-02421iWZE110..LHD..LB200012-200111

main82121-1N410iEE111..RHD..MTM¥42,900199704-199804

sub82121-1T130¥42,900

main82121-1N420iEE111..RHD..3FC¥40,100199704-199804

sub82121-1T140¥40,100

main82121-1N430iEE111..LHD..MTM¥42,900199704-199804

sub82121-1T150¥42,900

main82121-1N440iEE111..LHD..3FC¥42,900199704-199804

sub82121-1T160¥42,900

main82121-1N590iAE111..JPP..RHD..MTM¥46,000199704-199910

main82121-1N600iAE111..JPP..RHD..4FC¥46,000199704-199910

main82121-1N650iAE111..JPP..LHD..MTM¥46,000199704-199910

main82121-1N660iAE111..JPP..LHD..4FC¥45,900199704-199910

main82121-1N810iCE110..RHD¥49,000199704-199910

main82121-1N820iCE110..LHD¥49,000199704-199808

main82121-1N821iCE110..LHD¥92,800199808-199910

main82121-1T130iEE111..JPP..RHD..MTM¥42,900199804-199812

sub82121-1T131¥76,700

main82121-1T131iEE111..JPP..RHD..MTM¥76,700199812-199911

main82121-1T140iEE111..JPP..RHD..3FC¥40,100199804-199812

sub82121-1T141¥76,700

main82121-1T141iEE111..JPP..RHD..3FC¥76,700199812-199911

main82121-1T150iEE111..JPP..LHD..MTM¥42,900199804-199812

sub82121-1T151¥76,700

main82121-1T151iEE111..JPP..LHD..MTM¥76,700199812-199911

main82121-1T160iEE111..JPP..LHD..3FC¥42,900199804-199812

sub82121-1T161¥76,700

main82121-1T161iEE111..UKP..LHD..3FC¥76,700199812-199911

main82121-1T300iEE111..UKP..RHD..5F¥46,000199809-199812

sub82121-1T131¥76,700

main82121-1T310iEE111..UKP..LHD..5F¥46,000199809-199812

sub82121-1T151¥76,700

main82121-1T320iEE111..UKP..RHD..3FC¥46,000199809-199812

sub82121-1T141¥76,700

main82121-1T330iEE111..UKP..LHD..3FC¥46,000199809-199812

sub82121-1T161¥76,700

main82121-1T340iZZE111..JPP..RHD¥88,300199910-200107

main82121-1T350iZZE111..JPP..LHD¥88,300199910-200109

main82121-1T360iZZE112..JPP..RHD..MTM¥81,800199910-200107

main82121-1T370iZZE112..JPP..RHD..4FC¥88,300199910-200107

main82121-1T380iZZE112..JPP..LHD..MTM¥88,300199910-200109

main82121-1T390iZZE112..JPP..LHD..4FC¥88,300199910-200109

main82121-1T400iWZE110..RHD..HB¥81,800200001-200104

main82121-1T401iWZE110..RHD..HB¥81,800200104-200107

main82121-1T410iWZE110..LHD..HB¥81,800200001-200104

main82121-1T411iWZE110..LHD..HB¥81,800200104-200107

main82121-1T620iCDE110..RHD¥76,700200008-200107

main82121-1T630iCDE110..LHD¥81,800200008-200109

main82121-1T640iCDE110..LHD¥88,300200008-200109

W(STOVE HEATER)

82123WIRE, ENGINE, NO.3

main82123-02090iAE111,EE111,ZZE11#..UKP..(4FC,5F,6F)199809-200111

main82123-02120iEE111..UKP..3FC199809-199911

main82123-02140iWZE110..LB199912-200111

main82123-12310iZZE11#..JPP¥3,220199704-200109

main82123-12320iEE111..JPP..3FC¥3,210199704-199910

main82123-12330iCE110¥4,150199704-200109

82210CFUSIBLE LINK

main90982-08228iAE111,CE110,EE111..JPP¥480199704-200111

50A,TERM.:MALE,RED

main90982-08246iAE111,CE110,EE111..JPP¥440199704-200111

100A,TERM.:MALE,BLUE

main90982-08280iAE111,CE110,EE111..JPP..RHD¥590199704-200111

30A,TERM.:FEMALE,PNK

main90982-08281iCDE110,WZE110,ZZE11#;AE111,EE111..UKP..LHD¥590199704-200111

40A,TERM.:FEMALE,GRN

main90982-08282iAE111,CE110,EE111..JPP¥440199704-200111

50A,TERM.:FEMALE,RED

82345DIODE

main82345-12050iAE111,CE110,EE111..HB¥790199704-200107

82620BLOCK ASSY, FUSIBLE LINK

main82620-02020iCDE110,WZE110,ZZE11#199910-200111

(L)

main82620-13020iAE111,EE111..UKP¥2,700199704-199911

main82620-13020iCDE110,WZE110,ZZE11#¥2,700199910-200111

(J)

82817PROTECTOR, WIRING HARNESS, NO.1

main82817-1A070iAE111..UKP¥920199704-199911

82823SCAP, STARTER TERMINAL

main82823-12090iAE111,EE111..UKP;CDE110,ZZE111..JPP¥880199704-200109

82823TCAP, ALTERNATOR TERMINAL

main82823-22060iCDE110,WZE110,ZZE111;AE111,EE111,ZZE112..UKP¥910199704-200111

82824HCONNECTOR, WIRING HARNESS

main82824-30130iCE110..RHD..HB;CE110..RHD..LB..LUNA;AE111..JPP..RHD..LUNA;EE111..JPP..RHD..(G6,LUNA);AE111,EE111..RHD..HB..TERRA¥180199704-199910

W(POWER DOOR LOCK)

82824KCONNECTOR, WIRING HARNESS

main82824-12210iAE111,EE111..UKP;CDE110,WZE110,ZZE11#..JPP¥2,520199704-200109

main82824-30130iAE111,CE110,EE111..JPP..RHD¥180199704-200107

82825CCONNECTOR, WIRING HARNESS

main82824-30130iCDE110,ZZE11#..JPP..LHD..LB..TERRA¥180199704-200109

NO.1

main82824-30130iCDE110,ZZE11#..JPP..LHD..LB..TERRA¥180199704-200109

NO.2

8401

9010508096

main90105-08096¥160

9010510122

main90105-10122¥160

9011906052

main90119-06052¥120

9011906390

main90119-06390¥70

9017906143

main90179-06143¥80

9095001813

main90950-01813¥110

9161160812

main91611-60812¥140

19 parts on this diagram · 21 diagrams in section
