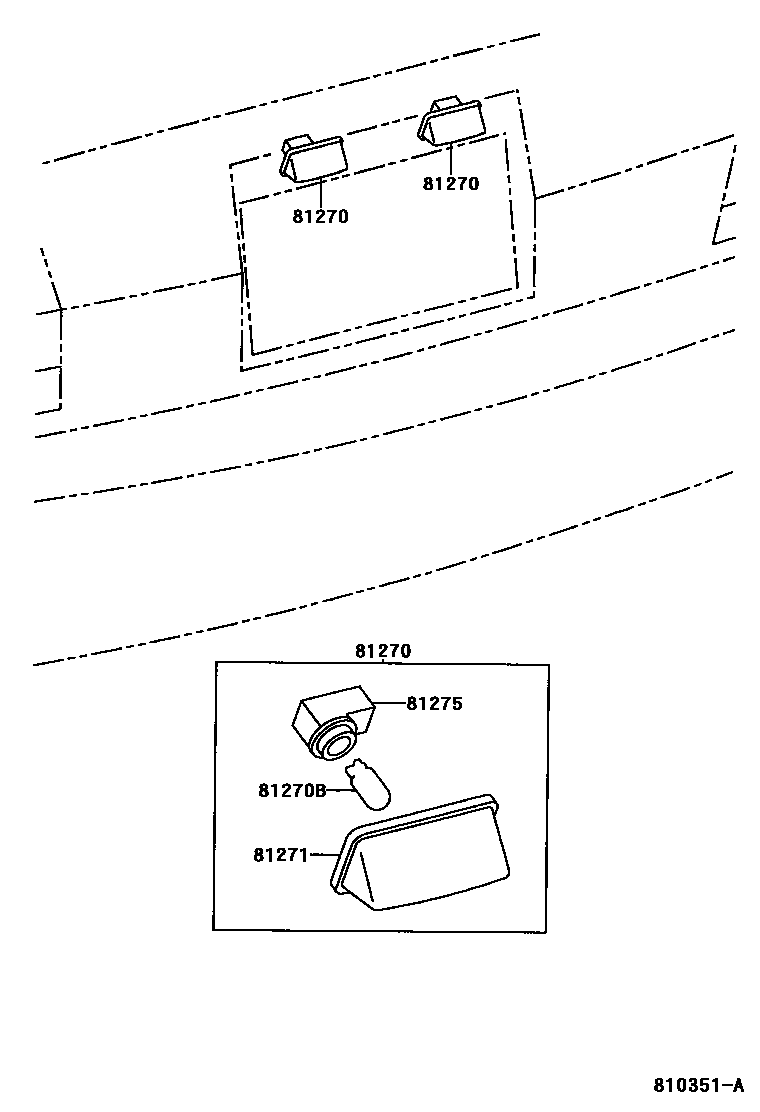

REAR LICENSE PLATE LAMP

81270LAMP ASSY, LICENSE PLATE

main81270-02070iAE111,EE111,WZE110,ZZE11#..UKP199809-200111

sub81270-02071

main81270-12501iCDE110,WZE110,ZZE11#..HB199704-200107

sub81270-12502

main81270-12510iCDE110,ZZE11#..JPP..LB199704-200109

RH

main81690-12131iCDE110,ZZE11#..JPP..LB199704-200109

LH

81270BBULB (FOR LICENSE PLATE LAMP)

main90080-81030iAE111,EE111,WZE110,ZZE11#..UKP199809-200111

12V 5W

sub99132-12050

main99132-12050iAE111,CE110,EE111..JPP..LB199704-200109

12V 5W

81271LENS, LICENSE PLATE LAMP

main81271-02070iAE111,EE111,WZE110,ZZE11#..UKP199809-200111

main81271-12501iCDE110,WZE110,ZZE11#..HB199704-200107

sub81271-12502

main81271-12510iAE111,CE110,EE111..JPP..LB199704-200109

RH

main81691-12131iAE111,CE110,EE111..JPP..LB199704-200109

LH

81275SOCKET AND WIRE, LICENSE PLATE LAMP

main81275-02070iAE111,EE111,WZE110,ZZE11#..UKP199809-200111

main81275-12500iCDE110,ZZE11#..JPP..LB199704-200109

sub81275-12501

main81275-12501iCDE110,WZE110,ZZE11#..HB199812-200107

4 parts on this diagram · 1 diagram in section
