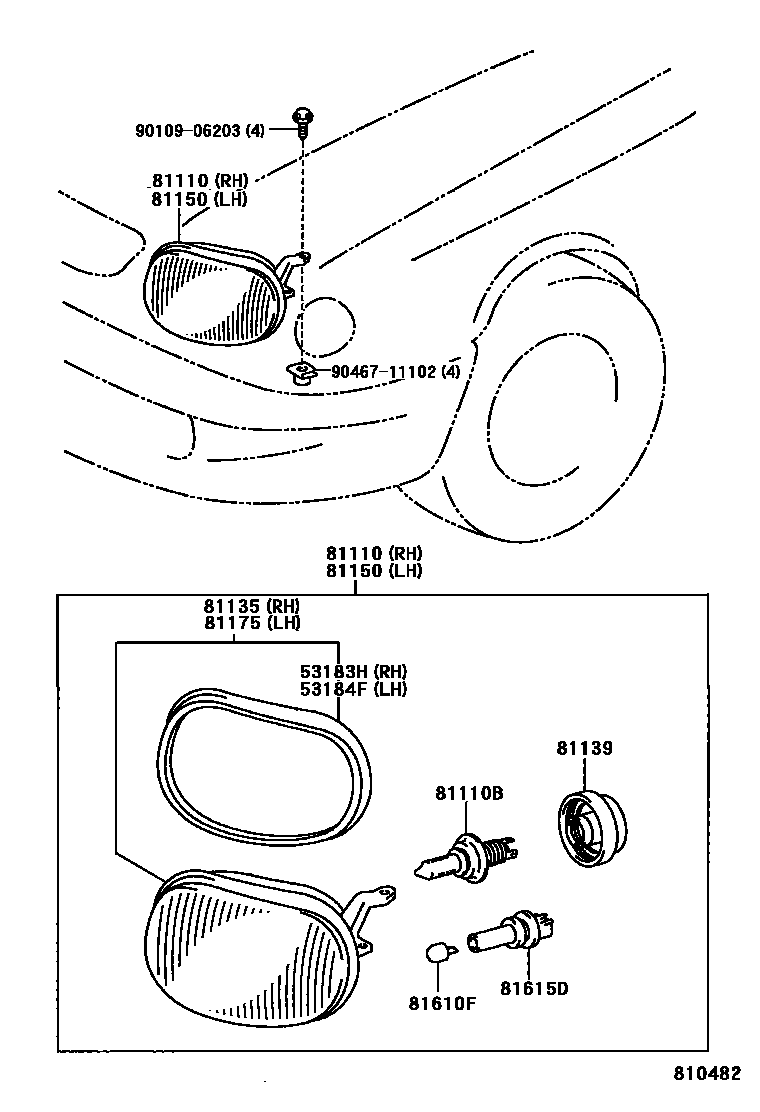

HEADLAMP

0001 1 0002 1 0003 1 0004 1

53183HSEAL, HEADLAMP COVER, RH

main53183-12190iAE111,CE110,EE111..JPP199704-199910

53184FSEAL, HEADLAMP COVER, LH

main53184-12110iAE111,CE110,EE111..JPP199704-199910

81110HEADLAMP ASSY, RH

main81110-1E370iAE111,CE110,EE111..JPP199704-199910

RH TRAFFIC SPEC

sub81130-1E370

main81110-1E410iAE111,CE110,EE111..JPP..RHD199704-199910

sub81130-1E410

main81110-1E520iWZE110,ZZE11#..UKP..RHD199910-200107

KOITO

main81110-1E530iWZE110,ZZE11#..UKP..LHD199910-200109

RH TRAFFIC SPEC,KOITO

main81110-1E530iWZE110,ZZE11#..UKP..RHD199911-200006

KOITO

main81110-1E530iCDE110..LHD200008-200109

81110BBULB(FOR HEADLAMP, NO.1)

main90080-81031iAE111,EE111..UKP199809-199911

12V 60/55W,*HAL *WH

main90080-81040iWZE110,ZZE11#..UKP199911-200006

12V 51W,OSRAM

sub90981-13047

main90080-81040iCDE110,WZE110,ZZE11#..JPP199910-200109

12V 51W

sub90981-13047

main90080-81081iWZE110,ZZE11#..UKP199911-200111

12V 51W

main90981-22004iAE111,CE110,EE111..JPP199704-199910

12V 60/55W,*HAL *WH

sub90981-13055

main99132-12050iWZE110,ZZE11#..UKP199911-200006

12V 5W

81135UNIT ASSY, HEADLAMP, RH

main81130-02070iAE111,EE111..UKP..RHD199809-199911

main81130-02080iAE111,EE111..UKP..LHD199809-199911

RH TRAFFIC SPEC

main81130-02090iWZE110,ZZE11#..UKP..RHD199911-200111

VALEO

main81130-02100iWZE110,ZZE11#..UKP..LHD199911-200111

RH TRAFFIC SPEC,VALEO

main81130-02100iWZE110,ZZE11#..UKP..RHD199911-200111

VALEO

main81130-1E370iAE111,CE110,EE111..JPP199704-199910

RH TRAFFIC SPEC

main81130-1E410iAE111,CE110,EE111..JPP..RHD199704-199910

main81130-1E520iWZE110,ZZE11#..UKP..RHD199911-200006

KOITO

main81130-1E520iCDE110,WZE110,ZZE11#..JPP..RHD199910-200107

main81130-1E530iCDE110..LHD200008-200109

main81130-1E530iCDE110..RHD;WZE110,ZZE11#..JPP199910-200109

RH TRAFFIC SPEC

main81130-1E530iWZE110,ZZE11#..UKP..RHD199911-200006

RH TRAFFIC SPEC,KOITO

main81130-1E530iWZE110,ZZE11#..UKP..RHD199911-200006

KOITO

81139COVER, HEADLAMP SOCKET

main81139-02070iAE111,EE111..UKP199809-199911

main90075-65002iAE111,CE110,EE111..JPP199704-199910

81150HEADLAMP ASSY, LH

main81150-1E240iAE111,CE110,EE111..JPP199704-199910

RH TRAFFIC SPEC

sub81170-1E240

main81150-1E280iAE111,CE110,EE111..JPP..RHD199704-199910

sub81170-1E280

main81150-1E400iCDE110,WZE110,ZZE11#..JPP..RHD199910-200107

KOITO

main81150-1E410iWZE110,ZZE11#..UKP..LHD199910-200109

RH TRAFFIC SPEC,KOITO

main81150-1E410iWZE110,ZZE11#..UKP..LHD199911-200109

KOITO

81175UNIT ASSY, HEADLAMP, LH

main81170-02060iAE111,EE111..UKP..RHD199809-199911

main81170-02070iAE111,EE111..UKP..LHD199809-199911

RH TRAFFIC SPEC

main81170-02080iWZE110,ZZE11#..UKP..RHD199911-200111

VALEO

main81170-02090iWZE110,ZZE11#..UKP..LHD199911-200111

VALEO

main81170-02090iWZE110,ZZE11#..UKP..RHD199911-200111

RH TRAFFIC SPEC,VALEO

main81170-1E240iAE111,CE110,EE111..JPP199704-199910

RH TRAFFIC SPEC

main81170-1E280iAE111,CE110,EE111..JPP..RHD199704-199910

main81170-1E400iWZE110,ZZE11#..UKP..RHD199911-200006

KOITO

main81170-1E400iCDE110,WZE110,ZZE11#..JPP..RHD199910-200107

main81170-1E410iCDE110..LHD200008-200109

main81170-1E410iWZE110,ZZE11#..UKP..LHD199911-200006

KOITO

main81170-1E410iWZE110,ZZE11#..UKP..LHD199911-200006

RH TRAFFIC SPEC,KOITO

main81170-1E410iCDE110..RHD;WZE110,ZZE11#..JPP199910-200109

RH TRAFFIC SPEC

81610FBULB(FOR CLEARANCE LAMP)

main90080-81030iAE111,EE111..UKP199809-199911

12V 5W

sub99132-12050

main90080-81080iWZE110,ZZE11#..UKP199911-200111

12V 5W

main99132-12050iCDE110,WZE110,ZZE11#..JPP199704-200109

12V 5W

81615DSOCKET, CLEARANCE LAMP

main90075-60004iAE111,CE110,EE111..JPP199704-199910

main90075-60020iWZE110,ZZE11#199910-200109

9010906203

main90109-06203

9046711102

main90467-11102

12 parts on this diagram · 4 diagrams in section
