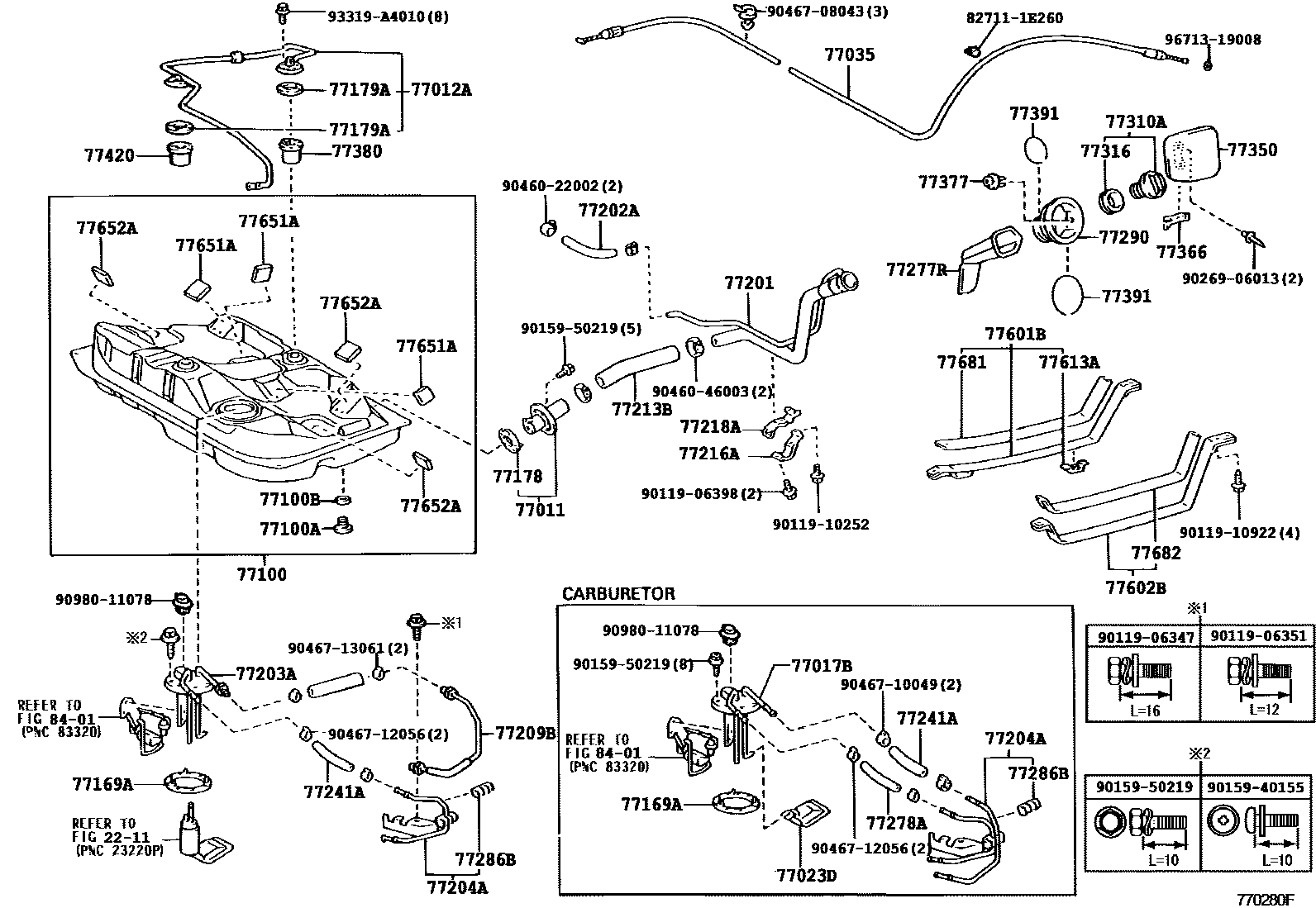

FUEL TANK & TUBE

0001 1 0002 1 0003 1 0004 1 0005 1

2211

77011PIPE SUB-ASSY, FUEL TANK FILLER, LOWER

main77011-12090iCDE110,WZE110,ZZE11#..JPP199704-200109

77012ATUBE SUB-ASSY, FUEL TANK BREATHER, NO.1

main77012-12140iAE111,CE110,EE111199704-199910

main77012-12140iZZE11#..JPP..LHD200008-200109

ISRAEL SPEC OR EUROPEAN POSSESSION SPEC

main77012-12180iCDE110,WZE110,ZZE11#..JPP199910-200109

77017BTUBE SUB-ASSY, FUEL TANK VENT

main77017-02030iWZE110..LB199912-200111

main77017-12600iCE110..TERRA;CE110..LB..LUNA;CE110..LHD..HB..LUNA199704-199910

main77017-12660iCDE110,WZE110..JPP200001-200109

77023FILTER SUB-ASSY, FUEL SUCTION TUBE

main77023-32040iWZE110..LB199912-200111

77023DFILTER SUB-ASSY, FUEL SUCTION TUBE

main77023-32040iCDE110,WZE110..JPP199704-200109

77035CABLE SUB-ASSY, FUEL LID LOCK CONTROL

main77035-02030iAE111,EE111,WZE110,ZZE11#..UKP..LHD199809-200111

main77035-02040iAE111,EE111,WZE110,ZZE11#..UKP..RHD199809-200111

main77035-12350iCDE110,ZZE11#..JPP..RHD..LB199704-200107

main77035-12360iAE111,CE110,EE111..JPP..LHD..LB199704-200109

main77035-12380iCDE110,WZE110,ZZE11#..RHD..HB199704-200107

main77035-12390iAE111,CE110,EE111..LHD..HB199704-200107

77100TANK ASSY, FUEL

main77001-02050iAE111,EE111..UKP199809-199911

main77001-02080iZZE11#..UKP199911-200111

RETAINER(PNC=77144) OD=150

main77001-02090iZZE11#..UKP..LHD199911-200111

RETAINER(PNC=77144) OD=132.5

main77001-02100iWZE110..LB199912-200111

main77001-12810iCDE110,WZE110..JPP200001-200109

sub77001-12850

main77001-12931iCE110..TERRA;AE111..JPP..LB;AE111..HB..(G6,TERRA);EE111..JPP..3FC..LUNA;EE111..JPP..(G6,STD,TERRA);CE110,EE111..JPP..LB..5F..LUNA;AE111,CE110,EE111..LHD..HB..(4FC,5199704-200109

77100APLUG(FOR FUEL TANK)

main90341-20004iZZE11#..JPP..LHD199704-200109

77100BGASKET(FOR FUEL TANK)

main90430-20007iEE111..JPP..LHD;AE111,CE110..JPP..LHD..(G6,LUNA,TERRA)199704-200109

77169AGASKET, FUEL SUCTION TUBE SET

main77169-02030iAE111,EE111,WZE110,ZZE11#..UKP199809-200111

main77169-02040iZZE11#..UKP..LHD199911-200111

EUROPEAN POSSESSION SPEC

main77169-12030iCDE110,WZE110,ZZE11#..JPP199704-200109

77178GASKET, FUEL TANK FILLER PIPE, LOWER

main77178-20030iCDE110,WZE110,ZZE11#..JPP199704-200109

77179AGASKET, FUEL TANK BREATHER TUBE

main77179-26010iWZE110..HB199704-200109

sub77179-26011

main77179-26010iZZE11#..JPP..MTM;ZZE112..JPP..LB..4FC;ZZE112..LHD..HB..4FC199910-200109

ISRAEL SPEC OR EUROPEAN POSSESSION SPEC

sub77179-26011

77201PIPE SUB-ASSY, FUEL TANK INLET

main77201-02040iAE111,EE111..UKP199809-199911

sub77201-02060

main77201-02060iZZE11#..UKP199911-200111

main77201-02070iWZE110..LB199912-200111

main77201-12430iCDE110,WZE110..JPP199704-200109

main77201-12500iAE111,EE111199704-200109

77202AHOSE, FUEL, NO.1 (FOR BREATHER TUBE)

main77259-02040iAE111,EE111..UKP199809-200111

L=160

main77259-02050iZZE11#..UKP199911-200111

main77269-12050iZZE11#..JPP199910-200109

L=220

main95311-13022iCDE110,WZE110..JPP199704-200109

L=220

77203ATUBE SUB-ASSY, FUEL SUCTION

main77203-02040iAE111,EE111..UKP199809-199911

main77203-12170iAE111..RHD..LB;AE111..RHD..HB..TERRA;EE111..RHD..3FC..LUNA;EE111..RHD..(G6,TERRA);EE111..RHD..LB..5F..LUNA199704-199910

main77203-12280iZZE11#..JPP199910-200109

77204ATUBE, FUEL TANK RETURN

main77204-02020iAE111,EE111,WZE110..UKP199809-200111

main77204-12010iCE110..TERRA;CE110..LB..LUNA;CE110..LHD..HB..LUNA199704-200109

main77204-12020iAE111..JPP..LB;AE111..HB..(G6,TERRA);EE111..JPP..3FC..LUNA;EE111..JPP..LB..5F..LUNA;EE111..JPP..(G6,STD,TERRA);AE111,EE111..LHD..HB..(4FC,5F)..LUNA199704-199910

77209BTUBE SUB-ASSY, FUEL PUMP

main77209-02030iAE111,EE111..UKP199809-199911

main77209-12080iAE111,EE111199704-199910

main77209-12150iZZE11#..JPP199910-200109

77213BHOSE, FUEL TANK TO FILLER PIPE

main77213-02020iWZE110..LB199809-200111

sub77213-02030

main77213-02030iZZE11#..UKP199911-200111

main77213-12160iAE111,EE111199704-199910

main77213-12170iCDE110,WZE110..JPP199704-200109

sub77213-12220

main77213-12220iZZE11#..JPP199910-200109

77216ASUPPORT, FUEL TANK FILLER PIPE, NO.1

main77216-02030iAE111,EE111,WZE110,ZZE11#..UKP199809-200111

main77216-12070iCDE110,WZE110,ZZE11#..JPP199704-200109

77218ASUPPORT, FUEL TANK FILLER PIPE, NO.3

main77218-12030iCDE110,WZE110,ZZE11#..JPP199704-200109

77241AHOSE, FUEL, NO.1 (FOR MAIN TUBE, NO.1)

main95333-06020iCE110199704-200109

L=200(*H,L=110)

sub95337-06020

main95333-08020iWZE110..LB199912-200111

L=200(*H,L=130)

sub95337-08020

main95334-06014iAE111,EE111..UKP199809-199911

L=200(*H,L=140)

77277RPROTECTOR, FUEL TANK FILLER PIPE

main77277-12160iCDE110,WZE110,ZZE11#..JPP199704-200109

77278AHOSE, FUEL, NO.1 (FOR RETURN TUBE, NO.2)

main95333-06020iCE110..LHD..(LUNA,TERRA)199704-199910

L=200(*H,L=110)

sub95337-06020

main95333-08020iCE110199704-200109

L=200(*H,L=120)

sub95337-08020

77286BCLAMP, FUEL TUBE W/GROMMET, NO.2

main77285-12040iAE111,CE110,EE111199704-200109

77290SHIELD ASSY, FUEL TANK FILLER PIPE

main77291-02010iAE111,EE111,WZE110,ZZE11#..UKP199809-200111

main77291-12110iCDE110,ZZE11#..JPP..LB199704-200109

main77291-12130iCDE110,WZE110,ZZE11#..HB199704-200107

77310ACAP ASSY, FUEL TANK

main77300-12010iCDE110,WZE110199912-200111

main77300-52010iZZE11#199910-200111

main77310-06011iAE111,EE111..UKP199809-199911

sub77310-48010

main77310-12150iCE110199803-199910

main77310-16011iAE111,EE111199704-199803

sub77310-12140

main77310-32011iCE110199704-199803

main77310-48010iAE111,EE111199803-199910

77316GASKET, FUEL TANK CAP

main77316-06010iAE111,EE111..UKP199809-199911

main77316-16010iAE111,CE110,EE111199704-200111

77350LID ASSY, FUEL FILLER OPENING

main77350-12400iCDE110,ZZE11#..LB;AE111,EE111,WZE110..UKP199704-200111

main77350-12420iAE111,CE110,EE111..HB199704-200107

77366SPRING, FUEL FILLER OPENING LID HINGE

main77360-12080iAE111,CE110,EE111..JPP..LB199704-200111

main77360-12100iCDE110,WZE110,ZZE11#..HB199704-200107

77377RETAINER, FUEL FILLER OPENING LID LOCK

main77377-02020iAE111,EE111,WZE110,ZZE11#..UKP199809-200111

main77377-12050iCDE110,WZE110,ZZE11#..JPP199704-200109

77380VALVE ASSY, FUEL CUT OFF

main77380-12020iZZE11#..JPP..MTM;ZZE112..JPP..LB..4FC;ZZE112..LHD..HB..4FC199910-200109

COLD SPEC

main77380-12020iCDE110,WZE110..JPP;ZZE112..RHD..HB..4FC200001-200109

main77380-26010iZZE11#..JPP..LHD199704-200109

77391RING, FUEL INLET BOX

main77391-12010iAE111,EE111..UKP;CDE110,WZE110,ZZE11#199704-200111

OUTER

main77391-12020iAE111,CE110,EE111..JPP199704-200111

INNER

77420VALVE ASSY, FUEL CUT OFF, NO.2

main77420-12010iCDE110,WZE110..JPP;ZZE112..RHD..HB..4FC200001-200109

main77420-12010iZZE11#..JPP..MTM;ZZE112..JPP..LB..4FC;ZZE112..LHD..HB..4FC199910-200109

COLD SPEC

main77420-26010iCE110..TERRA;AE111..JPP..LB;AE111..HB..(G6,TERRA);EE111..JPP..3FC..LUNA;EE111..JPP..(G6,STD,TERRA);CE110,EE111..JPP..LB..5F..LUNA;AE111,CE110,EE111..LHD..HB..(4FC,5199704-200109

77601BBAND SUB-ASSY, FUEL TANK, NO.1 RH

main77601-02030iAE111,EE111,WZE110,ZZE11#..UKP199809-200111

main77601-12210iAE111,CE110,EE111199704-200109

77602BBAND SUB-ASSY, FUEL TANK, NO.1 LH

main77602-02030iAE111,EE111,WZE110,ZZE11#..UKP199809-200111

main77602-12130iAE111,CE110,EE111199704-200109

77613ABRACKET, FUEL TANK BAND, NO.1

main77613-16030iCDE110,WZE110,ZZE11#..JPP199704-200109

77651ACUSHION, FUEL TANK, NO.1

main77651-12070iAE111,EE111,WZE110,ZZE11#..UKP199809-200111

main77651-20090iCDE110,WZE110,ZZE11#..JPP199704-200109

77652ACUSHION, FUEL TANK, NO.2

main77652-12100iCDE110,WZE110,ZZE11#..JPP199704-200109

77681SEAT, FUEL TANK BAND, RH

main77681-32060iCDE110,WZE110,ZZE11#..JPP199704-200109

77682SEAT, FUEL TANK BAND, LH

main77681-32060iAE111,CE110,EE111199704-200109

8401

827111E260WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-1E260

9011906347

main90119-06347

9011906351

main90119-06351

9011906398

main90119-06398

9011910252

main90119-10252

9011910922

main90119-10922

9015940155

main90159-40155

9015950219

main90159-50219

9026906013

main90269-06013

9046022002

main90460-22002

9046046003

main90460-46003

9046708043

main90467-08043

9046710049

main90467-10049

9046712056

main90467-12056

9046713061

main90467-13061

9098011078

main90980-11078

93319A4010

main93319-A4010

9671319008

main96713-19008

60 parts on this diagram · 5 diagrams in section
