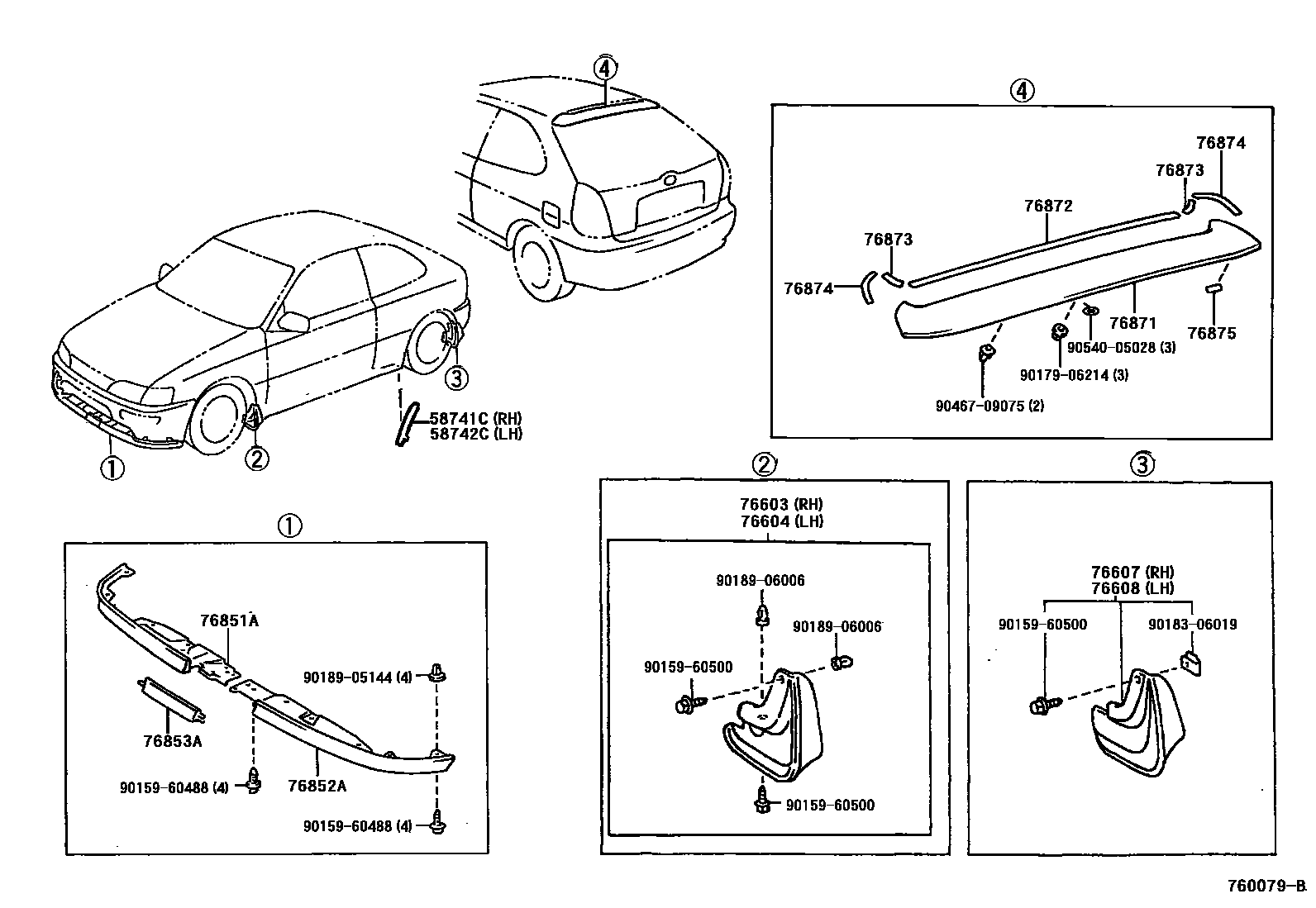

MUDGUARD & SPOILER

0001 1 0002 1 0004 1 0005 1 0006 1

58741CPROTECTOR, QUARTER PANEL, RH

main58741-02020iAE111,EE111,WZE110,ZZE11#..UKP199809-200111

main58741-12120iCDE110,WZE110,ZZE11#..HB199704-200107

main58741-12130iCDE110,ZZE11#..JPP..LB199704-200109

58742CPROTECTOR, QUARTER PANEL, LH

main58742-02020iAE111,EE111,WZE110,ZZE11#..UKP199809-200111

main58742-12110iCDE110,WZE110,ZZE11#..HB199704-200107

main58742-12120iAE111,CE110,EE111..JPP..LB199704-200109

76603MUDGUARD SUB-ASSY, FRONT FENDER, RH

main76621-02070iAE111,EE111,WZE110,ZZE11#..UKP199809-200111

main76621-12181iAE111,CE110,EE111199704-200109

76604MUDGUARD SUB-ASSY, FRONT FENDER, LH

main76622-02070iAE111,EE111,WZE110,ZZE11#..UKP199809-200111

main76622-12181iCDE110,WZE110,ZZE11#..JPP199704-200109

76607MUDGUARD SUB-ASSY, QUARTER PANEL, REAR RH

main76625-02070iAE111,EE111,WZE110,ZZE11#..UKP199809-200111

main76625-12440iCDE110,WZE110,ZZE11#..JPP199704-200109

76608MUDGUARD SUB-ASSY, QUARTER PANEL, REAR LH

main76626-02070iAE111,EE111,WZE110,ZZE11#..UKP199809-200111

main76626-12430iCDE110,WZE110,ZZE11#..JPP199704-200109

76851ACOVER, FRONT SPOILER, RH

main76851-02010iAE111,EE111..UKP..LUNA199809-199911

main76851-12090iAE111,CE110,EE111..JPP..LUNA199704-199910

main76851-12130iCDE110,WZE110,ZZE11#..G6,SOL199910-200111

main76851-12150iAE111,EE111..G6199808-199910

76852ACOVER, FRONT SPOILER, LH

main76852-02010iAE111,EE111..UKP..LUNA199809-199911

main76852-12070iAE111,CE110,EE111..G6,LUNA199704-199910

main76852-12090iCDE110,WZE110,ZZE11#..G6,SOL199910-200111

main76852-12110iAE111,EE111..G6199808-199910

76853ARETAINER, FRONT SPOILER, UPPER NO.1

main76853-02010iAE111,EE111..UKP..LUNA199809-199911

main76853-12070iAE111,CE110,EE111..JPP..LUNA199704-199910

76871SPOILER, REAR

main76871-12260iAE111,CE110,EE111..HB199704-200107

main76871-12908iAE111,CE110,EE111..JPP..LB..(G6,LUNA)199704-200111

76872PROTECTOR, REAR SPOILER, NO.1

main76872-12160iCDE110,WZE110,ZZE11#..HB199704-200107

76873PROTECTOR, REAR SPOILER, NO.2

main76873-12110iCDE110,WZE110,ZZE11#..HB199704-200107

76874PROTECTOR, REAR SPOILER, NO.3

main76874-12120iCDE110,WZE110,ZZE11#..HB..(STD,TERRA)199704-200107

main76874-12170iCDE110,WZE110,ZZE11#..HB..(G6,SOL)199910-200107

76875PROTECTOR, REAR SPOILER, NO.4

main76875-12100iCDE110,WZE110,ZZE11#..HB199704-200107

9015960488

main90159-60488

9015960500

main90159-60500

9017906214

main90179-06214

9018306019

main90183-06019

9018905144

main90189-05144

9018906006

main90189-06006

9046709075

main90467-09075

9054005028

main90540-05028

22 parts on this diagram · 5 diagrams in section
