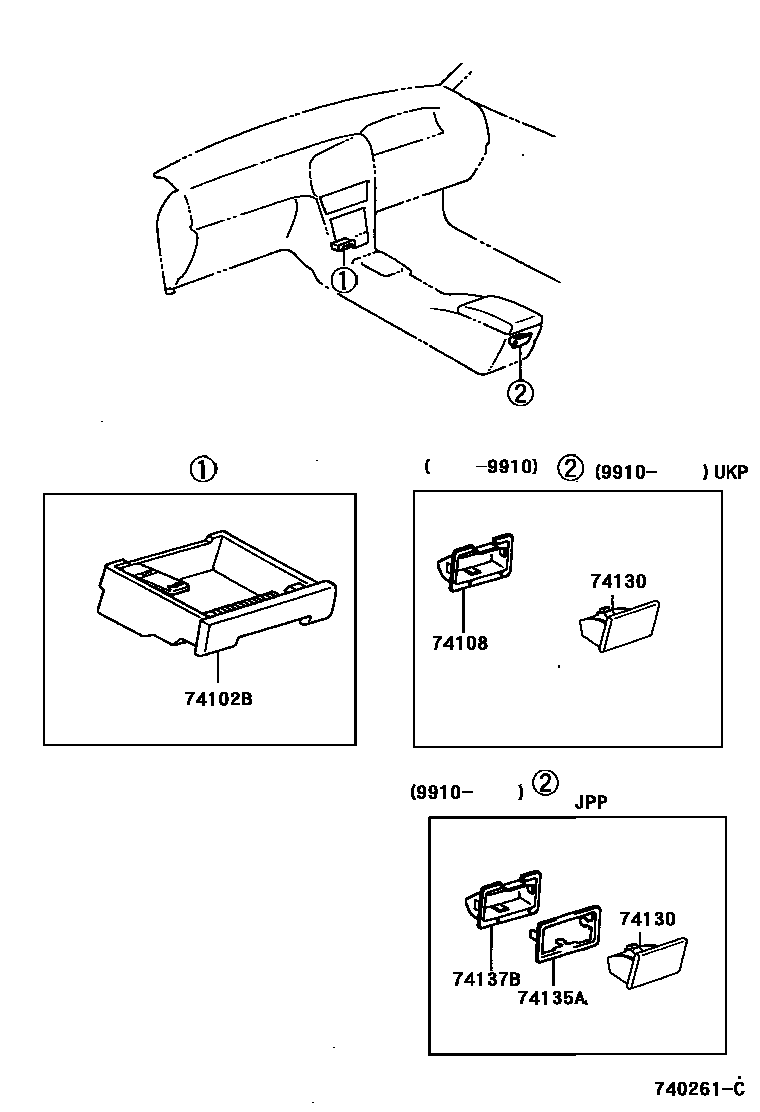

ASH RECEPTACLE

74102BBOX SUB-ASSY, FRONT ASH RECEPTACLE

main74102-02020-B0iAE111,EE111..UKP199809-199901

SHADOW GRAY,TRIM12

main74102-02020-B0iZZE112..6F..SOL;AE111,EE111..UKP..TERRA199901-200111

SHADOW GRAY,TRIM1#

main74102-02020-B0iWZE110,ZZE11#..UKP..TERRA199911-200111

SHADOW GRAY,TRIM16

main74102-02020-B1iWZE110,ZZE11#..UKP..TERRA199911-200111

DK.CHARCOAL,TRIM11

main74102-02020-B1iAE111,EE111..UKP..TERRA199809-199911

DK.CHARCOAL,TRIM0#,1#

main74102-02030-B1iAE111,EE111..UKP..LUNA199901-199911

WOOD GRAIN,LIGHT SILVER,TRIM1#

main74102-02030-G0iAE111,EE111..UKP..LUNA199809-199911

GREEN,TRIM0#

main74102-02030-J0iAE111,EE111..UKP..LUNA199809-199911

BLUE,TRIM10

main74102-02060-B0iAE111,EE111..UKP..LUNA199901-199911

LIGHT SILVER,TRIM1#

main74102-02060-B0iWZE110,ZZE11#..UKP..(4FC,5F)..SOL199911-200111

LIGHT SILVER,TRIM11,16

main74102-12250-B0iZZE11#..LHD..G6199704-200107

SHADOW GRAY,TRIM1#

sub74102-12250

main74102-12250-B0iAE111,CE110,EE111..JPP..LHD..TERRA199808-199910

SHADOW GRAY,TRIM12

sub74102-12250

main74102-12250-B0iCDE110,WZE110,ZZE11#..JPP..LHD..TERRA199910-200109

SHADOW GRAY,TRIM16

sub74102-12250

main74102-12250-B0iAE111,EE111..LHD..HB..5F..TERRA199804-199807

G6 GRADE PACKAGE,SHADOW GRAY,TRIM12

sub74102-12250

main74102-12250-B0iEE111..LHD..G6199704-199808

SHADOW GRAY,TRIM0#

sub74102-12250

main74102-12250-B1iAE111,CE110,EE111..JPP..LHD..TERRA199704-200107

DK.CHARCOAL,TRIM1#

sub74102-12250

main74102-12250-B1iCDE110,WZE110,ZZE11#..JPP..LHD..TERRA199910-200109

DK.CHARCOAL,TRIM11

sub74102-12250

main74102-12250-B1iEE111..STD199808-199910

DK.CHARCOAL,TRIM0#,10

sub74102-12250

main74102-12260-B0iAE111,EE111..RHD..G6199704-200107

SHADOW GRAY,TRIM1#

sub74102-12260

main74102-12260-B0iZZE11#..RHD..G6199910-200107

SHADOW GRAY,TRIM16

sub74102-12260

main74102-12260-B0iAE111,EE111..RHD..HB..5F..TERRA199804-199807

G6 GRADE PACKAGE,SHADOW GRAY,TRIM12

sub74102-12260

main74102-12260-B0iEE111..RHD..G6199704-199808

SHADOW GRAY,TRIM0#

sub74102-12260

main74102-12260-B0iAE111,CE110,EE111..JPP..RHD199808-199910

SHADOW GRAY,TRIM12

sub74102-12260

main74102-12260-B1iAE111,CE110,EE111..JPP..RHD..TERRA199808-199910

DK.CHARCOAL,TRIM0#,10

sub74102-12260

main74102-12260-B1iAE111,CE110,EE111..RHD..TERRA199704-199808

DK.CHARCOAL,TRIM1#

sub74102-12260

main74102-12260-B1iCDE110,WZE110,ZZE11#..JPP..RHD..TERRA199910-200107

DK.CHARCOAL,TRIM11

sub74102-12260

main74102-12270-B2iAE111,CE110,EE111..RHD..LUNA199704-199808

GRAY,TRIM0#

sub74102-12270

main74102-12270-E1iAE111,CE110,EE111..JPP..RHD..LUNA199901-199910

BROWN,TRIM12

sub74102-12270

main74102-12270-G0iAE111,CE110,EE111..JPP..RHD..LUNA199808-199910

GREEN,TRIM0#

sub74102-12270

main74102-12270-J0iAE111,CE110,EE111..JPP..RHD..LUNA199901-199910

BLUE,TRIM10

sub74102-12270

main74102-12270-J0iEE111..JPP..RHD..3FC..LUNA;AE111,CE110,EE111..JPP..RHD..LB..(4FC,5F)..LUNA199704-199901

BLUE,TRIM1#

sub74102-12270

main74102-12300-B2iAE111,CE110,EE111..LHD..LUNA199704-199808

GRAY,TRIM0#

sub74102-12300

main74102-12300-G0iAE111,CE110,EE111..JPP..LHD..LUNA199808-199910

GREEN,TRIM0#

sub74102-12300

main74102-12300-J0iAE111,CE110,EE111..JPP..LHD..LUNA199704-199910

BLUE,TRIM10

sub74102-12300

main74102-12330-B0iCDE110,WZE110,ZZE11#..JPP..LHD..SOL199910-200109

LIGHT SILVER,TRIM11,16

sub74102-12250

main74102-12330-B0iAE111,CE110,EE111..JPP..LHD..LUNA199901-199910

LIGHT SILVER,TRIM1#

sub74102-12250

main74102-12340-B0iCDE110,ZZE11#..JPP..RHD..SOL199910-200107

LIGHT SILVER,TRIM11,16

main74102-12340-B0iAE111,CE110,EE111..JPP..RHD..LB..LUNA199901-199910

LIGHT SILVER,TRIM1#

74108RETAINER SUB-ASSY, REAR ASH RECEPTACLE

main74108-05010iAE111,EE111,WZE110,ZZE11#..UKP199809-200111

74130RECEPTACLE ASSY, REAR ASH

main74109-05010-A0iAE111,EE111..UKP199809-199911

IVORY,TRIM0#

main74109-05010-B0iZZE112..6F..SOL199911-200111

SHADOW GRAY,TRIM16

main74109-05010-B0iAE111,EE111..UKP199809-199911

SHADOW GRAY,TRIM12

main74109-05010-B0iWZE110,ZZE11#..UKP..(4FC,5F)199911-200111

SHADOW GRAY,TRIM1#

main74109-05010-B1iAE111,EE111..UKP199809-199911

MD.CHARCOAL,TRIM10

main74109-05010-B1iWZE110,ZZE11#..UKP..(4FC,5F)199911-200111

MD.CHARCOAL,TRIM11

main74109-12020-A0iAE111,CE110,EE111..LUNA,TERRA199704-199910

IVORY,TRIM0#

sub74109-20080

sub74109-12020

main74109-12020-B3iAE111,CE110,EE111..LUNA,STD,TERRA199704-200107

MD.CHARCOAL,TRIM1#

sub74109-20080

sub74109-12020

main74109-12020-B3iAE111,CE110,EE111..JPP..(LUNA,TERRA)199808-199910

MD.CHARCOAL,TRIM10

sub74109-20080

sub74109-12020

main74109-12020-B3iCDE110,WZE110,ZZE11#..JPP..(SOL,TERRA)199910-200109

MD.CHARCOAL,TRIM11

sub74109-20080

sub74109-12020

main74109-12020-P0iZZE11#..G6199704-200107

SHADOW GRAY,TRIM1#

sub74109-20080

sub74109-12020

main74109-12020-P0iAE111,EE111..HB..5F..TERRA199804-199807

G6 GRADE PACKAGE,SHADOW GRAY,TRIM12

sub74109-20080

sub74109-12020

main74109-12020-P0iAE111,CE110,EE111..JPP..(LUNA,TERRA)199808-199910

SHADOW GRAY,TRIM12

sub74109-20080

sub74109-12020

main74109-12020-P0iCDE110,WZE110,ZZE11#..JPP..(SOL,TERRA)199910-200109

SHADOW GRAY,TRIM16

sub74109-20080

sub74109-12020

74135ARETAINER, REAR ASH RECEPTACLE, NO.1

main74135-12040iCDE110,WZE110,ZZE11#..JPP199910-200109

74137BRETAINER, REAR ASH RECEPTACLE, INNER

main74137-12010iCDE110,WZE110,ZZE11#..JPP199910-200109

5 parts on this diagram · 1 diagram in section
