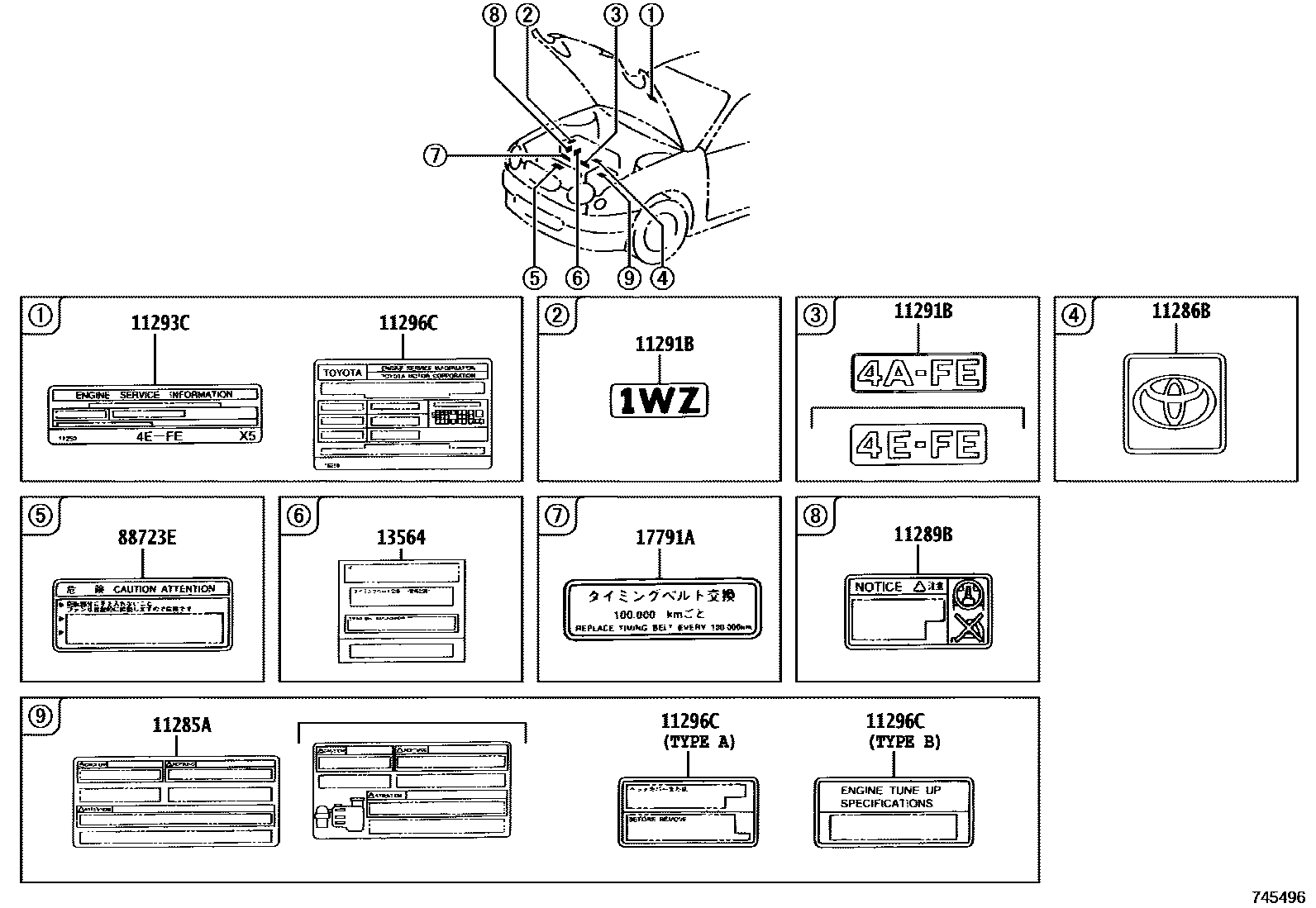

CAUTION PLATE (EXTERIOR & INTERIOR)
11285ALABEL, COOLANT SYSTEM NOTICE
11286BPLATE, ENGINE SPECIFICATION
11289BLABEL, SPARK PLUG NOTICE
11291BPLATE, ENGINE NAME
4A-FE
11293CLABEL, TUNE-UP SPECIFICATION INFORMATION
11296CLABEL, ENGINE SERVICE INFORMATION
TYPE A:REFER ILLUST.
TYPE B:REFER ILLUST.
13564LABEL, TIMING BELT REPLACEMENT INFORMATION
17791ALABEL, MAINTENANCE INFORMATION
9 parts on this diagram · 2 diagrams in section
