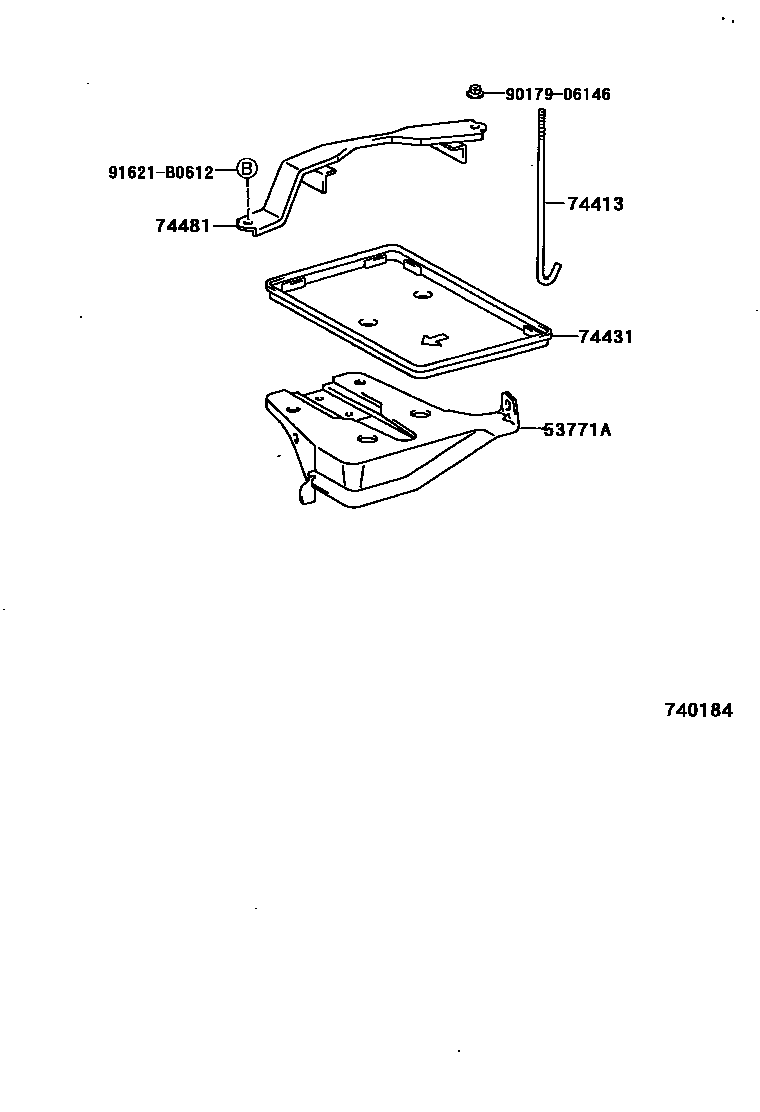

BATTERY CARRIER

53771ASUPPORT, BATTERY CARRIER

main53706-12030iCDE110,WZE110199704-200111

main53771-13010iZZE11#;AE111,EE111..UKP199704-200111

74413BOLT, BATTERY CLAMP

main74451-12061iAE111..JPP..LB;AE111..HB..(G6,TERRA);EE111..JPP..3FC..LUNA;EE111..JPP..LB..5F..LUNA;EE111..JPP..(G6,STD,TERRA);AE111,EE111..LHD..HB..(4FC,5F)..LUNA199704-200009

main74451-12090iCDE110,WZE110199704-200111

main74451-12100iAE111,EE111,ZZE11#..UKP199809-200111

main74451-12130iZZE11#..JPP200009-200109

sub74451-12140

74431TRAY, BATTERY

main74431-02010iAE111,EE111,ZZE11#..UKP199809-200111

main74431-02040iWZE110..LB199912-200111

main74431-12040iCDE110,WZE110..JPP199704-200109

W(95D31L 64AH(NX120-7L) BATTERY)

main74431-12050iCDE110,WZE110..JPP199804-200109

sub74431-12051

main74431-12060iZZE11#..JPP199704-200109

main74431-12080iAE111..JPP..LB;AE111..HB..(G6,TERRA);EE111..JPP..3FC..LUNA;EE111..JPP..LB..5F..LUNA;EE111..JPP..(G6,STD,TERRA);AE111,EE111..LHD..HB..(4FC,5F)..LUNA199704-200109

W(50D20L BATTERY)

74481CLAMP, BATTERY HOLD DOWN

main74404-12330iZZE11#..JPP199704-200109

main74404-12350iAE111,EE111199704-200109

W(50D20L BATTERY)

main74404-12360iCE110199704-199710

sub74404-12361

main74404-12361iCDE110,WZE110..JPP199710-200109

main74404-12370iAE111,EE111,ZZE11#..UKP199809-200111

main74404-12390iWZE110..LB199912-200111

9017906146

main90179-06146

91621B0612

main91621-B0612

6 parts on this diagram · 1 diagram in section
