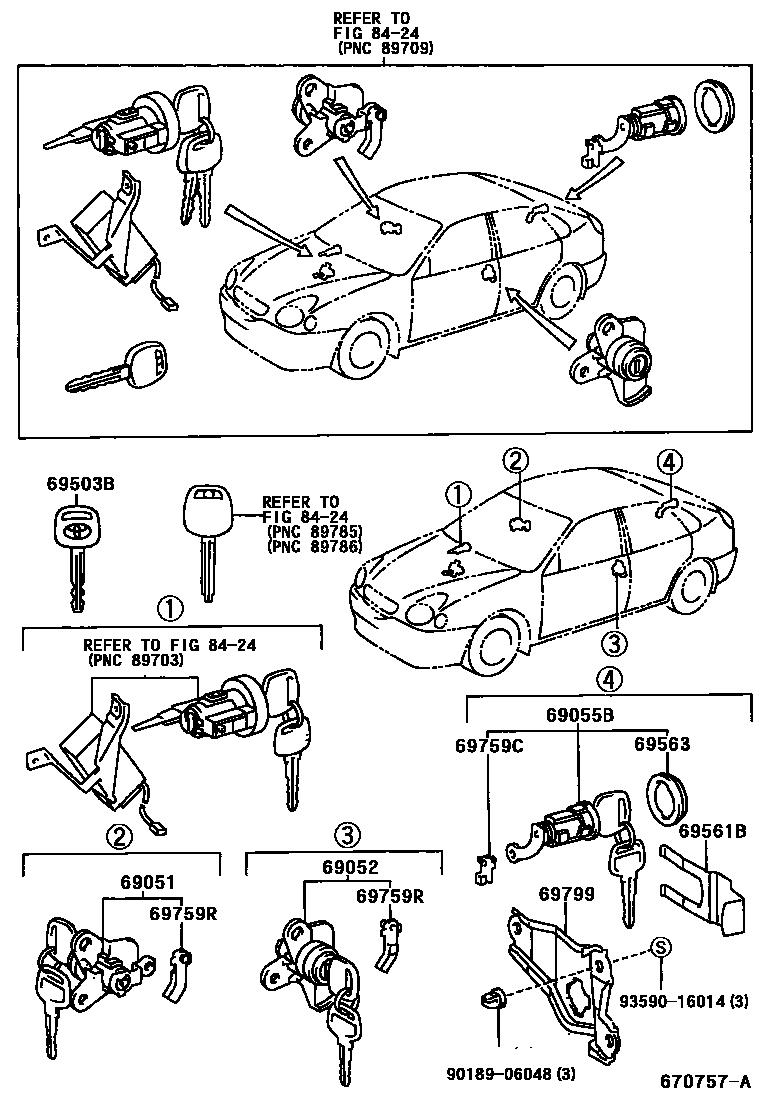

LOCK CYLINDER SET

0001 1W(ENGINE IMMOBILIZER SYSTEM) 0002 1W(ENGINE IMMOBILIZER SYSTEM)

69051CYLINDER & KEY SET, DOOR LOCK, RH

main69051-02020iAE111,EE111,WZE110,ZZE11#..UKP199809-200111

main69051-12530iAE111,CE110,EE111..JPP199704-200109

69052CYLINDER & KEY SET, DOOR LOCK, LH

main69052-02020iAE111,EE111,WZE110,ZZE11#..UKP199809-200111

main69052-12530iAE111,CE110,EE111..JPP199704-200109

69055BCYLINDER & KEY SET, BACK DOOR LOCK

main69055-02020iAE111,EE111,WZE110,ZZE11#..UKP199809-200111

main69055-1A270iCDE110,WZE110,ZZE11#..JPP199704-200109

69503BKEY, CUT

main69515-05010iAE111,EE111..UKP199809-200111

MASTER KEY(VALEO)

69561BRETAINER, BACK DOOR LOCK CYLINDER

main69511-16030iAE111,CE110,EE111..HB199704-200107

main69561-02020iAE111,EE111,WZE110,ZZE11#..UKP199809-200111

main69561-32050iCDE110,ZZE11#..JPP..LB199704-200109

69563PAD, BACK DOOR LOCK CYLINDER

main69563-20040iAE111,CE110,EE111..JPP199704-200109

69759CSNAP, BACK DOOR LOCK CYLINDER

main69759-24090iAE111,EE111..UKP;CDE110,WZE110,ZZE11#199704-200111

69759RSNAP, FRONT DOOR LOCK CYLINDER

main69759-12080iAE111,EE111..UKP;CDE110,WZE110,ZZE11#199704-200111

RH

main69759-12090iAE111,EE111..UKP;CDE110,WZE110,ZZE11#199704-200111

LH

69799BRACKET, BACK DOOR LOCK CYLINDER

main69799-02010iAE111,EE111,WZE110,ZZE11#..UKP199809-200111

main69799-12010iCDE110,ZZE11#..JPP..LB199704-200109

main69799-12020iCDE110,WZE110,ZZE11#..HB199704-200107

8424

9018906048

main90189-06048

9359016014

main93590-16014

12 parts on this diagram · 2 diagrams in section
