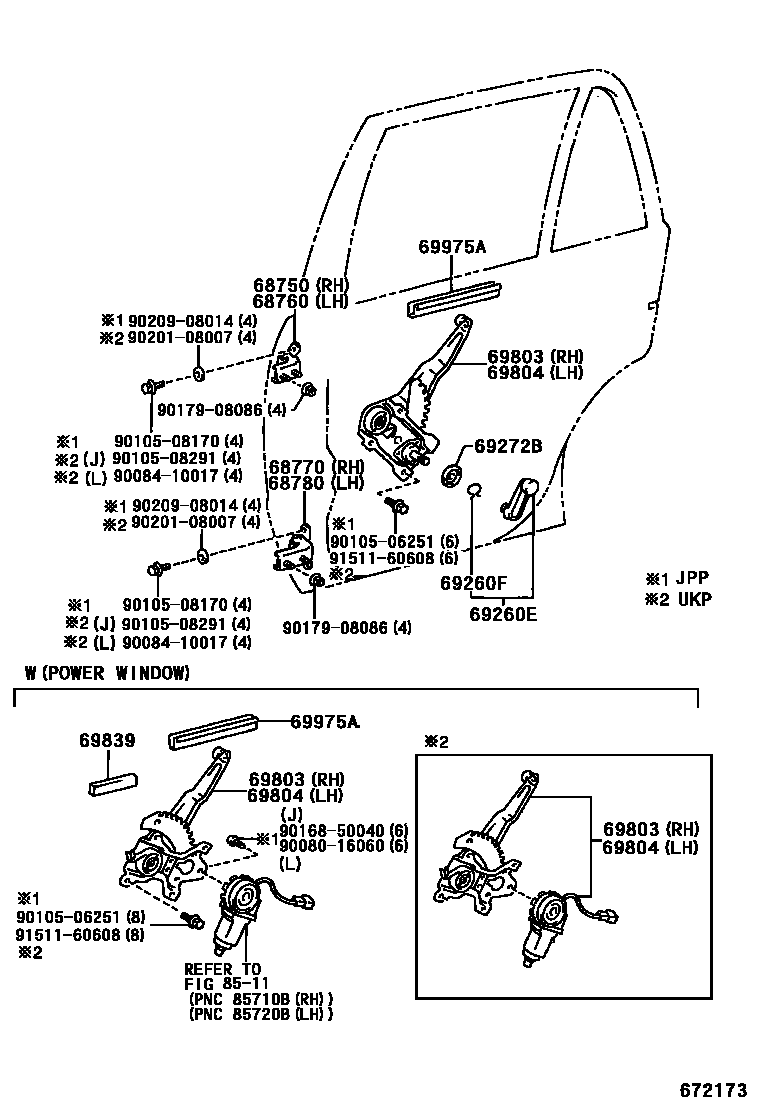

REAR DOOR WINDOW REGULATOR & HINGE

68750HINGE ASSY, REAR DOOR, UPPER RH

main68750-02040iWZE110,ZZE11#..UKP199911-200111

sub68750-32060

main68750-32060iAE111,EE111..UKP;CDE110,ZZE11#..JPP..LB199704-200109

68760HINGE ASSY, REAR DOOR, UPPER LH

main68760-02040iWZE110,ZZE11#..UKP199911-200111

sub68760-32060

main68760-32060iAE111,CE110,EE111..JPP..LB199704-200109

68770HINGE ASSY, REAR DOOR, LOWER RH

main68770-02040iWZE110,ZZE11#..UKP199911-200111

sub68770-12100

main68770-12100iAE111,EE111..UKP;CDE110,ZZE11#..JPP..LB199704-200109

68780HINGE ASSY, REAR DOOR, LOWER LH

main68780-02040iWZE110,ZZE11#..UKP199911-200111

sub68780-12090

main68780-12090iAE111,EE111..UKP;CDE110,ZZE11#..JPP..LB199704-200109

69260EHANDLE ASSY, REAR DOOR WINDOW REGULATOR

main69260-02020-A0iAE111,EE111..UKP199809-199911

IVORY,TRIM0#

sub69260-02020

sub69260-02021

main69260-02020-B0iAE111,EE111..UKP199809-199911

SHADOW GRAY,TRIM12

sub69260-02020

sub69260-02021

main69260-02020-B0iWZE110,ZZE11#..UKP..TERRA199911-200111

SHADOW GRAY,TRIM16

sub69260-02020

sub69260-02021

main69260-02020-B1iAE111,EE111..UKP199809-199911

MD.CHARCOAL,TRIM10

sub69260-02020

sub69260-02021

main69260-02020-B1iWZE110,ZZE11#..UKP..TERRA199911-200111

MD.CHARCOAL,TRIM11

sub69260-02020

sub69260-02021

main69260-14030-A0iAE111..JPP..LB;AE111..HB..TERRA;CE110,EE111..JPP..TERRA;CE110,EE111..JPP..LB..LUNA;AE111,CE110,EE111..LHD..HB..LUNA199704-199910

IVORY,TRIM0#

sub69260-14030

main69260-14030-B4iEE111..STD199808-199910

MD.CHARCOAL,TRIM10

sub69260-14030

main69260-14030-B4iZZE111..STD199704-200107

MD.CHARCOAL,TRIM1#

sub69260-14030

main69260-14030-B4iCDE110,WZE110,ZZE11#..JPP..TERRA199910-200109

MD.CHARCOAL,TRIM11

sub69260-14030

main69260-14030-P0iEE111..LB..G6;AE111,EE111..LHD..HB..G6199704-199910

SHADOW GRAY,TRIM1#

sub69260-14030

main69260-14030-P0iCDE110,WZE110,ZZE11#..JPP..TERRA199910-200109

SHADOW GRAY,TRIM16

sub69260-14030

main69260-14030-P0iEE111..JPP..TERRA;EE111..JPP..LB..LUNA;EE111..LHD..HB..LUNA;AE111,CE110..JPP..(LUNA,TERRA)199808-199910

SHADOW GRAY,TRIM12

sub69260-14030

69260FRING, SHAFT SNAP(FOR REAR DOOR WINDOW REGULATOR HANDLE)

main90080-52100iAE111,EE111,WZE110,ZZE11#..UKP..(LUNA,TERRA)199809-200111

main90520-01274iCDE110,WZE110,ZZE11#..JPP..(STD,TERRA)199704-200109

69272BPLATE, REAR DOOR REGULATOR INSIDE HANDLE

main69268-02020iAE111,EE111..UKP199809-199905

sub69268-02021

main69268-02021iAE111,EE111,WZE110,ZZE11#..UKP..(LUNA,TERRA)199905-200111

main69268-20020iCDE110,WZE110,ZZE11#..JPP..(STD,TERRA)199704-200109

sub69285-22010

69803REGULATOR SUB-ASSY, REAR DOOR WINDOW, RH

main69803-12120iAE111,CE110,EE111..JPP..LB..LUNA199704-199910

W(POWER WINDOW)

main69803-12120iCDE110,ZZE11#..JPP..LB..SOL199910-200109

main69830-02070iAE111,EE111,WZE110,ZZE11#..UKP..(LUNA,TERRA)199809-200111

main69830-02080iAE111,EE111..UKP..LUNA199809-199911

W(POWER WINDOW)

main69830-02080iWZE110,ZZE11#..UKP..SOL199911-200111

main69830-12320iAE111,CE110,EE111..JPP..LB199704-200109

69804REGULATOR SUB-ASSY, REAR DOOR WINDOW, LH

main69804-12120iZZE11#..JPP..LB..SOL199704-200109

W(POWER WINDOW)

main69804-12120iCDE110..LB..SOL200008-200109

main69840-02070iAE111,EE111,WZE110,ZZE11#..UKP..(LUNA,TERRA)199809-200111

main69840-02080iAE111,EE111..UKP..LUNA199809-199911

W(POWER WINDOW)

main69840-02080iWZE110,ZZE11#..UKP..SOL199911-200111

main69840-12320iCDE110,ZZE11#..JPP..LB..TERRA199704-200109

69839PAD, REAR DOOR WINDOW REGULATOR

main69839-12020iCDE110,ZZE11#..JPP..LB..SOL199704-200109

69975AFILLER, REAR DOOR GLASS CHANNEL

main69975-12010iCDE110,ZZE11#..LB;AE111,EE111,WZE110..UKP199704-200111

8511

9008016060

main90080-16060

9008410017

main90084-10017

9010506251

main90105-06251

9010508170

main90105-08170

9010508291

main90105-08291

9016850040

main90168-50040

9017908086

main90179-08086

9020108007

main90201-08007

9020908014

main90209-08014

9151160608

main91511-60608

22 parts on this diagram · 1 diagram in section
