REAR DOOR PANEL & GLASS

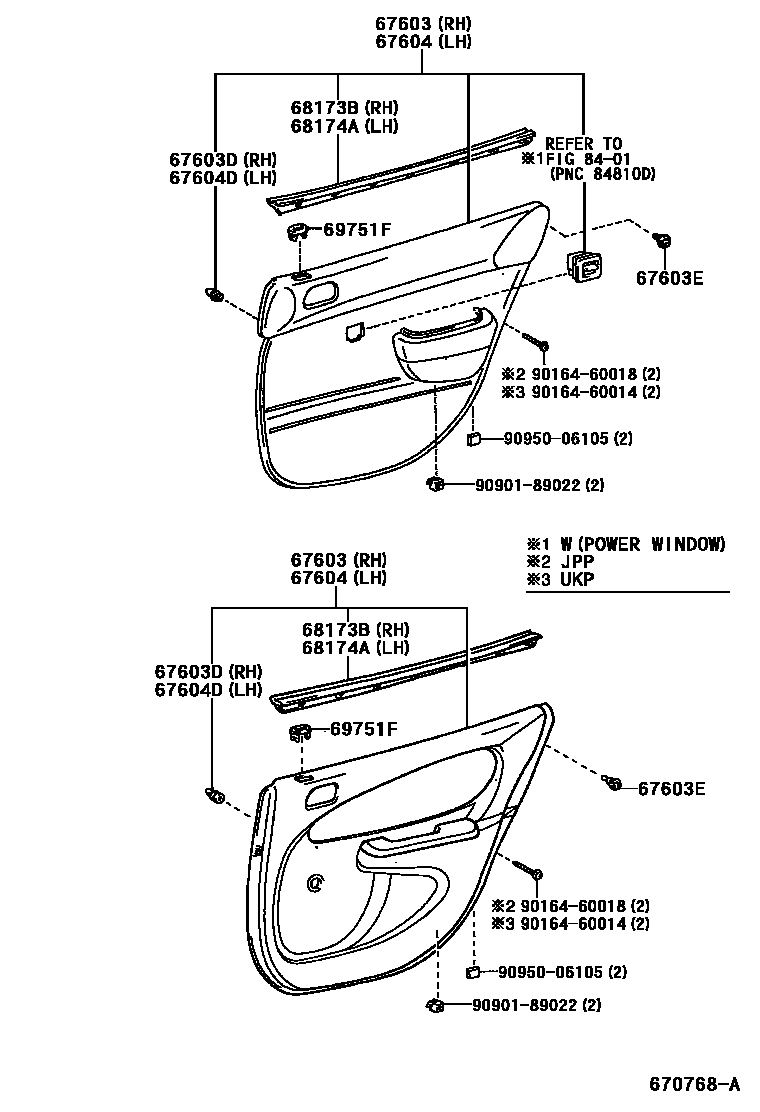

Parts diagram
67603BOARD SUB-ASSY, REAR DOOR TRIM, RH
main67010-12120-B0i199808-199901
G6 GRADE PACKAGE & W(POWER WINDOW = FRONT & REAR),MD. CHARCOAL,TRIM1#
main67010-12180-B0i199910-200109
MIDIUM CHARCOAL,TRIM11
main67010-12180-B1i199910-200109
SHADOW GRAY,TRIM16
main67010-12210-B0i199910-200109
MIDIUM CHARCOAL,TRIM11
main67010-12210-B1i199910-200109
SHADOW GRAY,TRIM16
main67630-02250-A2i199809-199911
IVORY,TRIM0#
main67630-02250-B1i199809-199911
MD.CHARCOAL,TRIM10
main67630-02250-B3i199901-199911
SHADOW GRAY,TRIM12
main67630-02260-A2i199809-199911
IVORY,TRIM0#
main67630-02260-B1i199809-199911
MD.CHARCOAL,TRIM10
main67630-02260-B3i199901-199911
SHADOW GRAY,TRIM12
main67630-02270-A2i199809-199911
W(POWER WINDOW),IVORY,TRIM0#
main67630-02270-B1i199809-199911
W(POWER WINDOW),MD.CHARCOAL,TRIM10
main67630-02270-B3i199901-199911
W(POWER WINDOW),SHADOW GRAY,TRIM1#
main67630-02280-B1i199809-199901
SHADOW GRAY,TRIM12
main67630-02400-B0i199809-199901
W(POWER WINDOW),SHADOW GRAY,TRIM12
main67630-02410-B0i199911-200111
MD.CHARCOAL,TRIM11
main67630-02410-B1i199911-200111
SHADOW GRAY,TRIM16
main67630-02420-B0i199911-200111
MD.CHARCOAL,TRIM11
main67630-02420-B1i199911-200111
SHADOW GRAY,TRIM16
main67630-02430-B0i199911-200111
SHADOW GRAY,TRIM1#
main67630-1H370-A1i199704-199709
IVORY,TRIM0#
main67630-1H370-B1i199704-199709
MD. CHARCOAL,TRIM1#
main67630-1H580-A1i199704-199808
IVORY,TRIM0#
main67630-1H580-B1i199704-199804
MD. CHARCOAL,TRIM1#
main67630-1H600-A1i199704-199709
W(POWER WINDOW),IVORY,TRIM0#
main67630-1H600-B1i199704-199709
W(POWER WINDOW),MD. CHARCOAL,TRIM1#
main67630-1H810-A0i199709-199808
IVORY,TRIM0#
main67630-1H810-B0i199709-199804
MD.CHARCOAL.,TRIM1#
main67630-1H880-A0i199709-199808
W(POWER WINDOW),IVORY,TRIM0#
main67630-1H880-B0i199709-199804
W(POWER WINDOW),MD.CHARCOAL.,TRIM1#
main67630-1K010-A1i199808-199910
IVORY,TRIM0#
main67630-1K010-B0i199808-199901
MD.CHARCOAL,TRIM1#
main67630-1K010-B3i199901-199910
SHADOW GRAY,TRIM12
main67630-1K020-A1i199808-199910
IVORY,TRIM0#
main67630-1K020-B0i199901-199910
MD.CHARCOAL,TRIM10
main67630-1K020-B2i199901-199910
SHADOW GRAY,TRIM12
main67630-1K030-A1i199808-199910
W(POWER WINDOW = FRONT & REAR),IVORY,TRIM0#
main67630-1K030-B0i199901-199910
W(POWER WINDOW = FRONT & REAR),MD.CHARCOAL,TRIM10
main67630-1K030-B3i199901-199910
W(POWER WINDOW = FRONT & REAR),SHADOW GRAY,TRIM12
main67630-1K070-B0i199704-199910
SHADOW GRAY,TRIM1#
67603DRETAINER, REAR DOOR TRIM, RH
main67771-12050×5i199809-200111
67603ECLIP(FOR REAR DOOR TRIM BOARD)
main90467-06133-A0×4i199809-199911
IVORY,TRIM0#
main90467-06133-B0×4i199910-200111
SHADOW GRAY,TRIM16
main90467-06133-B4×4i199809-199911
MD.CHARCOAL,TRIM1#
main90467-06133-C0×4i199704-199910
BLACK,TRIM1#
67604BOARD SUB-ASSY, REAR DOOR TRIM, LH
main67020-12120-B0i199808-199901
G6 GRADE PACKAGE & W(POWER WINDOW = FRONT & REAR),MD. CHARCOAL,TRIM1#
main67020-12180-B0i199910-200109
MIDIUM CHARCOAL,TRIM11
main67020-12180-B1i199910-200109
SHADOW GRAY,TRIM16
main67020-12210-B0i199910-200109
MIDIUM CHARCOAL,TRIM11
main67020-12210-B1i199910-200109
SHADOW GRAY,TRIM16
main67640-02250-A2i199809-199911
IVORY,TRIM0#
main67640-02250-B1i199809-199911
MD.CHARCOAL,TRIM10
main67640-02250-B3i199901-199911
SHADOW GRAY,TRIM12
main67640-02260-A2i199809-199911
IVORY,TRIM0#
main67640-02260-B1i199809-199911
MD.CHARCOAL,TRIM10
main67640-02260-B3i199901-199911
SHADOW GRAY,TRIM12
main67640-02270-A2i199809-199911
W(POWER WINDOW),IVORY,TRIM0#
main67640-02270-B1i199809-199911
W(POWER WINDOW),MD.CHARCOAL,TRIM10
main67640-02270-B3i199901-199911
W(POWER WINDOW),SHADOW GRAY,TRIM1#
main67640-02280-B1i199809-199901
SHADOW GRAY,TRIM12
main67640-02400-B0i199809-199901
W(POWER WINDOW),SHADOW GRAY,TRIM12
main67640-02410-B0i199911-200111
MD.CHARCOAL,TRIM11
main67640-02410-B1i199911-200111
SHADOW GRAY,TRIM16
main67640-02420-B0i199911-200111
MD.CHARCOAL,TRIM11
main67640-02420-B1i199911-200111
SHADOW GRAY,TRIM16
main67640-02430-B0i199911-200111
SHADOW GRAY,TRIM1#
main67640-1H370-A1i199704-199709
IVORY,TRIM0#
main67640-1H370-B1i199704-199709
MD. CHARCOAL,TRIM1#
main67640-1H580-A1i199704-199808
IVORY,TRIM0#
main67640-1H580-B1i199704-199804
MD. CHARCOAL,TRIM1#
main67640-1H600-A1i199704-199709
W(POWER WINDOW),IVORY,TRIM0#
main67640-1H600-B1i199704-199709
W(POWER WINDOW),MD. CHARCOAL,TRIM1#
main67640-1H790-A0i199709-199808
IVORY,TRIM0#
main67640-1H790-B0i199709-199808
MD.CHARCOAL.,TRIM1#
main67640-1H810-A0i199709-199808
W(POWER WINDOW),IVORY,TRIM0#
main67640-1H810-B0i199709-199804
W(POWER WINDOW),MD.CHARCOAL.,TRIM1#
main67640-1H890-A1i199808-199910
IVORY,TRIM0#
main67640-1H890-B0i199808-199901
MD.CHARCOAL,TRIM1#
main67640-1H890-B3i199901-199910
SHADOW GRAY,TRIM12
main67640-1K010-A1i199808-199910
IVORY,TRIM0#
main67640-1K010-B0i199808-199901
MD.CHARCOAL,TRIM1#
main67640-1K010-B2i199901-199910
SHADOW GRAY,TRIM12
main67640-1K020-A1i199808-199910
W(POWER WINDOW = FRONT & REAR),IVORY,TRIM0#
main67640-1K020-B0i199808-199901
W(POWER WINDOW = FRONT & REAR),MD.CHARCOAL,TRIM1#
main67640-1K020-B3i199901-199910
W(POWER WINDOW = FRONT & REAR),SHADOW GRAY,TRIM12
main67640-1K070-B0i199808-199901
G6 GRADE PACKAGE & W(POWER WINDOW---FRONT & POWER DOOR LOCK),SHADOW GRAY,TRIM1#
67604DRETAINER, REAR DOOR TRIM, LH
main67771-12050×5i199809-200111
68173BWEATHERSTRIP, REAR DOOR GLASS, INNER RH
main68173-02070i199809-200111
main68173-12260i199910-200109
68174AWEATHERSTRIP, REAR DOOR GLASS, INNER LH
main68174-02040i199809-200111
main68174-12120i199910-200109
69751FHOLDER, REAR DOOR LOCK CONTROL KNOB
main69751-02040-A0×2i199809-199911
IVORY,TRIM0#
main69751-02040-B0×2i199911-200111
SHADOW GRAY,TRIM1#
main69751-02040-B1×2i199809-199911
MD.CHARCOAL,TRIM10
main69751-12070-A0×2i199704-199910
IVORY,TRIM0#
main69751-12070-B0×2i199910-200109
SHADOW GRAY,TRIM16
main69751-12070-B1×2i199808-199910
MD.CHARCOAL,TRIM10
8401
9016460014
main90164-60014
9016460018
main90164-60018
9090189022
main90901-89022
9095006105
main90950-06105

13 parts on this diagram · 2 diagrams in section
