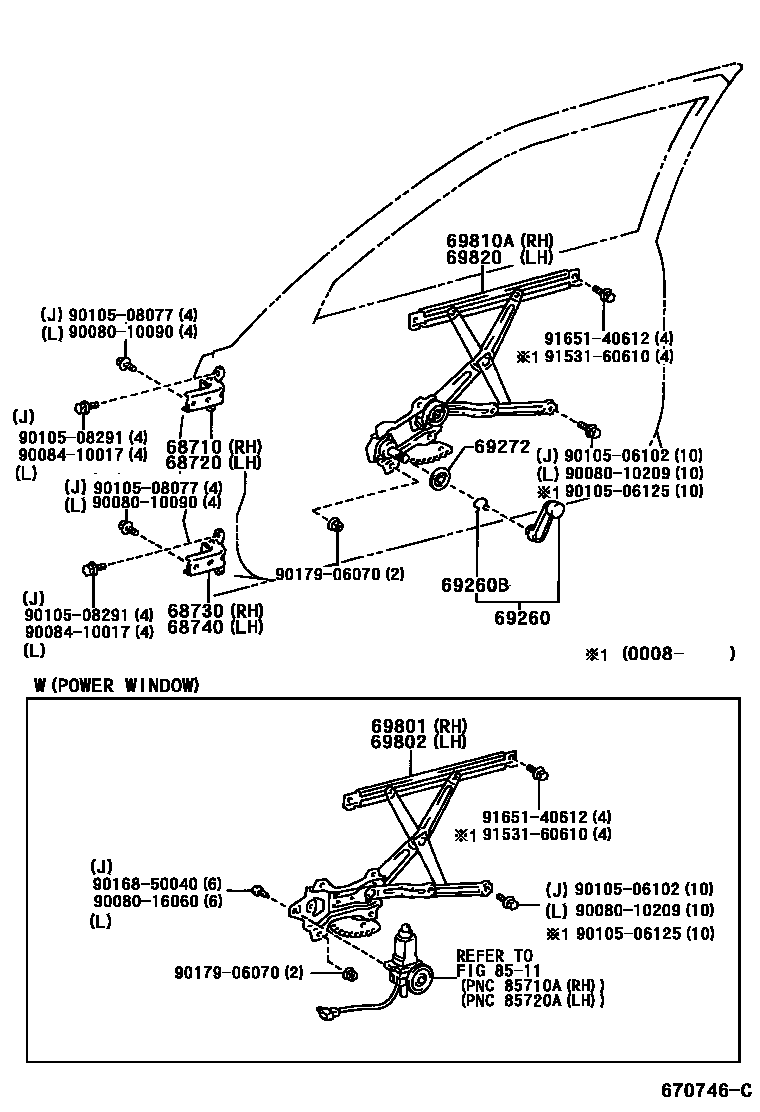

FRONT DOOR WINDOW REGULATOR & HINGE

0001 1 0002 1 0003 1

68710HINGE ASSY, FRONT DOOR, UPPER RH

main68710-02040iWZE110,ZZE11#..UKP199911-200111

sub68710-12151¥2,050

main68710-12150iAE111,EE111..UKP;CDE110,WZE110,ZZE11#..JPP¥3,250199704-200109

sub68710-12151¥2,050

68720HINGE ASSY, FRONT DOOR, UPPER LH

main68720-02040iWZE110,ZZE11#..UKP199911-200111

sub68720-12151¥2,050

main68720-12150iAE111,EE111..UKP;CDE110,WZE110,ZZE11#..JPP¥3,250199704-200109

sub68720-12151¥2,050

68730HINGE ASSY, FRONT DOOR, LOWER RH

main68720-02040iWZE110,ZZE11#..UKP199911-200111

sub68720-12151¥2,050

main68720-12150iAE111,EE111..UKP;CDE110,WZE110,ZZE11#..JPP¥3,250199704-200109

sub68720-12151¥2,050

68740HINGE ASSY, FRONT DOOR, LOWER LH

main68710-02040iWZE110,ZZE11#..UKP199911-200111

sub68710-12151¥2,050

main68710-12150iAE111,EE111..UKP;CDE110,WZE110,ZZE11#..JPP¥3,250199704-200109

sub68710-12151¥2,050

69260HANDLE ASSY, FRONT DOOR WINDOW REGULATOR

main69260-02020-A0iAE111..UKP..LHD;EE111..UKP..TERRA;EE111..UKP..LHD..LUNA;AE111..UKP..RHD..TERRA199809-199911

IVORY,TRIM0#

sub69260-02020¥1,600

sub69260-02021

main69260-02020-B0iWZE110,ZZE11#..UKP..TERRA199911-200111

SHADOW GRAY,TRIM16

sub69260-02020¥1,600

sub69260-02021

main69260-02020-B0iAE111..UKP..LHD;EE111..UKP..TERRA;EE111..UKP..LHD..LUNA;AE111..UKP..RHD..TERRA199809-199911

SHADOW GRAY,TRIM12

sub69260-02020¥1,600

sub69260-02021

main69260-02020-B1iAE111..UKP..LHD;EE111..UKP..TERRA;EE111..UKP..LHD..LUNA;AE111..UKP..RHD..TERRA199809-199911

MD.CHARCOAL,TRIM10

sub69260-02020¥1,600

sub69260-02021

main69260-02020-B1iWZE110,ZZE11#..UKP..TERRA199911-200111

MD.CHARCOAL,TRIM11

sub69260-02020¥1,600

sub69260-02021

main69260-14030-A0iAE111..JPP..LB;AE111..HB..TERRA;CE110,EE111..JPP..TERRA;CE110,EE111..JPP..LB..LUNA;AE111,CE110,EE111..LHD..HB..LUNA199704-199910

IVORY,TRIM0#

sub69260-14030¥1,610

main69260-14030-B4iEE111..JPP..RHD..LB;EE111..JPP..LHD..LUNA;EE111..HB..(STD,TERRA);EE111..JPP..LHD..LB..TERRA;AE111,CE110..JPP..(LUNA,TERRA)199808-199910

MD.CHARCOAL,TRIM10

sub69260-14030¥1,610

main69260-14030-B4iCDE110,ZZE11#..JPP..LB..TERRA199910-200109

MD.CHARCOAL,TRIM11

sub69260-14030¥1,610

main69260-14030-B4iAE111..LB;AE111..HB..TERRA;CE110,EE111..LB..LUNA;CE110,EE111..STD,TERRA;AE111,CE110,EE111..LHD..HB..LUNA199704-199808

MD.CHARCOAL,TRIM1#

sub69260-14030¥1,610

main69260-14030-P0iEE111..LB..G6;EE111..LHD..HB..G6199704-199808

SHADOW GRAY,TRIM1#

sub69260-14030¥1,610

main69260-14030-P0iCDE110,ZZE11#..JPP..LB..TERRA199910-200109

SHADOW GRAY,TRIM16

sub69260-14030¥1,610

main69260-14030-P0iAE111..LHD..G6;EE111..JPP..LB;EE111..HB..TERRA;EE111..LHD..HB..(G6,LUNA);AE111,CE110..JPP..(LUNA,TERRA)199808-199910

SHADOW GRAY,TRIM12

sub69260-14030¥1,610

69260BRING, SHAFT SNAP(FOR FRONT DOOR WINDOW REGULATOR HANDLE)

main90080-52100iAE111..UKP..LHD;EE111..UKP..LHD..LUNA;AE111..UKP..RHD..TERRA;EE111,WZE110,ZZE11#..UKP..TERRA199809-200111

main90520-01274iCDE110,ZZE11#..JPP..LB..TERRA¥160199704-200109

69272PLATE, FRONT DOOR REGULATOR INSIDE HANDLE

main69268-02020iAE111..UKP..LHD;EE111..UKP..TERRA;EE111..UKP..LHD..LUNA;AE111..UKP..RHD..TERRA199809-199905

sub69268-02021¥180

main69268-02021iAE111..UKP..LHD;EE111..UKP..LHD..LUNA;AE111..UKP..RHD..TERRA;EE111,WZE110,ZZE11#..UKP..TERRA¥180199905-200111

main69268-20020iCDE110,ZZE11#..JPP..LB..TERRA¥180199704-200109

sub69285-22010¥330

69801REGULATOR SUB-ASSY, FRONT DOOR WINDOW, RH

main69801-12170iCDE110,WZE110,ZZE11#..JPP..(G6,SOL,TERRA)¥6,300199704-200109

69802REGULATOR SUB-ASSY, FRONT DOOR WINDOW, LH

main69802-12170iCDE110,WZE110,ZZE11#..JPP..(G6,SOL,TERRA)¥6,300199704-200109

69810AREGULATOR ASSY, FRONT DOOR WINDOW, RH

main69810-02080iAE111..UKP..LHD;EE111..UKP..LHD..LUNA;AE111..UKP..RHD..TERRA;EE111,WZE110,ZZE11#..UKP..TERRA199809-200111

main69810-02090iAE111,EE111,WZE110,ZZE11#..UKP..RHD199809-200111

W(POWER WINDOW)

main69810-02100iAE111,EE111,WZE110,ZZE11#..UKP..LHD199809-200111

W(POWER WINDOW)

main69810-12560iCDE110,WZE110,ZZE11#..JPP..(STD,TERRA)¥6,300199704-200109

69820REGULATOR ASSY, FRONT DOOR WINDOW, LH

main69820-02080iAE111..UKP..LHD;EE111..UKP..LHD..LUNA;AE111..UKP..RHD..TERRA;EE111,WZE110,ZZE11#..UKP..TERRA199809-200111

main69820-02090iAE111,EE111,WZE110,ZZE11#..UKP..LHD199809-200111

W(POWER WINDOW)

main69820-02100iAE111,EE111,WZE110,ZZE11#..UKP..RHD199809-200111

W(POWER WINDOW)

main69820-12560iAE111,CE110,EE111..JPP..(STD,TERRA);AE111,CE110,EE111..JPP..LHD..(G6,LUNA)¥6,300199704-200109

8511

9008010090

main90080-10090¥100

9008010209

main90080-10209¥110

9008016060

main90080-16060

9008410017

main90084-10017

9010506102

main90105-06102¥70

9010506125

main90105-06125¥120

9010508077

main90105-08077¥110

9010508291

main90105-08291¥90

9016850040

main90168-50040¥70

9017906070

main90179-06070¥180

9153160610

main91531-60610¥110

9165140612

main91651-40612¥70

24 parts on this diagram · 3 diagrams in section
