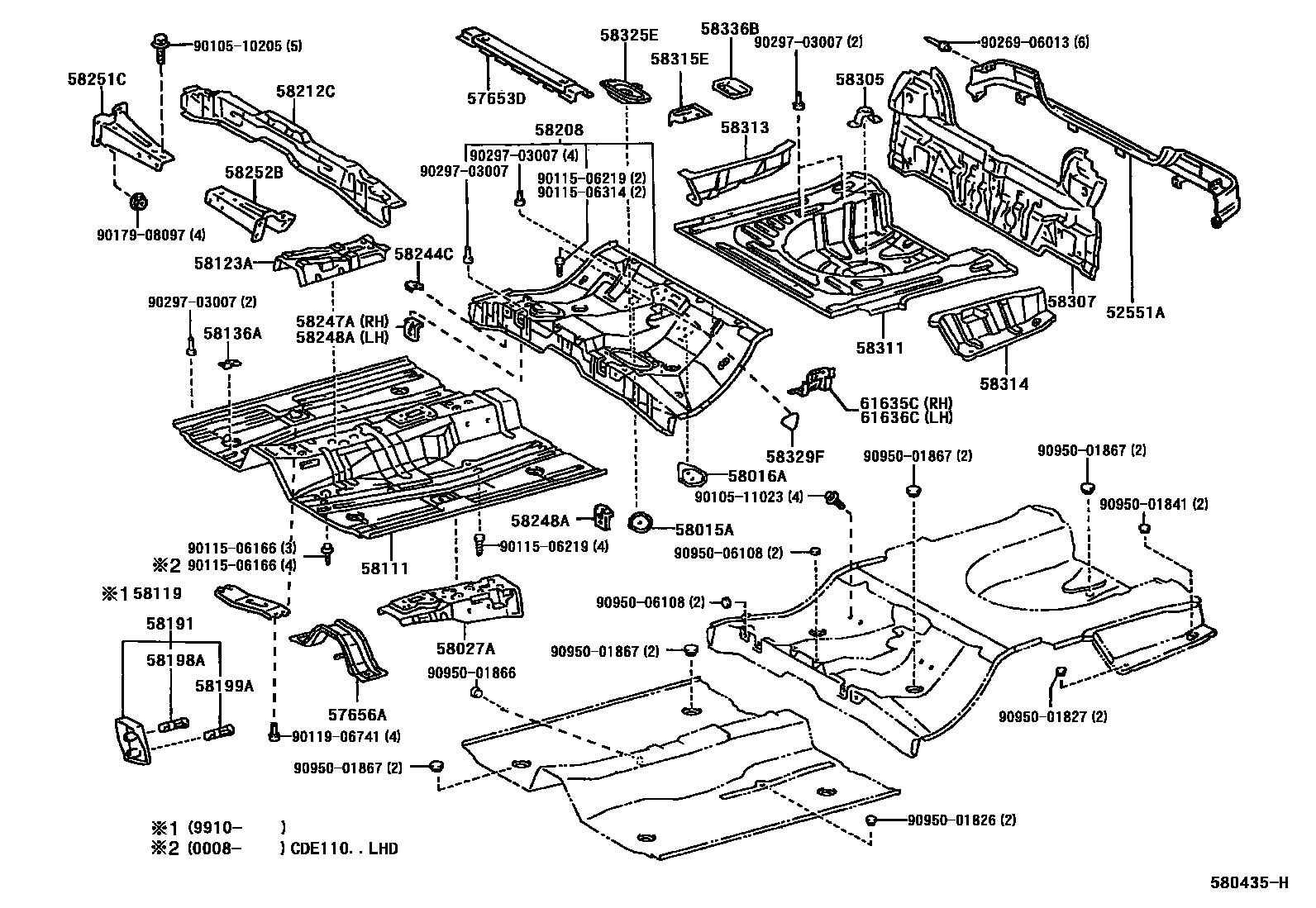

FLOOR PAN & LOWER BACK PANEL

0001 1 0002 1

52551AFILLER, REAR BUMPER

main52551-12050iCDE110,ZZE11#..LB;AE111,EE111,WZE110..UKP199704-200111

main52551-12070iAE111,CE110,EE111..HB199704-200107

57653DMEMBER, REAR FLOOR CROSS, NO.2

main57606-02020iAE111,EE111,WZE110,ZZE11#..UKP199809-200111

main57653-12050iAE111,CE110,EE111..JPP..LB199704-200109

main57653-12060iAE111,CE110,EE111..HB199704-200107

57656ABRACKET, EXHAUST PIPE MOUNTING, NO.1

main57509-12020iCE110..TERRA;CE110..LB..LUNA;CE110..LHD..HB..LUNA199704-199910

sub57509-12030

main57509-12030iCDE110,WZE110,ZZE11#199910-200111

main57656-12080iAE111,EE111..HB199704-199911

58015AREINFORCE SUB-ASSY, BELT ANCHOR, NO.3 RH

main58015-02010iAE111,EE111,WZE110,ZZE11#..UKP199809-200111

main58015-12040iCDE110,WZE110,ZZE11#..JPP199704-200109

58016AREINFORCE SUB-ASSY, BELT ANCHOR, NO.3 LH

main58016-02010iAE111,EE111,WZE110,ZZE11#..UKP199809-200111

main58016-12010iCDE110,WZE110,ZZE11#..JPP199704-200109

58027AREINFORCE SUB-ASSY, SEAT BELT ANCHOR

main58027-02010iAE111,EE111,WZE110,ZZE11#..UKP199809-200111

main58027-12121iAE111,CE110,EE111..JPP..LB199704-200109

main58027-12161iAE111,CE110,EE111..HB199704-200107

58111PAN, FRONT FLOOR

main58111-02040iAE111,EE111,WZE110,ZZE11#..UKP199809-200111

main58111-12262iCDE110,WZE110,ZZE11#..JPP199704-200109

58119PLATE, FRONT FLOOR SIDE, FRONT

main58119-12010iCDE110,WZE110,ZZE11#199910-200111

58123ASUPPORT, SHIFT & SELECT LEVER

main58013-02040iAE111,EE111,WZE110,ZZE11#..UKP199809-200111

main58013-12060iCDE110,WZE110,ZZE11#..JPP199704-200109

58136ACOVER, FRONT FLOOR SERVICE HOLE

main58136-12030iAE111,CE110,EE111199704-200111

58191FOOTREST, FRONT FLOOR

main58191-02020iAE111,EE111,WZE110,ZZE11#..UKP..RHD199809-200111

main58191-12110iCDE110,WZE110,ZZE11#..JPP..RHD199704-200107

main58192-02020iAE111,EE111,WZE110,ZZE11#..UKP..LHD199809-200111

main58192-12060iAE111,CE110,EE111..LHD199704-200109

58198ACLIP, FOOTREST, NO.1

main58198-02040iAE111,EE111,WZE110,ZZE11#..UKP..RHD199809-200111

main58198-02050iAE111,EE111,WZE110,ZZE11#..UKP..LHD199809-200111

main58198-12030iAE111,CE110,EE111..RHD199704-200107

main58198-12040iCDE110,WZE110,ZZE11#..JPP..LHD199704-200109

58199ACLIP, FOOTREST, NO.2

main58198-02050iAE111,EE111,WZE110,ZZE11#..UKP..LHD199809-200111

main58199-02030iAE111,EE111,WZE110,ZZE11#..UKP..RHD199809-200111

main58199-12020iAE111..JPP..RHD..LB;AE111..RHD..HB..(G6,TERRA);EE111..JPP..RHD..3FC..LUNA;CE110,EE111..JPP..RHD..(G6,TERRA);CE110,EE111..JPP..RHD..LB..5F..LUNA199704-200107

58208PAN, CENTER FLOOR

main58211-02902iAE111,EE111,WZE110,ZZE11#..UKP199809-200111

main58211-12905iCDE110,WZE110,ZZE11#..HB199704-200107

main58211-12911iAE111,CE110,EE111..JPP..LB199704-200109

58212CPAN, CENTER FLOOR, FRONT

main58212-12900iAE111,CE110,EE111..HB199704-200107

58244CBRACKET, REAR SEAT CUSHION MOUNTING, RH

main58244-13030iCDE110,WZE110,ZZE11#..HB199704-200111

58247AREINFORCEMENT, REAR SEAT CUSHION HINGE, RH

main58247-13050iCDE110,ZZE11#..LB;AE111,EE111,WZE110..UKP199704-200111

58248AREINFORCEMENT, REAR SEAT CUSHION HINGE, LH

main58247-13050iCDE110,ZZE11#..LB;AE111,EE111,WZE110..UKP199704-200111

58251CBRACE, FLOOR PANEL, FRONT RH

main58251-12020iCDE110,WZE110,ZZE11#..HB199704-200107

58252BBRACE, FLOOR PANEL, FRONT LH

main58252-12030iAE111,CE110,EE111..HB199704-200107

58305BRACKET SUB-ASSY, SPARE WHEEL CLAMP

main58351-12040iAE111,EE111..UKP;CDE110,WZE110,ZZE11#199704-200111

58307PANEL SUB-ASSY, BODY LOWER BACK

main58307-1A907iAE111,CE110,EE111..JPP..LB199704-200109

main58307-1A908iAE111,CE110,EE111..HB199704-200107

main58308-02010iAE111,EE111,WZE110,ZZE11#..UKP199809-200111

58311PAN, REAR FLOOR

main58311-02060iAE111,EE111,WZE110,ZZE11#..UKP199809-200111

main58311-12210iAE111,CE110,EE111..JPP..LB199704-200109

main58311-12220iAE111,CE110,EE111..HB199704-199910

sub58311-12221

sub90950-06107

main58311-12221iCDE110,WZE110,ZZE11#..HB199910-200107

58313PANEL, REAR FLOOR SIDE, RH

main58313-02901iAE111,EE111,WZE110,ZZE11#..UKP199809-200111

sub58313-12904

main58313-12902iCDE110,WZE110,ZZE11#..HB199704-200107

main58313-12904iAE111,CE110,EE111..JPP..LB199704-200109

58314PANEL, REAR FLOOR SIDE, LH

main58314-12250iCDE110,ZZE11#..LB;AE111,EE111,WZE110..UKP199704-200111

main58314-12260iAE111,CE110,EE111..HB199704-200107

58315EEXTENSION REAR FLOOR SIDE PANEL, FRONT RH

main58315-12070iCDE110,WZE110,ZZE11#..JPP199704-200109

58325ECOVER, REAR FLOOR SERVICE HOLE

main58325-02030iAE111,EE111,WZE110,ZZE11#..UKP199809-200111

main58325-12100iCDE110,WZE110,ZZE11#..JPP199704-200109

58329FCOVER, REAR FLOOR SERVICE HOLE, NO.2

main58329-16010iCDE110,WZE110,ZZE111..HB..(STD,TERRA)199704-200107

58336BREINFORCEMENT, REAR FLOOR PAN

main58336-12060iWZE110;CDE110,ZZE11#..HB;AE111,EE111,ZZE11#..UKP199809-200111

61635CBRACE, QUARTER WHEEL HOUSE, RH

main61635-12060iCE110..TERRA;AE111..JPP..LB;AE111..HB..(G6,TERRA);EE111..JPP..3FC..LUNA;EE111..JPP..(G6,STD,TERRA);CE110,EE111..JPP..LB..5F..LUNA;AE111,CE110,EE111..LHD..HB..(4FC,5199704-199907

sub61635-12061

main61635-12061iCDE110,WZE110,ZZE11#..JPP199907-200109

61636CBRACE, QUARTER WHEEL HOUSE, LH

main61636-12070iAE111,CE110,EE111199704-199907

sub61636-12071

main61636-12071iCDE110,WZE110,ZZE11#..JPP199907-200109

9010510205

main90105-10205

9010511023

main90105-11023

9011506166

main90115-06166

9011506219

main90115-06219

9011506314

main90115-06314

9011906741

main90119-06741

9017908097

main90179-08097

9026906013

main90269-06013

9029703007

main90297-03007

9095001826

main90950-01826

9095001827

main90950-01827

9095001841

main90950-01841

9095001866

main90950-01866

9095001867

main90950-01867

9095006108

main90950-06108

46 parts on this diagram · 2 diagrams in section
