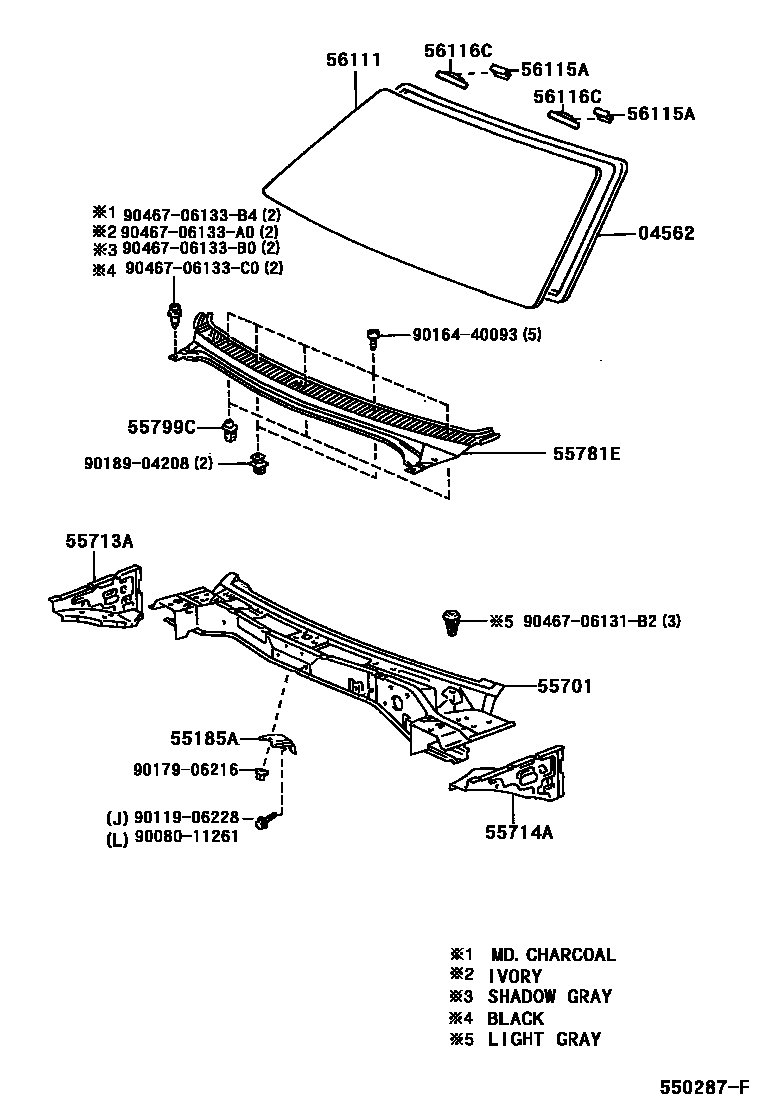

COWL PANEL & WINDSHIELD GLASS

04562DAM KIT, WINDSHIELD GLASS

main04562-12010iAE111,EE111..UKP;CDE110,WZE110,ZZE11#¥2,100199704-200111

55185ABRACE, DASH PANEL TO COWL

main55185-12010iAE111,EE111..UKP..LHD;CDE110,WZE110,ZZE11#..LHD¥670199704-200111

55701PANEL SUB-ASSY, COWL

main55700-02060iAE111,EE111..UKP..RHD199809-199911

main55700-02080iEE111..UKP..LHD199809-199911

main55700-02090iAE111..UKP..LHD199809-199911

main55700-02130iZZE11#..UKP..LHD..(4FC,5F)199911-200111

main55700-02140iZZE11#..UKP..RHD..MTM199911-200111

main55700-02150iZZE112..UKP..RHD..4FC199911-200111

main55700-02160iWZE110..RHD..LB199912-200111

main55700-02170iWZE110..LHD..LB199912-200111

main55700-02180iZZE112..LHD..6F..SOL199911-200111

main55700-1A111iCE110..RHD¥36,500199907-199910

main55700-1A200iCE110..LHD..(LUNA,TERRA)¥36,400199704-199907

sub55700-1A201¥36,500

main55700-1A201iCE110..LHD¥36,500199907-199910

main55700-1A240iEE111..JPP..LHD..(3FC,5F)¥36,400199704-199907

sub55700-1A241¥36,500

main55700-1A241iEE111..JPP..LHD..(3FC,5F)¥36,500199907-199910

main55700-1A250iAE111..JPP..LHD..(LUNA,TERRA)¥36,400199704-199907

sub55700-1A251¥36,500

main55700-1A251iAE111..JPP..LHD..(LUNA,TERRA)¥36,500199907-199910

sub55700-1A291¥36,200

main55700-1A280iAE111,EE111..RHD..G6¥36,400199808-199907

sub55700-1A281¥36,200

main55700-1A281iAE111,EE111..RHD..G6¥36,200199907-199910

main55700-1A290iAE111,EE111..LHD..G6¥36,400199808-199907

sub55700-1A291¥36,200

main55700-1A291iAE111,EE111..LHD..G6¥36,200199907-199910

main55700-1A321iZZE11#..JPP..RHD..5F¥36,500199910-200107

sub55700-1A341¥36,500

main55700-1A331iZZE112..JPP..RHD..4FC¥36,500199910-200107

sub55700-1A341¥36,500

main55700-1A341iZZE11#..RHD..G6¥36,500199910-200107

main55700-1A351iWZE110..RHD..HB¥36,500200001-200107

main55700-1A361iZZE11#..JPP..LHD..(4FC,5F)¥36,500199910-200109

sub55700-1A201¥36,500

main55700-1A371iZZE11#..LHD..G6¥36,500199910-200107

sub55700-1A201¥36,500

main55700-1A381iCDE110,WZE110..JPP..LHD¥36,500200001-200109

main55700-1A420iCDE110..RHD¥36,500200008-200107

sub55700-1A351¥36,500

main55700-1A430iCDE110..LHD¥36,500200008-200109

COLD SPEC

main55700-1A900iAE111,EE111..JPP..RHD..(LUNA,TERRA)¥36,400199704-199909

sub55700-1A902¥36,500

main55700-1A901iCE110..RHD¥36,400199704-199907

sub55700-1A111¥36,500

main55700-1A902iAE111,EE111..JPP..RHD..(LUNA,TERRA)¥36,500199909-199910

55713APANEL, COWL TOP SIDE, RH

main55713-02010iAE111,EE111,WZE110,ZZE11#..UKP199809-200111

main55713-12081iAE111,CE110,EE111¥4,310199704-200109

55714APANEL, COWL TOP SIDE, LH

main55714-02010iAE111,EE111,WZE110,ZZE11#..UKP199809-200111

main55714-12081iAE111,CE110,EE111¥4,310199704-200109

55781ELOUVER SUB-ASSY, COWL TOP VENTILATOR

main55708-02050iAE111,EE111,WZE110,ZZE11#..UKP..RHD199809-200111

main55708-02060iAE111,EE111,WZE110,ZZE11#..UKP..LHD199809-200111

main55708-02070iAE111,EE111,WZE110,ZZE11#..UKP..LHD199809-200111

COLD SPEC

main55708-12160iCDE110,WZE110,ZZE11#..JPP..RHD¥7,900199704-200107

main55708-12200iEE111..JPP..LHD;AE111,CE110..JPP..LHD..(G6,LUNA,TERRA)¥7,800199704-200109

sub55708-12210¥8,700

main55708-12210iAE111,CE110,EE111..LHD¥8,700199704-200109

COLD SPEC

55799CCLIP, COWL TOP VENTILATOR LOUVER

main55799-12010iAE111,EE111..UKP;CDE110,WZE110,ZZE11#¥390199704-200111

56111GLASS, WINDSHIELD

main56101-02010iAE111,EE111,WZE110,ZZE11#..UKP199809-200111

*LAM,T=4.96,GREEN

main56111-1A690iCDE110,WZE110,ZZE11#..JPP¥94,300199704-200109

*LAM,T=4.76,GREEN

56115ASTOPPER, WINDSHIELD GLASS, NO.1

main56115-12050iCE110..STD;AE111,CE110,EE111..RHD..HB..5F..LUNA¥330199704-200111

56116CSTOPPER, WINDSHIELD GLASS, NO.2

main56116-22050iAE111,EE111..UKP;CDE110,WZE110,ZZE11#¥120199704-200111

9008011261

main90080-11261

9011906228

main90119-06228¥110

9016440093

main90164-40093¥70

9017906216

main90179-06216¥130

9018904208

main90189-04208¥130

9046706131B2

main90467-06131B2

9046706133A0

main90467-06133A0

9046706133B0

main90467-06133B0

9046706133B4

main90467-06133B4

9046706133C0

main90467-06133C0

20 parts on this diagram · 1 diagram in section
