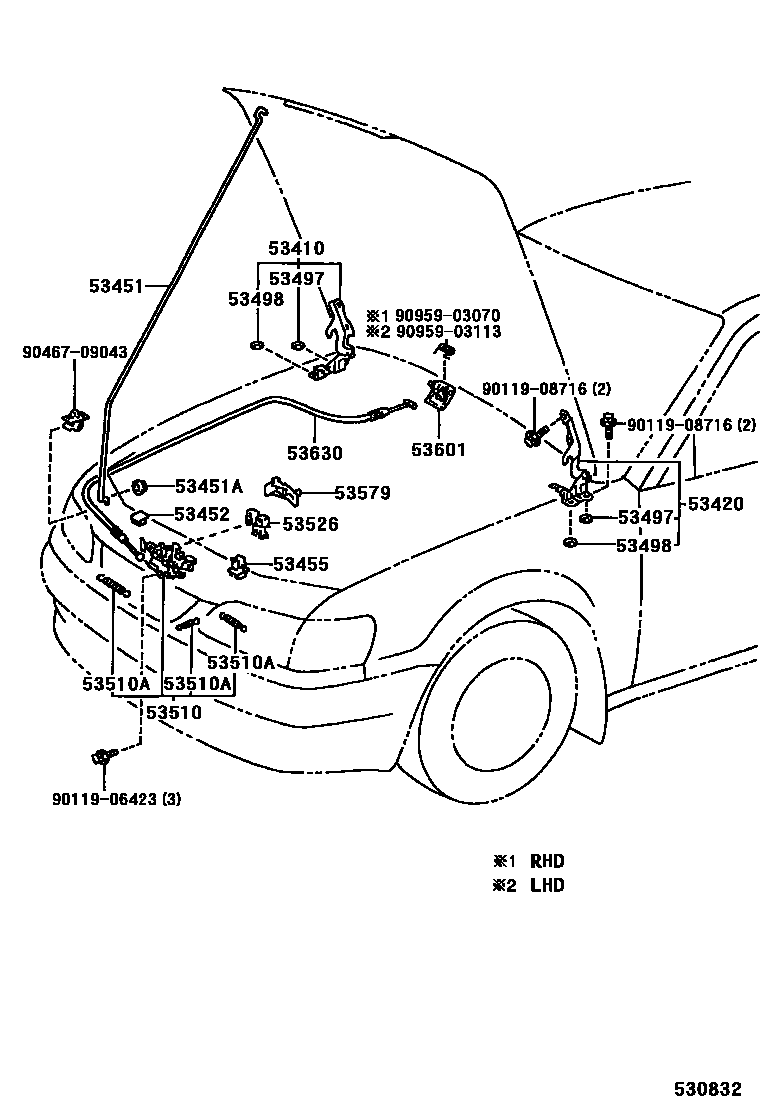

HOOD LOCK & HINGE

53410HINGE ASSY, HOOD, RH

main53410-02031iAE111,EE111..UKP199809-199911

PLANT TMUK

main53410-02031iWZE110,ZZE11#..UKP199911-200111

main53410-12340iAE111,EE111..UKP;CDE110,WZE110,ZZE11#..JPP199704-200109

53420HINGE ASSY, HOOD, LH

main53420-02031iWZE110,ZZE11#..UKP199911-200111

main53420-02031iAE111,EE111..UKP199809-199911

PLANT TMUK

main53420-12340iAE111,EE111..UKP;CDE110,WZE110,ZZE11#..JPP199704-200109

53451ROD, HOOD SUPPORT

main53451-02040iAE111,EE111,WZE110,ZZE11#..UKP199809-200111

main53451-12200iAE111,CE110,EE111199704-200109

53451AGROMMET(FOR HOOD SUPPORT ROD)

main53454-02020iAE111,EE111,WZE110,ZZE11#..UKP199809-200111

main53454-12010iCDE110,WZE110,ZZE11#..JPP199704-200109

53452HOLDER, HOOD STAY

main53452-02010iAE111,EE111,WZE110,ZZE11#..UKP199809-200111

main53452-12030iAE111,CE110,EE111199704-200109

53455CLAMP, HOOD SUPPORT ROD

main53455-02030iAE111,EE111,WZE110,ZZE11#..UKP199809-200111

main53455-12100iCE110..TERRA;AE111..JPP..LB;AE111..HB..(G6,TERRA);EE111..JPP..3FC..LUNA;EE111..JPP..(G6,STD,TERRA);CE110,EE111..JPP..LB..5F..LUNA;AE111,CE110,EE111..LHD..HB..(4FC,5199704-200109

53497PAD, HOOD HINGE, NO.1

main53497-05010iWZE110,ZZE11#..UKP199911-200111

T=1.0

main53497-12060iAE111,EE111..UKP199704-200109

T=1.0

main53497-12070iCDE110,WZE110,ZZE11#..JPP199704-200109

T=0.5

main53497-12080iCDE110,WZE110,ZZE11#..JPP199704-200109

T=1.6

main53497-12100iAE111,CE110,EE111..JPP199707-200109

T=2.5

53498PAD, HOOD HINGE, NO.2

main53497-12060iAE111,CE110,EE111..JPP199704-200109

T=1.0

main53497-12070iCDE110,WZE110,ZZE11#..JPP199704-200109

T=0.5

main53497-12080iCDE110,WZE110,ZZE11#..JPP199704-200109

T=1.6

53510LOCK ASSY, HOOD

main53510-02060iAE111,EE111..UKP..LHD199809-199911

main53510-02070iAE111,EE111..UKP..RHD199809-199911

main53510-02080iWZE110,ZZE11#..UKP..LHD199911-200111

main53510-02090iWZE110,ZZE11#..UKP..RHD199911-200111

main53510-12620iAE111,CE110,EE111..JPP..LHD199704-199910

main53510-12650iAE111,CE110,EE111..JPP..RHD199704-199910

main53510-12660iCDE110,WZE110,ZZE11#..JPP..RHD199910-200107

main53510-12670iCDE110,WZE110,ZZE11#..JPP..LHD199910-200109

53510ASPRING, TENSION(FOR HOOD LOCK)

main90506-09055iAE111,CE110,EE111..JPP..LHD199704-200109

WD=0.9,CW=21

main90506-09057iAE111,CE110,EE111..JPP..RHD199704-200107

WD=0.9,CW=23

main90506-12067iAE111,CE110,EE111..JPP199704-200109

WD=1.4,CW=7.25

main90506-20065iAE111,CE110,EE111..JPP..RHD199704-200107

WD=2.0,CW=16.0

main90506-20066iAE111,CE110,EE111..JPP..LHD199704-200109

WD=2.0,CW=17

53526PROTECTOR, HOOD LOCK RELEASE LEVER, NO.2

main53526-12040iAE111,CE110,EE111..JPP..RHD199704-200107

53579CAP, HOOD LOCK NUT

main53579-12010iCDE110,WZE110,ZZE11#199910-200111

53601LEVER SUB-ASSY, HOOD LOCK CONTROL

main53611-02040-A0iAE111,EE111..UKP..LHD199809-199911

IVORY,TRIM0#

sub53611-22010

main53611-02040-B0iWZE110,ZZE11#..UKP..LHD..(4FC,5F)199911-200111

SHADOW GRAY,TRIM16

sub53611-22010

main53611-02040-B0iAE111,EE111..UKP..LHD199809-199911

SHADOW GRAY,TRIM12

sub53611-22010

main53611-02040-B0iZZE112..LHD..6F..SOL199911-200111

SHADOW GRAY,TRIM1#

sub53611-22010

main53611-02040-B1iAE111,EE111..UKP..LHD199809-199911

MD.CHARCOAL,TRIM10

sub53611-22010

main53611-02040-B1iWZE110,ZZE11#..UKP..LHD..(4FC,5F)199911-200111

MD.CHARCOAL,TRIM11

sub53611-22010

main53611-02050-A0iAE111,EE111..UKP..RHD199809-199911

IVORY,TRIM0#

main53611-02050-B0iAE111,EE111..UKP..RHD199809-199911

SHADOW GRAY,TRIM12

main53611-02050-B0iWZE110,ZZE11#..UKP..RHD..(4FC,5F)199911-200111

SHADOW GRAY,TRIM16

main53611-02050-B0iWZE110,ZZE11#..UKP..RHD..(4FC,5F)199911-200111

SHADOW GRAY,TRIM1#

main53611-02050-B1iWZE110,ZZE11#..UKP..RHD..(4FC,5F)199911-200111

MD.CHARCOAL,TRIM11

main53611-02050-B1iAE111,EE111..UKP..RHD199809-199911

MD.CHARCOAL,TRIM10

main53611-12040-A0iAE111,CE110,EE111..JPP..RHD..(LUNA,TERRA)199704-199910

IVORY,TRIM0#

sub53611-12040

main53611-12040-B0iCDE110,WZE110,ZZE11#..JPP..RHD..(SOL,TERRA)199910-200011

SHADOW GRAY,TRIM16

sub53611-12040

main53611-12040-B0iAE111,EE111..RHD..HB..5F..TERRA199804-199910

SHADOW GRAY,TRIM12

sub53611-12040

main53611-12040-B0iAE111,EE111..RHD..G6199704-200107

SHADOW GRAY,TRIM1#

sub53611-12040

main53611-12040-B3iAE111,CE110,EE111..JPP..RHD..(LUNA,TERRA)199808-199910

MD. CHARCOAL,TRIM10

sub53611-12040

main53611-12040-B3iAE111,CE110,EE111..RHD..(LUNA,TERRA)199704-200107

MD. CHARCOAL,TRIM1#

sub53611-12040

main53611-12040-B3iCDE110,WZE110,ZZE11#..JPP..RHD..(SOL,TERRA)199910-200011

MD. CHARCOAL,TRIM11

sub53611-12040

main53611-22010-A0iAE111,CE110,EE111..JPP..LHD..(LUNA,TERRA)199704-199910

IVORY,TRIM0#

sub53611-22010

main53611-22010-B1iCDE110,WZE110,ZZE11#..JPP..LHD..(SOL,TERRA)199910-200109

SHADOW GRAY,TRIM16

sub53611-22010

main53611-22010-B1iAE111,EE111..LHD..G6199704-200107

SHADOW GRAY,TRIM1#

sub53611-22010

main53611-22010-B1iAE111,CE110,EE111..JPP..LHD..(LUNA,TERRA)199804-199910

SHADOW GRAY,TRIM12

sub53611-22010

main53611-22010-B2iZZE111..STD199704-200107

MD.CHARCOAL,TRIM1#

sub53611-22010

main53611-22010-B2iEE111..STD199808-199910

MD.CHARCOAL,TRIM10

sub53611-22010

main53611-22010-B2iCDE110,WZE110,ZZE11#..JPP..LHD..(SOL,TERRA)199910-200109

MD.CHARCOAL,TRIM11

sub53611-22010

53630CABLE ASSY, HOOD LOCK CONTROL

main53630-02030iAE111,EE111,WZE110,ZZE11#..UKP199809-200111

sub53630-12650

main53630-12480iAE111,CE110,EE111199704-199804

main53630-12500iCDE110,WZE110,ZZE11#..JPP199804-200109

9011906423

main90119-06423

9011908716

main90119-08716

9046709043

main90467-09043

9095903070

main90959-03070

9095903113

main90959-03113

19 parts on this diagram · 1 diagram in section
