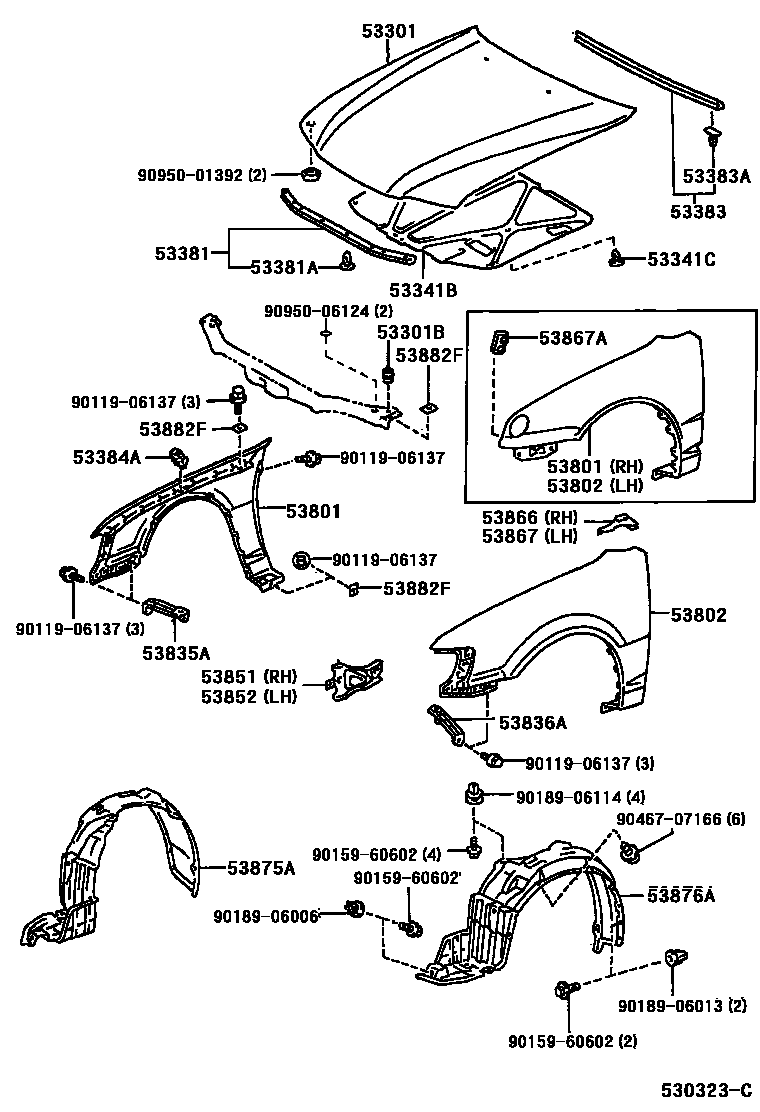

HOOD & FRONT FENDER

53301HOOD SUB-ASSY

main53301-02060iAE111,EE111..UKP199809-199911

main53301-02070iWZE110,ZZE11#..UKP199911-200111

main53301-12820iCE110..TERRA;AE111..JPP..LB;AE111..HB..(G6,TERRA);EE111..JPP..3FC..LUNA;EE111..JPP..(G6,STD,TERRA);CE110,EE111..JPP..LB..5F..LUNA;AE111,CE110,EE111..LHD..HB..(4FC,5199704-199910

main53301-12860iCDE110,WZE110,ZZE11#..JPP199910-200109

53301BCUSHION, HOOD BUMPER

main90541-15021iAE111,EE111..UKP;CDE110,WZE110,ZZE11#199704-200111

53341BINSULATOR, HOOD

main53341-02030iWZE110,ZZE112..UKP..MTM199911-200111

main53341-12071iCE110;EE111..G6199704-199910

main53341-12130iZZE111..G6;CDE110,WZE110,ZZE112..JPP..MTM199910-200109

53341CCLIP(FOR HOOD INSULATOR)

main90467-08124iZZE111..G6;CDE110,WZE110,ZZE112..MTM199908-200111

main90467-09050iCE110..TERRA;AE111,EE111..G6;CE110..LB..LUNA;CE110..LHD..HB..LUNA199704-199908

53381SEAL, HOOD TO RADIATOR SUPPORT

main53381-02030iAE111,EE111,WZE110,ZZE11#..UKP199809-200111

sub53381-12170

main53381-12170iCE110..TERRA;AE111..JPP..LB;AE111..HB..(G6,TERRA);EE111..JPP..3FC..LUNA;EE111..JPP..(G6,STD,TERRA);CE110,EE111..JPP..LB..5F..LUNA;AE111,CE110,EE111..LHD..HB..(4FC,5199704-200109

53381ACLIP(FOR HOOD TO RADIATOR SUPPORT SEAL)

main90467-08011iCE110..TERRA;AE111..JPP..LB;AE111..HB..(G6,TERRA);EE111..JPP..3FC..LUNA;EE111..JPP..(G6,STD,TERRA);CE110,EE111..JPP..LB..5F..LUNA;AE111,CE110,EE111..LHD..HB..(4FC,5199704-200111

53383SEAL, HOOD TO COWL TOP

main53383-02030iAE111,EE111,WZE110,ZZE11#..UKP199809-200111

sub53383-12110

main53383-12110iCDE110,WZE110,ZZE11#..JPP..RHD199704-200107

main53383-12130iCDE110,WZE110,ZZE11#..JPP..LHD199704-200109

53383ACLIP(FOR HOOD TO COWL TOP SEAL)

main90467-08108iAE111,EE111..UKP;CDE110,WZE110,ZZE11#199704-200111

53384ABUMPER, FENDER TO HOOD

main53384-20060iAE111,CE110,EE111199704-200111

53801FENDER SUB-ASSY, FRONT RH

main53811-02060iAE111,EE111..UKP199809-199911

main53811-02070iWZE110,ZZE11#..UKP199911-200111

main53811-1H080iCE110..TERRA;AE111..JPP..LB;AE111..HB..(G6,TERRA);EE111..JPP..3FC..LUNA;EE111..JPP..(G6,STD,TERRA);CE110,EE111..JPP..LB..5F..LUNA;AE111,CE110,EE111..LHD..HB..(4FC,5199704-199910

main53811-1H110iCDE110,WZE110,ZZE11#..JPP199910-200109

53802FENDER SUB-ASSY, FRONT LH

main53812-02060iAE111,EE111..UKP199809-199911

main53812-02070iWZE110,ZZE11#..UKP199911-200111

main53812-1E850iCE110..TERRA;AE111..JPP..LB;AE111..HB..(G6,TERRA);EE111..JPP..3FC..LUNA;EE111..JPP..(G6,STD,TERRA);CE110,EE111..JPP..LB..5F..LUNA;AE111,CE110,EE111..LHD..HB..(4FC,5199704-199910

main53812-1E880iCDE110,WZE110,ZZE11#..JPP199910-200109

53835ABRACE, FRONT FENDER TO APRON, RH

main53835-12110iAE111,CE110,EE111199704-200111

53836ABRACE, FRONT FENDER TO APRON, LH

main53836-12070iAE111,EE111..UKP;CDE110,WZE110,ZZE11#199704-200111

53851BRACE, FRONT FENDER TO RADIATOR SUPPORT, RH

main53851-12050iCE110..TERRA;AE111..JPP..LB;AE111..HB..(G6,TERRA);EE111..JPP..3FC..LUNA;EE111..JPP..(G6,STD,TERRA);CE110,EE111..JPP..LB..5F..LUNA;AE111,CE110,EE111..LHD..HB..(4FC,5199704-199911

main53851-12060iCDE110,WZE110,ZZE11#199910-200111

53852BRACE, FRONT FENDER TO RADIATOR SUPPORT, LH

main53852-12050iAE111,EE111..UKP199704-199911

main53852-12060iCDE110,WZE110,ZZE11#199910-200111

53866SEAL, FRONT FENDER TO COWL SIDE, RH

main53866-02010iAE111,EE111,WZE110,ZZE11#..UKP199809-200111

main53866-12010iCDE110,WZE110,ZZE11#..JPP199704-200109

53867SEAL, FRONT FENDER TO COWL SIDE, LH

main53867-02010iAE111,EE111,WZE110,ZZE11#..UKP199809-200111

sub53867-12010

main53867-12010iAE111,CE110,EE111199704-200109

53867ARETAINER, FRONT FENDER

main53867-12030iAE111,CE110,EE111199704-200111

53875ALINER, FRONT FENDER, RH

main53875-02040iAE111,EE111..UKP199809-199911

sub53875-12260

main53875-02050iWZE110,ZZE11#..UKP199911-200111

sub53875-02040

main53875-12260iAE111,CE110,EE111199704-199910

main53875-12270iCDE110,WZE110,ZZE11#..JPP199910-200109

53876ALINER, FRONT FENDER, LH

main53876-02040iAE111,EE111..UKP199809-199911

sub53876-12250

main53876-02050iWZE110,ZZE11#..UKP199911-200111

sub53876-02040

main53876-12250iAE111,CE110,EE111199704-199910

main53876-12260iCDE110,WZE110,ZZE11#..JPP199910-200109

53882FSEAL, FRONT FENDER

main53882-16030iAE111,EE111..UKP;CDE110,WZE110,ZZE11#199704-200111

9011906137

main90119-06137

9015960602

main90159-60602

9018906006

main90189-06006

9018906013

main90189-06013

9018906114

main90189-06114

9046707166

main90467-07166

9095001392

main90950-01392

9095006124

main90950-06124

29 parts on this diagram · 1 diagram in section
