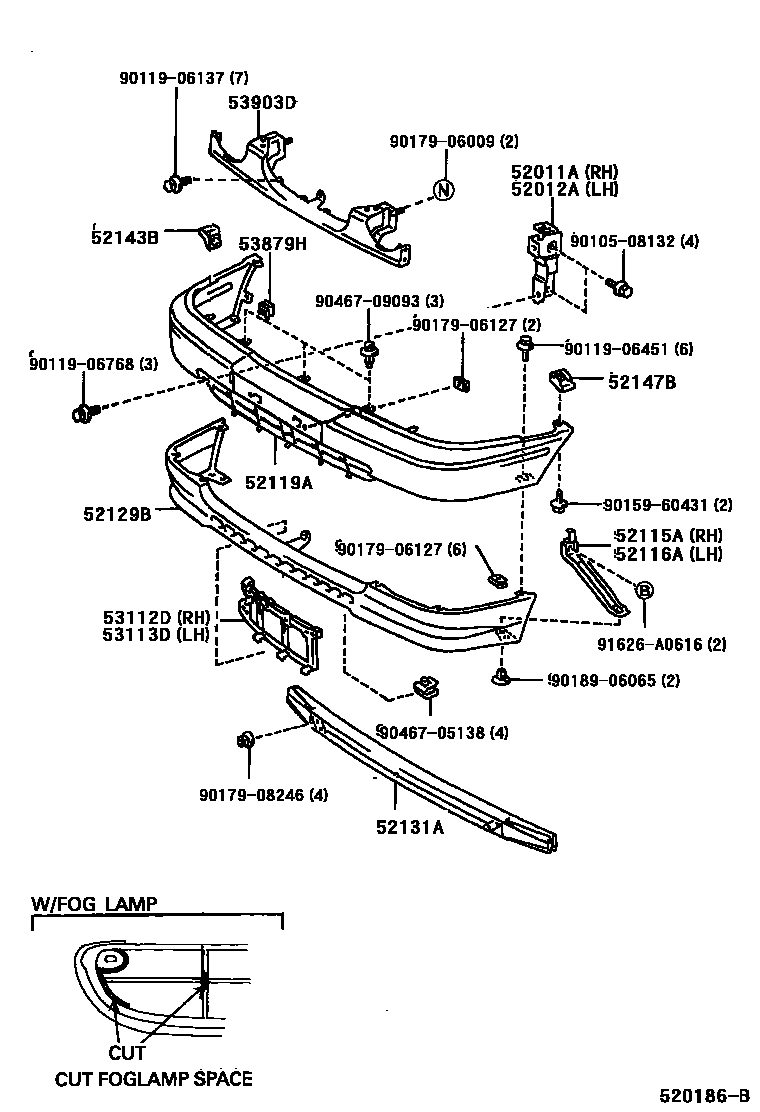

FRONT BUMPER & BUMPER STAY

0001 1 0002 1

52011AARM SUB-ASSY, FRONT BUMPER, RH

main52141-12430iAE111,CE110,EE111..JPP199704-199910

main52141-12490iCDE110,WZE110,ZZE11#199910-200111

52012AARM SUB-ASSY, FRONT BUMPER, LH

main52142-12360iAE111,EE111..UKP199809-199911

main52142-12420iCDE110,WZE110,ZZE11#199910-200111

52115ASUPPORT, FRONT BUMPER SIDE, RH

main52115-12320iAE111,EE111..UKP;CDE110,WZE110,ZZE11#199809-200111

52116ASUPPORT, FRONT BUMPER SIDE, LH

main52116-12290iAE111,EE111..UKP;CDE110,WZE110,ZZE11#199809-200111

52119ACOVER, FRONT BUMPER

main52119-02110iAE111,EE111..UKP199809-199911

main52119-02120iAE111,EE111..UKP..LHD199809-199911

W(HEADLAMP CLEANER)

main52119-02170iWZE110,ZZE11#..UKP199911-200111

main52119-02180iWZE110,ZZE11#..UKP199911-200111

W(HEADLAMP CLEANER)

main52119-1E020iAE111,CE110,EE111..JPP199704-199910

main52119-1E440iAE111,CE110,EE111..JPP..LHD199808-199910

W(HEADLAMP CLEANER)

main52119-1E450iEE111..JPP..(G6,LUNA);AE111,CE110..JPP..LUNA199705-199910

W(FOG LAMP)

main52119-1E610iCDE110,WZE110,ZZE11#..JPP199910-200109

main52119-1E620iCDE110..LHD200008-200109

W(DAY TIME RUNNING LIGHT SYSTEM)

main52119-1E630iZZE11#..JPP..(G6,SOL)199910-200109

W(FOG LAMP)

main52119-1E912iEE111..JPP..LHD..(G6,LUNA);AE111,CE110..JPP..LHD..LUNA199704-199910

W(FOG LAMP & HEADLAMP CLEANER)

52129BCOVER, FRONT BUMPER, LOWER

main52129-02010iAE111,EE111..UKP199809-199911

main52129-12070iAE111,CE110,EE111..JPP199704-199910

main52129-12901iAE111..G6199809-199812

G6R SPEC

52131AREINFORCEMENT, FRONT BUMPER

main52131-02030iAE111,EE111,WZE110,ZZE11#..UKP199809-200111

main52131-12180iCDE110,WZE110,ZZE11#..JPP199910-200109

52143BBRACKET, FRONT BUMPER SIDE

main52143-02040×2iAE111,EE111,WZE110,ZZE11#..UKP199809-200111

main52143-12350×2iCDE110,WZE110,ZZE11#..JPP199910-200109

52147BBRACKET, FRONT BUMPER MOUNTING

main52147-12190×2iAE111,CE110,EE111..JPP199704-199910

53112DGRILLE, RADIATOR, LOWER RH

main53112-02030iAE111,EE111..UKP199809-199911

main53112-02040iAE111,EE111..UKP..LUNA199809-199911

W(FOG LAMP)

main53112-12090iAE111,CE110,EE111..JPP199704-199910

main53112-12100iAE111,CE110,EE111..JPP..(G6,LUNA)199704-199910

W(FOG LAMP)

53113DGRILLE, RADIATOR, LOWER LH

main53113-02030iAE111,EE111..UKP199809-199911

main53113-02040iAE111,EE111..UKP..LUNA199809-199911

W(FOG LAMP)

main53113-12090iAE111,CE110,EE111..JPP199704-199910

main53113-12100iAE111,CE110,EE111..JPP..(G6,LUNA)199704-199910

W(FOG LAMP)

53879HRETAINER, FRONT FENDER LINER

main53879-02010×2iAE111,EE111,WZE110,ZZE11#..UKP199809-200111

main53879-12010×2iAE111,CE110,EE111..JPP199704-199910

53903DEXTENSION SUB-ASSY, FRONT BUMPER, UPR

main53903-02020iAE111,EE111..UKP199809-199911

main53903-02030iWZE110,ZZE11#..UKP199911-200111

main53903-12080iCE110..TERRA;AE111..JPP..LB;AE111..HB..(G6,TERRA);EE111..JPP..3FC..LUNA;EE111..JPP..(G6,STD,TERRA);CE110,EE111..JPP..LB..5F..LUNA;AE111,CE110,EE111..LHD..HB..(4FC,5199804-199910

main53903-12110iCDE110,WZE110,ZZE11#..JPP199910-200109

9010508132

main90105-08132

9011906137

main90119-06137

9011906451

main90119-06451

9011906768

main90119-06768

9015960431

main90159-60431

9017906009

main90179-06009

9017906127

main90179-06127

9017908246

main90179-08246

9018906065

main90189-06065

9046705138

main90467-05138

9046709093

main90467-09093

91626A0616

main91626-A0616

25 parts on this diagram · 2 diagrams in section
