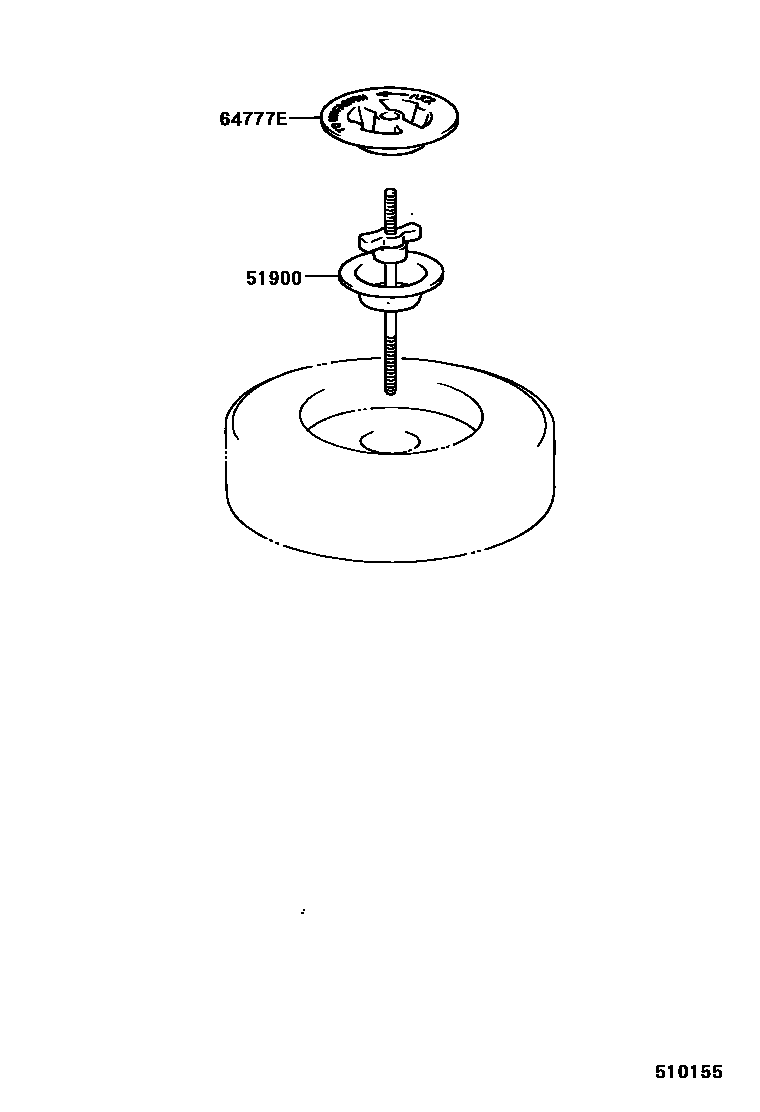

SPARE WHEEL CARRIER

51900CARRIER ASSY, SPARE WHEEL

main51900-12050iAE111..G6199808-200107

main51900-12050iEE111..HB..3FC..LUNA;AE111,CE110..HB..TERRA;EE111..HB..(G6,STD,TERRA);AE111,CE110,EE111..LHD..HB..(4FC,5F)..LUNA199704-199910

TEMPORARY USE = SPARE TIRE

main51900-12060iAE111..HB..4FC..TERRA;EE111..LHD..HB..TERRA;AE111,CE110,EE111..JPP..LB199712-200109

W(STEEL WHEEL)

main51900-12060iAE111,CE110,EE111..LB199704-199712

main51900-12070iAE111,CE110,EE111..LB199704-199804

W(ALUMINIUM WHEEL)

main51900-12110iAE111,EE111,WZE110,ZZE11#..UKP..(3FC,4FC,5F)199809-200111

W(STEEL WHEEL)

main51900-12120iAE111,EE111..UKP199809-199911

W(ALUMINIUM WHEEL)

main51900-12120iWZE110,ZZE11#..UKP199911-200111

W(ALUMINUM WHEEL)

main51900-12130iAE111,CE110,EE111..JPP..LB199804-200109

W(ALUMINIUM WHEEL)

64777ECLAMP, SPARE WHEEL COVER

main64777-02020iAE111,EE111,WZE110,ZZE11#..UKP..(3FC,4FC,5F)199809-200111

W(STEEL WHEEL)

main64777-02030iWZE110,ZZE11#..UKP199911-200111

W(ALUMINUM WHEEL)

main64777-02030iAE111,EE111..UKP199809-199911

W(ALUMINIUM WHEEL)

main64777-12010iAE111..G6;CE110..TERRA;EE111..JPP..3FC..LUNA;EE111..JPP..(G6,STD,TERRA);CE110,EE111..JPP..LB..5F..LUNA;CE110,EE111..LHD..HB..5F..LUNA199704-200109

BLACK

main64777-12020iCE110,EE111..JPP..LB199704-200109

WHITE

2 parts on this diagram · 1 diagram in section
