SUSPENSION CROSSMEMBER & UNDER COVER

51201CROSSMEMBER SUB-ASSY, FRONT SUSPENSION

main51201-02070iAE111,EE111,WZE110,ZZE11#..UKP199809-200111

main51201-12380iWZE110,ZZE11#..JPP199704-200109

main51201-12410iCDE110200008-200109

51204AMEMBER SUB-ASSY, ENGINE MOUNTING, CENTER

main51204-02030iAE111,EE111..UKP199809-199908

sub51204-02031

main51204-02031iAE111,EE111,WZE110,ZZE11#..UKP199908-200111

sub51204-12082

main51204-12080iCE110..TERRA;AE111..JPP..LB;AE111..HB..(G6,TERRA);EE111..JPP..3FC..LUNA;EE111..JPP..(G6,STD,TERRA);CE110,EE111..JPP..LB..5F..LUNA;AE111,CE110,EE111..LHD..HB..(4FC,5199704-199905

sub51204-12081

main51204-12081iZZE11#..JPP199905-200001

sub51204-12082

main51204-12082iCDE110,WZE110,ZZE11#..JPP200001-200109

51206AMEMBER SUB-ASSY, REAR SUSPENSION

main51206-02030iAE111,EE111,WZE110,ZZE11#..UKP199809-200111

main51206-12040iCE110..TERRA;AE111..JPP..LB;AE111..HB..(G6,TERRA);EE111..JPP..3FC..LUNA;EE111..JPP..(G6,STD,TERRA);CE110,EE111..JPP..LB..5F..LUNA;AE111,CE110,EE111..LHD..HB..(4FC,5199704-200109

51227WEIGHT, FRONT SUSPENSION MEMBER DAMPER

main51227-02020iAE111,EE111..UKP199809-199911

main51227-12040iAE111,CE110,EE111199704-199910

51441CCOVER, ENGINE UNDER, RH

main51410-02010iWZE110..LB199912-200111

main51410-12030iWZE110..HB200001-200107

main51441-02030iAE111,EE111..UKP199809-199911

main51441-02040iZZE11#..UKP199911-200111

main51441-12160iCE110..TERRA;AE111..JPP..LB;AE111..HB..(G6,TERRA);EE111..JPP..3FC..LUNA;EE111..JPP..(G6,STD,TERRA);CE110,EE111..JPP..LB..5F..LUNA;AE111,CE110,EE111..LHD..HB..(4FC,5199704-199910

main51441-12170iCDE110,ZZE11#..JPP199910-200109

51442CCOVER, ENGINE UNDER, LH

main51420-02010iWZE110..LB199912-200111

main51420-12020iWZE110..HB200001-200107

main51442-02030iAE111,EE111..UKP..5F199809-199911

main51442-02040iAE111,EE111..UKP..ATM199809-199911

main51442-02050iZZE11#..UKP..MTM199911-200111

main51442-02060iZZE112..UKP..4FC199911-200111

main51442-12120iAE111,CE110,EE111..MTM199704-199910

main51442-12130iAE111,EE111..JPP..ATM199704-199910

main51442-12140iCDE110,ZZE11#..JPP..MTM199910-200109

main51442-12150iZZE112..JPP..4FC199910-200109

51452BRACE, FRONT CROSSMEMBER TO FRONT SUSPENSION MEMBER

main51452-12010iCE110..TERRA;AE111..JPP..LB;AE111..HB..(G6,TERRA);EE111..JPP..3FC..LUNA;EE111..JPP..(G6,STD,TERRA);CE110,EE111..JPP..LB..5F..LUNA;AE111,CE110,EE111..LHD..HB..(4FC,5199704-200109

main51452-12030iWZE110,ZZE11#..UKP199911-200111

51961HOOK, NO.1

main51960-02010iAE111,EE111,WZE110,ZZE11#..UKP199809-200111

main51960-12060iAE111,CE110,EE111199704-200109

51967HOOK, TRANSPORT, REAR

main51095-12120iCDE110,WZE110,ZZE11#..HB199704-200107

main51967-02010iAE111,EE111,WZE110,ZZE11#..UKP199809-200111

main51967-12220iCDE110,ZZE11#..JPP..LB199704-200109

51968BHOOK, TRANSPORT, REAR LH

main51968-02010iAE111,EE111,WZE110,ZZE11#..UKP199809-200111

main51968-12110iCDE110,ZZE11#..JPP..LB199704-200109

main51968-12140iCDE110,WZE110,ZZE11#..HB199704-200107

52295BRACE, REAR SUSPENSION MEMBER, RH

main52295-02020iAE111,EE111,WZE110,ZZE11#..UKP199809-200111

NO.1

main52295-12020iCDE110,WZE110,ZZE11#..JPP199704-200109

NO.1

main52295-12030iCDE110,WZE110,ZZE11#..LB199910-200111

NO.2

9010910173

main90109-10173

9011906355

main90119-06355

9011910465

main90119-10465

9011910480

main90119-10480

9011910681

main90119-10681

9011914022

main90119-14022

9015960323

main90159-60323

9015960383

main90159-60383

9015960488

main90159-60488

9017810001

main90178-10001

9017910173

main90179-10173

9017910180

main90179-10180

9018906006

main90189-06006

9095001392

main90950-01392

91621B0816

main91621-B0816

91622B1018

main91622-B1018

91629B1225

main91629-B1225

91631B0820

main91631-B0820

91651B0820

main91651-B0820

91651B1018

main91651-B1018

91652B0820

main91652-B0820

91661B0820

main91661-B0820

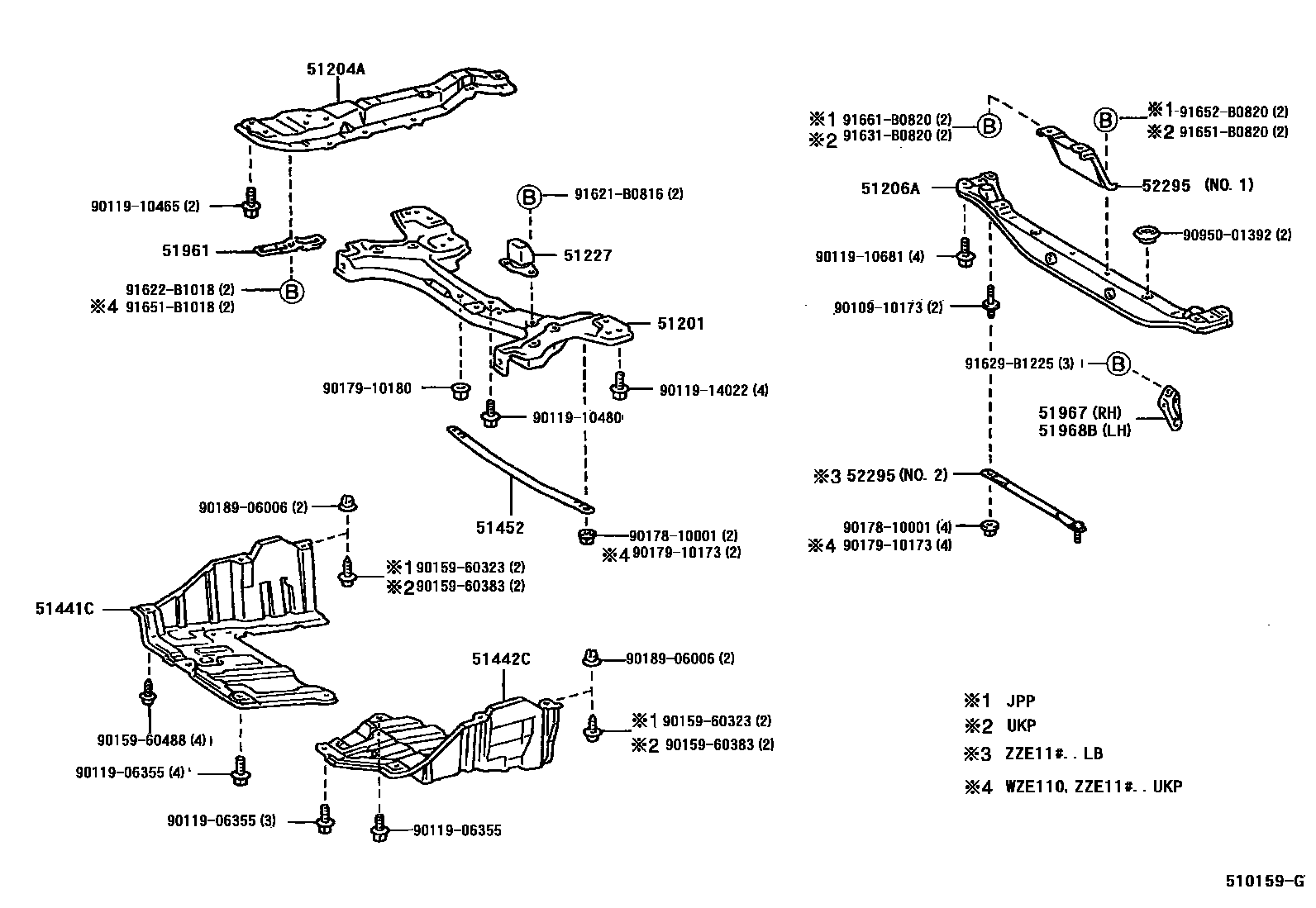

33 parts on this diagram · 1 diagram in section
