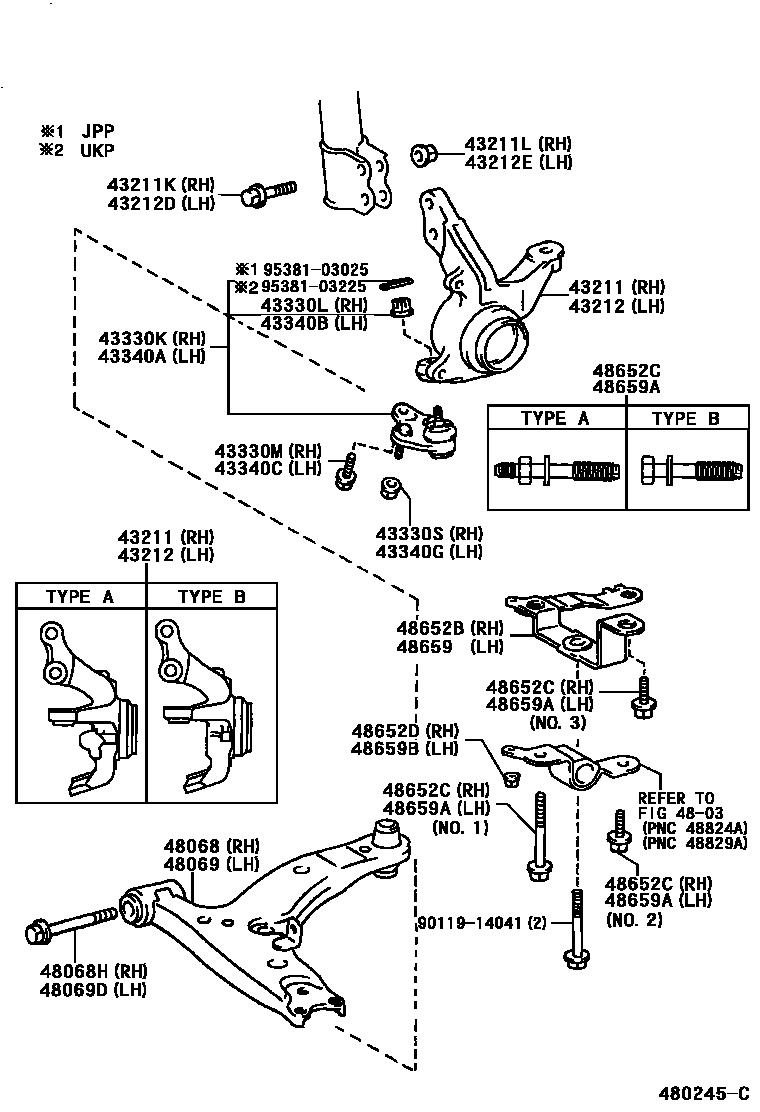

FRONT AXLE ARM & STEERING KNUCKLE

0001 1 0002 1

43211KNUCKLE, STEERING, RH

main43211-02041iAE111,EE111,WZE110,ZZE11#..UKP..(3FC,4FC,5F)199809-200111

main43211-02051iAE111,EE111,WZE110,ZZE11#..UKP199809-200111

W(ABS)

main43211-12290iWZE110,ZZE11#..JPP..(4FC,5F)199910-200109

TYPE A:REFER TO ILLUSTRATION

main43211-12300iWZE110,ZZE11#..JPP199910-200109

W(ABS)

main43211-12330iWZE110,ZZE11#..JPP..(4FC,5F)199910-200109

TYPE B:REFER TO ILLUSTRATION

43211KBOLT (FOR STEERING KNUCKLE RH)

main90105-15001×2iAE111,CE110,EE111..JPP199704-199910

OD=15.0,TYPE A:REFER TO ILLUSTRATION

main90105-15004iAE111,CE110,EE111..JPP199704-199910

OD=13.9,TYPE B:REFER TO ILLUSTRATION

main90105-15005iAE111,CE110,EE111..JPP199704-199910

OD=13.3,TYPE B:REFER TO ILLUSTRATION

main90105-15006iAE111,EE111..UKP;CDE110,WZE110,ZZE11#199809-200111

OD=12.4,TYPE B:REFER TO ILLUSTRATION

43211LNUT (FOR STEERING KNUCKLE RH)

main90179-15001×2iAE111,CE110,EE111..JPP199704-199910

43212KNUCKLE, STEERING, LH

main43212-02041iAE111,EE111,WZE110,ZZE11#..UKP..(3FC,4FC,5F)199809-200111

main43212-02051iAE111,EE111,WZE110,ZZE11#..UKP199809-200111

W(ABS)

main43212-12250iWZE110,ZZE11#..JPP..(4FC,5F)199910-200109

TYPE A:REFER TO ILLUSTRATION

main43212-12260iAE111,CE110,EE111..JPP199704-199910

W(ABS)

main43212-12290iWZE110,ZZE11#..JPP..(4FC,5F)199910-200109

TYPE B:REFER TO ILLUSTRATION

43212DBOLT (FOR STEERING KNUCKLE LH)

main90105-15001×2iAE111,EE111..UKP;CDE110,WZE110,ZZE11#199809-200111

OD=15.0,TYPE A:REFER TO ILLUSTRATION

main90105-15004iAE111,EE111..UKP;CDE110,WZE110,ZZE11#199809-200111

OD=13.9,TYPE B:REFER TO ILLUSTRATION

main90105-15005iAE111,CE110,EE111..JPP199704-199910

OD=13.3,TYPE B:REFER TO ILLUSTRATION

main90105-15006iAE111,EE111..UKP;CDE110,WZE110,ZZE11#199809-200111

OD=12.4,TYPE B:REFER TO ILLUSTRATION

43212ENUT (FOR STEERING KNUCKLE LH)

main90179-15001×2iAE111,CE110,EE111..JPP199704-199910

43330KJOINT ASSY, LOWER BALL, FRONT RH

main43330-09090iAE111,EE111,WZE110,ZZE11#..UKP199809-200111

main43330-19115iAE111,CE110,EE111..JPP199704-199910

43330LNUT, CASTLE (FOR FRONT LOWER BALL JOINT RH)

main90171-14003iAE111,EE111..UKP;CDE110,WZE110,ZZE11#199809-200111

43330MBOLT (FOR FRONT LOWER BALL JOINT RH)

main90105-12156iAE111,EE111..UKP;CDE110,WZE110,ZZE11#199809-200111

43330SNUT (FOR FRONT LOWER BALL JOINT RH)

main90179-12070×2iAE111,CE110,EE111..JPP199704-199910

43340AJOINT ASSY, LOWER BALL, FRONT LH

main43330-09090iAE111,EE111,WZE110,ZZE11#..UKP199809-200111

main43330-19115iCDE110,WZE110,ZZE11#..JPP199910-200109

43340BNUT, CASTLE (FOR FRONT LOWER BALL JOINT LH)

main90171-14003iAE111,EE111..UKP;CDE110,WZE110,ZZE11#199809-200111

43340CBOLT (FOR FRONT LOWER BALL JOINT LH)

main90105-12156iAE111,EE111..UKP;CDE110,WZE110,ZZE11#199809-200111

43340GNUT (FOR FRONT LOWER BALL JOINT LH)

main90179-12070×2iAE111,EE111..UKP;CDE110,WZE110,ZZE11#199809-200111

4803

48068ARM SUB-ASSY, FRONT SUSPENSION, LOWER NO.1 RH

main48068-02010iAE111,EE111,WZE110,ZZE11#..UKP..(3FC,4FC,5F)199809-200111

main48068-12171iWZE110,ZZE11#..JPP..(4FC,5F)199910-200109

main48068-12181iAE111..G6199808-199910

main48068-12191iEE111..LHD..HB..TERRA;AE111..JPP..LHD..4FC..TERRA;AE111..JPP..LHD..LB..5F..TERRA199711-199910

ROUGH ROAD PACKAGE

48068HBOLT(FOR FRONT SUSPENSION LOWER ARM NO.1 RH)

main90119-14023iAE111,EE111..UKP;CDE110,WZE110,ZZE11#199809-200111

48069ARM SUB-ASSY, FRONT SUSPENSION, LOWER NO.1 LH

main48069-02010iAE111,EE111,WZE110,ZZE11#..UKP..(3FC,4FC,5F)199809-200111

main48069-12171iCE110,EE111..JPP;AE111..JPP..(LUNA,TERRA)199704-199910

main48069-12181iCDE110;ZZE11#..6F199910-200111

main48069-12191iZZE111..LHD..HB..TERRA;ZZE112..JPP..LHD..LB..TERRA;ZZE112..LHD..HB..4FC..TERRA199910-200109

ROUGH ROAD PACKAGE

48069DBOLT(FOR FRONT SUSPENSION LOWER ARM NO.1 LH)

main90119-14023iAE111,CE110,EE111..JPP199704-199910

48652BBRACKET, FRONT LOWER ARM, RH

main48652-02090iAE111,EE111,WZE110,ZZE11#..UKP199809-200111

main48652-12070iZZE111..LHD..HB..TERRA;ZZE112..JPP..LHD..LB..TERRA;ZZE112..LHD..HB..4FC..TERRA199910-200109

ROUGH ROAD PACKAGE

main48652-12091iCDE110,WZE110,ZZE11#..JPP199910-200109

48652CBOLT(FOR FRONT LOWER ARM BRACKET RH)

main90109-10168iAE111,EE111..UKP;CDE110,WZE110,ZZE11#..JPP199809-200109

*12-1.25PX75-38,TYPE A:REFER TO ILLUSTRATION,NO.1

main90119-10692iZZE111;ZZE112..HB..MTM;WZE110,ZZE112..LB;ZZE112..LHD..HB..4FC199910-200111

*10-1.25PX29-23

main90119-12125iAE111,CE110,EE111..JPP199704-199910

*12-1.25PX31-25.3,NO.3

main90119-12238iCDE110,WZE110,ZZE11#..JPP199910-200109

*12-1.25PX75-38,TYPE B:REFER TO ILLUSTRATION,NO.1

48652DNUT(FOR FRONT LOWER ARM BRACKET RH)

main90179-08145iAE111,CE110,EE111..JPP199704-199910

sub90179-08123

48659BRACKET, FRONT LOWER ARM, LH

main48659-02090iAE111,EE111,WZE110,ZZE11#..UKP199809-200111

main48659-12070iEE111..LHD..HB..TERRA;AE111..JPP..LHD..4FC..TERRA;AE111..JPP..LHD..LB..5F..TERRA199711-199910

ROUGH ROAD PACKAGE

main48659-12091iAE111,CE110,EE111..JPP199704-199910

48659ABOLT(FOR FRONT LOWER ARM BRACKET LH)

main90109-10168iAE111,EE111..UKP;CDE110,WZE110,ZZE11#..JPP199809-200109

*12-1.25PX75-38,TYPE A:REFER TO ILLUSTRATION,NO.1

main90119-10692iZZE111;ZZE112..LB;ZZE112..HB..MTM;ZZE112..LHD..HB..4FC;AE111,EE111,WZE110..UKP199809-200111

*10-1.25PX29-23

main90119-12125iZZE111;ZZE112..LB;ZZE112..HB..MTM;ZZE112..LHD..HB..4FC;AE111,EE111,WZE110..UKP199809-200111

*12-1.25PX31-25.3

main90119-12238iCDE110,WZE110,ZZE11#..JPP199910-200109

*12-1.25PX75-38,TYPE B:REFER TO ILLUSTRATION,NO.1

48659BNUT(FOR FRONT LOWER ARM BRACKET LH)

main90179-08145iAE111,EE111..UKP;CDE110,WZE110,ZZE11#199809-200111

sub90179-08123

9011914041

main90119-14041

9538103025

main95381-03025

9538103225

main95381-03225
