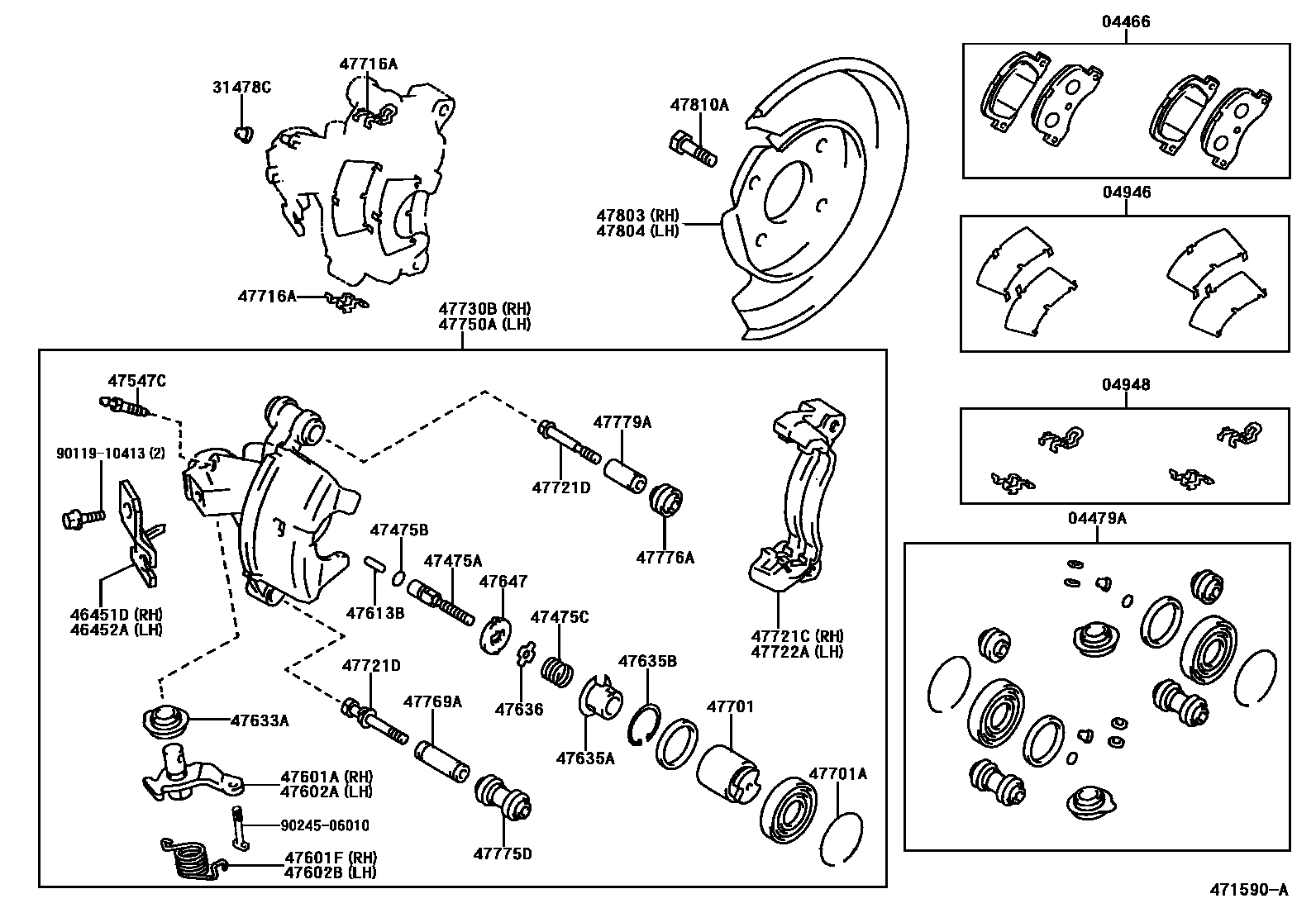

REAR DISC BRAKE CALIPER & DUST COVER

0001 1 0003 1

04466PAD KIT, DISC BRAKE, REAR

main04466-02010iWZE110,ZZE11#..UKP¥8,100199911-200111

sub04466-02060¥8,100

main04466-12040iAE111,EE111..UKP¥7,500199808-199911

main04466-12110iCDE110,WZE110,ZZE11#..JPP¥7,500199910-200109

sub04466-12120¥7,500

04479ACYLINDER KIT, DISC BRAKE, REAR

main04479-02070iWZE110,ZZE11#..UKP199911-200111

main04479-12190iAE111,CE110,EE111..JPP¥3,290199808-199911

main04479-12200iCDE110,WZE110,ZZE11#..JPP199910-200109

04946SHIM KIT, ANTI SQUEAL(FOR REAR DISC BRAKE)

main04946-12010iAE111,EE111..UKP;CDE110,WZE110,ZZE11#..JPP¥1,020199808-200109

04948FITTING KIT, DISC BRAKE, REAR

main04948-02010iWZE110,ZZE11#..UKP199911-200111

main04948-12020iAE111,EE111..UKP;CDE110,WZE110,ZZE11#..JPP¥1,470199808-200109

31478CCAP, BLEEDER PLUG(FOR REAR DISC BRAKE)

main31478-30010iAE111,EE111..UKP;CDE110,WZE110,ZZE11#¥160199808-200111

46451DBRACKET, PARKING BRAKE CABLE SUPPORT, RH

main46451-12030iAE111,EE111..UKP;CDE110,WZE110,ZZE11#..JPP¥970199808-200109

46452ABRACKET, PARKING BRAKE CABLE SUPPORT, LH

main46452-12020iAE111,EE111..UKP;CDE110,WZE110,ZZE11#..JPP¥970199808-200109

47475ABOLT, PAD ADJUSTING(FOR REAR DISC BRAKE)

main47475-12030iAE111,EE111..UKP¥1,300199808-199911

47475BRING, O(FOR REAR DISC BRAKE PAD ADJUSTING BOLT)

main90301-09007iAE111,EE111..UKP;CDE110,WZE110,ZZE11#..JPP¥260199808-200109

47475CSPRING, COMPRESSION(FOR PAD ADJUSTING BOLT)

main90501-23051iAE111,CE110,EE111..JPP¥240199808-199911

47547CPLUG, BLEEDER(FOR REAR DISC BRAKE)

main47547-02090iWZE110,ZZE11#..UKP199911-200111

main47547-20010iAE111,CE110,EE111..JPP¥200199808-200109

47601ACRANK SUB-ASSY, PARKING BRAKE, RH

main47601-12030iAE111,EE111..UKP;CDE110,WZE110,ZZE11#..JPP¥1,030199808-200109

47601FSPRING, TORSION(FOR PARKING BRAKE CRANK RH)

main90508-32021iAE111,EE111..UKP¥380199808-199911

47602ACRANK SUB-ASSY, PARKING BRAKE, LH

main47602-12030iAE111,CE110,EE111..JPP¥1,030199808-200109

47602BSPRING, TORSION(FOR PARKING BRAKE CRANK LH)

main90508-32020iAE111,EE111..UKP¥380199808-199911

47613BSTRUT, PARKING BRAKE(FOR REAR BRAKE)

main47613-12020iAE111,EE111..UKP;CDE110,WZE110,ZZE11#..JPP¥610199808-200109

47633ABOOT, PARKING BRAKE CRANK

main47633-12010iAE111,EE111..UKP;CDE110,WZE110,ZZE11#..JPP¥880199808-200109

47635ARETAINER, ADJUSTING BOLT SPRING(FOR REAR DISC BRAKE)

main47635-12020iAE111,EE111..UKP¥550199808-199911

47635BRING(FOR REAR BRAKE ADJUSTING BOLT SPRING RETAINER)

main90521-32002iAE111,EE111..UKP¥170199808-199911

47636PLATE, ADJUSTING BOLT SPRING(FOR REAR DISC BRAKE)

main47636-12010iAE111,CE110,EE111..JPP¥390199808-199911

47647STOPPER, AUTOMATIC ADJUST BOLT(FOR REAR DISC BRAKE)

main47647-12020iAE111,EE111..UKP¥400199808-199911

47701PISTON SUB-ASSY, REAR DISC BRAKE

main47701-12030iAE111,EE111..UKP¥5,800199808-199911

main47701-12050iCDE110,WZE110,ZZE11#..JPP¥7,500199910-200109

47701ARING, SET(FOR DISC BRAKE PISTON, REAR)

main90522-43004iAE111,EE111..UKP¥210199808-199911

main90522-45001iCDE110,WZE110,ZZE11#..JPP¥170199910-200109

47716APLATE, PAD SUPPORT, NO.1(FOR REAR DISC BRAKE)

main47716-12020iAE111,CE110,EE111..JPP¥390199808-200109

47721CMOUNTING, REAR DISC BRAKE CYLINDER, RH

main47721-09030iWZE110,ZZE11#..UKP199911-200109

sub47721-09100

main47721-09100iWZE110,ZZE11#200109-200111

main47721-12190iAE111,EE111..UKP;CDE110,WZE110,ZZE11#..JPP¥5,400199808-200109

47721DBOLT(FOR REAR DISC BRAKE CYLINDER MOUTING)

main90109-08098iAE111,CE110,EE111..JPP¥500199808-200109

*8-1.25PX56-15

main90119-08431iAE111,EE111..UKP;CDE110,WZE110,ZZE11#..JPP¥220199808-200109

*8-1.25PX62-20

47722AMOUNTING, REAR DISC BRAKE CYLINDER, LH

main47721-09030iWZE110,ZZE11#..UKP199911-200109

sub47721-09100

main47721-09100iWZE110,ZZE11#200109-200111

main47721-12190iAE111,EE111..UKP;CDE110,WZE110,ZZE11#..JPP¥5,400199808-200109

47730BCYLINDER ASSY, REAR DISC BRAKE, RH

main47730-02090iWZE110,ZZE11#..UKP199911-200111

main47730-12460iAE111,EE111..UKP¥53,800199808-199911

main47730-12470iCDE110,WZE110,ZZE11#..JPP¥34,200199910-200109

47750ACYLINDER ASSY, DISC BRAKE, REAR LH

main47750-02080iWZE110,ZZE11#..UKP199911-200111

main47750-12460iAE111,EE111..UKP¥53,800199808-199911

main47750-12470iCDE110,WZE110,ZZE11#..JPP¥34,200199910-200109

47769ABUSH, CYLINDER SLIDE, NO.1(FOR REAR DISC BRAKE)

main47769-28010iAE111,CE110,EE111..JPP¥680199808-200109

47775DBOOT, BUSH DUST(FOR REAR DISC BRAKE)

main47775-14010iAE111,EE111..UKP;CDE110,WZE110,ZZE11#..JPP¥780199808-200109

47776ABOOT, MAIN PIN(FOR REAR DISC BRAKE)

main47776-12020iAE111,EE111..UKP;CDE110,WZE110,ZZE11#..JPP¥80199808-200109

47779ABUSH, CYLINDER SLIDE, NO.2(FOR REAR DISC BRAKE)

main47779-12010iAE111,EE111..UKP;CDE110,WZE110,ZZE11#..JPP¥870199808-200109

47803COVER SUB-ASSY, DISC BRAKE DUST, REAR RH

main47803-12060iAE111,CE110,EE111..JPP¥1,260199808-200109

main47803-12070iWZE110,ZZE11#..UKP¥1,690199911-200111

47804COVER SUB-ASSY, DISC BRAKE DUST, REAR LH

main47804-12060iAE111,CE110,EE111..JPP¥1,260199808-200109

main47804-12070iWZE110,ZZE11#..UKP¥1,690199911-200111

47810ABOLT, HEXAGON(FOR REAR CALIPER)

main90105-10086iWZE110,ZZE11#..UKP¥280199911-200111

main90105-10167iAE111,EE111..UKP;CDE110,WZE110,ZZE11#..JPP¥210199808-200109

9011910413

main90119-10413¥200

9024506010

main90245-06010¥240

38 parts on this diagram · 2 diagrams in section
