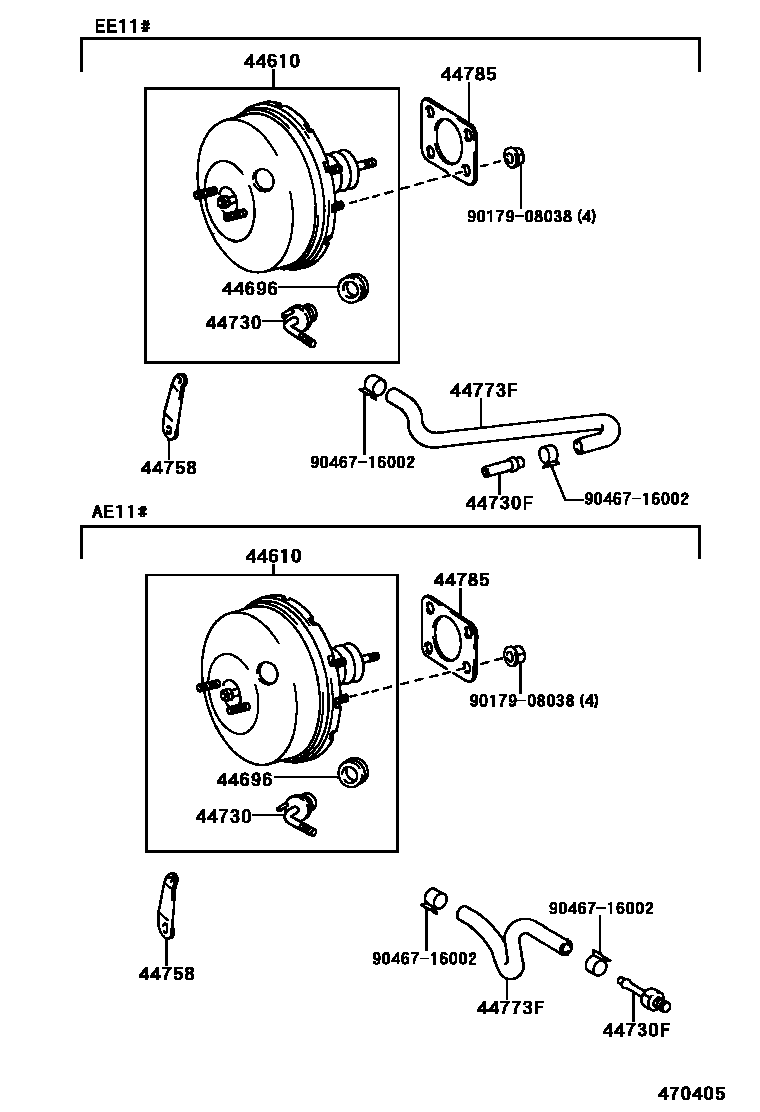

BRAKE BOOSTER & VACUUM TUBE

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1 0007 1 0008 1 0009 1 0010 1 0011 1 0012 1 0013 1 0014 1 0015 1 0016 1 0017 1W(HEATER)

44610BOOSTER ASSY, BRAKE

main44610-02040iAE111,EE111..UKP..RHD199809-199911

main44610-02050iWZE110,ZZE11#..UKP..RHD199911-200111

main44610-02060iAE111,EE111..UKP..LHD199809-199911

main44610-02080iZZE11#..UKP..LHD199911-200111

main44610-02090iWZE110..LHD..LB199912-200111

main44610-1E220iAE111,EE111..JPP..RHD¥46,700199704-199910

main44610-1E350iCE110..RHD¥45,300199704-199910

main44610-1E360iEE111..LHD..HB..TERRA;AE111..JPP..LHD..4FC..TERRA;AE111..JPP..LHD..LB..5F..TERRA¥45,600199711-199910

ROUGH ROAD PACKAGE

main44610-1E370iAE111,CE110,EE111..JPP..LHD¥45,300199704-199910

main44610-1E390iZZE11#..JPP..RHD¥45,300199910-200107

main44610-1E400iZZE11#..JPP..LHD..(4FC,5F)¥46,500199910-200109

main44610-1E410iWZE110..LHD..HB¥45,300200001-200107

main44610-1E430iZZE11#..JPP..LHD¥46,500199910-200109

W(ABS)

main44610-1E440iCDE110..LHD¥45,300200008-200109

main44610-1E440iWZE110..LHD..HB¥45,300200001-200107

W(ABS)

main44610-1E450iCDE110,WZE110..JPP..RHD¥45,300200001-200107

main44610-1E570iZZE111..LHD..HB..TERRA;ZZE112..JPP..LHD..LB..TERRA;ZZE112..LHD..HB..4FC..TERRA¥46,400199912-200109

ROUGH ROAD PACKAGE

44696GROMMET, CHECK VALVE

main90069-20004iWZE110,ZZE11#..UKP;AE111,EE111..UKP..LHD199809-200111

sub44692-0D020

main90480-24439iAE111,EE111..JPP..RHD¥390199704-200109

44730VALVE ASSY, VACUUM CHECK(FOR BRAKE)

main44580-22030iZZE11#..RHD;AE111,EE111..UKP..LHD¥7,700199704-200111

main44730-05010iZZE11#..UKP..LHD;AE111,EE111..UKP..RHD199809-200111

main44730-12040iAE111,EE111..JPP..RHD¥1,360199704-199910

main44730-14050iZZE11#..JPP..LHD¥1,380199910-200109

main44730-60050iWZE110..LB¥1,360199912-200111

44730FUNION, VACUUM HOSE(FOR MANIFOLD SIDE)

main90404-51319iAE111..JPP¥220199704-199911

44758BRACKET, VACUUM CHECK VALVE

main44758-12300iAE111,EE111..JPP..RHD¥120199704-199910

main44758-12330iZZE11#..JPP..LHD..(4FC,5F)¥270199910-200109

main44758-12340iZZE11#..JPP..LHD¥270199910-200109

W(ABS)

44773FHOSE, UNION TO CHECK VALVE

main44773-12530iEE111..JPP..RHD¥1,030199704-199910

main44773-12600iAE111..JPP..RHD¥1,000199704-199910

main44773-12620iCE110¥2,080199704-199910

main44773-12650iEE111..UKP..RHD¥2,170199809-199911

main44773-12660iAE111..UKP..RHD¥1,470199809-199911

main44773-12670iWZE110¥1,300199912-200111

main44773-12680iZZE11#..UKP..LHD¥2,370199911-200111

main44773-12690iZZE11#..JPP..LHD¥1,360199910-200109

main44773-12730iCDE110¥1,670200008-200109

44785GASKET, BRAKE BOOSTER

main44785-20020iAE111,EE111..UKP;CDE110,WZE110,ZZE11#¥320199704-200111

9017908038

main90179-08038¥130

9046716002

main90467-16002¥200

9 parts on this diagram · 17 diagrams in section
