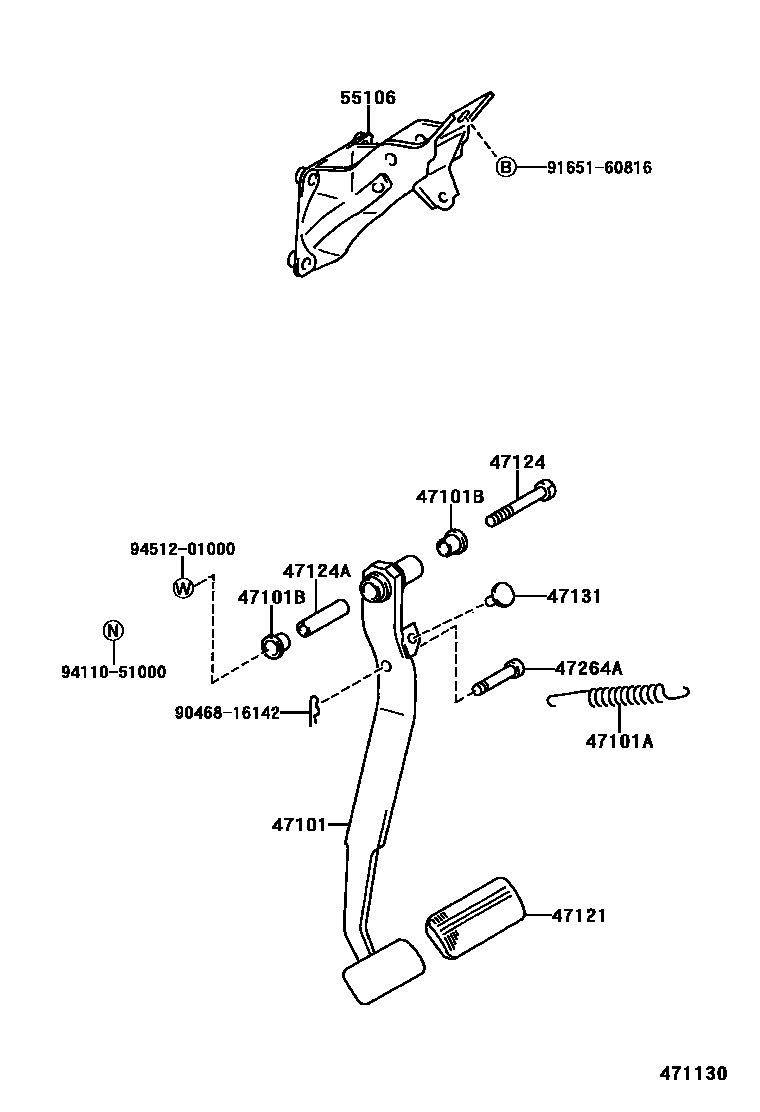

BRAKE PEDAL & BRACKET

47101PEDAL SUB-ASSY, BRAKE

main47101-02050iAE111,EE111,WZE110,ZZE11#..UKP..RHD..MTM199809-200111

main47101-02060iAE111,EE111..UKP..LHD..5F199809-199904

sub47101-02061

main47101-02061iAE111,EE111,WZE110,ZZE11#..UKP..LHD..MTM199904-200111

main47101-12530iCDE110,WZE110,ZZE11#..JPP..RHD..MTM199704-200107

main47101-12540iZZE112..RHD..4FC;AE111,EE111..UKP..RHD..ATM199704-200111

main47101-12550iAE111,CE110,EE111..JPP..LHD..MTM199704-199907

main47101-12560iAE111,EE111..JPP..LHD..ATM199704-200111

main47101-12570iCDE110,WZE110,ZZE11#..JPP..LHD..MTM199907-200109

47101ASPRING(FOR BRAKE PEDAL RETURN)

main90507-14037iCDE110,WZE110,ZZE11#..JPP199704-200109

main90905-07026iAE111,EE111,WZE110,ZZE11#..UKP199809-200111

47101BBUSH(FOR BRAKE PEDAL)

main90386-13015iAE111,EE111..UKP;CDE110,WZE110,ZZE11#199704-200111

47121PAD, BRAKE PEDAL

main31321-12040iCDE110,WZE110,ZZE11#..JPP..MTM199704-200109

main31321-14020iAE111,EE111,WZE110,ZZE11#..UKP..MTM199809-200111

main47121-12020iZZE112..4FC;AE111,EE111..UKP..ATM199704-200111

47124SHAFT, BRAKE PEDAL

main90101-10039iAE111,CE110,EE111..JPP199704-200111

47124ACOLLAR(FOR BRAKE PEDAL SHAFT)

main90387-10003iAE111,EE111..UKP;CDE110,WZE110,ZZE11#199704-200111

47131CUSHION(FOR STOP LAMP SWITCH)

main90541-06036iAE111,EE111..UKP;CDE110,WZE110,ZZE11#199704-200111

47264APIN(FOR PUSH ROD)

main47148-12060iAE111,EE111..UKP;CDE110,WZE110,ZZE11#199704-200111

55106SUPPORT SUB-ASSY, BRAKE PEDAL

main55106-02030iAE111,EE111,WZE110,ZZE11#..UKP..RHD199809-200111

main55106-02040iAE111,EE111,WZE110,ZZE11#..UKP..LHD199809-200111

main55106-12630iEE111..JPP..LHD;AE111,CE110..JPP..LHD..(G6,LUNA,TERRA)199704-200109

main55106-12640iAE111..JPP..RHD..LB;AE111..RHD..HB..(G6,TERRA);EE111..JPP..RHD..3FC..LUNA;CE110,EE111..JPP..RHD..(G6,TERRA);CE110,EE111..JPP..RHD..LB..5F..LUNA199704-200107

9046816142

main90468-16142

9165160816

main91651-60816

9411051000

main94110-51000

9451201000

main94512-01000

13 parts on this diagram · 1 diagram in section
