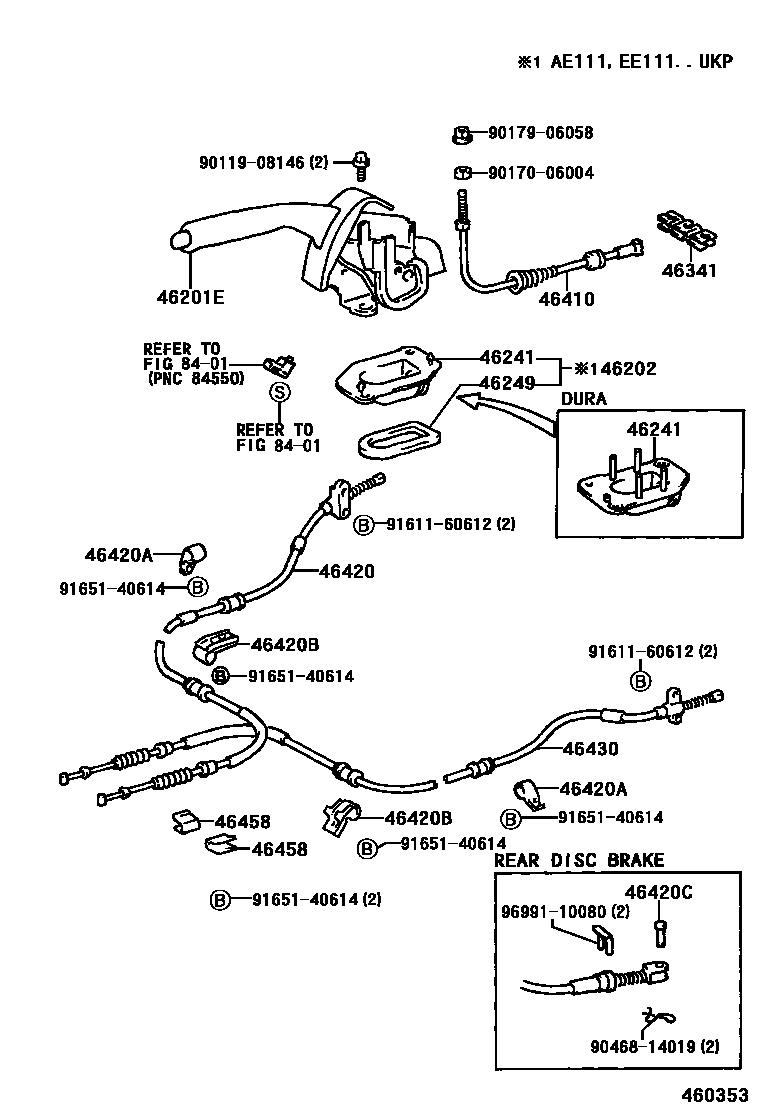

PARKING BRAKE & CABLE

46201ELEVER SUB-ASSY, PARKING BRAKE

main46201-12180-B3iZZE111..STD199704-200107

DK.CHARCOAL,TRIM1#

sub46201-12180

main46201-12190-B0iAE111,EE111..HB..5F..TERRA199804-199807

G6 GRADE PACKAGE, W(HEADLAMP CLEANER),SHADOW GRAY,TRIM12

sub46201-12190

main46201-12190-B0iEE111..G6199704-199911

W(HEADLAMP CLEANER),SHADOW GRAY,TRIM1#

sub46201-12190

main46201-12190-B0iEE111..G6199704-199808

W(HEADLAMP CLEANER),SHADOW GRAY,TRIM0#

sub46201-12190

main46201-12190-B0iAE111,CE110,EE111..JPP..(LUNA,TERRA)199808-199910

W(HEADLAMP CLEANER),SHADOW GRAY,TRIM12

sub46201-12190

main46201-12190-B0iWZE110;ZZE112..RHD..HB..4FC;ZZE11#..UKP..(4FC,5F)199911-200111

SHADOW GRAY,TRIM16

sub46201-12190

main46201-12190-B0iZZE112..JPP..LB..4FC;ZZE112..LHD..HB..4FC;ZZE11#..JPP..5F..(SOL,TERRA)199910-200109

W(HEADLAMP CLEANER),SHADOW GRAY,TRIM16

sub46201-12190

main46201-12190-B3iAE111,CE110,EE111..JPP..(LUNA,TERRA)199808-199910

W(HEADLAMP CLEANER),DK.CHARCOAL,TRIM0#,10

sub46201-12190

main46201-12190-B3iAE111..LB;AE111..HB..TERRA;EE111..3FC..LUNA;CE110,EE111..TERRA;CE110,EE111..LB..5F..LUNA;AE111,CE110,EE111..LHD..HB..(4FC,5F)..LUNA199704-200107

W(HEADLAMP CLEANER),DK.CHARCOAL,TRIM1#

sub46201-12190

main46201-12190-B3iZZE112..JPP..LB..4FC;ZZE112..LHD..HB..4FC;ZZE11#..JPP..5F..(SOL,TERRA)199910-200109

W(HEADLAMP CLEANER),DK.CHARCOAL,TRIM11

sub46201-12190

main46201-12190-B3iWZE110;ZZE112..RHD..HB..4FC;ZZE11#..UKP..(4FC,5F)199911-200111

DK.CHARCOAL,TRIM11

sub46201-12190

main46201-12190-B3iAE111,EE111..UKP199809-199911

W(HEADLAMP CLEANER),DK.CHARCOAL,TRIM0#,1#

sub46201-12190

main46201-12200-B0iEE111..G6199808-199910

W(14 INCHES DISC WHEEL),SHADOW GRAY,TRIM12

sub46201-12200

main46201-12200-B0iZZE11#..G6;AE111,EE111..UKP199808-200107

SHADOW GRAY,TRIM1#

sub46201-12200

main46201-12200-B0iWZE110,ZZE11#..JPP..(SOL,TERRA)199910-200109

W(14 INCHES DISC WHEEL),SHADOW GRAY,TRIM16

sub46201-12200

main46201-12200-B0iCDE110200008-200109

SHADOW GRAY,TRIM16

sub46201-12200

main46201-12200-B0iAE111,EE111..HB..5F..TERRA199804-199807

G6 GRADE PACKAGE, W(14 INCHES DISC WHEEL),SHADOW GRAY,TRIM12

sub46201-12200

main46201-12200-B0iAE111..G6199808-199910

W(14 INCHES DISC WHEEL),SHADOW GRAY,TRIM1#

sub46201-12200

main46201-12200-B1iAE111,CE110,EE111..JPP..(LUNA,TERRA)199808-199910

W(14 INCHES DISC WHEEL),DK.CHARCOAL,TRIM0#,10

sub46201-12200

main46201-12200-B1iAE111,EE111..UKP199809-199911

W(14 INCHES DISC WHEEL),DK.CHARCOAL,TRIM0#,1#

sub46201-12200

main46201-12200-B1iZZE111..STD199808-200107

W(14 INCHES DISC WHEEL),DK.CHARCOAL,TRIM1#

sub46201-12200

main46201-12200-B1iWZE110,ZZE11#..JPP..(SOL,TERRA)199910-200109

W(14 INCHES DISC WHEEL),DK.CHARCOAL,TRIM11

sub46201-12200

main46201-12200-B1iCDE110200008-200109

DK.CHARCOAL,TRIM11

sub46201-12200

main46201-12220-B0iWZE110,ZZE11#..UKP..(4FC,5F)199911-200111

W(14 INCHES DISC WHEEL),SHADOW GRAY,TRIM16

main46201-12220-B0iZZE112..6F..SOL199911-200111

SHADOW GRAY,TRIM1#

main46201-12220-B1iWZE110,ZZE11#..UKP..(4FC,5F)199911-200111

W(14 INCHES DISC WHEEL),DK.CHARCOAL,TRIM11

46202BOOT SUB-ASSY, PARKING BRAKE LEVER

main46202-12010iAE111,EE111,WZE110,ZZE11#..UKP199809-200111

46241BOOT, PARKING BRAKE LEVER

main46241-12110iAE111,EE111..UKP;CDE110,WZE110,ZZE11#199704-200111

46249SHIELD, PARKING BRAKE HOLE

main46249-12010iAE111,EE111..UKP;CDE110,WZE110,ZZE11#199704-200111

46341EQUALIZER, PARKING BRAKE

main46341-05010iAE111,EE111,WZE110,ZZE11#..UKP199809-200111

main46341-12020iCDE110,WZE110,ZZE11#..JPP199704-200109

46410CABLE ASSY, PARKING BRAKE, NO.1

main46410-02050iAE111,EE111,WZE110,ZZE11#..UKP199809-200111

(L)

sub46410-12250

main46410-12250iCDE110,WZE110..JPP;ZZE112..RHD..HB..4FC199704-200109

main46410-12250iZZE111;ZZE112..LB;ZZE112..HB..MTM;ZZE112..LHD..HB..4FC;AE111,EE111,WZE110..UKP199809-200111

(J)

46420CABLE ASSY, PARKING BRAKE, NO.2

main46420-02050iAE111,EE111..UKP199809-199911

(L)

sub46420-12710

main46420-02050iWZE110,ZZE11#..UKP..(4FC,5F)199911-200111

sub46420-12710

main46420-12390iCDE110200008-200109

main46420-12390iAE111,EE111..UKP;ZZE112..RHD..HB..4FC199808-200107

W(REAR DISC BRAKE)

main46420-12390iZZE112..JPP..LB..4FC;ZZE112..LHD..HB..4FC;WZE110,ZZE11#..JPP..MTM199910-200109

W(14 INCHES DISC BRAKE)

main46420-12400iWZE110,ZZE11#..JPP..(4FC,5F)199704-200109

main46420-12470iWZE110,ZZE11#..UKP199911-200111

W(REAR DISC BRAKE)

46420ACLAMP, NO.1(FOR PARKING BRAKE CABLE)

main90949-01746iAE111,EE111..UKP;CDE110,WZE110,ZZE11#199704-200111

46420BCLAMP, NO.2(FOR PARKING BRAKE CABLE)

main90949-01744iAE111,EE111..UKP;CDE110,WZE110,ZZE11#199704-200111

LH

main90949-01747iAE111,CE110,EE111..JPP199704-200111

RH

46420CPIN, W/HOLE(FOR PARKING BRAKE CABLE)

main90240-08040iAE111,CE110,EE111..JPP199808-200111

46430CABLE ASSY, PARKING BRAKE, NO.3

main46430-02050iAE111,EE111..UKP199809-199911

(L)

sub46430-12590

main46430-02050iWZE110,ZZE11#..UKP..(4FC,5F)199911-200111

sub46430-12590

main46430-12290iAE111,EE111..UKP;ZZE112..RHD..HB..4FC199808-200107

W(REAR DISC BRAKE)

main46430-12290iZZE112..JPP..LB..4FC;ZZE112..LHD..HB..4FC;WZE110,ZZE11#..JPP..MTM199910-200109

W(14 INCHES DISC BRAKE)

main46430-12290iCDE110200008-200109

main46430-12300iAE111,CE110,EE111..JPP..(LUNA,STD,TERRA)199704-200109

main46430-12370iWZE110,ZZE11#..UKP199911-200111

W(REAR DISC BRAKE)

46458RETAINER, CABLE

main46458-28010iAE111,EE111,WZE110,ZZE11#..UKP199809-200111

main46458-50010iAE111,CE110,EE111..JPP199704-200109

8401

9011908146

main90119-08146

9017006004

main90170-06004

9017906058

main90179-06058

9046814019

main90468-14019

9161160612

main91611-60612

9165140614

main91651-40614

9699110080

main96991-10080

20 parts on this diagram · 1 diagram in section
