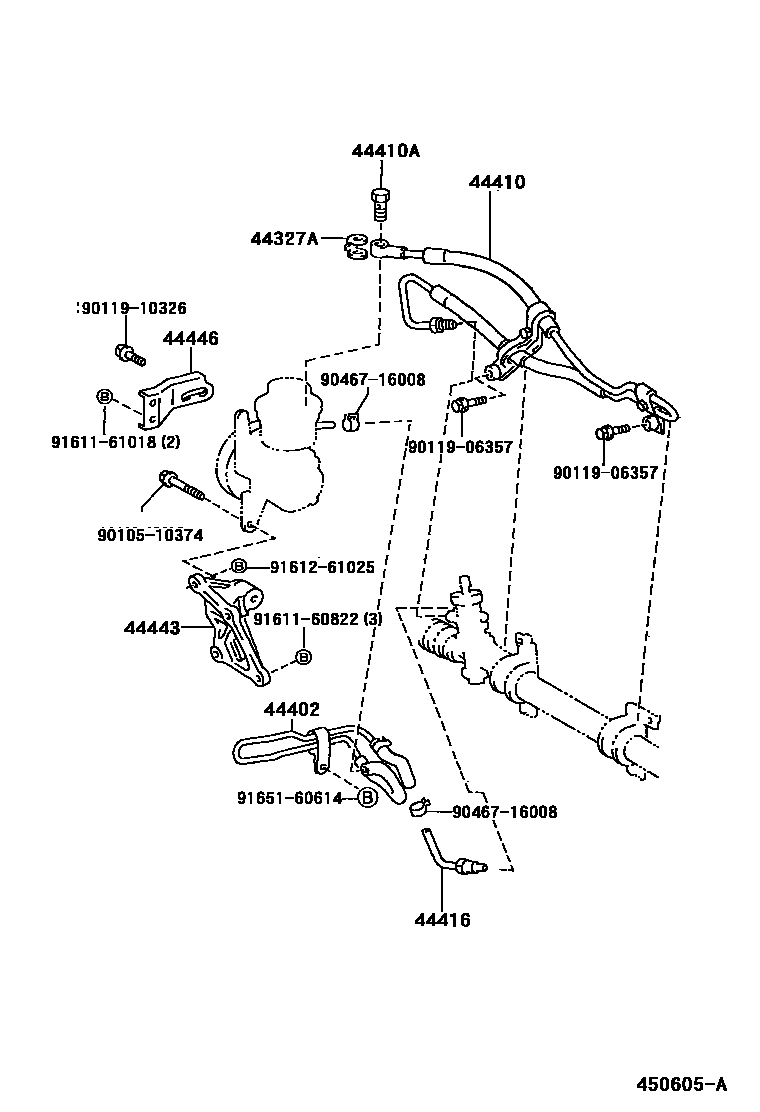

POWER STEERING TUBE

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1 0007 1 0008 1 0009 1 0010 1 0011 1 0012 1 0013 1 0014 1 0015 1 0016 1 0017 1 0018 1 0019 1

44327AGASKET, PRESSURE PORT, NO.1

main44327-12010iAE111,EE111..UKP;CDE110,WZE110,ZZE11#¥260199704-200111

44402COOLER SUB-ASSY, POWER STEERING OIL, NO.1

main44402-02040iZZE11#..UKP199911-200111

main44402-12150iAE111..JPP..LHD¥7,900199704-199911

main44402-12210iAE111..JPP..RHD¥7,900199704-199910

sub44402-12260¥7,900

main44402-12230iAE111..UKP..RHD¥7,900199809-199911

44410TUBE ASSY, PRESSURE FEED

main44040-02050iWZE110..RHD..LB199912-200111

main44040-02061iWZE110..LHD..LB199912-200111

main44040-12121iEE111..JPP..LHD¥28,400199704-199910

main44040-12160iCE110..LHD¥31,100199704-199910

main44040-12173iCE110..RHD¥24,100199704-199910

main44040-12182iEE111..JPP..RHD¥34,000199704-199910

main44040-12200iEE111..UKP..RHD199809-199911

main44040-12210iEE111..UKP..LHD199809-199911

main44040-12220iWZE110..RHD..HB¥24,100200001-200107

main44040-12230iWZE110..LHD..HB¥31,100200001-200107

main44040-12240iCDE110..RHD¥27,100200008-200107

main44040-12250iCDE110..LHD¥31,100200008-200109

main44410-02070iZZE11#..UKP..RHD199911-200111

main44410-02080iZZE11#..UKP..LHD199911-200111

main44410-12391iAE111..JPP..RHD¥25,700199704-199910

main44410-12492iAE111..JPP..LHD¥19,000199704-199910

main44410-12560iAE111..UKP..RHD199809-199911

main44410-12570iAE111..UKP..LHD199809-199911

main44410-12580iZZE11#..JPP..RHD¥27,100199910-200107

main44410-12590iZZE11#..JPP..LHD¥18,700199910-200109

44410ABOLT, UNION(FOR PRESSURE FEED TUBE)

main44338-12170iZZE11#¥3,430199910-200111

main90401-16012iAE111..UKP;CDE110,WZE110¥520199704-200111

44416TUBE, RETURN(FOR STEERING GEAR OUTLET)

main44406-12160iAE111,CE110,EE111..JPP..LHD¥2,590199704-199910

main44406-12190iAE111..UKP..LHD¥2,550199809-199911

main44406-12200iEE111..UKP..LHD¥1,720199809-199911

main44406-12210iZZE11#..JPP..LHD¥2,550199910-200109

main44406-12220iCDE110,WZE110..JPP..LHD¥2,570200001-200109

main44416-12230iAE111,EE111..UKP..RHD¥880199809-199911

main44416-12240iCDE110,WZE110,ZZE11#..JPP..RHD¥1,050199704-200107

44443BRACKET, PUMP

main44443-10030iEE111..JPP¥3,010199704-199910

main44443-12100iAE111..UKP¥6,300199704-199911

main44443-16020iEE111..UKP¥2,130199809-199911

44446STRUT, ADJUSTING

main44446-02030iEE111..UKP199809-199911

main44446-05010iAE111..UKP199809-199911

main44446-10050iEE111..JPP¥1,320199704-199910

main44446-12060iAE111..JPP¥1,780199704-199910

9010510374

main90105-10374¥310

9011906357

main90119-06357¥100

9011910326

main90119-10326¥140

9046716008

main90467-16008¥240

9161160822

main91611-60822¥170

9161161018

main91611-61018¥130

9161261025

main91612-61025¥120

9165160614

main91651-60614¥70

15 parts on this diagram · 19 diagrams in section
