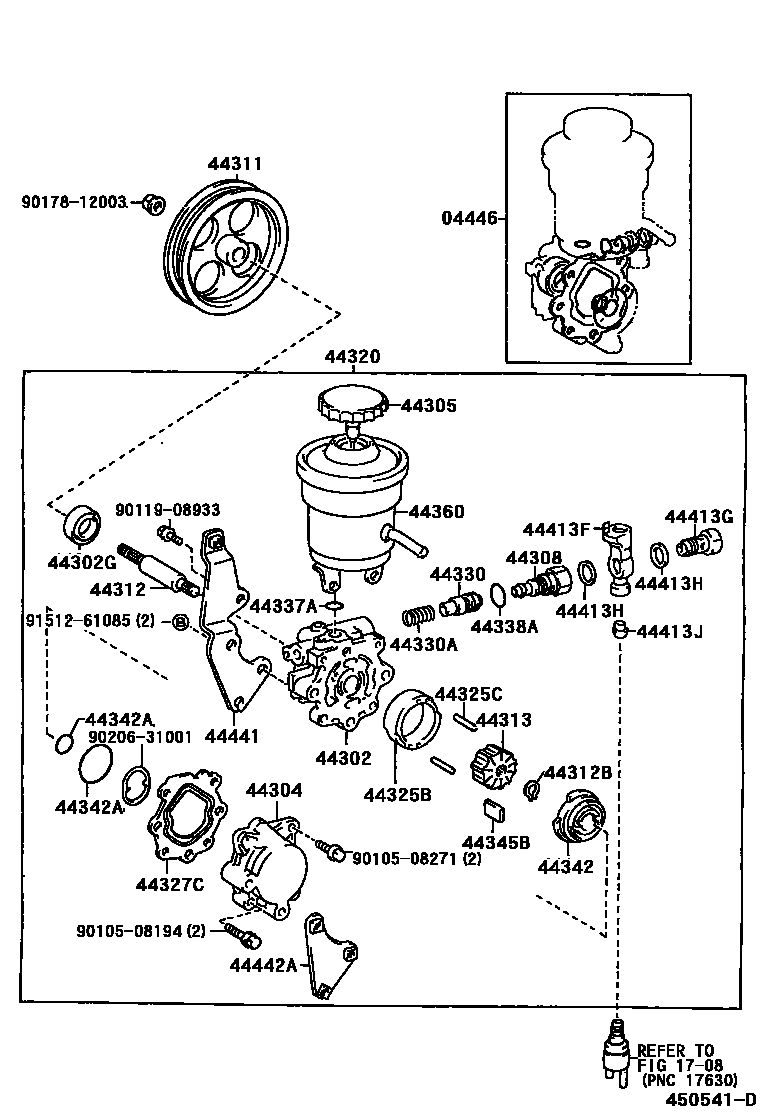

VANE PUMP & RESERVOIR (POWER STEERING)
04446GASKET KIT, POWER STEERING PUMP
1708
44302HOUSING SUB-ASSY, VANE PUMP, FRONT
44302GSEAL, OIL, NO.2(FOR VANE PUMP HOUSING)
44304HOUSING SUB-ASSY, VANE PUMP, REAR
44305CAP SUB-ASSY, VANE PUMP OIL RESERVOIR
(L)
44308UNION SUB-ASSY, PRESSURE PORT
44311PULLEY, VANE PUMP
44312SHAFT, VANE PUMP
TYPE A:REFER TO ILLUSTRATION
TYPE B:REFER TO ILLUSTRATION
44312BRING, SNAP, NO.1(FOR VANE PUMP SHAFT)
44313ROTOR, VANE PUMP
NO MARK
MARK 1
MARK 2
MARK 3
MARK 4
MARK 0
MARK 1
MARK 2
MARK 3
MARK 4
NO MARK
MARK 1
MARK 2
MARK 3
MARK 4
NO MARK
MARK 1
MARK 2
MARK 3
MARK 4
NO MARK
MARK 1
MARK 2
MARK 3
MARK 4
44320PUMP ASSY, VANE
44325BRING, VANE PUMP CAM
NO MARK
MARK 1
MARK 2
MARK 3
MARK 4
NO MARK
MARK 1
MARK 2
MARK 3
MARK 4
NO MARK
MARK 1
MARK 2
MARK 3
MARK 4
NO MARK
MARK 1
MARK 2
MARK 3
MARK 4
44325CPIN, STRAIGHT(FOR VANE PUMP CAM RING)
L=23.3,OD=4.0
L=28,OD=4.0
L=43,OD=4.0
L=23.3,OD=4.0
44327CGASKET, VANE PUMP HOUSING
44330VALVE ASSY, FLOW CONTROL
MARK A
MARK B
MARK C
MARK D
MARK E
MARK F
MARK A
MARK B
MARK C
MARK D
MARK E
MARK F
MARK A
MARK B
MARK C
MARK D
MARK E
MARK F
MARK A
MARK B
MARK C
MARK D
MARK E
MARK F
MARK A
MARK B
MARK C
MARK D
MARK E
MARK F
MARK A
MARK B
MARK C
MARK D
MARK E
MARK F
MARK A
MARK B
MARK C
MARK D
MARK E
MARK F
44330ASPRING, COMPRESSION(FOR FLOW CONTROL VALVE)
44337UNION, POWER STEERING SUCTION PORT
44337ARING, O(FOR POWER STEERING SUCTION PORT)
44338UNION, PRESSURE PORT
44338ARING, O(FOR PRESSURE PORT UNION)
OD=22.5,ID=19.5
OD=22,ID=18.6
44342PLATE, VANE PUMP SIDE, REAR
44342ARING, O(FOR VANE PUMP SIDE PLATE REAR)
OUTER
INNER
44345BPLATE, VANE PUMP
NO MARK
MARK 1
MARK 2
MARK 3
MARK 4
MARK 0
MARK 1
MARK 2
MARK 3
MARK 4
L=14.997
L=14.995
L=14.993
L=14.991
L=14.989
L=15.000
L=14.998
L=14.996
L=14.994
L=14.992
ROTOR NO MARK
ROTOR MARK 1
ROTOR MARK 2
ROTOR MARK 3
ROTOR MARK 4
44360RESERVOIR ASSY, VANE PUMP OIL
(L)
(J)
44413TUBE, PRESSURE FEED, NO.1
44413FTUBE, PRESSURE FEED, NO.2
44413GBOLT, UNION(FOR PRESSURE FEED TUBE NO.2)
44413HGASKET(FOR PRESSURE FEED TUBE NO.2)
44413JSEAT, UNION(FOR PRESSURE FEED TUBE NO.2)
44441BRACKET, PUMP, FRONT
44442ABRACKET, VANE PUMP, REAR
9010508194
9010508271
9011908933
9017812003
9020631001
9151261085
