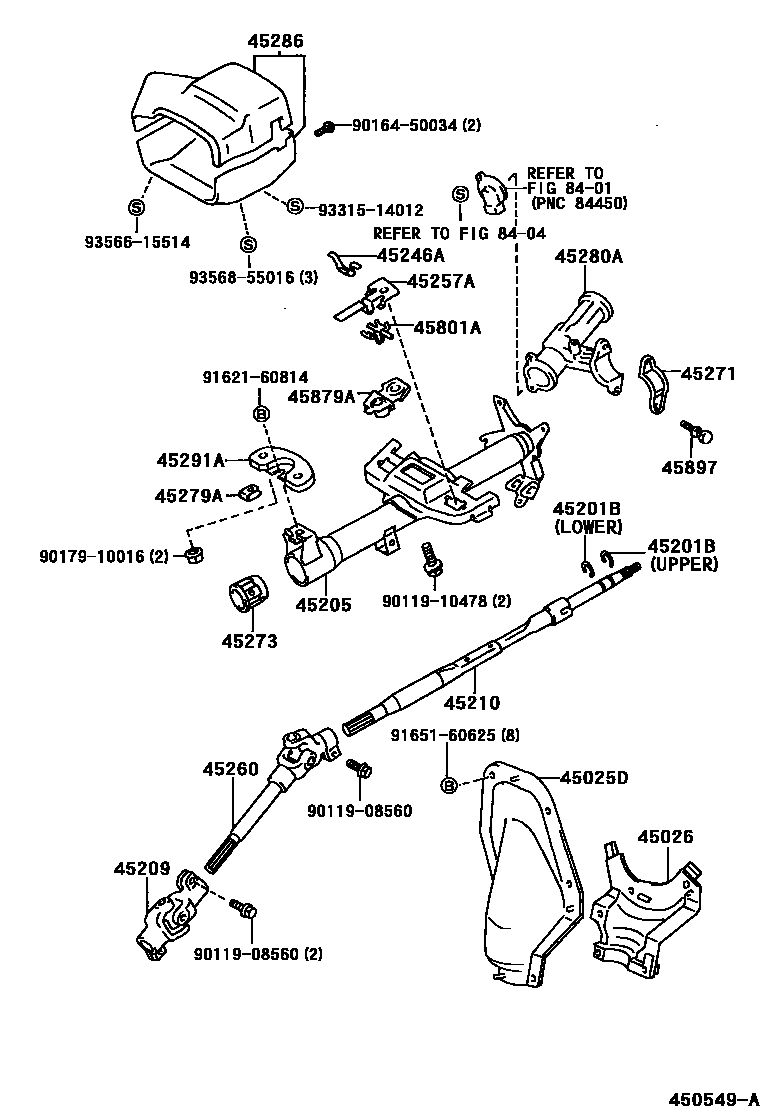

STEERING COLUMN & SHAFT
45025DCOVER SUB-ASSY, STEERING COLUMN HOLE, NO.1
45026COVER SUB-ASSY, STEERING COLUMN HOLE, NO.2
45201BRING, SHAFT SNAP(FOR STEERING MAIN SHAFT)
T=1.20,LOWER
T=1.20,UPPER
45205TUBE SUB-ASSY, STEERING COLUMN
main45205-12360iCDE110..LHD;ZZE112..JPP..LB..4FC;ZZE112..LHD..HB..4FC;WZE110,ZZE11#..JPP..MTM..(G6,SOL,TERRA)199704-200109
W(TILT STEERING)
45209YOKE SUB-ASSY, STEERING SLIDING
45210SHAFT ASSY, STEERING MAIN
45246AGUIDE, STEERING ENERGY ABSORBING PLATE
45257APLATE, STEERING COLUMN ENERGY ABSORBING
45260SHAFT ASSY, STEERING INTERMEDIATE, NO.2
45271CLAMP, STEERING COLUMN, UPPER
45273BUSH, STEERING MAIN SHAFT
45279AATTACHMENT, STEERING COLUMN TUBE, LWR
45286COVER, STEERING COLUMN
SHADOW GRAY,TRIM16
sub45286-12963
SHADOW GRAY,TRIM0#
sub45286-12963
DK.CHARCOAL,TRIM10
sub45286-12963
DK.CHARCOAL,TRIM11
sub45286-12963
G6 GRADE PACKAGE,BLACK,TRIM12
sub45286-12963
W(TILT STEERING),SHADOW GRAY,TRIM0#
sub45286-12963
main45286-12963-B0iCDE110..LHD;ZZE112..JPP..LB..4FC;ZZE112..LHD..HB..4FC;WZE110,ZZE11#..JPP..5F..(SOL,TERRA)199910-200109
W(TILT STEERING),SHADOW GRAY,TRIM16
sub45286-12963
W(TILT STEERING),SHADOW GRAY,TRIM12
sub45286-12963
W(TILT STEERING),DK.CHARCOAL,TRIM0#,10
sub45286-12963
W(TILT STEERING),DK.CHARCOAL,TRIM1#
sub45286-12963
main45286-12963-B1iCDE110..LHD;ZZE112..JPP..LB..4FC;ZZE112..LHD..HB..4FC;WZE110,ZZE11#..JPP..5F..(SOL,TERRA)199910-200109
W(TILT STEERING),DK.CHARCOAL,TRIM11
sub45286-12963
G6 GRADE PACKAGE, W(TILT STEERING),BLACK,TRIM12
sub45286-12963
45291ASUPPORT, STEERING COLUMN TUBE
45801APIN SUB-ASSY, STEERING ENERGY ABSORBING
45879ACAPSULE, BREAK AWAY
45897BOLT, STEERING LOCK SET
8401
8404
9011908560
main90119-08560
9011910478
main90119-10478
9016450034
main90164-50034
9017910016
main90179-10016
9162160814
main91621-60814
9165160625
main91651-60625
9331514012
main93315-14012
9356615514
main93566-15514
9356855016
main93568-55016
29 parts on this diagram · 4 diagrams in section
