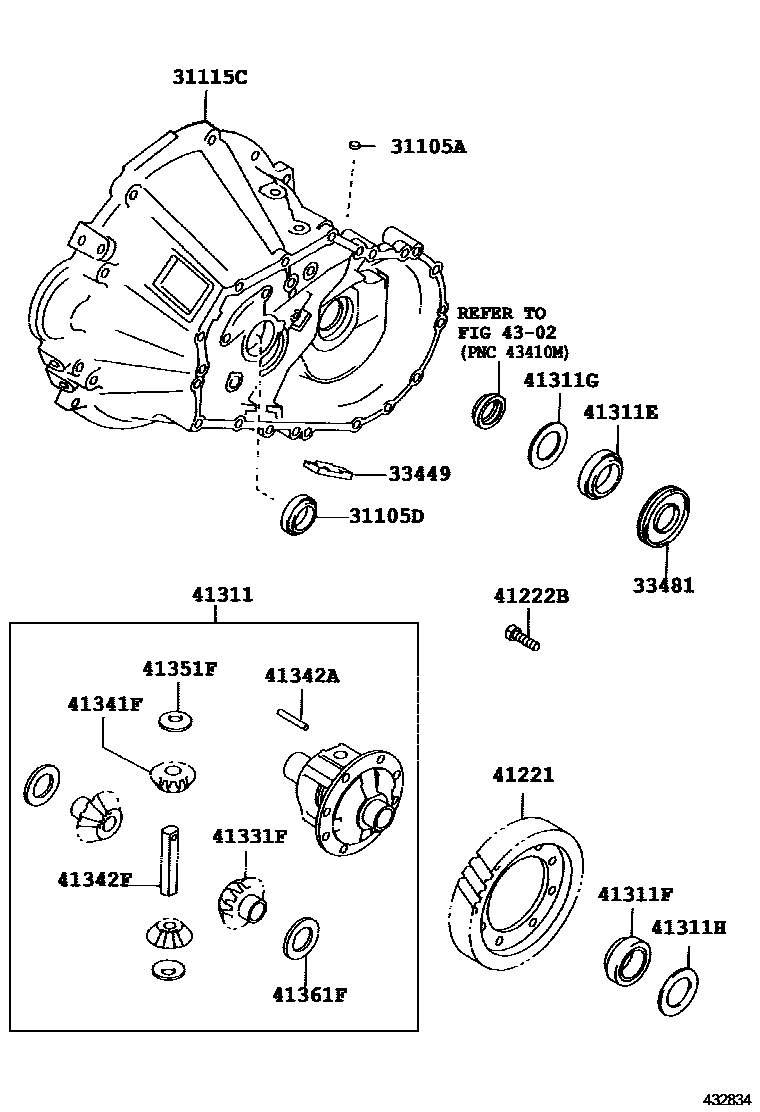

FRONT AXLE HOUSING & DIFFERENTIAL

0001 1C52,C150,C161 0002 1S50 0003 1A132L 0004 1A240L,A245E 0005 1 0006 1E351

31105CASE SUB-ASSY, TRANSAXLE(MTM)

main31105-32070iCE110¥36,100199704-199910

mainSU00100026iWZE110199912-200110

31105APLUG, TIGHT(FOR FRONT TRANSAXLE CASE)

main90331-08002iZZE11#..MTM;AE111,EE111..UKP..5F¥110199704-200110

31105DSEAL, OIL, NO.1(FOR FRONT TRANSAXLE CASE)

main90311-25011iZZE11#..6F¥240199809-200110

sub90311-25028¥270

main90311-25016iZZE11#..5F;AE111,EE111..UKP..5F¥200199704-200110

main90311-30006iCDE110¥220199704-200109

sub90311-30017¥290

31115CCASE, FRONT TRANSAXLE(MTM)

main31115-12110iZZE11#..MTM¥36,200199910-200110

sub31115-12111¥36,200

main31115-16042iAE111..UKP..5F¥36,100199704-199911

main31115-16051iEE111..JPP..MTM¥28,800199704-199911

main31115-28010iCDE110¥40,000200008-200107

sub31115-20061¥40,000

main31115-28011iCDE110¥40,000200107-200109

sub31115-20061¥40,000

33449MAGNET, TRANSMISSION

main33449-12020iZZE11#..MTM;AE111,EE111..UKP..5F¥630199704-200110

main33449-20010iCDE110¥450200008-200109

main33449-32020iCE110¥650199704-199910

mainSU00100247iWZE110199912-200110

33481GEAR, SPEEDOMETER DRIVE (MTM)

main33481-10080iEE111..JPP..MTM¥2,170199704-200110

N=34,MARK 34X30-32

main33481-12040iZZE111..G6;ZZE112..MTM;AE111..UKP..5F¥390199704-200110

N=35,MARK 35X29-31

main33481-20150iCDE110¥2,790200008-200109

N=32

main33481-32060iCE110¥2,800199704-199910

N=25

41221GEAR, FRONT DIFFERENTIAL RING

main41221-10221iEE111..JPP..5F¥12,600199704-200110

sub41221-52320¥12,400

main41221-12160iEE111..JPP..3FC¥13,900199704-199911

sub41221-12310¥11,700

main41221-12330iZZE112..5F;AE111..UKP..5F¥11,900199704-200110

sub41221-52260¥12,600

main41221-12380iAE111,EE111..G6¥12,600199704-200110

sub41221-12500¥12,600

main41221-20230iZZE112..4FC;AE111..UKP..4FC¥11,600199704-200111

main41221-28080iCDE110¥13,500200008-200109

sub41221-20390¥13,500

main41221-32080iCE110¥12,800199704-199910

main41331-02010iWZE110199912-200110

41222BBOLT (FOR FRONT DIFFERENTIAL RING GEAR SET)

main90101-11353iAE111,EE111..JPP..ATM¥120199704-200111

main90105-11040iEE111..G6;AE111,CE110..JPP..MTM¥130199704-200110

main90105-12100iZZE111..5F;EE111..UKP..5F¥230199704-200110

main90105-12319iCDE110¥110200008-200109

mainSU00100424iWZE110199912-200110

41311CASE, FRONT DIFFERENTIAL

main41301-10060iEE111..JPP..5F¥34,500199704-199907

sub41301-10061¥34,300

main41301-10061iEE111..JPP..5F¥34,300199907-200110

main41301-12041iZZE111..G6;ZZE112..MTM;AE111..UKP..5F¥21,600199704-200110

main41301-12051iEE111..JPP..3FC¥34,500199704-199911

main41301-17021iAE111..JPP..4FC¥40,500199704-199911

sub41301-20150¥38,100

sub90366-42001¥2,300

main41301-20150iZZE112..4FC¥38,100199910-200111

main41301-32060iCE110¥42,300199704-199902

sub41301-32061¥42,400

main41301-32061iCE110¥42,400199902-199910

mainSU00100422iWZE110199912-200110

41311EBEARING, TAPERED ROLLER (FOR FRONT DIFFERENTIAL CASE FRONT)

main90080-36101iZZE111..5F¥2,860199805-200110

TIMKEN

sub90366-38004¥2,250

sub90560-41003¥240

main90366-38004iEE111..G6;AE111..JPP..MTM¥2,250199704-200110

main90366-38004iZZE111..5F¥2,250199805-200110

NACHI OR KOYO

main90366-38014iEE111..UKP..3FC¥2,100199704-199911

main90366-40016iCE110¥2,690199704-199910

main90366-57001iCDE110¥2,910200008-200109

main90368-38002iAE111..UKP..4FC¥1,670199704-199911

main90368-38010iZZE112..4FC¥1,670199910-200111

41311FBEARING, TAPERED ROLLER (FOR FRONT DIFFERENTIAL CASE REAR)

main90366-38014iEE111..UKP..3FC¥2,100199704-199911

main90366-40064iCE110¥2,690199704-199910

main90366-42001iZZE112..4FC¥2,300199910-200111

main90366-50072iCDE110¥2,850200008-200109

main90368-38010iZZE11#..MTM;AE111,EE111..UKP..(4FC,5F)¥1,670199704-200110

mainSU00100423iWZE110199912-200110

41311GWASHER, PLATE (FOR FRONT DIFFERENTIAL CASE FRONT)

main90201-41002iEE111..JPP..3FC¥400199704-199911

T=1.60

main90201-41003iEE111..UKP..3FC¥400199704-199911

T=1.65

main90201-41004iEE111..JPP..3FC¥400199704-199911

T=1.70

main90201-41005iEE111..JPP..3FC¥400199704-199911

T=1.75

main90201-41006iEE111..UKP..3FC¥400199704-199911

T=1.80

main90201-41007iEE111..UKP..3FC¥400199704-199911

T=1.85

main90201-41008iEE111..JPP..3FC¥400199704-199911

T=1.90

main90201-41009iEE111..JPP..3FC¥400199704-199911

T=1.95

main90201-41010iAE111,EE111..UKP..ATM¥400199704-199911

T=2.00

main90201-41011iEE111..JPP..3FC¥400199704-199911

T=2.05

main90201-41012iAE111,EE111..JPP..(3FC,5F,6F)¥400199704-199911

T=2.10

main90201-41013iEE111..JPP..3FC¥400199704-199911

T=2.15

main90201-41014iEE111..UKP..3FC¥400199704-199911

T=2.20

main90201-41015iEE111..JPP..3FC¥400199704-199911

T=2.25

main90201-41016iEE111..UKP..3FC¥400199704-199911

T=2.30

main90201-41017iEE111..JPP..3FC¥400199704-199911

T=2.35

main90201-41018iEE111..JPP..3FC¥400199704-199911

T=2.40

main90201-41019iEE111..JPP..3FC¥400199704-199911

T=2.45

main90201-41020iEE111..UKP..3FC¥400199704-199911

T=2.50

main90201-41021iEE111..JPP..3FC¥400199704-199911

T=2.55

main90201-41022iEE111..UKP..3FC¥400199704-199911

T=2.60

main90201-41023iEE111..JPP..3FC¥400199704-199911

T=2.65

main90201-41024iZZE112..4FC¥310199910-200111

T=2.00,MARK V

main90560-41002iEE111..JPP..5F¥310199805-200110

T=1.2

main90560-41003iZZE111..JPP..5F¥240199908-200110

T=2.1

mainSU00100427iWZE110199912-200110

41311HWASHER, PLATE (FOR FRONT DIFFERENTIAL CASE REAR)

main90201-41012iEE111..UKP..3FC¥400199704-199911

T=2.10

main90201-41024iZZE112..4FC;AE111..UKP..4FC¥310199704-200111

T=2.00,MARK V

main90201-41025iZZE112..4FC;AE111..UKP..4FC¥510199704-200111

T=2.35,MARK A

main90201-41026iAE111..JPP..4FC¥510199704-200111

T=2.40,MARK B

main90201-41027iAE111..JPP..4FC¥510199704-200111

T=2.45,MARK C

main90201-41028iAE111..JPP..4FC¥610199704-200111

T=2.50,MARK D

main90201-41029iAE111..JPP..4FC¥610199704-200111

T=2.55,MARK E

main90201-41030iZZE112..4FC;AE111..UKP..4FC¥610199704-200111

T=2.60,MARK F

main90201-41031iAE111..JPP..4FC¥610199704-200111

T=2.65,MARK G

main90201-41032iZZE112..4FC;AE111..UKP..4FC¥390199704-200111

T=2.70,MARK H

main90201-41033iZZE112..4FC;AE111..UKP..4FC¥610199704-200111

T=2.75,MARK J

main90201-41034iAE111..JPP..4FC¥610199704-200111

T=2.80,MARK K

main90201-41035iAE111..JPP..4FC¥610199704-200111

T=2.85,MARK L

main90201-41036iZZE112..4FC;AE111..UKP..4FC¥610199704-200111

T=2.90,MARK M

main90201-41039iZZE112..4FC;AE111..UKP..4FC¥510199704-200111

T=2.10,MARK Q

main90201-41040iAE111..JPP..4FC¥510199704-200111

T=2.15,MARK R

main90201-41041iAE111..JPP..4FC¥510199704-200111

T=2.20,MARK S

main90201-41042iAE111..JPP..4FC¥510199704-200111

T=2.25,MARK T

main90201-41043iZZE112..4FC;AE111..UKP..4FC¥510199704-200111

T=2.30,MARK U

main90201-41044iAE111..JPP..4FC¥310199704-200111

T=2.05,MARK W

main90201-41046iAE111,EE111..UKP..5F¥400199704-199908

T=2.10,MARK A

sub90564-41014¥240

main90201-41047iAE111,EE111..JPP..MTM¥400199704-199908

T=2.15,MARK B

sub90564-41015¥240

main90201-41048iAE111,EE111..UKP..5F¥400199704-199908

T=2.20,MARK C

sub90564-41016¥240

main90201-41049iAE111,EE111..UKP..5F¥400199704-199908

T=2.25,MARK D

sub90564-41017¥240

main90201-41050iAE111,EE111..UKP..5F¥520199704-199908

T=2.30,MARK E

sub90564-41018¥320

main90201-41051iAE111,EE111..JPP..MTM¥520199704-199908

T=2.35,MARK F

sub90564-41019¥320

main90201-41052iAE111,EE111..UKP..5F¥520199704-199908

T=2.40,MARK G

sub90564-41020¥320

main90201-41053iAE111,EE111..JPP..MTM¥520199704-199908

T=2.45,MARK H

sub90564-41021¥320

main90201-41054iAE111,EE111..JPP..MTM¥520199704-199908

T=2.50,MARK J

sub90564-41022¥320

main90201-41055iAE111,EE111..UKP..5F¥520199704-199908

T=2.55,MARK K

sub90564-41023¥320

main90201-41056iAE111,EE111..JPP..MTM¥520199704-199908

T=2.60,MARK L

sub90564-41024¥320

main90201-41057iAE111,EE111..UKP..5F¥520199704-199908

T=2.65,MARK M

sub90564-41025¥320

main90201-41058iAE111,EE111..JPP..MTM¥520199704-199908

T=2.70,MARK N

sub90564-41026¥320

main90201-41059iAE111,EE111..JPP..MTM¥520199704-199908

T=2.75,MARK P

sub90564-41027¥320

main90201-41060iAE111,EE111..JPP..MTM¥520199704-199908

T=2.80,MARK Q

sub90564-41028¥320

main90201-41061iAE111,EE111..UKP..5F¥610199704-199908

T=2.85,MARK R

sub90564-41029¥370

main90201-41062iAE111,EE111..UKP..5F¥610199704-199908

T=2.90,MARK S

sub90564-41030¥370

main90201-41063iAE111,EE111..UKP..5F¥610199704-199908

T=2.95,MARK T

sub90564-41031¥370

main90201-41064iAE111,EE111..JPP..MTM¥610199704-199908

T=3.00,MARK U

sub90564-41032¥370

main90564-41014iAE111,EE111..JPP..MTM¥240199908-200110

T=2.10,MARK AA

main90564-41015iAE111,EE111..JPP..MTM¥240199908-200110

T=2.15,MARK BB

main90564-41016iZZE11#..MTM;AE111,EE111..UKP..5F¥240199908-200110

T=2.20,MARK CC

main90564-41017iAE111,EE111..JPP..MTM¥240199908-200110

T=2.25,MARK DD

main90564-41018iAE111,EE111..JPP..MTM¥320199908-200110

T=2.30,MARK EE

main90564-41019iAE111,EE111..JPP..MTM¥320199908-200110

T=2.35,MARK FF

main90564-41020iZZE11#..MTM;AE111,EE111..UKP..5F¥320199908-200110

T=2.40,MARK GG

main90564-41021iZZE11#..MTM;AE111,EE111..UKP..5F¥320199908-200110

T=2.45,MARK HH

main90564-41022iAE111,EE111..JPP..MTM¥320199908-200110

T=2.50,MARK JJ

main90564-41023iZZE11#..MTM;AE111,EE111..UKP..5F¥320199908-200110

T=2.55,MARK KK

main90564-41024iAE111,EE111..JPP..MTM¥320199908-200110

T=2.60,MARK LL

main90564-41025iZZE11#..MTM;AE111,EE111..UKP..5F¥320199908-200110

T=2.65,MARK MM

main90564-41026iZZE11#..MTM;AE111,EE111..UKP..5F¥320199908-200110

T=2.70,MARK NN

main90564-41027iZZE11#..MTM;AE111,EE111..UKP..5F¥320199908-200110

T=2.75,MARK PP

main90564-41028iAE111,EE111..JPP..MTM¥320199908-200110

T=2.80,MARK QQ

main90564-41029iAE111,EE111..JPP..MTM¥370199908-200110

T=2.85,MARK RR

main90564-41030iAE111,EE111..JPP..MTM¥370199908-200110

T=2.90,MARK SS

main90564-41031iZZE11#..MTM;AE111,EE111..UKP..5F¥370199908-200110

T=2.95,MARK TT

main90564-41032iZZE11#..MTM;AE111,EE111..UKP..5F¥370199908-200110

T=3.00,MARK UU

41331FGEAR, FRONT DIFFERENTIAL SIDE

main41331-10042iZZE111..5F;EE111..UKP..5F¥3,610199704-200110

sub41331-44011¥4,660

sub41331-48060¥3,310

main41331-12011iAE111..JPP;EE111..JPP..(3FC,6F)¥2,270199704-200111

main41331-28020iCDE110¥4,910200008-200109

sub41331-28040¥5,400

main41331-32010iCE110¥5,100199704-199910

41341FPINION, FRONT DIFFERENTIAL

main41341-10030iZZE111..5F;EE111..UKP..5F¥2,470199704-200110

sub41341-44011¥2,710

sub41341-48050¥1,550

main41341-12030iZZE112;ZZE111..G6;AE111..UKP;EE111..UKP..3FC¥1,630199704-200111

main41341-28010iCDE110¥2,790200008-200109

sub41341-28030¥3,080

main41341-30011iCE110¥2,160199704-199910

41342APIN, STRAIGHT (FOR FRONT DIFFERENTIAL PINION SHAFT)

main90250-04053iZZE111..5F;EE111..UKP..5F¥140199704-200110

main90250-06058iAE111,CE110..JPP;EE111..JPP..(3FC,6F)¥160199704-200111

mainSU00100428iWZE110199912-200110

41342FSHAFT, FRONT DIFFERENTIAL PINION, NO.1

main41342-10041iEE111..JPP..5F¥730199704-200110

main41342-12140iAE111..UKP;ZZE111..G6;ZZE112..MTM;EE111..UKP..3FC¥1,340199704-200110

sub41342-20060¥1,240

main41342-20060iZZE112..4FC¥1,240199910-200111

main41342-28010iCDE110¥1,450200008-200109

main41342-32020iCE110¥1,690199704-199910

sub41342-52060¥1,260

mainSU00100418iWZE110199912-200110

41351FWASHER, FRONT DIFFERENTIAL PINION THRUST

main41351-10030iZZE111..5F;EE111..UKP..5F¥110199704-200110

main41351-12020iZZE112;ZZE111..G6;AE111..UKP;EE111..UKP..3FC¥110199704-200111

main41351-30060iCDE110¥140200008-200109

main41351-32010iCE110¥120199704-199910

mainSU00100419iWZE110199912-200110

41361FWASHER, FRONT DIFFERENTIAL SIDE GEAR THRUST, NO.1

main41361-10070iEE111..JPP..5F¥200199704-200110

T=1.50

main41361-10080iZZE111..5F;EE111..UKP..5F¥200199704-200110

T=1.55

main41361-10090iEE111..JPP..5F¥200199704-200110

T=1.60

main41361-10100iEE111..JPP..5F¥200199704-200110

T=1.65

main41361-10110iZZE111..5F;EE111..UKP..5F¥200199704-200110

T=1.70

main41361-10120iZZE111..5F;EE111..UKP..5F¥200199704-200110

T=1.75

main41361-17010iAE111,EE111..JPP..ATM¥220199704-200111

T=0.95

main41361-17020iAE111,EE111..JPP..ATM¥220199704-200111

T=1.00

main41361-17030iAE111..4FC¥220199704-200111

T=1.05

main41361-17040iAE111,EE111..JPP..ATM¥220199704-200111

T=1.10

main41361-17050iAE111..4FC¥220199704-200111

T=1.15

main41361-17060iZZE112..4FC;AE111,EE111..UKP..ATM¥220199704-200111

T=1.20

main41361-22020iZZE111..G6;ZZE112..MTM;AE111..UKP..5F¥220199704-200110

T=1.00,MARK 02

main41361-22030iEE111..3FC,6F;AE111,CE110..5F¥220199704-200110

T=1.10,MARK 03

main41361-22040iEE111..3FC,6F;AE111,CE110..5F¥220199704-200110

T=1.20,MARK 04

main41361-22140iZZE111..G6;ZZE112..MTM;AE111..UKP..5F¥210199704-200110

T=0.95,MARK 14

main41361-22150iEE111..G6;AE111,CE110..JPP..MTM¥210199704-200110

T=1.05,MARK 15

main41361-22160iZZE111..G6;ZZE112..MTM;AE111..UKP..5F¥210199704-200110

T=1.15,MARK 16

main41361-28230iCDE110¥200200008-200109

T=1.0,MARK 1

main41361-28240iCDE110¥200200008-200109

T=1.1,MARK 2

main41361-28250iCDE110¥200200008-200109

T=1.2,MARK 3

main41361-28260iCDE110¥210200008-200109

T=1.3,MARK 4

mainSU00100420iWZE110199912-200110

4302

20 parts on this diagram · 6 diagrams in section
