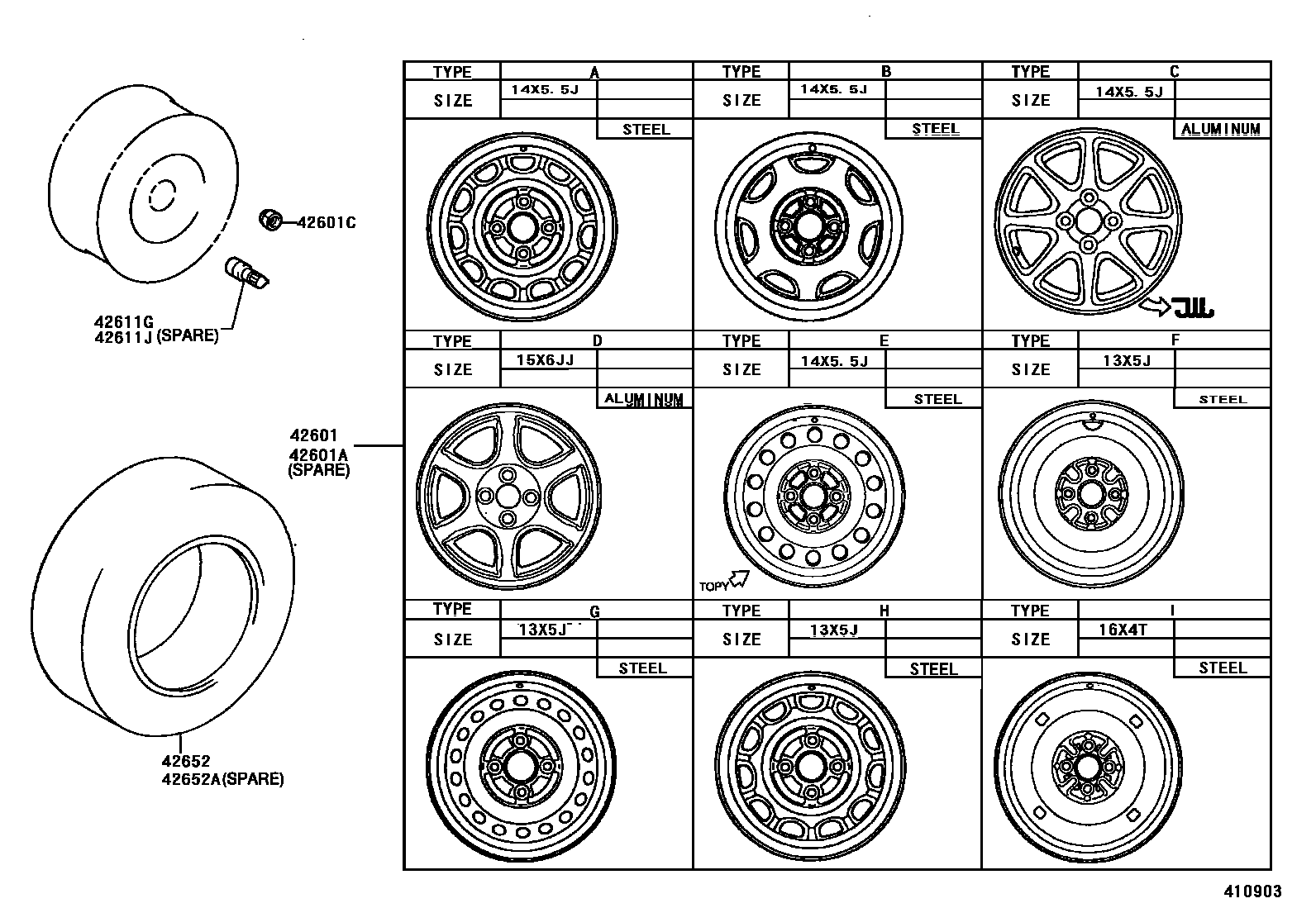

DISC WHEEL & WHEEL CAP

0001 1 0002 1 0003 1 0004 1 0005 1

42601WHEEL, DISC

main42611-02170iEE111,WZE110,ZZE111..UKP..TERRA199809-200111

14X5.5JJ,TYPE B:REFER TO ILLUSTRATION

main42611-02180iEE111,WZE110,ZZE111..UKP..TERRA199809-200111

14X5.5JJ,TYPE E:REFER TO ILLUSTRATION

main42611-02190iAE111,ZZE112..UKP..TERRA199809-200111

14X5.5JJ,TYPE B:REFER TO ILLUSTRATION

main42611-02200iAE111,EE111,WZE110,ZZE11#..UKP..(3FC,4FC,5F)199809-200111

14X5.5JJ,TYPE A:REFER TO ILLUSTRATION

main42611-1A140-01iZZE112..JPP..(SOL,TERRA);CDE110,WZE110,ZZE111..JPP..(G6,SOL,TERRA)199704-200109

14X5.5J,TYPE A:REFER TO ILLUSTRATION,BLACK

main42611-1A150-01iEE111..LHD..HB..TERRA;AE111..JPP..LHD..4FC..TERRA;AE111..JPP..LHD..LB..5F..TERRA199711-200109

13X5J,TYPE G:REFER TO ILLUSTRATION,BLACK

main42611-1A160-03iEE111..LHD..HB..TERRA;AE111..JPP..LHD..4FC..TERRA;AE111..JPP..LHD..LB..5F..TERRA199711-200109

13X5J,TYPE H:REFER TO ILLUSTRATION,SILVER M.

main42611-1A250-03iZZE112..JPP..TERRA199704-200109

14X5.5J,OFFSET 45,TYPE B:REFER TO ILLUSTRATION,SILVER M

main42611-1A380iAE111,CE110,EE111..G6,LUNA,TERRA199704-199808

14X5.5J,TYPE C:REFER TO ILLUSTRATION

main42611-1A390iWZE110,ZZE111..JPP..(STD,TERRA)199704-200109

14X5.5J,OFFSET 39,TYPE B:REFER TO ILLUSTRATION

main42611-1A400iZZE111..JPP..TERRA199704-200109

14X5.5J,TYPE E:REFER TO ILLUSTRATION

main42611-1A400iWZE110..HB..TERRA200001-200107

14X5.5J,TYPE B:REFER TO ILLUSTRATION

main42611-1A420iAE111..G6199809-199812

15X6JJ,G6R SPEC, TYPE D:REFER TO ILLUSTRATION

main42611-1A430iAE111,EE111..UKP;CDE110,WZE110,ZZE11#..G6,SOL,TERRA199808-200111

14X6JJ,OFFSET 45,TYPE C:REFER TO ILLUSTRATION

42601AWHEEL, DISC (FOR SPARE)

main42611-02170iEE111,WZE110,ZZE111..UKP..TERRA199809-200111

14X5.5JJ,TYPE B:REFER TO ILLUSTRATION

main42611-02180iEE111,WZE110,ZZE111..UKP..TERRA199809-200111

14X5.5JJ,TYPE E:REFER TO ILLUSTRATION

main42611-02190iAE111,ZZE112..UKP..TERRA199809-200111

14X5.5JJ,TYPE B:REFER TO ILLUSTRATION

main42611-02200iAE111,EE111,WZE110,ZZE11#..UKP..(3FC,4FC,5F)199809-200111

14X5.5JJ,TYPE A:REFER TO ILLUSTRATION

main42611-1A140-01iAE111,CE110,EE111..JPP..LB199704-200109

14X5.5J,TYPE A:REFER TO ILLUSTRATION,BLACK

main42611-1A150-01iZZE112..JPP..LHD..LB..TERRA199711-200109

13X5J,TYPE G:REFER TO ILLUSTRATION,BLACK

main42611-1A160-03iZZE112..JPP..LHD..LB..TERRA199711-200109

13X5J,TYPE H:REFER TO ILLUSTRATION,SILVER M.

main42611-1A240iCDE110,WZE110,ZZE11#..HB..(4FC,5F)199910-200107

16X4T,TYPE I:REFER TO ILLUSTRATION

main42611-1A240iAE111..G6199809-199812

16X4T,G6R SPEC, TYPE I:REFER TO ILLUSTRATION

main42611-1A250-03iZZE112..JPP..LB..TERRA199704-200109

14X5.5J,OFFSET 45,TYPE B:REFER TO ILLUSTRATION,SILVER M

main42611-1A330iAE111,CE110,EE111..HB199704-200107

14X4T,TYPE F:REFER TO ILLUSTRATION

main42611-1A380iAE111,CE110,EE111..LB199704-199808

14X5.5J,TYPE C:REFER TO ILLUSTRATION

main42611-1A390iCE110,EE111..JPP..LB..TERRA199704-200109

14X5.5J,OFFSET 39,TYPE B:REFER TO ILLUSTRATION

main42611-1A400iZZE111..JPP..LB..TERRA199704-200109

14X5.5J,TYPE E:REFER TO ILLUSTRATION

main42611-1A430iCDE110,ZZE11#..LB;AE111,EE111,WZE110..UKP199808-200111

14X6JJ,OFFSET 45,TYPE C:REFER TO ILLUSTRATION

42601CNUT, HUB (FOR AXLE)

main90942-01007iAE111,EE111..UKP;CDE110,WZE110,ZZE11#..STD,TERRA199704-200111

TYPE A:REFER TO ILLUSTRATION

main90942-01021iZZE112..(4FC,5F)..SOL;AE111,EE111..UKP..LUNA;CDE110,WZE110,ZZE111..G6,SOL199704-200111

TYPE B:REFER TO ILLUSTRATION

main90942-01033iAE111,CE110,EE111..JPP..(G6,LUNA,TERRA)199704-200111

TYPE C:REFER TO ILLUSTRATION

main90942-01062iAE111..G6199809-199812

G6R SPEC, TYPE D:REFER TO ILLUSTRATION

main90942-01082iZZE112..JPP..SOL;CDE110,WZE110,ZZE111..JPP..(G6,SOL)200010-200109

TYPE B:REFER TO ILLUSTRATION

42611GVALVE (FOR TUBELESS TIRE)

main90080-45010iAE111,EE111,WZE110,ZZE11#..UKP199809-200111

(L)

main90942-05009iAE111,EE111,WZE110,ZZE11#..UKP199809-200111

(J)

main90942-05009iAE111,CE110,EE111..JPP199704-200109

42611JVALVE (FOR TUBELESS TIRE SPARE)

main90080-45010iAE111,EE111,WZE110,ZZE11#..UKP199809-200111

(L)

main90942-05009iCDE110,WZE110,ZZE11#..JPP199704-200109

main90942-05009iAE111,EE111,WZE110,ZZE11#..UKP199809-200111

(J)

42652TIRE

main42652-05140iZZE112..JPP..MTM;ZZE112..JPP..LB..4FC;ZZE112..LHD..HB..4FC199704-200109

185/65R14,*B/S,*D/L,*T/Y,*Y/H

main42652-05140iCDE110;ZZE112..UKP;ZZE112..RHD..HB..4FC199911-200111

185/65R14

main42652-14140iEE111..LHD..HB..TERRA;AE111..JPP..LHD..4FC..TERRA;AE111..JPP..LHD..LB..5F..TERRA199711-200109

165SR13,*B/S,*D/L,*T/Y,*Y/H

main42652-14290iEE111..LHD..HB..TERRA;AE111..JPP..LHD..4FC..TERRA;AE111..JPP..LHD..LB..5F..TERRA199711-200109

165SR13,*Y/H

main42652-1A360iEE111..JPP..(G6,LUNA,TERRA);AE111,CE110..JPP..(LUNA,TERRA)199704-200111

175/65R14

main42652-1A430iAE111..G6199809-199812

195/55R15,G6R SPEC

42652ATIRE (FOR SPARE)

main42652-05140iCDE110..LB;ZZE112..UKP199911-200111

185/65R14

main42652-05140iZZE112..JPP..LB199704-200109

185/65R14,*B/S,*D/L,*T/Y,*Y/H

main42652-14140iZZE112..JPP..LHD..LB..TERRA199711-200109

165SR13,*B/S,*D/L,*T/Y,*Y/H

main42652-14290iZZE112..JPP..LHD..LB..TERRA199711-200109

165SR13,*Y/H

main42652-16220iAE111,CE110,EE111..HB199704-200107

T115/70D14

main42652-1A360iWZE110,ZZE11#..LB..(4FC,5F)199704-200111

175/65R14

main42652-2B440iCDE110,WZE110,ZZE11#..HB..(4FC,5F)199910-200107

T125/70D16,*B/S

main42652-2B440iAE111..G6199809-199812

T125/70D16,*B/S,G6R SPEC

7 parts on this diagram · 5 diagrams in section
