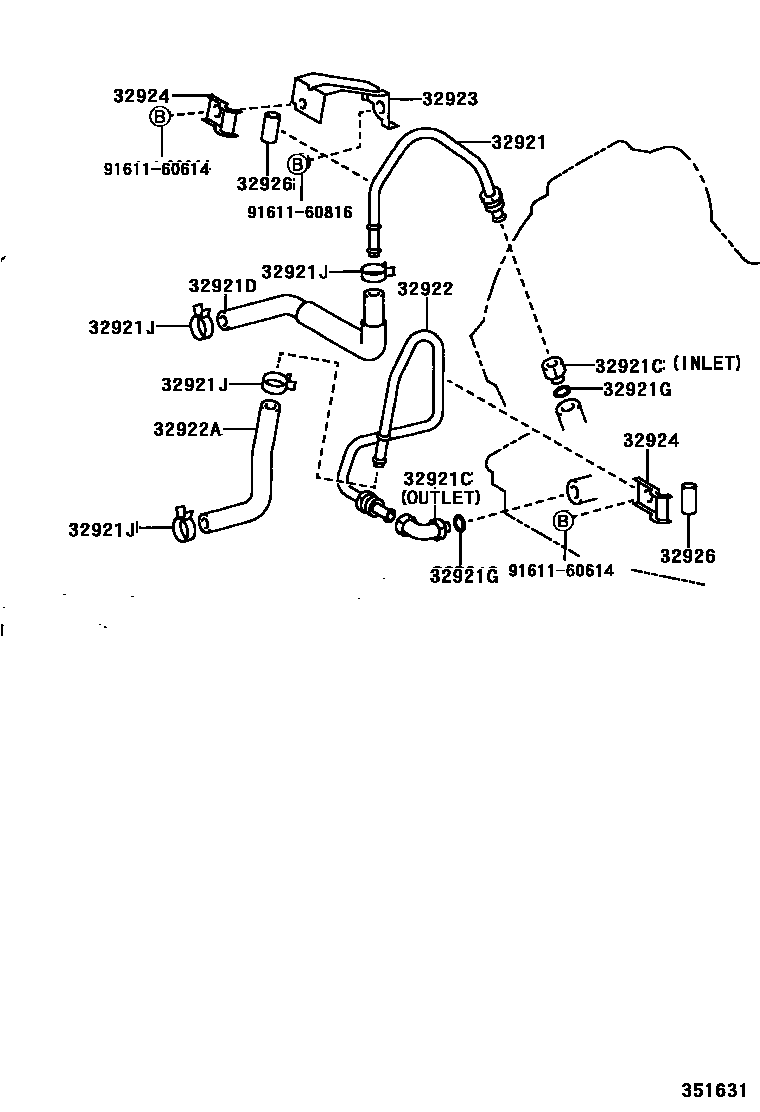

OIL COOLER & TUBE (ATM)

0001 1A132L 0002 1A240L 0003 1A245E

32921TUBE, OIL COOLER INLET, NO.1

main32921-02150iEE111..UKP..3FC199809-199911

main32921-02160iAE111..UKP..4FC199809-199911

main32921-02170iZZE112..UKP..4FC199911-200111

main32921-12300iAE111..4FC199704-199709

sub32921-12301

main32921-12301iAE111..JPP..4FC199709-199910

main32921-12400iEE111..JPP..3FC199704-199910

main32921-12420iZZE112..JPP..4FC199910-200109

32921CUNION(FOR OIL COOLER TUBE)

main32901-12030iAE111,EE111..JPP..ATM199704-199911

INLET

main90404-14007iAE111..UKP..4FC199704-199911

OUTLET

main90404-14019iZZE112..4FC199910-200110

main90407-14003iEE111..JPP..3FC199704-199911

OUTLET

32921DHOSE(FOR OIL COOLER INLET)

main32941-12171iAE111..JPP..4FC199704-199911

main32941-12230iEE111..JPP..3FC199704-199911

main32941-12310iZZE112..4FC199910-200111

32921GRING, O(FOR OIL COOLER TUBE UNION)

main90301-10189iAE111,EE111..JPP..ATM199704-199911

main90301-11006iZZE112..4FC199910-200110

32921JCLIP(FOR OIL COOLER HOSE)

main90467-13039iZZE112..4FC;AE111,EE111..UKP..ATM199704-200111

sub96135-51300

32922TUBE, OIL COOLER OUTLET, NO.1

main32922-02110iEE111..UKP..3FC199809-199911

main32922-02120iAE111..UKP..4FC199809-199911

main32922-02130iZZE112..UKP..4FC199911-200111

main32922-12320iAE111..JPP..4FC199704-199910

main32922-12360iEE111..JPP..3FC199704-199910

main32922-12370iZZE112..JPP..4FC199910-200109

32922AHOSE(FOR OIL COOLER OUTLET)

main32942-22101iZZE112..4FC199910-200111

main90445-15042iAE111,EE111..UKP..ATM199704-199911

32923CLAMP, AUTOMATIC TRANSMISSION OIL COOLER TUBE

main32923-12200iAE111..JPP..4FC199704-199911

main32923-12220iEE111..UKP..3FC199704-199911

32924CLAMP, OIL COOLER TUBE, NO.2

main90462-10082iAE111,EE111..UKP..ATM199704-199911

main90462-10127iZZE112..4FC199910-200111

32926CUSHION, OIL COOLER TUBE(ATM)

main32926-10010iEE111..JPP..3FC199704-200111

L=30,ID=8

main32926-22010iAE111..JPP..4FC199704-199911

L=35,ID=8

9161160614

main91611-60614

9161160816

main91611-60816

12 parts on this diagram · 3 diagrams in section
