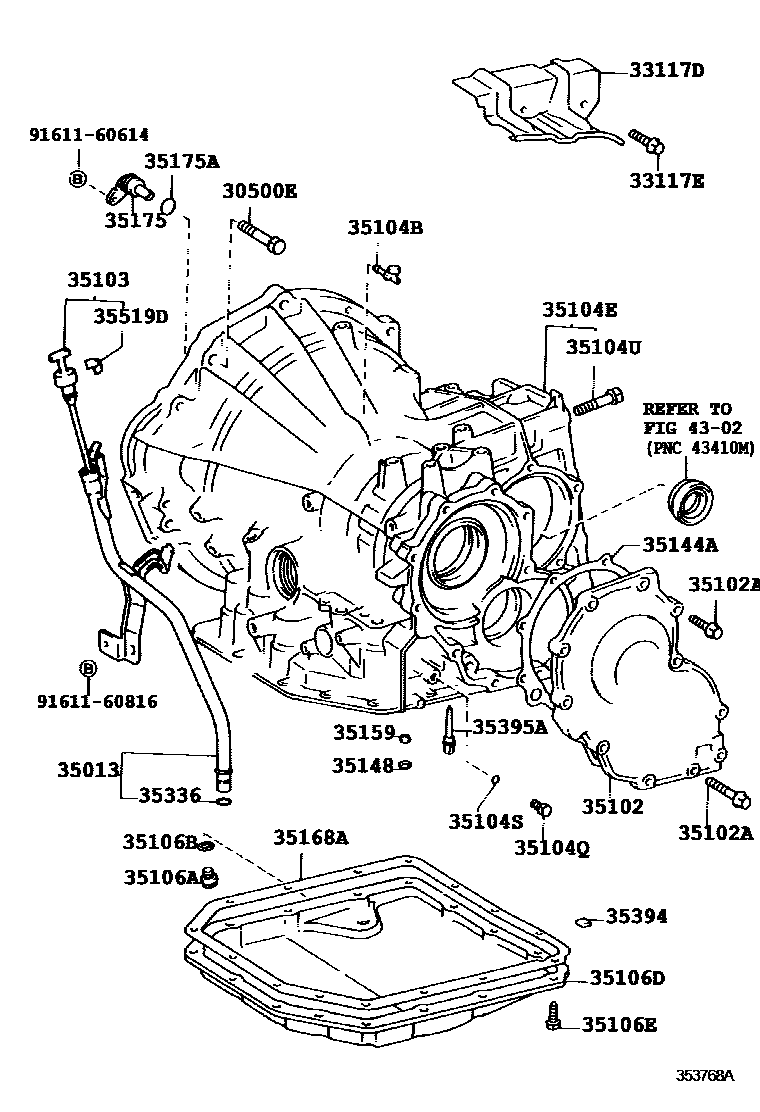

TRANSMISSION CASE & OIL PAN (ATM)

0001 1A132L 0002 1A240L 0003 1A245E

30500EBOLT(FOR TRANSAXLE & ENGINE SETTING)

main90105-10077iAE111..UKP..4FC¥260199704-199911

*10-1.25PX43-26

main90105-10097iEE111..JPP..3FC¥250199704-199911

*10-1.25PX60-22

main90119-12168iZZE112..JPP..4FC¥170199704-200109

*12-1.25PX55-30

main91619-61245iAE111,EE111..JPP..ATM¥120199704-199911

*12-1.25PX45-30

main91619-61255iZZE112..UKP..4FC¥120199911-200111

*12-1.25PX55-30

main91642-81055iZZE112..4FC¥220199910-200111

*10-1.25PX55-30

33117DPROTECTOR, AUTOMATIC TRANSMISSION CASE

main33117-12030iAE111..JPP..4FC¥1,940199704-199911

main33117-12040iEE111..UKP..3FC¥1,160199704-199911

main33117-12050iZZE112..4FC¥770199910-200111

33117EBOLT(FOR AUTOMATIC TRANSMISSION CASE PROTECTOR)

main90105-08040iZZE112..4FC;AE111,EE111..UKP..ATM¥180199704-200111

sub91641-H0820¥90

35013TUBE SUB-ASSY, TRANSMISSION OIL FILLER

main35013-12380iEE111..JPP..3FC¥3,250199704-199911

main35013-12391iAE111..JPP..4FC¥3,190199704-199911

main35013-12450iZZE112..4FC¥3,250199910-200111

35102COVER SUB-ASSY, TRANSAXLE REAR

main35102-10011iEE111..UKP..3FC¥21,900199704-199911

main35102-20050iAE111..JPP..4FC¥35,100199704-199911

35102ABOLT (FOR TRANSAXLE REAR COVER SETTING)

main90105-06198iZZE112..4FC¥120199910-200110

*6-1.00PX32-32

main90105-08050iEE111..UKP..3FC¥200199704-199911

*8-1.25PX28-28

main90105-08056iEE111..JPP..3FC¥130199704-199911

*8-1.25PX40-40

main90105-08065iAE111..UKP..4FC¥180199704-199911

*8-1.25PX45-35

main90105-08068iAE111..JPP..4FC¥230199704-199911

*8-1.25PX35-30

sub90105-08333¥130

main91511-80625iZZE112..4FC¥120199910-200110

*6-1.0PX25-25

35103GAGE SUB-ASSY, TRANSMISSION OIL LEVEL

main35103-02060iEE111..UKP..3FC199809-199911

main35103-02070iAE111..UKP..4FC199809-199911

main35103-02080iZZE112..UKP..4FC199911-200111

main35103-12180iEE111..JPP..3FC¥1,140199704-199910

main35103-12271iAE111..JPP..4FC¥1,380199704-199910

main35103-12320iZZE112..JPP..4FC¥1,140199910-200109

35104BPLUG, BREATHER, NO.1 (ATM)

main90930-03089iEE111..JPP..3FC¥370199704-199911

main90930-03101iAE111..UKP..4FC¥510199704-199911

main90930-03132iZZE112..4FC¥300199910-200110

35104ECASE SUB-ASSY, AUTOMATIC TRANSAXLE

main35104-12193iEE111..UKP..3FC¥92,500199704-199911

main35104-12230iZZE112..4FC¥92,400199910-200110

35104QPLUG, NO.1 (FOR TRANSAXLE CASE)

main90341-08001iAE111..UKP..4FC¥120199704-200110

35104SRING, O (FOR TRANSAXLE CASE PLUG NO.1)

main90301-06196iAE111..UKP..4FC¥170199704-200110

35104UBOLT (FOR TRANSAXLE CASE)

main90105-10008iEE111..UKP..3FC¥370199704-199911

*10-1.25PX53-26

35106APLUG SUB-ASSY, DRAIN (ATM)

main90341-10006iAE111..UKP..4FC¥210199704-199911

sub90341-10011¥100

main90341-10011iZZE112..4FC¥100199910-200110

main90341-18016iEE111..UKP..3FC¥190199704-199911

35106BGASKET, DRAIN PLUG (ATM)

main35178-30010iZZE112..4FC;AE111..UKP..4FC¥190199704-200110

main90430-18008iEE111..UKP..3FC¥110199704-199911

35106DPAN SUB-ASSY, AUTOMATIC TRANSAXLE OIL

main35106-10022iEE111..JPP..3FC¥8,100199704-199911

main35106-12070iAE111..UKP..4FC¥6,000199704-199911

main35106-12090iZZE112..4FC¥5,700199910-200110

35106EBOLT (FOR TRANSAXLE OIL PAN)

main90119-06173iEE111..JPP..3FC¥80199704-200110

35144AGASKET, TRANSAXLE REAR COVER

main35144-12020iEE111..3FC¥440199704-199808

sub35144-12030¥410

main35144-12030iEE111..JPP..3FC¥410199808-199911

35148GASKET, GOVERNOR APPLY, NO.1

main35148-16010iAE111,EE111..JPP..ATM¥740199704-200110

35159GASKET, BRAKE DRUM

main35159-20010iAE111..JPP..4FC¥670199704-200110

main35159-32011iEE111..JPP..3FC¥840199704-199911

35168AGASKET, AUTOMATIC TRANSAXLE OIL PAN

main35168-12020iAE111..JPP..4FC¥780199704-199911

main35168-12030iZZE112..4FC¥780199910-200110

main35168-32010iEE111..UKP..3FC¥790199704-199911

35175CAP, TRANSAXLE CASE, NO.2

main35175-32010iEE111..JPP..3FC¥1,070199704-199911

35175ARING, O (FOR TRANSAXLE CASE CAP)

main90301-21002iEE111..UKP..3FC¥270199704-199911

35336RING, O (FOR TRANSMISSION OIL FILLER TUBE)

main90301-09173iZZE112..4FC;AE111,EE111..UKP..ATM¥140199704-200111

35394MAGNET, OIL CLEANER (FOR TRANSMISSION)

main35394-30011iAE111,EE111..JPP..ATM¥360199704-200110

35395ASTRAINER, GOVERNOR OIL

main35395-12020iAE111..UKP..4FC¥1,300199704-199911

main35395-32030iEE111..UKP..3FC¥380199704-199911

35519DLABEL, AUTOMATIC TRANSMISSION INFORMATION

main35519-32040iEE111..UKP..3FC¥510199704-199911

4302

9161160614

main91611-60614¥180

9161160816

main91611-60816¥230

29 parts on this diagram · 3 diagrams in section
