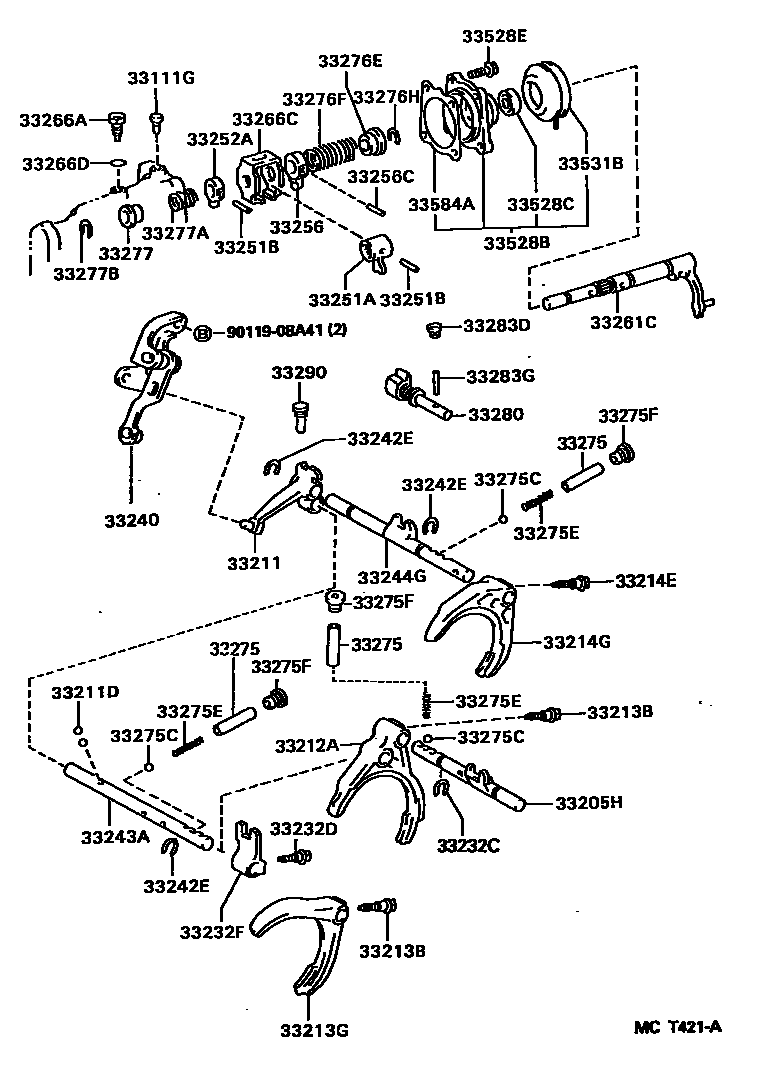

GEAR SHIFT FORK & LEVER SHAFT (MTM)

0001 1C50,C52,C140,C150 0002 1C161,C162 0003 1S50 0004 1BE-3 0005 1E351

33111GPLUG, BREATHER(FOR MANUAL TRANSMISSION)

main90930-03133iZZE11#..MTM;AE111,EE111..UKP..5F¥370199704-200110

33205HSHAFT SUB-ASSY, GEAR SHIFT FORK, NO.1

main33205-10072iEE111..JPP..5F¥2,160199704-199907

main33205-12022iAE111..JPP..5F¥2,160199704-199907

main33205-12040iAE111,EE111..G6¥3,480199704-199907

main33205-12050iZZE11#..6F¥3,480199907-200110

main33205-12060iZZE111..5F;EE111..UKP..5F¥3,480199907-200110

main33205-20030iAE111..JPP..5F¥3,480199907-200110

sub33205-20040¥3,490

33211FORK, REVERSE SHIFT

main33211-12021iZZE11#..5F;AE111,EE111..UKP..5F¥2,150199704-200110

main33211-12050iAE111,EE111..G6¥5,200199704-200110

main33211-20020iCDE110¥3,340200008-200109

main33270-33011iCE110¥4,700199704-199910

33211DBALL(FOR REVERSE SHIFT FORK)

main90360-06004iZZE11#..5F;AE111,EE111..UKP..5F¥90199704-200110

OD=6.35

33212AFORK, GEAR SHIFT, NO.1

main33210-32023iCE110¥16,100199704-199910

main33212-10013iZZE11#..MTM;AE111,EE111..UKP..5F¥1,340199704-200110

main33212-12030iCDE110¥2,650200008-200109

mainSU00100466iWZE110199912-200110

33213BBOLT(FOR SHIFT FORK SET)

main90105-06065iCE110¥180199704-199910

main90105-06115iZZE111;EE111..UKP..5F;ZZE112..6F..SOL;ZZE112..JPP..MTM¥90199704-200110

main90105-07002iCDE110¥90200008-200109

33213GFORK, GEAR SHIFT, NO.2

main33213-10022iAE111,EE111..UKP..5F¥2,490199704-199907

main33213-20050iAE111,EE111..JPP..MTM¥1,610199907-200110

main33220-28020iCDE110¥4,120200008-200109

main33220-32023iCE110¥7,800199704-199806

sub33220-32024¥7,800

main33220-32024iCE110¥7,800199806-199910

mainSU00100395iWZE110199912-200110

33214EBOLT(FOR GEAR SHIFT FORK LOCK)

main90105-06115iZZE11#..MTM;AE111,EE111..UKP..5F¥90199704-200110

33214GFORK, GEAR SHIFT, NO.3

main33214-12020iCDE110¥3,400200008-200109

main33214-12030iAE111,EE111..JPP..5F¥2,860199704-199907

main33214-20050iZZE11#..5F;AE111,EE111..UKP..5F¥1,800199907-200110

main33214-33010iCE110¥4,350199704-199910

main33230-12010iAE111,EE111..G6¥3,300199704-199907

main33230-20010iZZE11#..6F¥2,980199907-200110

mainSU00100390iWZE110199912-200110

subSU001-00882

33232CRING, SNAP (FOR 1ST & 2ND SHIFT HEAD)

main90520-12003iZZE11#..5F;AE111,EE111..UKP..5F¥80199704-200110

33232DBOLT (FOR SHIFT HEAD SET)

main90105-06115iZZE111;EE111..UKP..5F;ZZE112..6F..SOL;ZZE112..JPP..MTM¥90199704-200110

main90105-07002iCDE110¥90200008-200109

33232FHEAD, GEAR SHIFT, NO.1

main33232-10021iAE111..G6;EE111..JPP..MTM¥2,880199704-200110

main33232-12012iAE111..JPP..5F¥3,160199704-200110

main33232-12030iCDE110¥3,760200008-200109

main33232-32012iCE110¥3,150199704-199910

33240BRACKET ASSY, REVERSE SHIFT ARM

main33240-12030iAE111,EE111..G6¥5,300199704-199907

main33240-16020iAE111,EE111..JPP..5F¥4,410199704-200110

main33240-20030iAE111,EE111..G6¥5,500199907-200110

main33240-28010iCDE110¥7,100200008-200109

main33240-33010iCE110¥7,400199704-199910

mainSU00100396iWZE110199912-200110

33242SHAFT, GEAR SHIFT FORK, NO.1

main33242-28030iCDE110¥4,250200008-200109

main33242-33020iCE110¥4,230199704-199910

mainSU00100391iWZE110199912-200110

33242ERING, SHAFT SNAP (FOR SHIFT FORK SHAFT)

main90520-12003iAE111,EE111..JPP..5F¥80199704-200110

main90520-13002iCDE110¥80200008-200109

mainSU00100392iWZE110199912-200110

33243ASHAFT, GEAR SHIFT FORK, NO.2

main33243-10042iEE111..JPP..5F¥3,610199704-199907

main33243-12093iAE111..UKP..5F¥3,610199704-199907

main33243-12120iAE111,EE111..G6¥3,610199704-199907

main33243-12130iZZE111;ZZE112..6F;EE111..UKP..5F¥2,980199907-200110

main33243-20070iZZE112..5F;AE111..UKP..5F¥2,270199907-200110

main33243-28040iCDE110¥4,240200008-200109

main33243-32010iCE110¥1,480199704-199806

sub33243-32011¥1,540

main33243-32011iCE110¥1,540199806-199910

33244GSHAFT, GEAR SHIFT FORK, NO.3

main33244-10042iEE111..UKP..5F¥3,610199704-199907

main33244-12054iAE111..JPP..5F¥4,230199704-199907

main33244-12090iAE111,EE111..G6¥3,610199704-199907

main33244-12100iZZE11#..6F¥3,610199907-200110

main33244-12110iZZE111..5F;EE111..UKP..5F¥3,610199907-200110

main33244-20060iAE111..JPP..5F¥4,230199907-200110

sub33244-20070¥4,250

main33244-28030iCDE110¥4,250200008-200109

33251ALEVER, SHIFT, INNER NO.1

main33251-10050iZZE11#..5F;AE111,EE111..UKP..5F¥1,800199704-200110

main33251-12070iAE111,EE111..G6¥5,100199704-199907

main33251-12080iZZE111..5F¥3,820200001-200110

main33251-20060iAE111,EE111..G6¥5,100199907-200110

main33251-28040iCDE110¥5,100200008-200109

main33251-33010iCE110¥1,440199704-199806

sub33251-33011¥1,460

main33251-33011iCE110¥1,460199806-199910

33251BPIN, SLOTTED SPRING (FOR SHIFT INNER LEVER)

main90254-05007iCDE110¥360199704-200109

L=47.0

main90254-05016iAE111,EE111..JPP..5F¥140199704-200110

L=25.5

33252ALEVER, SHIFT, INNER NO.2

main33252-12011iAE111,EE111..JPP..5F¥590199704-200110

main33252-12020iAE111,EE111..G6¥680199704-199907

main33252-20020iCDE110¥850200008-200109

main33252-20030iAE111,EE111..G6¥680199907-200110

main33252-33010iCE110¥660199704-199910

33256LEVER, SELECT INNER

main33256-12022iZZE11#..5F;AE111,EE111..UKP..5F¥750199704-200110

33256CPIN, SLOTTED SPRING (FOR SELECT INNER LEVER)

main90254-05016iZZE11#..MTM;AE111,EE111..UKP..5F¥140199704-200110

33261CSHAFT, SHIFT & SELECT LEVER

main33261-10060iZZE111..5F;EE111..UKP..5F¥10,600199704-200001

main33261-10061iZZE111..5F¥9,800200001-200110

main33261-12051iAE111..JPP..5F¥10,600199704-200110

main33261-12080iAE111,EE111..G6¥10,500199704-199907

main33261-12090iZZE11#..6F¥10,500199907-200110

main33261-20071iCDE110¥9,400200008-200109

main33261-33010iCE110¥2,640199704-199910

mainSU00100400iWZE110199912-200110

33266ABOLT (FOR SHIFT INTERLOCK PLATE)

main90109-12073iAE111,EE111..UKP..5F¥230199704-199907

main90109-18005iAE111,EE111..JPP..5F¥210199907-200110

33266CPLATE, SHIFT INTERLOCK

main33266-12021iAE111,EE111..JPP..5F¥3,020199704-200110

main33266-12040iAE111,EE111..G6¥2,820199704-199907

main33266-20030iZZE11#..6F¥2,970199907-200110

main33266-28010iCDE110¥2,960200008-200109

sub33266-28011¥2,980

main33266-33011iCE110¥1,020199704-199910

33266DGASKET (FOR SHIFT INTERLOCK PLATE)

main90430-12008iAE111,EE111..UKP..5F¥90199704-199907

main90430-18008iAE111,EE111..JPP..5F¥110199907-200110

33275SEAT, SHIFT DETENT BALL SPRING, NO.1

main33275-12041iAE111,EE111..JPP..MTM¥190199704-200110

OD=10.7

33275CBALL (FOR SHIFT DETENT)

main90360-10003iZZE11#..MTM;AE111,EE111..UKP..5F¥100199704-200110

mainSU00100393iWZE110199912-200110

33275ESPRING, COMPRESSION (FOR SHIFT DETENT BALL)

main90501-12168iZZE11#..5F;AE111,EE111..UKP..5F¥110199704-200110

main90501-12173iZZE11#..6F¥60199704-200110

mainSU00100394iWZE110199912-200110

33275FPLUG (FOR SHIFT DETENT BALL)

main90341-12004iAE111,EE111..JPP..MTM¥140199704-200110

33276ESEAT, SELECT SPRING, NO.1

main33276-12022iZZE11#..5F;AE111,EE111..UKP..5F¥410199704-200110

main33276-12030iZZE11#..6F¥520199704-200110

main33276-20020iCDE110¥410200008-200109

main33276-33011iCE110¥1,440199704-199910

33276FSPRING, COMPRESSION, NO.1 (FOR SELECT RETURN)

main90501-13036iCE110¥140199704-199910

main90501-16134iCDE110¥140200008-200109

main90501-16142iZZE11#..5F;AE111,EE111..UKP..5F¥200199704-200110

main90501-16151iZZE11#..6F¥250199704-200110

33276HRING, SHAFT SNAP (FOR SELECT SPRING NO.1 SEAT)

main90520-15003iAE111,EE111..JPP..5F¥90199704-200110

33277SEAT, SELECT SPRING, NO.2

main33277-12011iZZE11#..5F;AE111,EE111..UKP..5F¥410199704-200110

main33277-12020iZZE11#..6F¥480199704-200110

main33277-17010iCDE110¥670200008-200109

main33277-33010iCE110¥530199704-199910

33277ASPRING, COMPRESSION, NO.2 (FOR SELECT RETURN)

main90501-16136iAE111,EE111..JPP..5F¥190199704-200110

main90501-16144iCE110¥240199704-199910

main90501-16152iZZE11#..6F¥170199704-200110

main90501-17028iCDE110¥200200008-200109

33277BRING, E (FOR SELECT SPRING NO.2 SEAT)

main90523-12003iZZE11#..MTM;AE111,EE111..UKP..5F¥80199704-200110

33280PIN ASSY, REVERSE RESTRICT

main33280-10021iZZE111..5F;EE111..UKP..5F¥2,880199704-200110

main33280-12061iAE111..JPP..5F¥1,030199704-200110

main33280-20041iCDE110¥1,620200008-200109

main33280-32012iCE110¥3,330199704-199910

33283DPLUG (FOR REVERSE RESTRICT PIN)

main90341-10065iCDE110,ZZE11#..MTM;AE111,EE111..UKP..5F¥220199704-200110

33283GPIN, SLOTTED SPRING (FOR REVERSE RESTRICT PIN)

main90254-04005iCE110;AE111,EE111..G6¥110199704-199910

main90254-05003iAE111,EE111..JPP..5F¥80199704-200110

33290BALL ASSY, LOCK, NO.1

main33290-12011iAE111,EE111..JPP..5F¥1,290199704-200110

main33290-28010iCDE110¥1,960200008-200108

sub33290-33020¥1,980

main33290-33011iCE110;AE111,EE111..G6¥1,980199704-200110

sub33290-52040¥1,240

main33290-33020iCDE110¥1,980200108-200109

33528BCOVER, CONTROL SHAFT

main33506-12061iZZE11#..5F;AE111,EE111..UKP..5F¥3,490199704-200110

main33506-12110iZZE11#..6F¥4,330199704-200110

main33506-28210iCDE110¥4,210200008-200109

main33506-33010iCE110¥2,730199704-199910

33528CSEAL, OIL (FOR CONTROL SHAFT COVER)

main90311-18013iCDE110,ZZE11#..MTM;AE111,EE111..UKP..5F¥210199704-200110

33528EBOLT (FOR CONTROL SHAFT COVER)

main90119-10288iAE111,EE111..JPP..MTM¥90199704-200110

*10-1.25PX25-19.8

main91611-61025iAE111,EE111..JPP..MTM¥240199704-200110

*10-1.25PX25-25

sub91612-61025¥120

33531BBOOT, DUST (FOR SHIFT & SELECT LEVER SHAFT)

main33531-12020iAE111,EE111..JPP..5F¥630199704-200110

main33531-12030iZZE11#..6F¥1,050199704-200110

main33531-32011iCE110¥740199704-199910

33584AGASKET, CONTROL SHIFT LEVER RETAINER

main33584-12050iZZE11#..5F;AE111,EE111..UKP..5F¥190199704-200110

main33584-12060iZZE11#..6F¥80199704-200110

main33584-20020iCDE110¥160200008-200109

9011908A41

main90119-08A41¥80

46 parts on this diagram · 5 diagrams in section
