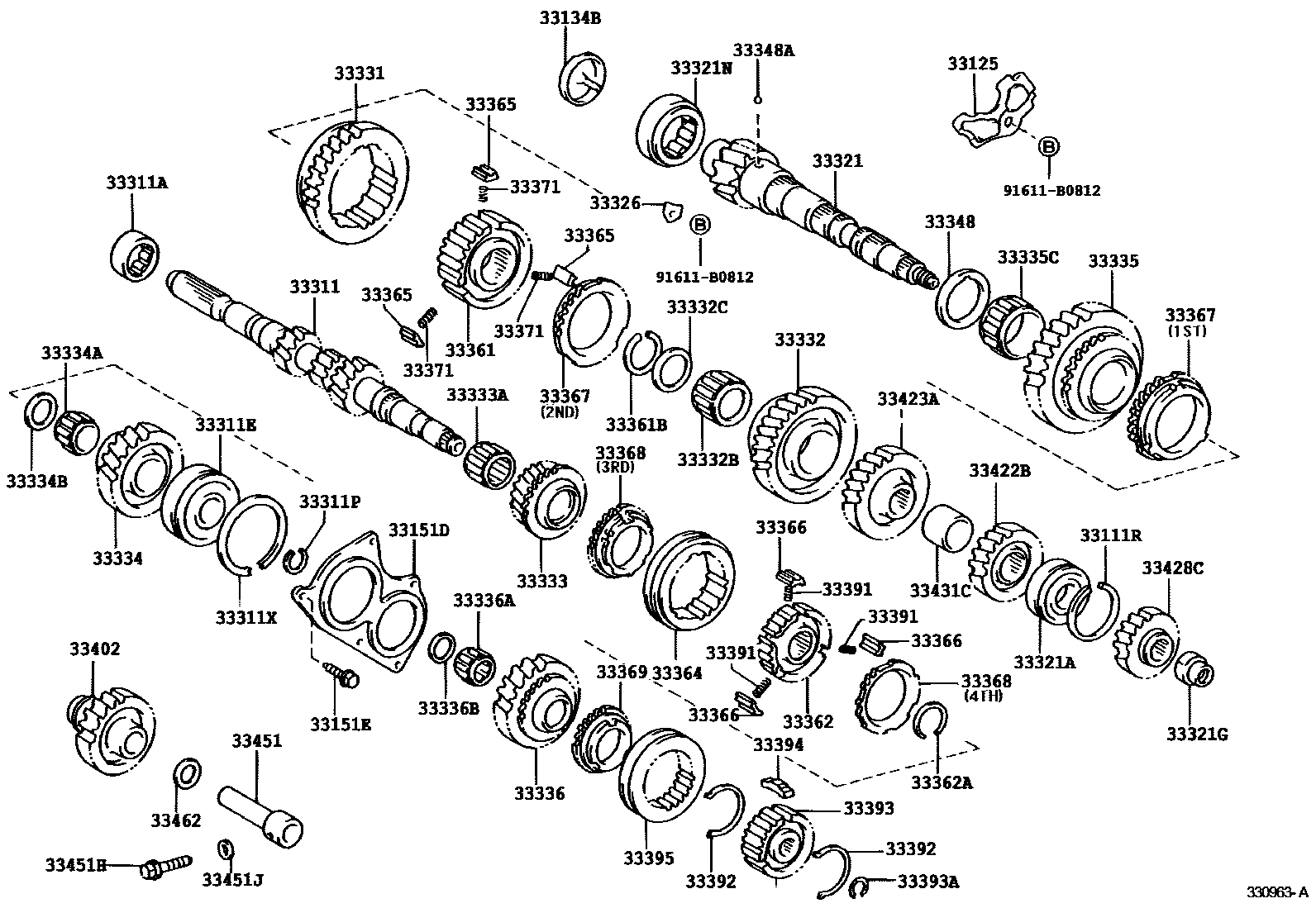

TRANSMISSION GEAR (MTM)
33111RRING, HOLE SNAP(FOR OUTPUT SHAFT REAR BEARING)
33125RECEIVER, MANUAL TRANSAXLE CASE
33134BCOVER, OUTPUT SHAFT(MTM)
33151DRETAINER, BEARING, REAR(MTM)
33151EBOLT(FOR REAR BEARING RETAINER)
33311ABEARING (FOR INPUT SHAFT FRONT)
33311EBEARING, RADIAL BALL (FOR INPUT SHAFT REAR)
33311PRING, SHAFT SNAP (FOR INPUT SHAFT REAR BEARING)
T=2.29-2.34,MARK A
T=2.35-2.40,MARK B
T=2.41-2.46,MARK C
T=2.47-2.52,MARK D
T=2.53-2.58,MARK E
T=2.59-2.64,MARK F
T=2.15-2.20,MARK A
T=2.20-2.25,MARK B
T=2.25-2.30,MARK C
T=2.30-2.35,MARK D
T=2.35-2.40,MARK E
T=2.35-2.40,MARK 1
T=2.40-2.45,MARK 2
T=2.45-2.50,MARK 3
T=2.50-2.55,MARK 4
T=2.55-2.60,MARK 5
T=2.60-2.65,MARK 6
T=2.65-2.69,MARK 7
T=2.70-2.74,MARK 8
33311XRING, HOLE SNAP (FOR INPUT SHAFT REAR BEARING)
33321SHAFT, OUTPUT
33321ABEARING (FOR OUTPUT SHAFT REAR)
33321NBEARING (FOR OUTPUT SHAFT FRONT)
33326PLATE, BEARING LOCK
33332GEAR, 2ND
33332BBEARING, NEEDLE ROLLER (FOR 2ND GEAR)
33332CSPACER (FOR 2ND GEAR BEARING)
33333GEAR, 3RD
33333ABEARING, NEEDLE ROLLER (FOR 3RD GEAR)
33334GEAR, 4TH
33334ABEARING, NEEDLE ROLLER (FOR 4TH GEAR)
33334BSPACER (FOR 4TH GEAR BEARING)
33335GEAR, 1ST
33335CBEARING, NEEDLE ROLLER(FOR 1ST GEAR)
33336GEAR, 5TH
33336ABEARING, NEEDLE ROLLER (FOR 5TH GEAR)
33336BSPACER (FOR 5TH GEAR BEARING)
33348WASHER, 1ST GEAR THRUST
33348APIN OR BALL (FOR 1ST GEAR THRUST WASHER)
33361HUB, TRANSMISSION CLUTCH, NO.1
33361BRING, SHAFT SNAP (FOR CLUTCH HUB NO.1)
T=2.50-2.55,MARK A
T=2.56-2.61,MARK B
T=2.62-2.67,MARK C
T=2.68-2.73,MARK D
T=2.74-2.79,MARK E
T=2.80-2.85,MARK F
33362HUB, TRANSMISSION CLUTCH, NO.2
33362ARING, SHAFT SNAP (FOR CLUTCH HUB NO.2 SETTING)
T=2.30-2.35,MARK 0
T=2.36-2.41,MARK 1
T=2.42-2.47,MARK 2
T=2.48-2.53,MARK 3
T=2.54-2.59,MARK 4
T=2.60-2.65,MARK 5
T=1.95-1.99,MARK 1
T=2.00-2.04,MARK 2
T=2.05-2.09,MARK 3
T=2.10-2.14,MARK 4
T=2.15-2.19,MARK 5
T=2.20-2.24,MARK 6
T=2.30-2.35,MARK H
T=2.35-2.40,MARK J
T=2.40-2.45,MARK K
T=2.45-2.50,MARK L
T=2.50-2.55,MARK M
T=2.55-2.60,MARK N
T=2.60-2.65,MARK P
33364SLEEVE, TRANSMISSION HUB, NO.2
33365KEY, SYNCHROMESH SHIFTING, NO.1
33366KEY, SYNCHROMESH SHIFTING, NO.2
33367RING, SYNCHRONIZER, NO.1
1ST GEAR SIDE
2ND GEAR SIDE
1ST GEAR SIDE
2ND GEAR SIDE
1ST GEAR SIDE
2ND GEAR SIDE
1ST GEAR SIDE
2ND GEAR SIDE
subSU001-00869
33368RING, SYNCHRONIZER, NO.2
4TH GEAR SIDE
4TH GEAR SIDE
3RD GEAR SIDE
3RD GEAR SIDE
3RD GEAR SIDE
3RD GEAR SIDE
4TH GEAR SIDE
4TH GEAR SIDE
4TH GEAR SIDE
33369RING, SYNCHRONIZER, NO.3
5TH GEAR SIDE
6TH GEAR SIDE
33371SPRING, SYNCHROMESH SHIFTING KEY, NO.1
33391SPRING, SYNCHROMESH SHIFTING KEY, NO.2
33392SPRING, SYNCHROMESH SHIFTING KEY, NO.3
OUTER RING SIDE
PULL RING SIDE
OUTER RING SIDE
PULL RING SIDE
33393HUB, TRANSMISSION CLUTCH, NO.3
33393ARING, SHAFT SNAP (FOR TRANSMISSION CLUTCH HUB NO.3)
T=2.25-2.30,MARK A
T=2.31-2.36,MARK B
T=2.37-2.42,MARK C
T=2.43-2.48,MARK D
T=2.49-2.54,MARK E
T=2.55-2.60,MARK F
T=2.61-2.66,MARK G
T=2.20-2.25,MARK 13
T=2.25-2.30,MARK 14
T=2.30-2.35,MARK 15
T=2.35-2.39,MARK 16
T=2.40-2.44,MARK 17
T=2.45-2.49,MARK 18
T=2.50-2.54,MARK 19
T=2.55-2.59,MARK 20
T=2.60-2.64,MARK 21
T=2.65-2.69,MARK 22
T=2.70-2.74,MARK 23
T=2.75-2.79,MARK 24
T=2.80-2.84,MARK 25
T=2.85-2.89,MARK 26
T=2.90-2.94,MARK 27
T=1.75,MARK A
T=1.80,MARK B
T=1.85,MARK C
T=1.90,MARK D
T=1.95,MARK E
T=2.00,MARK F
T=2.05,MARK G
T=2.10,MARK H
T=2.15,MARK J
T=2.30,NO MARK
T=1.75-1.80,MARK A
T=1.80-1.85,MARK B
T=1.85-1.90,MARK C
T=1.90-1.95,MARK D
T=1.95-2.00,MARK E
T=2.00-2.05,MARK F
T=2.05-2.10,MARK G
T=2.10-2.15,MARK H
T=2.15-2.20,MARK J
33394KEY, SYNCHROMESH SHIFTING, NO.3
33395SLEEVE, TRANSMISSION HUB, NO.3
33422BGEAR, 4TH DRIVEN
33423AGEAR, 3RD DRIVEN
33428CGEAR, 5TH DRIVEN
33431CSPACER, OUTPUT GEAR
33451SHAFT, REVERSE IDLER GEAR
33451HBOLT (FOR REVERSE IDLER GEAR SHAFT)
33451JGASKET (FOR REVERSE IDLER GEAR SHAFT)
33462WASHER, REVERSE IDLER THRUST
91611B0812
58 parts on this diagram · 7 diagrams in section
