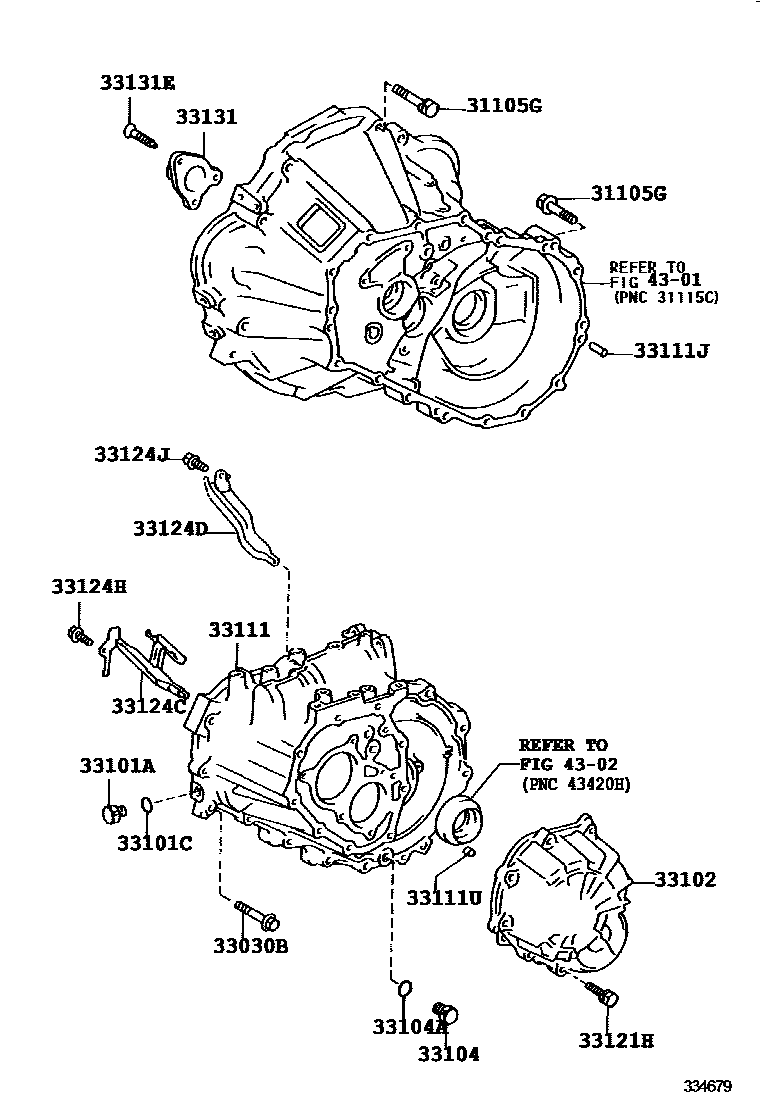

CLUTCH HOUSING & TRANSMISSION CASE (MTM)

0001 1C50,C52 0002 1C161,C162 0003 1S50 0004 1C140,C150 0005 1BE-3 0006 1BE-3 0007 1E351

31105GBOLT(FOR TRANSAXLE CASE & ENGINE SETTING)

main90080-11184iWZE110199912-200110

10X150-75

main90080-11239iWZE110199912-200110

10X150-70

main90105-08040iCE110¥180199704-199910

*8-1.25PX18-15

sub91641-H0820¥90

main90105-10077iCDE110;AE111..UKP..5F¥260199704-200109

*10-1.25PX43-26

main90105-10097iEE111..UKP..5F¥250199704-199911

*10-1.25PX60-22

main90119-12042iAE111..JPP..MTM¥260199704-199911

*12-1.25PX75-30

main90119-12168iAE111..JPP..MTM¥170199704-200109

*12-1.25PX55-30

main91619-61255iZZE11#..UKP..MTM¥120199911-200111

*12-1.25PX55-30

main91619-61260iEE111..JPP..MTM¥130199704-199911

*12-1.25PX60-30

main91621-60614iEE111..JPP..5F¥120199704-199910

*6-1.00PX14-14

main91642-81055iZZE11#..MTM¥220199910-200111

*10-1.25PX55-30

main91651-41022iCDE110¥160200008-200109

*10-1.25PX22-22

33030BBOLT(FOR TRANSAXLE CASE & TRANSMISSION CASE SETTING)

main90105-08042iCE110¥300199704-199910

*8-1.25PX45-27.5

sub90105-08430¥100

main90105-08064iZZE112..5F;AE111..UKP..5F¥190199704-200110

*8-1.25PX51-28

sub90105-08353¥100

main90105-08086iAE111..JPP..5F¥110199704-200110

*8-1.25PX45-27.5

main90105-08126iCDE110¥190200008-200109

*8-1.25PX45-27.5

mainSU00100356iWZE110199912-200110

7X100-45

mainSU00100357iWZE110199912-200110

7X100-35

33101APLUG(FOR MANUAL TRANSMISSION FILLER)

main90341-18006iAE111,CE110,EE111..JPP..5F¥180199704-200110

main90341-18033iCDE110¥190200008-200109

main90341-18038iAE111,EE111..G6¥220199704-200110

mainSU00100253iWZE110199912-200110

33101CGASKET(FOR MANUAL TRANSMISSION FILLER PLUG)

main90430-18008iCDE110,ZZE11#..MTM;AE111,EE111..UKP..5F¥110199704-200110

33102COVER SUB-ASSY, MANUAL TRANSMISSION CASE

main33102-10023iEE111..JPP..5F¥3,540199704-200110

main33102-12021iZZE112..5F;AE111..UKP..5F¥9,800199704-200110

main33102-12041iCDE110¥4,940200008-200109

sub33102-12042¥4,950

main33102-12050iZZE11#..6F¥21,700199704-200006

sub33102-20050¥21,700

main33102-20050iZZE11#..6F¥21,700200006-200110

main33102-33020iCE110¥16,300199704-199910

mainSU00100027iWZE110199912-200110

33104PLUG SUB-ASSY, DRAIN(MTM)

main90341-18006iCDE110,ZZE11#..MTM;AE111,EE111..UKP..5F¥180199704-200110

mainSU00100280iWZE110199912-200110

33104AGASKET, DRAIN PLUG(MTM)

main90430-18008iCDE110,ZZE11#..MTM;AE111,EE111..UKP..5F¥110199704-200110

33111CASE, MANUAL TRANSMISSION

main33101-28040iCDE110¥40,900200008-200107

sub33101-28041¥40,900

sub33250-12180¥17,900

sub33290-33020¥1,980

main33101-28041iCDE110¥40,900200107-200109

sub33101-20090¥40,900

sub33250-12180¥17,900

main33111-12220iAE111,EE111..G6¥38,100199704-200110

main33111-16052iEE111..UKP..5F¥35,100199704-199907

sub33111-16053¥35,200

sub90109-18005¥210

sub90430-18008¥110

main33111-16053iZZE111..5F;EE111..UKP..5F¥35,200199907-200110

main33111-16062iAE111..JPP..5F¥35,100199704-199907

sub33111-16063¥38,200

sub90109-18005¥210

sub90430-18008¥110

main33111-16063iZZE112..5F;AE111..UKP..5F¥38,200199907-200110

sub33111-16064¥35,200

sub90101-08166¥110

sub90201-08049¥90

main33111-28050iCDE110..RHD¥40,900200008-200009

sub33101-28040¥40,900

main33111-32030iCE110¥38,100199704-199910

33111JPIN, STRAIGHT(FOR MANUAL TRANSMISSION CASE)

main90250-08054iCDE110,ZZE11#..MTM;AE111,EE111..UKP..5F¥120199704-200110

L=23,OD=8

33111UPIN, RING(FOR MANUAL TRANSMISSION CASE)

main90253-11001iEE111..G6;AE111..JPP..MTM¥120199704-200110

L=11,OD=11

33121HBOLT, W/WASHER(FOR TRANSMISSION CASE COVER)

main90105-08273iCE110¥170199704-199910

main90119-08630iCDE110¥100200008-200109

main90119-08A34iEE111..JPP..5F¥130199704-200110

sub90119-08373¥140

main91611-60835iEE111..G6;AE111..JPP..MTM¥90199704-200110

mainSU00100343iWZE110..HB200001-200107

33124CPIPE, OIL RECEIVER, NO.1(MTM)

main33124-10012iAE111..G6;EE111..JPP..MTM¥750199704-200110

main33124-12012iAE111..UKP..5F¥710199704-199907

sub33124-20050¥440

main33124-20050iZZE112..5F;AE111..UKP..5F¥440199907-200110

main33124-28050iCDE110¥1,140200008-200109

main33124-33010iCE110¥720199704-199910

mainSU00100342iWZE110199912-200110

33124DPIPE, OIL RECEIVER, NO.2(MTM)

main33124-10021iZZE111..5F;EE111..UKP..5F¥1,260199704-200110

main33124-12021iZZE112..5F;AE111..UKP..5F¥720199704-200110

main33124-12050iAE111,EE111..G6¥1,160199704-200110

main33124-28060iCDE110¥1,150200008-200109

33124HBOLT(FOR OIL RECEIVER PIPE)

main90119-08648iCDE110¥140200008-200109

sub90119-08830¥100

main91611-60820iZZE11#..MTM;AE111,EE111..UKP..5F¥200199704-200110

sub91611-G0820¥160

main91651-60618iCE110¥90199704-199910

33124JBOLT, W/WASHER

main91611-60820iZZE11#..MTM;AE111,EE111..UKP..5F¥200199704-200110

sub91611-G0820¥160

33131RETAINER, BEARING, FRONT(MTM)

main33131-12080iAE111..UKP..5F¥1,760199704-199911

mainSU00100183iWZE110199912-200110

33131ESCREW(FOR BEARING RETAINER FRONT)

main90149-60028iAE111..UKP..5F¥70199704-199911

4301

4302

19 parts on this diagram · 7 diagrams in section
