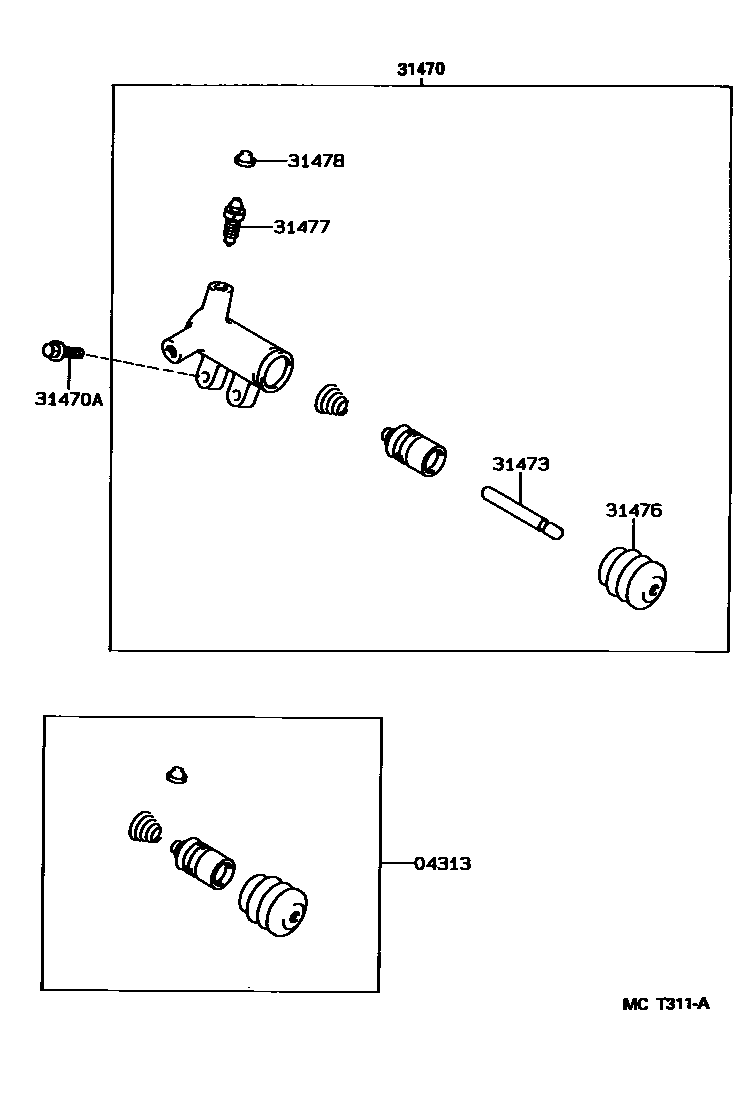

CLUTCH RELEASE CYLINDER

0001 1 0002 1 0003 1

04313CYLINDER KIT, CLUTCH RELEASE

main04313-14030iWZE110199912-200111

main04313-17010iCE110199704-200109

main04313-17020iEE111..G6199704-199910

main04313-17040iZZE11#..MTM200003-200111

main04313-22030iAE111..UKP..5F199704-199911

31470CYLINDER ASSY, CLUTCH RELEASE

main31470-10040iEE111..UKP..5F199704-199911

main31470-12093iAE111..JPP..MTM199704-199911

main31470-12110iZZE11#..MTM199910-200003

sub31470-12111

main31470-12111iZZE11#..MTM200003-200111

sub31470-12140

main31470-12120iWZE110199912-200111

main31470-32022iCE110199704-199910

sub31470-32023

main31470-32032iCDE110200008-200109

31470ABOLT(FOR CLUTCH RELEASE CYLINDER SETTING)

main90109-08248iCDE110..LHD200008-200109

*8-1.25PX25-20.1

main90110-08012iWZE110199912-200111

*8-1.25PX29-26

main91611-60822iZZE112..5F199704-200111

*8-1.25PX22-17.1

main91611-60825iCE110199704-199910

*8-1.25PX25-25

sub91611-B0825

31473ROD, CLUTCH RELEASE CYLINDER PUSH, NO.1

main31473-20031iZZE112..5F200003-200111

main31473-22010iCDE110;EE111..UKP..5F199704-200109

main31473-32010iAE111..JPP..MTM199704-200003

main31473-60170iWZE110199912-200111

31476BOOT, CLUTCH RELEASE CYLINDER

main31476-22010iAE111,CE110,EE111..JPP..MTM199704-200111

31477PLUG, BLEEDER(FOR RELEASE CYLINDER)

main47547-20010iAE111,EE111..UKP..5F;CDE110,WZE110,ZZE11#..MTM199704-200111

31478CAP, BLEEDER PLUG(FOR RELEASE CYLINDER)

main31478-01030iAE111..UKP..5F199704-199911

(L)

main31478-30010iEE111..UKP..5F;CDE110,WZE110,ZZE11#..MTM199809-200111

main31478-30010iCE110,EE111..JPP..MTM199704-199911

(J)

7 parts on this diagram · 3 diagrams in section
