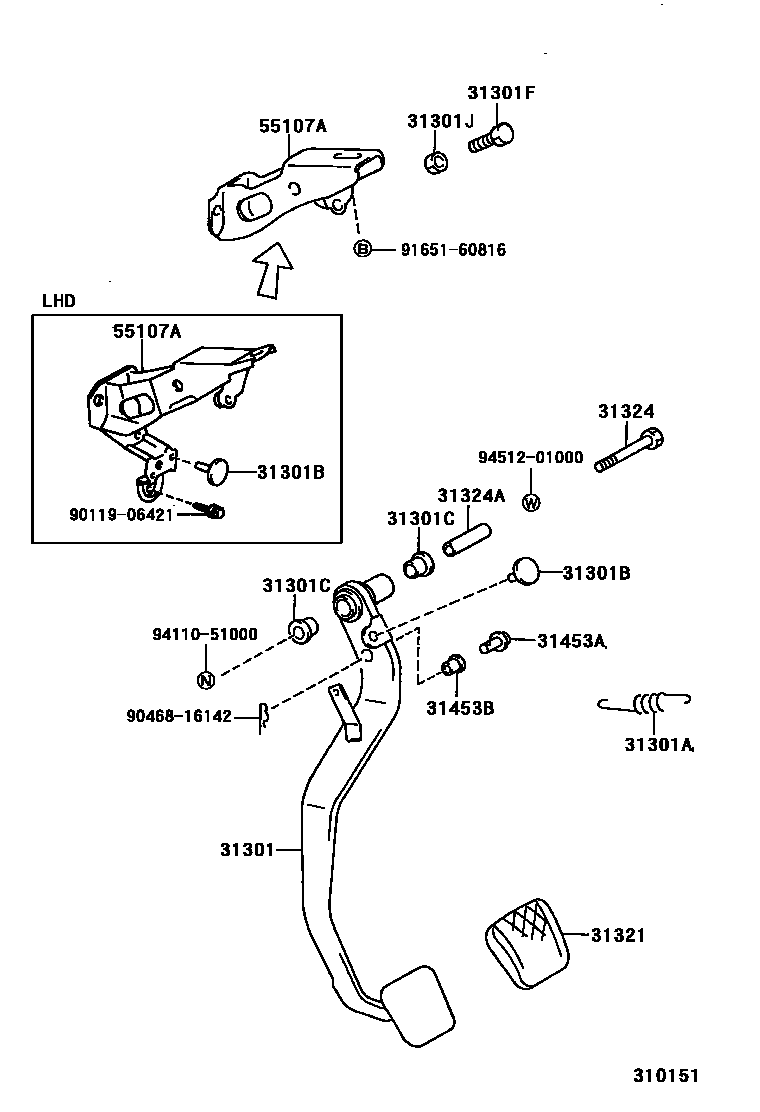

CLUTCH PEDAL & FLEXIBLE HOSE

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1 0007 1 0008 1 0009 1 0010 1 0011 1

31301PEDAL SUB-ASSY, CLUTCH

main31301-02060iAE111,EE111,WZE110,ZZE11#..UKP..RHD..MTM199809-200111

main31301-02070iAE111,EE111,WZE110,ZZE11#..UKP..LHD..MTM199809-200111

main31301-12420iAE111,CE110,EE111..JPP..RHD..MTM199704-200107

main31301-12430iWZE110,ZZE11#..JPP..LHD..MTM199704-200109

main31310-12030iCDE110..RHD200008-200107

main31310-12051iCDE110..LHD200008-200109

31301ASPRING(FOR CLUTCH PEDAL)

main90506-14063iWZE110,ZZE11#..RHD..MTM;AE111,EE111..UKP..RHD..5F199704-200111

main90506-23045iCDE110..LHD200008-200109

main90506-26023iCDE110..RHD200008-200107

main90905-06029iWZE110,ZZE11#..LHD..MTM;AE111,EE111..UKP..LHD..5F199704-200111

31301BCUSHION, NO.1(FOR CLUTCH PEDAL)

main90541-06036iAE111,EE111..UKP..LHD..5F;CDE110,WZE110,ZZE11#..LHD..MTM199704-200111

31301CBUSH(FOR CLUTCH PEDAL)

main90386-13015iAE111,EE111..UKP..5F;CDE110,WZE110,ZZE11#..MTM199704-200111

31301FBOLT(FOR CLUTCH PEDAL STOPPER)

main90101-10369iAE111,EE111..UKP..5F;CDE110,WZE110,ZZE11#..MTM199704-200111

31301JNUT(FOR CLUTCH PEDAL STOPPER)

main94120-41000iAE111,EE111..UKP..5F;CDE110,WZE110,ZZE11#..MTM199704-200111

31321PAD, CLUTCH PEDAL

main31321-12040iCDE110,WZE110,ZZE11#..JPP..MTM199704-200109

main31321-14020iAE111,EE111,WZE110,ZZE11#..UKP..MTM199809-200111

31324SHAFT, CLUTCH PEDAL

main90101-10015iAE111,CE110,EE111..JPP..MTM199704-200109

main90101-10039iCDE110;AE111,EE111,WZE110,ZZE11#..UKP..MTM199809-200111

31324ACOLLAR, CLUTCH PEDAL SHAFT

main90387-10003iAE111,EE111..UKP..5F;CDE110,WZE110,ZZE11#..MTM199704-200111

31453APIN, W/HOLE(FOR CLUTCH MASTER CYLINDER PUSH ROD CLEVIS)

main47148-12010iCDE110;WZE110,ZZE11#..LHD..MTM;AE111,EE111..UKP..LHD..5F199704-200111

L=23.5

main47148-12030iAE111,CE110,EE111..JPP..MTM199704-200111

L=30.0

31453BBUSH(FOR CLUTCH MASTER CYLINDER PUSH ROD CLEVIS)

main90386-08002iCDE110199704-200111

55107ASUPPORT SUB-ASSY, CLUTCH PEDAL

main55107-02020iAE111,EE111,WZE110,ZZE11#..UKP..RHD..MTM199809-200111

main55107-02030iAE111,EE111,WZE110,ZZE11#..UKP..LHD..MTM199809-200111

main55107-12160iAE111,CE110,EE111..LHD..MTM199704-200109

main55107-12170iAE111..JPP..RHD..LB..5F;AE111..RHD..HB..(G6,TERRA);CE110,EE111..JPP..RHD..LB..5F..LUNA;CE110,EE111..JPP..RHD..MTM..(G6,TERRA)199704-200107

main55107-12180iCDE110..RHD200008-200107

main55107-12190iCDE110..LHD200008-200109

9011906421

main90119-06421

9046816142

main90468-16142

9165160816

main91651-60816

9411051000

main94110-51000

9451201000

main94512-01000

17 parts on this diagram · 11 diagrams in section
