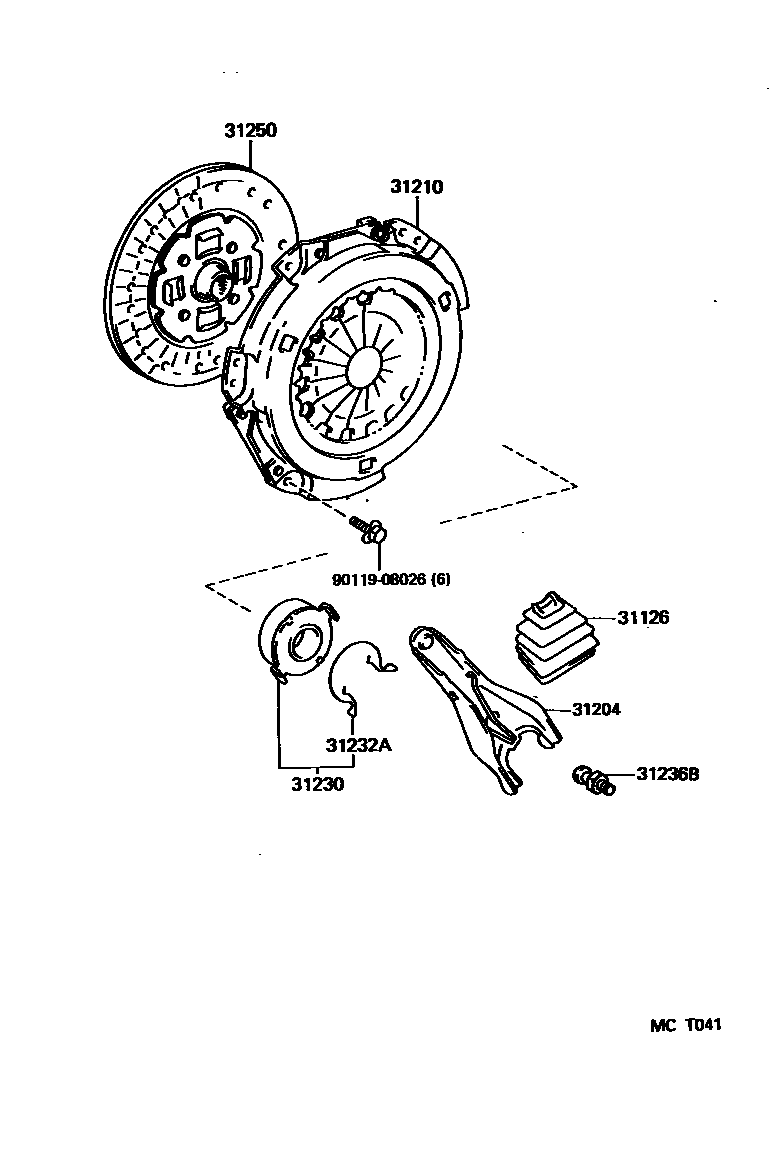

CLUTCH & RELEASE FORK

0001 1 0002 1 0003 1

31126BOOT, CLUTCH RELEASE FORK

main31126-02020iWZE110199912-200110

main31126-12051iZZE11#..MTM;AE111,EE111..UKP..5F199704-200111

main31126-20080iCDE110200008-200109

main31126-32010iCE110199704-199910

31204FORK SUB-ASSY, CLUTCH RELEASE

main31204-02020iWZE110199912-200110

main31204-12050iZZE111;EE111..UKP..5F199704-200110

main31204-17010iZZE112..5F199704-200111

main31204-20100iCE110199704-199910

main31204-20130iCDE110200008-200109

sub31204-20131

31210COVER ASSY, CLUTCH

main31210-02040iEE111,ZZE111..UKP..5F199809-200111

main31210-05011iAE111..UKP..5F199809-199812

sub31210-05012

main31210-05012iAE111..UKP..5F199812-199903

sub31210-05013

main31210-05013iAE111,ZZE112..UKP..MTM199903-200106

sub31210-05014

main31210-05014iZZE112..UKP..MTM200106-200111

sub31210-05015

main31210-0W010iEE111..JPP..MTM199704-199910

SACHS

main31210-12180iEE111..JPP..MTM199704-199910

AISIN

sub31210-12181

main31210-12201iAE111..JPP..MTM199704-200109

sub31210-52050

main31210-12210iZZE111..JPP199910-200109

sub31210-12280

main31210-12240iCDE110200008-200109

sub31210-12241

main31210-32121iCE110199704-199910

sub31210-12320

mainSU00100480iWZE110199912-200111

31230BEARING ASSY, CLUTCH RELEASE

main31230-05010iAE111..UKP..5F199809-199911

sub31230-05011

main31230-05012iZZE112..UKP..5F200005-200111

main31230-12140iEE111..UKP..5F199704-199907

sub31230-16061

main31230-12170iZZE112..MTM199704-200101

sub31230-12171

main31230-12171iZZE112..6F..SOL;ZZE112..JPP..MTM200101-200110

sub31230-12191

main31230-20191iCDE110200008-200109

main31230-32060iCE110199704-199910

main31230-52010iZZE111;EE111..UKP..5F199907-200110

sub31230-52011

mainSU00100344iWZE110199912-200111

subSU001-00841

31232ACLIP, RELEASE BEARING HUB

main31232-05010iAE111..UKP..5F199809-199911

TYPE H:REFER TO ILLUSTRATION

main31232-05011iZZE112..UKP..5F200005-200111

TYPE D:REFER TO ILLUSTRATION

main31232-12040iEE111..JPP..MTM199704-200110

TYPE A:REFER TO ILLUSTRATION

main31232-12070iZZE112..6F..SOL;ZZE112..JPP..MTM199704-200110

TYPE D:REFER TO ILLUSTRATION

main31232-16031iEE111..JPP..MTM199704-200110

TYPE E:REFER TO ILLUSTRATION

main31232-20020iCE110199704-199910

TYPE F:REFER TO ILLUSTRATION

main31232-20031iCDE110200008-200109

TYPE J:REFER TO ILLUSTRATION

main31232-32050iCE110199704-199910

TYPE G:REFER TO ILLUSTRATION

main31232-52010iEE111..JPP..MTM199907-200110

TYPE I:REFER TO ILLUSTRATION

31236BSUPPORT, RELEASE FORK

main31236-12011iZZE111;EE111..UKP..5F199704-200110

main31236-12020iAE111..JPP..MTM199704-200110

main31236-20080iCDE110200008-200109

main31236-32010iCE110199704-199910

mainSU00100246iWZE110199912-200110

31250DISC ASSY, CLUTCH

main31250-02040iEE111,ZZE111..UKP..5F199809-200111

LUK

sub31250-0D060

main31250-05011iAE111..UKP..5F199809-199812

sub31250-05012

main31250-05012iAE111,ZZE112..UKP..MTM199812-200011

sub31250-05060

main31250-05060iZZE112..UKP..MTM200011-200111

VALEO

sub31250-05100

main31250-0W011iEE111..MTM199704-199804

SACHS

sub31250-0W012

main31250-0W012iEE111..JPP..MTM199804-199910

SACHS

main31250-12282iCE110199704-199910

sub31250-12283

main31250-12370iAE111..5F199704-199708

sub31250-20280

main31250-12390iEE111..MTM199704-199804

AISIN

sub31250-12391

main31250-12391iEE111..JPP..MTM199804-200111

AISIN

sub31250-12392

main31250-12391iZZE111..JPP199910-200109

sub31250-12392

main31250-12410iCDE110200008-200109

sub31250-12411

main31250-20280iAE111..JPP..MTM199708-200109

sub31250-12570

mainSU00100481iWZE110199912-200111

9011908026

main90119-08026

8 parts on this diagram · 3 diagrams in section
