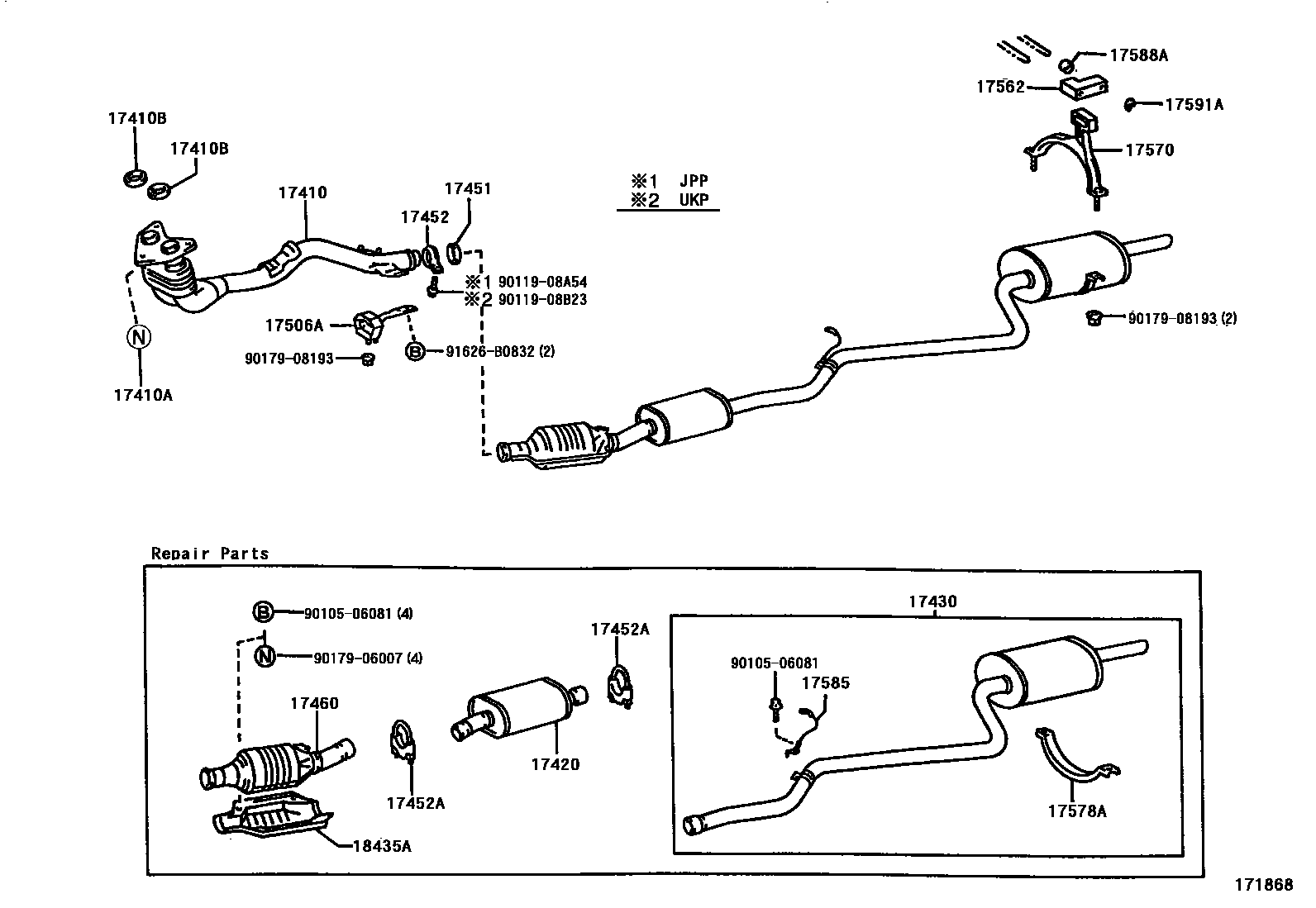

EXHAUST PIPE

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1 0007 1 0008 1

17410PIPE ASSY, EXHAUST, FRONT

main17410-02380i4AFE..AE111..UKP..5F199809-199911

sub17410-1A481

main17410-02390i4AFE..AE111..UKP..4FC199809-199911

sub17410-1A490

main17410-0D020i3ZZFE,4ZZFE..ZZE11#..UKP199911-200111

main17410-0E010i4EFE..EE111..UKP199809-199911

main17410-0X020i1WZ..WZE110..LB199912-200111

main17410-1A480i4AFE..AE111..JPP..MTM199704-199910

sub17410-1A481

main17410-1A490i4AFE..AE111..JPP..4FC199704-199910

main17410-1B090i4EFE..EE111..JPP199704-199910

main17410-22140i3ZZFE,4ZZFE..ZZE11#..JPP199910-200109

main17410-27110i1CDFTV..CDE110200008-200109

main17410-53010i1WZ..WZE110..HB200001-200107

main17410-64790i2CE..CE110199704-199910

17410ANUT, EXHAUST PIPE SET STUD BOLT

main90179-10070i4AFE..AE111..UKP..4FC199704-199911

17410BGASKET, EXHAUST PIPE

main17451-02030i4AFE..AE111..UKP..4FC199809-199911

REAR

main17451-0D010i3ZZFE,4ZZFE..ZZE11#..UKP199911-200111

main17451-0E010i4EFE,1WZ..EE111,WZE110..UKP199809-200111

main17451-16040i4AFE..AE111..JPP..4FC199704-199910

REAR

main17451-22020i3ZZFE,4ZZFE..ZZE11#..JPP199910-200109

main17451-74060i1CDFTV..CDE110200008-200109

main90917-06061i4AFE..AE111..JPP..MTM199704-199910

FRONT

main90917-06061i4AFE..AE111..UKP..5F199809-199911

main90917-06065i4AFE..AE111..UKP..4FC199704-199911

FRONT

main90917-06080i2CE..CE110199704-199910

REAR

main90917-06080i1WZ..WZE110..HB200001-200107

17420PIPE ASSY, EXHAUST, CENTER

main17420-02170i4AFE..AE111..UKP199809-199911

main17420-0D060i3ZZFE,4ZZFE..ZZE11#..UKP199911-200111

main17420-0E010i4EFE..EE111..UKP199809-199911

main17420-0X010i1WZ..WZE110..LB199912-200111

main17420-11370i4EFE..EE111..JPP199704-199910

main17420-16720i4AFE..AE111..JPP199704-199910

main17420-22010i3ZZFE,4ZZFE..ZZE11#..JPP199910-200109

main17420-27020i1CDFTV..CDE110200008-200109

main17420-53010i1WZ..WZE110..HB200001-200107

main17420-64280i2CE..CE110199704-199910

17430PIPE ASSY, EXHAUST, TAIL

main17430-02230i4AFE..AE111..UKP199809-199911

main17430-0D040i3ZZFE,4ZZFE..ZZE11#..UKP199911-200111

main17430-0E020i4EFE..EE111..UKP199809-199911

main17430-0X020i1WZ..WZE110..LB199912-200111

main17430-1B070i4EFE..EE111..JPP..LB199704-199910

main17430-1B080i4EFE..EE111..HB199704-199910

main17430-1D010i4AFE..AE111..JPP..LB199704-199910

sub17430-1D011

main17430-1D020i4AFE..AE111..HB199704-199910

sub17430-1D021

main17430-22120i3ZZFE,4ZZFE..ZZE11#..JPP..LB199910-200109

main17430-22130i3ZZFE,4ZZFE..ZZE11#..HB199910-200107

main17430-27100i1CDFTV..CDE110..LB200008-200109

main17430-27110i1CDFTV..CDE110..HB200008-200107

main17430-6A210i2CE..CE110..LB199704-199910

main17430-6A220i1WZ..WZE110..HB199704-200107

17451GASKET, EXHAUST PIPE

main90917-06045i2CE..CE110199704-199910

main90917-06082i1WZ..WZE110..HB199704-200107

main90917-06084i4AFE..AE111..JPP199704-200111

17452CLAMP, EXHAUST PIPE

main90461-15013i4EFE..EE111..JPP199704-200107

main90461-15016i1CDFTV,3ZZFE,4ZZFE..CDE110,ZZE11#;4AFE,4EFE,1WZ..AE111,EE111,WZE110..UKP199704-200111

17452ACLAMP, EXHAUST PIPE

main17452-15020i4EFE..EE111..JPP199704-199911

REAR

main17452-16120i4AFE..AE111..JPP199704-200111

REAR

main17452-16120i1WZ..WZE110199912-200111

main17452-16120i4EFE..EE111..JPP199704-199910

FRONT

main17452-16160i4AFE..AE111..JPP199704-200111

FRONT

main17452-16160i1CDFTV..CDE110..HB;3ZZFE..ZZE112..RHD..HB..4FC200008-200107

17460CONVERTER ASSY, CATALYTIC W/PIPE

main17460-02170i4AFE..AE111..UKP199809-199911

main17460-02200i4AFE..AE111..UKP..LHD..5F199809-199911

GERMANY SPEC

main17460-0D050i3ZZFE,4ZZFE..ZZE11#..UKP199911-200111

*114=TOYOTA/U88/Y

main17460-0E010i4EFE..EE111..UKP199809-199911

main17460-0X010i1WZ..WZE110..LB199912-200111

*115=TOYOTA/99-01/N

main17460-11030i4EFE..EE111..JPP199704-199910

main17460-16170i4AFE..AE111..JPP199704-199910

main17460-16260i4AFE..AE111..LHD..HB..MTM199808-199910

*114=TOYOTA/U10/Y,GERMANY SPEC

main17460-22010i3ZZFE,4ZZFE..ZZE11#..JPP199910-200109

*115=TOYOTA/99-01/Y

main17460-53010i1WZ..WZE110..HB200001-200107

17506ABRACKET SUB-ASSY, EXHAUST PIPE NO.1 SUPPORT

main17506-11100i4AFE,4EFE..AE111,EE111..UKP199704-199911

17562SUPPORT, EXHAUST PIPE, NO.2

main17562-16240i4AFE,4EFE..AE111,EE111..UKP;1CDFTV,1WZ,3ZZFE,4ZZFE..CDE110,WZE110,ZZE11#199704-200111

17570BRACKET ASSY, EXHAUST PIPE SUPPORT

main17570-0E010i4AFE,4EFE,1WZ,3ZZFE,4ZZFE..AE111,EE111,WZE110,ZZE11#..UKP199809-200111

main17570-11010i2CE,4EFE..CE110,EE111..JPP..LB199704-199910

main17570-16040i1CDFTV,1WZ,3ZZFE,4ZZFE..CDE110,WZE110,ZZE11#..JPP199704-200109

17578ACLAMP, MUFFLER

main17578-0E010i4AFE,4EFE,1WZ,3ZZFE,4ZZFE..AE111,EE111,WZE110,ZZE11#..UKP199809-200111

main17578-11020i2CE,4EFE..CE110,EE111..JPP..LB199704-199910

main17578-11030i1CDFTV,1WZ,3ZZFE,4ZZFE..CDE110,WZE110,ZZE11#..JPP199704-200109

17585HANGER, EXHAUST PIPE

main17585-0E010i4AFE,4EFE..AE111,EE111..UKP199809-199911

main17585-16060i4AFE,4EFE..AE111,EE111..JPP199704-199910

17588ASPACER, EXHAUST PIPE HANGER

main17588-16020i4AFE,2CE,4EFE..AE111,CE110,EE111..JPP199704-200111

17591ASTOPPER, EXHAUST PIPE SUPPORT

main17591-16020i4AFE,4EFE..AE111,EE111..UKP;1CDFTV,1WZ,3ZZFE,4ZZFE..CDE110,WZE110,ZZE11#199704-200111

18435APROTECTOR, MONOLITHIC CONVERTER

main18435-02030i4AFE,4EFE..AE111,EE111..UKP199809-199911

main18435-11020i4EFE..EE111..JPP199704-199901

sub18435-11040

main18435-11030i4EFE..EE111..JPP199901-199910

main18435-16170i4AFE..AE111..JPP199704-199901

sub18435-20020

main18435-20020i4AFE..AE111..JPP..RHD;4AFE..AE111..JPP..LHD..LB..5F;4AFE..AE111..JPP..LHD..(4FC,6F)199901-199910

9010506081

main90105-06081

9011908A54

main90119-08A54

9011908B23

main90119-08B23

9017906007

main90179-06007

9017908193

main90179-08193

91626B0832

main91626-B0832

23 parts on this diagram · 8 diagrams in section
