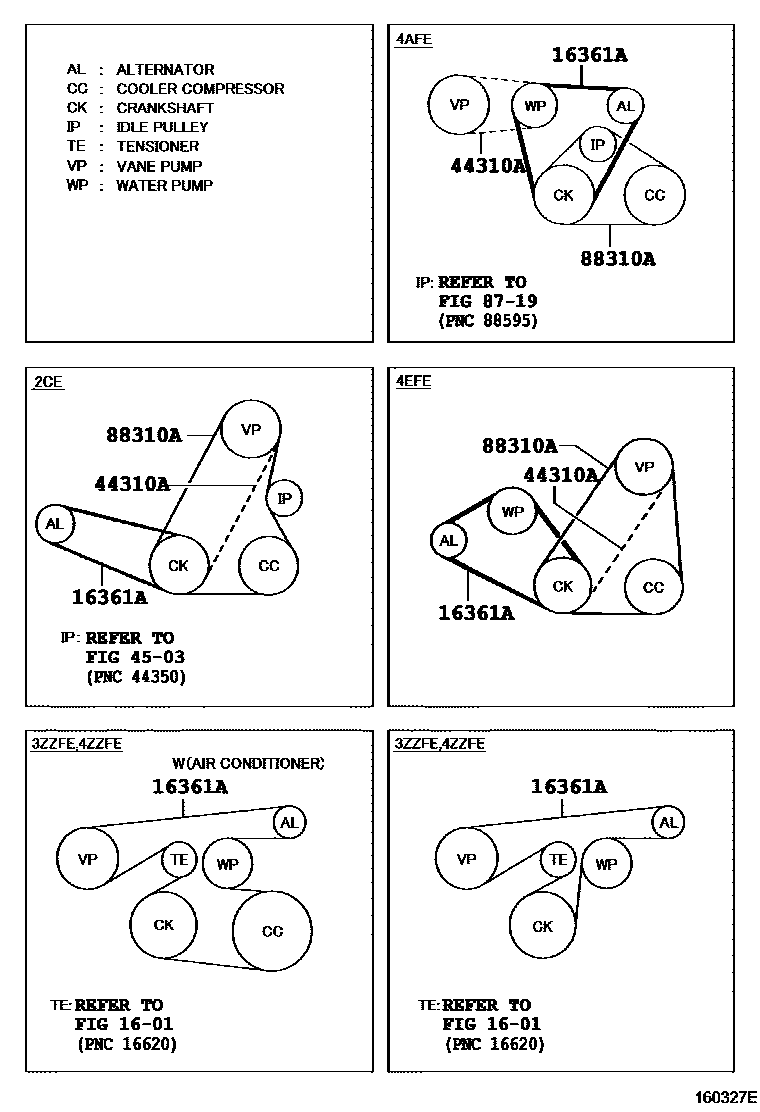

V-BELT

0001 1 0002 1

1601

16361ABELT, V(FOR FAN & ALTERNATOR)

main90080-91050i4AFE..AE111..UKP199809-199911

L=970

main90080-91055i4AFE..AE111..JPP199704-199910

L=970,(L)

main90916-02372i2CE..CE110199704-199910

L=940

main90916-02468i3ZZFE,4ZZFE..ZZE11#..JPP199910-200109

L=1540

sub90916-02535

main90916-02469i3ZZFE,4ZZFE..ZZE11#..UKP199911-200111

L=1560

sub99366-H1560

main90916-02470i3ZZFE,4ZZFE..ZZE11#..UKP199911-200111

L=1840,W(AIR CONDITIONER)

sub99366-H1840

main90916-02482i3ZZFE..ZZE112..RHD..HB..4FC200008-200107

L=1820,BANDO

sub99366-31820

main90916-02482i3ZZFE..ZZE112..JPP..LB..4FC;3ZZFE..ZZE112..LHD..HB..4FC;3ZZFE,4ZZFE..ZZE11#..JPP..MTM199910-200109

L=1820,W(AIR CONDITIONER (MAKER OPTION))

sub99366-31820

main99364-20820i4EFE..EE111..JPP199704-199911

L=820

main99365-20970i4AFE..AE111..JPP199704-199910

L=970,(J)

main99366-31820i3ZZFE,4ZZFE..ZZE11#..JPP199910-200109

L=1820

44310ABELT, V(FOR VANE PUMP)

main90080-91051iAE111..G6199808-199910

L=630,(L)

main90080-91078iAE111..UKP199809-199911

L=630

main90080-91160iEE111..UKP199809-199911

L=890

main99363-90630iAE111..JPP..(LUNA,TERRA)199704-199910

L=630

main99363-90630iAE111..G6199808-199910

L=630,(J)

main99365-21130iCDE110200008-200109

L=1130

sub99365-31130

main99365-90890iEE111..JPP199704-199910

L=890

main99365-91110iCE110199704-199910

L=1110

4503

8719

88310ABELT, V (COOLER COMPRESSOR TO CRANKSHAFT PULLEY), NO.1

main90080-91170iAE111..UKP199809-199911

L=830,(L)

main90080-91171iEE111..UKP199809-199911

L=1050,(L)

main99364-20850iAE111..JPP199704-199910

L=850

sub99364-30850

main99365-21050iEE111..UKP199809-199911

L=1050,(J)

main99365-21050iEE111..JPP199704-199910

L=1050

main99365-21190iCDE110199704-200109

L=1190

sub90916-02647

6 parts on this diagram · 2 diagrams in section
