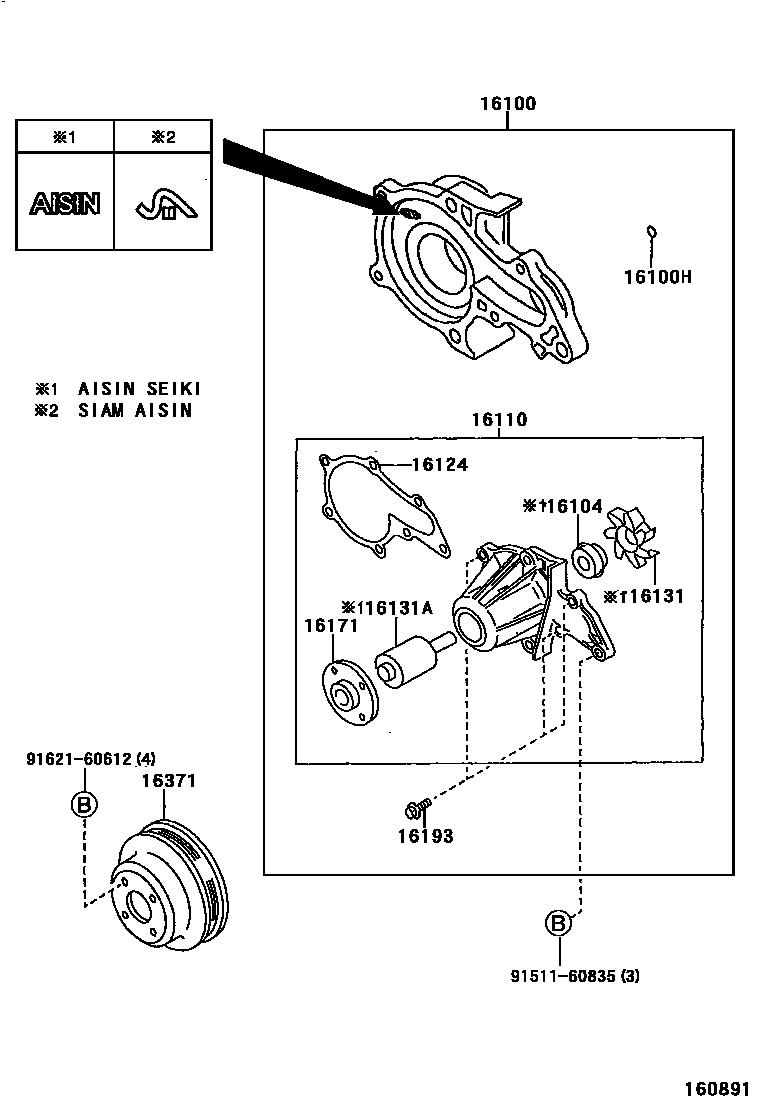

WATER PUMP

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1

16100PUMP ASSY, ENGINE WATER

main16100-09050i4AFE..AE111..UKP¥8,700199809-199812

sub16100-09051¥8,700

main16100-09051i4AFE..AE111..UKP¥8,700199812-199911

sub16100-19355¥11,700

main16100-09120i4AFE..AE111..JPP¥12,200199901-199910

SIAM AISIN

main16100-09130i3ZZFE,4ZZFE..ZZE11#..UKP199911-200111

(L)

sub16100-09310

main16100-19226i4EFE..EE111..UKP¥10,700199704-199911

main16100-19295i4AFE..AE111..JPP¥11,700199704-199901

sub16100-19355¥11,700

main16100-19295i4AFE..AE111..JPP¥11,700199901-199910

AISIN SEIKI

sub16100-19355¥11,700

main16100-29095i3ZZFE,4ZZFE..ZZE11#¥8,900199910-200107

sub16100-29175¥13,000

sub91511-60622¥120

main16100-29135i1CDFTV..CDE110¥13,600200008-200109

main16100-29175i3ZZFE,4ZZFE..ZZE11#..UKP¥13,000200107-200111

(J)

sub16100-29415¥11,300

main16100-29175i3ZZFE,4ZZFE..ZZE11#..JPP¥13,000200107-200109

sub16100-29415¥11,300

main16100-69296i2CE..CE110¥13,600199704-199811

sub16100-69425¥13,600

main16100-69298i2CE..CE110¥10,500199811-199910

sub16100-69435¥9,100

mainSU00100204i1WZ..WZE110199912-200111

16100HRING, O(FOR WATER PUMP)

main90301-69006i3ZZFE,4ZZFE..ZZE11#¥320199910-200111

main96761-24035i4AFE..AE111..UKP¥240199704-199911

16104SEAL SET, WATER PUMP

main16104-46060i4EFE..EE111..JPP¥3,540199704-199911

main16104-54030i4AFE..AE111¥2,760199704-199708

16110PUMP ASSY, WATER, W/O COUPLING

main16110-09020i4AFE..AE111..UKP199809-199812

sub16110-09021

main16110-09021i4AFE..AE111..UKP199812-199911

main16110-19107i4EFE..EE111..JPP¥7,100199704-199911

main16110-19146i4AFE..AE111..JPP¥7,700199704-199910

AISAN

main16110-19205i4AFE..AE111..JPP¥7,600199704-199910

AISIN SEIKI

16124GASKET, WATER PUMP COVER

main16124-02010i4AFE..AE111..UKP199809-199911

main16124-10013i4EFE..EE111..UKP¥570199704-199911

main16124-15110i4AFE..AE111..JPP¥260199704-199910

AISIN SEIKI

main16124-16060i4AFE..AE111..JPP¥660199704-199910

AISAN

mainSU00100205i1WZ..WZE110199912-200111

subSU001-00790

16131ROTOR, WATER PUMP

main16131-10013i4EFE..EE111..UKP¥740199704-199911

main16131-16090i4AFE..AE111..JPP¥710199704-199910

16131ABEARING, WATER PUMP

main90029-36846i4AFE..AE111..JPP¥2,970199704-199910

main90029-36850i4EFE..EE111..UKP¥3,260199704-199911

16171SEAT, WATER PUMP PULLEY

main16171-10012i4AFE..AE111..JPP¥1,750199704-199910

AISIN SEIKI

main16171-15071i4AFE..AE111..JPP¥1,570199704-199910

AISAN

16193BOLT, STUD(FOR WATER PUMP COVER)

main16193-02020i4AFE..AE111..UKP¥130199809-199911

main16193-15011i4AFE..AE111..JPP¥300199704-199910

AISIN SEIKI

main16193-15100i4AFE..AE111..JPP¥230199704-199910

AISAN

16371PULLEY, FAN

main16371-02030i4AFE..AE111..UKP¥2,960199809-199911

main16371-02030i4AFE..AE111..JPP¥2,960199704-199910

(L)

main16371-15071i4AFE..AE111..JPP¥3,330199704-199910

(J)

9151160835

main91511-60835¥90

9162160612

main91621-60612¥230

12 parts on this diagram · 6 diagrams in section
