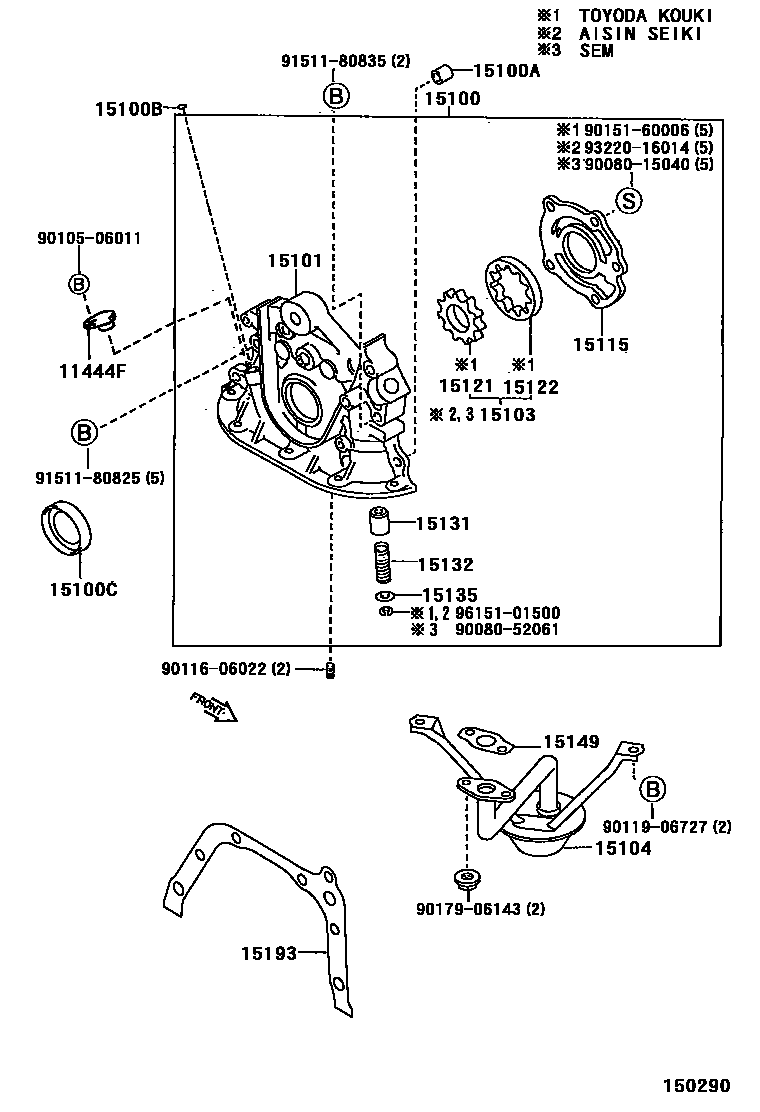

ENGINE OIL PUMP

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1

11444FPLUG, HOLE(FOR OIL PUMP)

main11444-02010i4AFE..AE111..UKP199809-199911

15100PUMP ASSY, OIL

main15100-02050i4AFE..AE111..UKP199809-199911

SEM

main15100-0D030i3ZZFE,4ZZFE..ZZE11#..UKP199911-200111

(L)

sub15100-0D031

main15100-11110i4EFE..EE111..JPP199704-199911

main15100-15060i4AFE..AE111..JPP199704-199910

main15100-15080i4AFE..AE111..UKP199809-199911

AISIN SEIKI

main15100-22040i3ZZFE,4ZZFE..ZZE11#..UKP199911-200111

(J)

sub15100-22041

main15100-22040i3ZZFE,4ZZFE..ZZE11#..JPP199910-200109

sub15100-22041

main15100-27010i1CDFTV..CDE110200008-200109

main15100-64040i2CE..CE110199704-199812

sub15100-64041

sub90119-08B81

main15100-64041i2CE..CE110199812-199906

sub15100-64042

main15100-64042i2CE..CE110199906-199910

mainSU00100173i1WZ..WZE110199912-200111

15100APIN, RING(FOR OIL PUMP SET)

main90253-09001i4EFE..EE111..UKP199704-199911

main90253-09003i3ZZFE,4ZZFE..ZZE11#199910-200111

main90253-11021i4AFE..AE111..JPP199704-200109

15100BRING, O(FOR OIL PUMP)

main90301-62006i4EFE..EE111..UKP199704-199911

main96721-19010i4AFE..AE111..UKP199704-199911

15100CSEAL(FOR OIL PUMP)

main90029-21020i4EFE..EE111..UKP199704-199911

main90311-32020i4AFE..AE111..JPP199704-199911

15101BODY SUB-ASSY, OIL PUMP

main15011-15060i4AFE..AE111..JPP199704-199910

AISIN SEIKI

main15011-15080i4AFE..AE111..UKP199809-199911

AISIN SEIKI

main15101-02050i4AFE..AE111..UKP199809-199911

SEM

main15101-15070i4AFE..AE111..JPP199704-199910

TOYODA KOUKI

15103GEAR SET, OIL PUMP

main15103-15020i4AFE..AE111..UKP199809-199911

AISIN SEIKI

main15103-15020i4AFE..AE111..JPP199704-199910

main15103-22040i3ZZFE,4ZZFE..ZZE11#199910-200111

15104STRAINER SUB-ASSY, OIL

main15104-0D030i3ZZFE,4ZZFE..ZZE11#..UKP199911-200111

(L)

main15104-11180i4EFE..EE111..JPP199704-199911

main15104-15090i4AFE..AE111..JPP199704-199911

main15104-22022i3ZZFE,4ZZFE..ZZE11#..UKP199911-200111

(J)

sub15104-22023

main15104-22022i3ZZFE,4ZZFE..ZZE11#..JPP199910-200109

sub15104-22023

main15104-27010i1CDFTV..CDE110200008-200102

sub15104-27040

main15104-27040i1CDFTV..CDE110200102-200109

main15104-64080i2CE..CE110199704-199910

mainSU00100175i1WZ..WZE110199912-200111

15115COVER, OIL PUMP

main15115-02030i4AFE..AE111..UKP199809-199911

SEM

main15115-15020i4AFE..AE111..UKP199704-199911

AISIN SEIKI

main15115-16060i4AFE..AE111..JPP199704-199910

TOYODA KOUKI

main15115-22040i3ZZFE,4ZZFE..ZZE11#199910-200111

15121GEAR, OIL PUMP DRIVE

main15121-15040i4AFE..AE111..JPP199704-199910

15122GEAR, OIL PUMP DRIVEN

main15122-15040i4AFE..AE111..JPP199704-199910

15131VALVE, OIL PUMP RELIEF

main15131-02030i4AFE..AE111..UKP199809-199911

SEM

main15131-15030i4AFE..AE111..JPP199704-199910

TOYODA KOUKI

main15131-24010i3ZZFE,4ZZFE..ZZE11#199910-200111

main15131-24010i4AFE..AE111..UKP199704-199911

AISIN SEIKI

main15131-64020i2CE..CE110199704-199812

main15131-64041i1CDFTV..CDE110199812-200109

mainSU00100180i1WZ..WZE110199912-200111

15132SPRING, OIL PUMP RELIEF VALVE

main15132-02030i4AFE..AE111..UKP199809-199911

SEM

main15132-15030i4AFE..AE111..JPP199704-199910

TOYODA KOUKI

main15132-17010i1CDFTV..CDE110199812-200109

main15132-22040i3ZZFE,4ZZFE..ZZE11#199910-200111

main15132-40010i4AFE..AE111..UKP199704-199911

AISIN SEIKI

main15132-64012i2CE..CE110199704-199812

mainSU00100181i1WZ..WZE110199912-200111

15135RETAINER, OIL PUMP RELIEF VALVE

main15135-02030i4AFE..AE111..UKP199809-199911

SEM

main15135-15010i4AFE..AE111..UKP199704-199911

AISIN SEIKI

main15135-15030i4AFE..AE111..JPP199704-199910

TOYODA KOUKI

15149GASKET, OIL STRAINER FLANGE

main15149-02020i4AFE..AE111..UKP199809-199911

main15149-0D020i3ZZFE,4ZZFE..ZZE11#..UKP199911-200111

(L)

sub15149-22010

main15149-16010i4AFE..AE111..JPP199704-199910

main15149-22010i3ZZFE,4ZZFE..ZZE11#..UKP199911-200111

(J)

main15149-22010i3ZZFE,4ZZFE..ZZE11#..JPP199910-200109

15193GASKET, OIL PUMP

main15193-64021i2CE..CE110199704-199804

sub15193-64022

main15193-64022i2CE..CE110199804-200109

main15197-0D020i3ZZFE,4ZZFE..ZZE11#..UKP199911-200111

(L)

sub15197-22010

main15197-15030i4AFE..AE111..UKP199704-199908

sub15197-16030

main15197-16030i4AFE..AE111..JPP199908-199910

main15197-22010i3ZZFE,4ZZFE..ZZE11#..UKP199911-200111

(J)

main15197-22010i3ZZFE,4ZZFE..ZZE11#..JPP199910-200109

9008015040

main90080-15040

9008052061

main90080-52061

9010506011

main90105-06011

9011606022

main90116-06022

9011906727

main90119-06727

9015160006

main90151-60006

9017906143

main90179-06143

9151180825

main91511-80825

9151180835

main91511-80835

9322016014

main93220-16014

9615101500

main96151-01500

27 parts on this diagram · 6 diagrams in section
