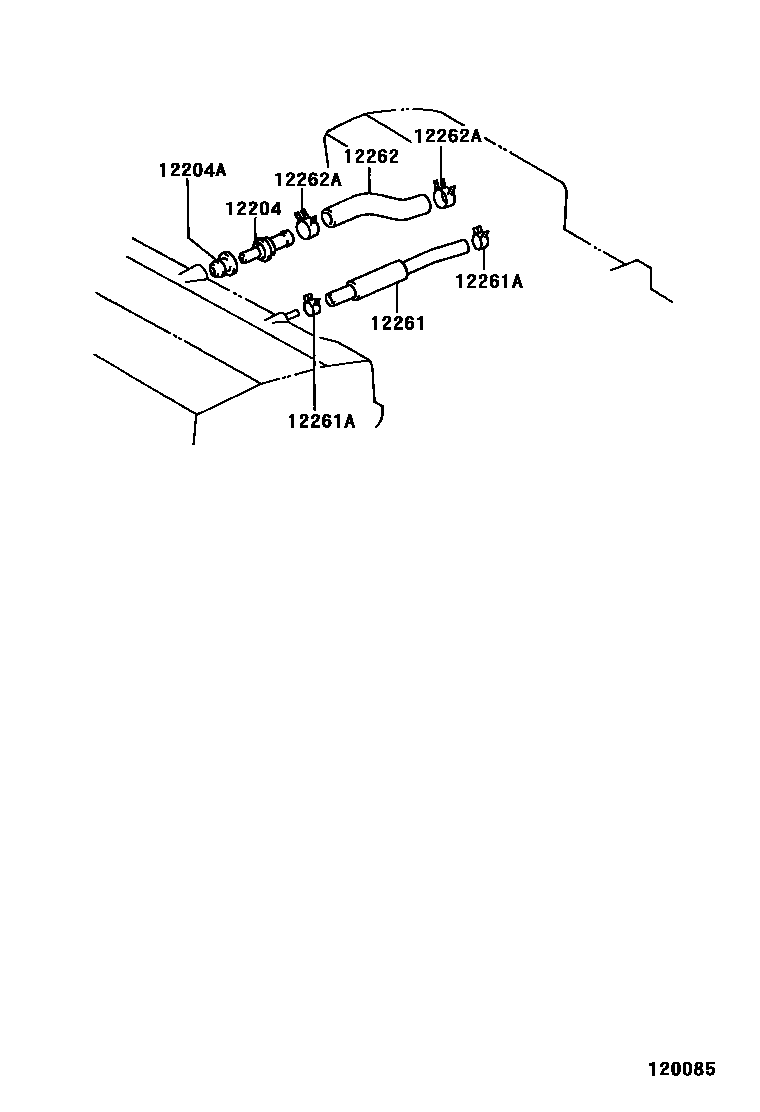

VENTILATION HOSE

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1

12204VALVE SUB-ASSY, VENTILATION

main12204-11040i4EFE..EE111..JPP¥1,810199704-199910

AISIN

main12204-11040i4EFE..EE111..UKP¥1,810199809-199911

main12204-11050i4EFE..EE111..JPP¥1,940199704-199910

TAIHEIYO

main12204-15050i4AFE..AE111..JPP¥1,300199704-199911

main12204-22050i3ZZFE,4ZZFE..ZZE11#¥1,300199910-200111

sub12204-22051¥1,290

12204AGROMMET(FOR VENTILATION SYSTEM)

main90480-18001i4AFE..AE111..UKP¥390199704-199911

main90480-18006i4EFE..EE111..UKP¥130199704-199911

12261HOSE, VENTILATION

main12261-02020i4EFE..EE111..UKP199809-199911

main12261-11180i4EFE..EE111..JPP¥660199704-199910

main12261-22040i3ZZFE,4ZZFE..ZZE11#¥1,670199910-200111

main12261-27010i1CDFTV..CDE110¥1,030200008-200109

main12261-64210i2CE..CE110¥1,820199704-199910

main90910-05222i4AFE..AE111..UKP¥640199704-199911

mainSU00100201i1WZ..WZE110199912-200111

12261ACLIP OR CLAMP(FOR VENTILATION HOSE)

main90467-10099i4AFE..AE111..UKP¥120199704-199911

sub96132-51000¥160

main90467-18003i2CE..CE110¥120199704-199910

main90467-21004i1CDFTV..CDE110¥130200008-200109

NO.1

main90467-21152i3ZZFE,4ZZFE..ZZE11#¥350199910-200111

main90467-23002i1CDFTV..CDE110¥90200008-200109

NO.2

mainSU00100203i1WZ..WZE110199912-200111

subSU001-00788

12262HOSE, VENTILATION, NO.2

main12262-11050i4EFE..EE111..UKP¥750199704-199911

main12262-22030i3ZZFE,4ZZFE..ZZE11#199910-200111

main90445-15068i4AFE..AE111..JPP¥540199704-199911

mainSU00100202i1WZ..WZE110199912-200111

12262ACLIP(FOR VENTILATION HOSE NO.2)

main90467-13103i3ZZFE,4ZZFE..ZZE11#¥110199910-200111

NO.1

main90467-14001i4EFE..EE111..UKP¥70199704-199911

main90467-14017i4AFE..AE111..JPP¥110199704-199911

main90467-19003i3ZZFE,4ZZFE..ZZE11#¥110199910-200111

NO.2

mainSU00100203i1WZ..WZE110199912-200111

subSU001-00788

6 parts on this diagram · 6 diagrams in section
