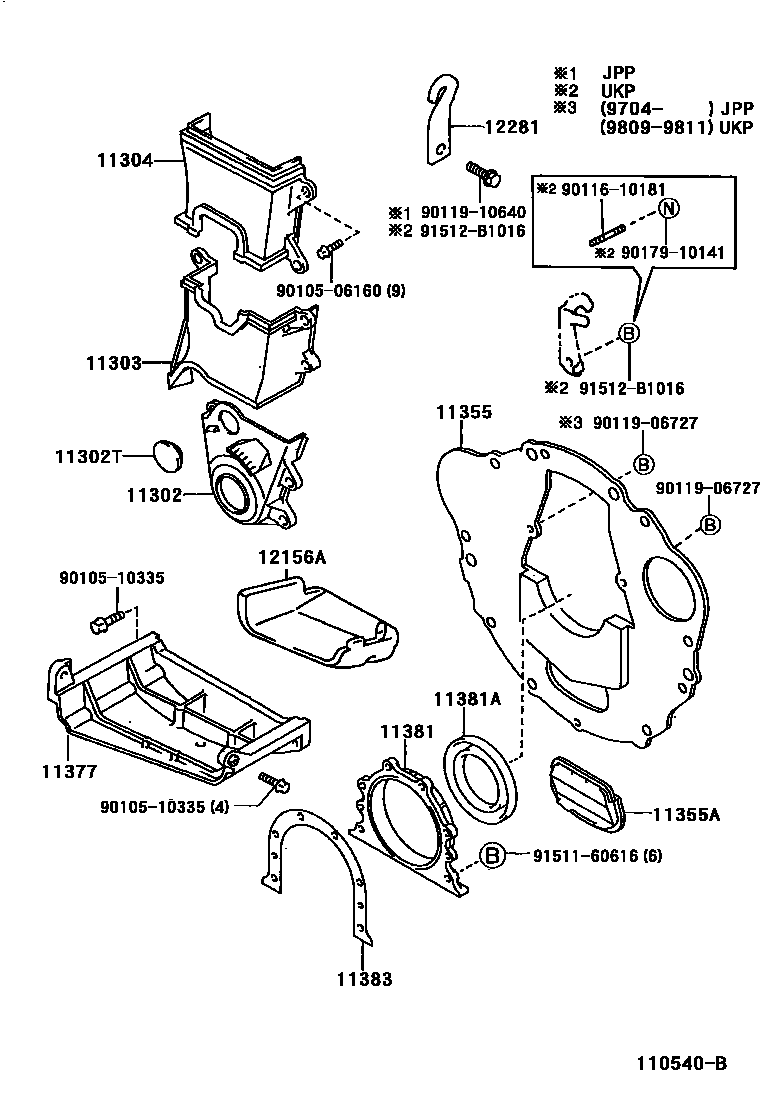

TIMING GEAR COVER & REAR END PLATE

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1

11302COVER SUB-ASSY, TIMING CHAIN OR BELT

main11302-02040i4AFE..AE111..UKP199809-199911

main11302-11110i4EFE..EE111..UKP199704-199911

main11302-15050i4AFE..AE111..JPP199704-199910

main11321-0D020i3ZZFE,4ZZFE..ZZE11#..UKP199911-200111

(L)

main11321-22021i3ZZFE,4ZZFE..ZZE11#..UKP199911-200111

(J)

main11321-22021i3ZZFE,4ZZFE..ZZE11#..JPP199910-200109

mainSU00100046i1WZ..WZE110199912-200111

subSU001-00491

11302TPLUG, HOLE

main90950-01783i4AFE..AE111..UKP199704-199911

11303COVER SUB-ASSY, CRANKSHAFT GEAR OR PULLEY

main11303-02040i4AFE..AE111..UKP199809-199911

sub11303-16060

main11303-11031i4EFE..EE111..UKP199704-199911

main11303-15050i4AFE..AE111..JPP199704-199910

11304COVER, TIMING CHAIN OR BELT, NO.2

main11304-02030i4AFE..AE111..UKP199809-199911

main11304-15030i4AFE..AE111..JPP199704-199910

mainSU00100048i1WZ..WZE110199912-200111

11355PLATE, REAR END

main11355-02020i4AFE..AE111..UKP..5F199809-199911

main11355-02030i4AFE..AE111..UKP..4FC199809-199911

main11355-10012i4EFE..EE111..UKP..5F199704-199911

main11355-11012i4EFE..EE111..UKP..3FC199704-199911

main11355-15070i4AFE..AE111..JPP..MTM199704-199910

main11355-15080i4AFE..AE111..JPP..4FC199704-199910

main11355-27010i1CDFTV..CDE110200008-200105

sub11355-27011

main11355-27011i1CDFTV..CDE110200105-200109

main11355-64051i2CE..CE110199704-199910

sub11355-64052

11355APLUG, HOLE(FOR REAR END PLATE)

main90950-01264i4AFE..AE111..UKP..4FC199704-199911

main90950-01548i4EFE..EE111..UKP..3FC199704-199911

11377STIFFENER, REAR END PLATE

main11377-02011i4AFE..AE111..UKP199809-199911

sub11377-15012

main11377-11020i4EFE..EE111..UKP199704-199911

main11377-15012i4AFE..AE111..JPP199704-199910

11381RETAINER, ENGINE REAR OIL SEAL

main11381-02020i4AFE..AE111..UKP199809-199911

main11381-10021i4EFE..EE111..JPP199704-199911

main11381-15010i4AFE..AE111..JPP199704-199910

main11381-64012i2CE..CE110199704-199812

sub11381-64020

main11381-64020i1CDFTV..CDE110199812-200109

11381ASEAL, ENGINE REAR OIL

main90080-31012i4AFE..AE111..UKP199809-199911

main90311-70007i4AFE..AE111..JPP199704-199910

main90311-75009i4EFE..EE111..UKP199704-199911

main90311-90008i1CDFTV..CDE110199704-200109

11383GASKET, ENGINE REAR OIL SEAL RETAINER

main11383-02020i4AFE..AE111..UKP199809-199911

main11383-16010i4AFE..AE111..JPP199704-199910

12156AINSULATOR, OIL PAN

main12156-16010i4AFE..AE111..UKP199704-199911

12281HANGER, ENGINE, NO.1

main12281-02020i4AFE..AE111..UKP199809-199911

main12281-11031i4EFE..EE111..UKP199704-199911

main12281-15050i4AFE..AE111..JPP199704-199910

main12281-22021i3ZZFE,4ZZFE..ZZE11#199910-200111

9010506160

main90105-06160

9010510335

main90105-10335

9011610181

main90116-10181

9011906727

main90119-06727

9011910640

main90119-10640

9017910141

main90179-10141

9151160616

main91511-60616

91512B1016

main91512-B1016

20 parts on this diagram · 6 diagrams in section
