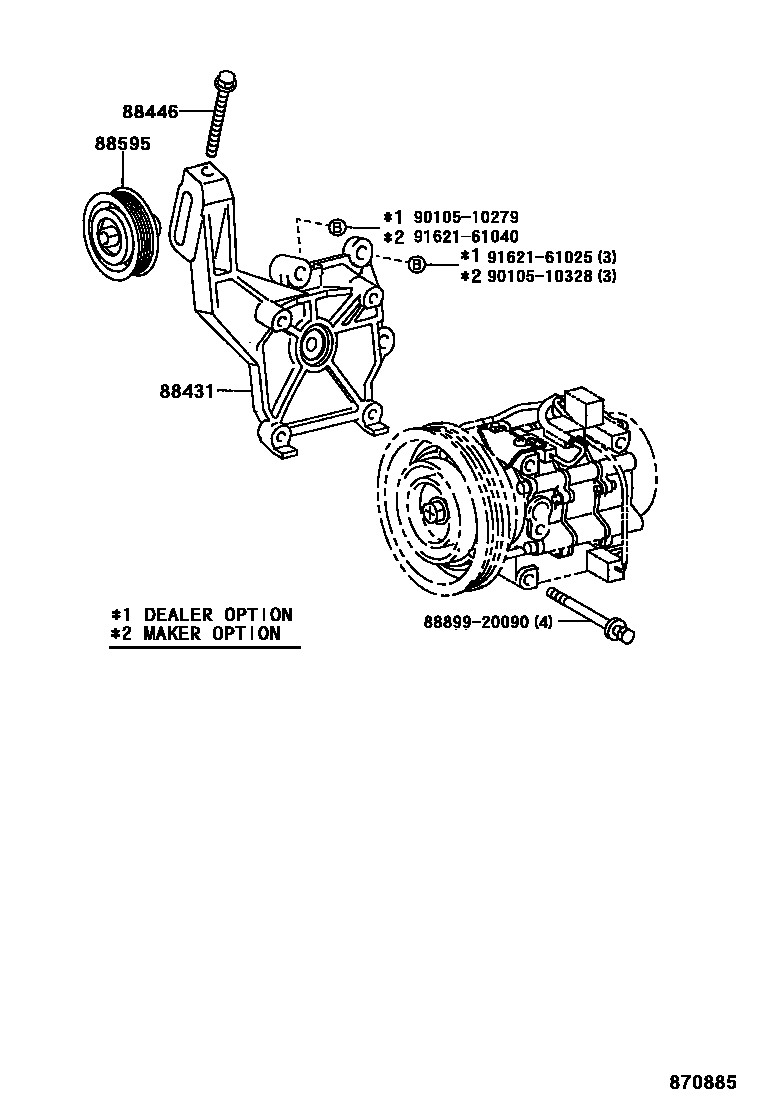

HEATING & AIR CONDITIONING - COMPRESSOR

0001 1 0002 1 0003 1 0004 1

88431BRACKET, COMPRESSOR MOUNTING, NO.1

main88431-12370iEE10#199205-199305

main88431-12500iAE10#199205-199505

main88431-12510iCE100199205-199704

sub88431-12511

main88431-12540iEE10#199305-199704

main88431-12560iAE101..LHD199505-199704

main88431-12560iAE101..LHD..SI;AE101..5D..XLI199512-199604

96 SPRING CAMPAIGN (SWITZERLAND)

88446BOLT, IDLE PULLEY

main88446-12020iCE100199205-199704

main88446-12030iAE101..LHD..SI;AE101..5D..XLI199512-199604

96 SPRING CAMPAIGN (SWITZERLAND)

main88446-12030iAE10#,EE10#199205-199704

88595PULLEY, COOLER COMPRESSOR IDLE

main88440-12100iCE100199205-199305

main88440-12100iCE100..LHD199505-199704

MAKER OPTION

main88440-12170iEE10#199205-199505

main88440-12170iCE100..LHD199505-199704

DEALER OPTION

main88440-12210iEE10#199402-199505

main88440-12210iEE101..LHD199505-199704

MAKER OPTION

main88440-12230iEE101..LHD199505-199704

DEALER OPTION

main88440-17010iAE10#199205-199505

main88440-20160iAE101199505-199704

main88440-20160iAE101..LHD..SI;AE101..5D..XLI199512-199604

96 SPRING CAMPAIGN (SWITZERLAND)

8889920090COVER, EVAPORATOR

main88899-20090

9010510279

main90105-10279

9010510328

main90105-10328

9162161025

main91621-61025

9162161040

main91621-61040

8 parts on this diagram · 4 diagrams in section
