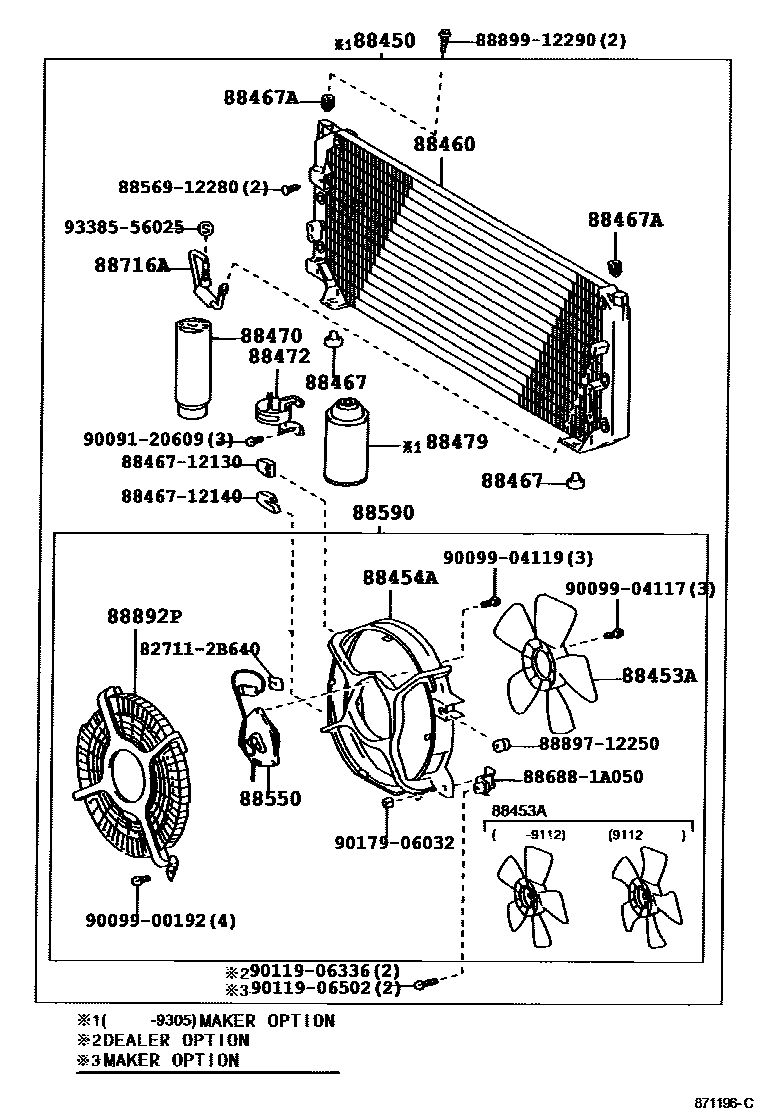

HEATING & AIR CONDITIONING - COOLER PIPING

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1 0007 1 0008 1 0009 1 0010 1DEALER OPTION 0011 1DDALER OPTION 0012 1MAKER OPTION 0013 1MAKER OPTION 0014 1DEALER OPTION 0015 1MAKER OPTION 0016 1

88450CONDENSER ASSY, W/RECEIVER

main88450-12110iEE10#..LHD;AE101..LB..LHD;AE101..HB..LHD..5F199205-199305

main88450-12120iCE100..LHD199205-199305

main88450-12150iCE100..LHD199305

88453AFAN, COOLING

main88453-10021iAE101..LHD..SI;AE101..5D..XLI199512-199604

96 SPRING CAMPAIGN (SWITZERLAND)

main88453-10022iAE101,EE101..LHD199601-199704

MAKER OPTION

main88453-12070iCE100199205-199704

main88453-12080iAE102;AE101..4FC..XLI;AE101,EE101..RHD199205-199505

MAKER OPTION

88454ASHROUD, FAN

main88454-12130iAE10#,EE101199205-199312

MAKER OPTION

main88454-12140iCE100199205

main88454-12150iEE101;AE101..LHD199605

88460CONDENSER ASSY, COOLER

main88460-12410iAE10#,EE10#199205-199305

main88460-12420iCE100199205-199305

main88460-12440iAE101,EE101199505-199605

main88460-12450iCE100199305

88467CUSHION, COOLER CONDENSER, NO.1

main88467-12100×2iAE101..LHD;CE100,EE101199605

88467ACUSHION, COOLER CONDENSER, NO.2

main88467-12110×2iAE101..LHD..SI;AE101..5D..XLI199512-199604

96 SPRING CAMPAIGN (SWITZERLAND)

88470RECEIVER & DRYER ASSY, COOLER

main88471-12020iAE10#,CE100,EE10#199205-199305

sub88471-12060

main88471-60010iAE10#,CE100,EE10#199305-199505

88472BRACKET, RECEIVER TANK, NO.1

main88473-12080iAE101..LHD;CE100,EE101199605

88479FREON GAS, AIR CONDITIONER (DRUM, COOLER REFRIGERANT)

main90986-02004×3iAE10#,CE100,EE101199205-199605

250G

main90986-02008×3iAE10#,CE100,EE101199307-199404

200G

88550MOTOR ASSY, BLOWER (FOR CONDENSER)

main88550-12130iCE100199312

main88550-12150iAE10#,EE101199312-199505

MAKER OPTION

main88550-12160iAE101,EE101199505-199605

88590BLOWER ASSY, W/SHROUD

main88590-12210iAE10#,EE101199205-199505

MAKER OPTION

main88590-12220iCE100199205-199704

main88590-12270iAE101,EE101199505-199605

88716APIPE, COOLER REFRIGERANT LIQUID, A

main88726-12360iAE10#,CE100,EE101199205-199305

MAKER OPTION

main88726-12410iEE100199305-199505

MAKER OPTION

88892PNET, FAN SHROUD

main88892-12200iAE10#,EE10#199205-199312

827112B640WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-2B640

8846712130CUSHION, COOLER CONDENSER, NO.1

main88467-12130

8846712140CUSHION, COOLER CONDENSER, NO.1

main88467-12140

8856912280CLAMP (FOR COOLER RELAY)

main88569-12280

886881A050BRACKET, COOLER DIAPHRAGM

main88688-1A050

8889712250VALVE, COOLER MAGNET

main88897-12250

8889912290COVER, EVAPORATOR

main88899-12290

9009120609

main90091-20609

9009900192

main90099-00192

9009904117

main90099-04117

9009904119

main90099-04119

9011906336

main90119-06336

9011906502

main90119-06502

9017906032

main90179-06032

9338556025

main93385-56025

28 parts on this diagram · 16 diagrams in section
