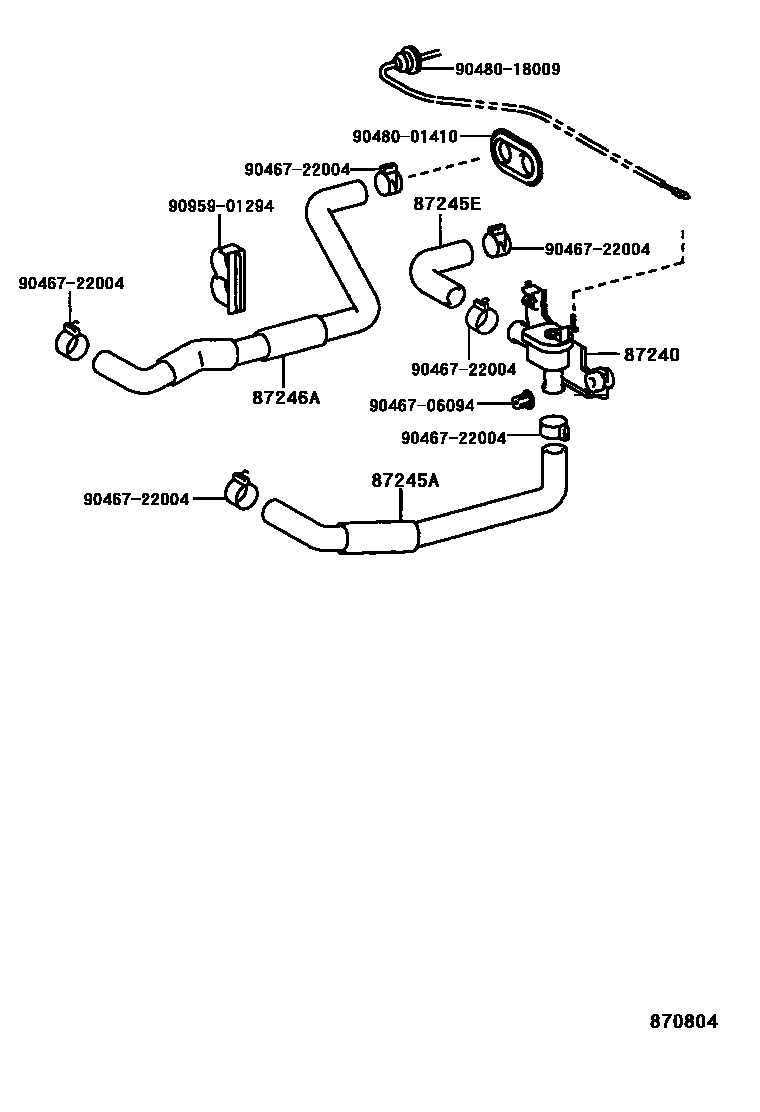

HEATING & AIR CONDITIONING - WATER PIPING

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1

87240VALVE ASSY, HEATER WATER

main87240-12250iAE10#,CE100,EE101..RHD199205

main87240-12260iAE10#,CE100,EE10#..LHD199205

87245AHOSE, HEATER WATER, INLET A

main87245-1A170iCE100..RHD199205-199503

main87245-1A450iEE101..RHD199205-199503

sub87245-1A680

main87245-1A470iAE10#..RHD199205-199503

sub87245-1A640

main87245-1A540iEE10#..LHD199205-199704

sub87245-1A541

main87245-1A570iAE10#..LHD199205-199704

main87245-1A590iCE100..LHD199205-199505

main87245-1A640iAE10#..RHD199503-199704

main87245-1A680iEE101..RHD199503-199704

main87245-1A690iCE100..RHD199503-199704

main87245-1A710iCE100..LHD199505-199704

sub87245-1A711

87245EHOSE, HEATER WATER, INLET E

main87245-1A440iAE10#,CE100,EE101..RHD199205

main87245-1A530iAE10#,CE100,EE10#..LHD199205

87246AHOSE, HEATER WATER, OUTLET A

main87245-1A211iEE101..RHD199205-199503

sub87245-1A670

main87245-1A272iEE10#..LHD199205-199503

sub87245-1A273

main87245-1A273iEE10#..LHD199503

main87245-1A460iAE10#..RHD199205-199503

sub87245-1A630

main87245-1A510iCE100..RHD199205-199503

main87245-1A580iAE10#..LHD199205-199503

sub87245-1A581

main87245-1A581iAE10#..LHD199503

main87245-1A600iCE100..LHD199205-199503

main87245-1A601iCE100..LHD199503

main87245-1A630iAE10#..RHD199503

main87245-1A670iEE101..RHD199503

main87245-1A700iCE100..RHD199503

9046706094

main90467-06094

9046722004

main90467-22004

9048001410

main90480-01410

9048018009

main90480-18009

9095901294

main90959-01294

9 parts on this diagram · 6 diagrams in section
