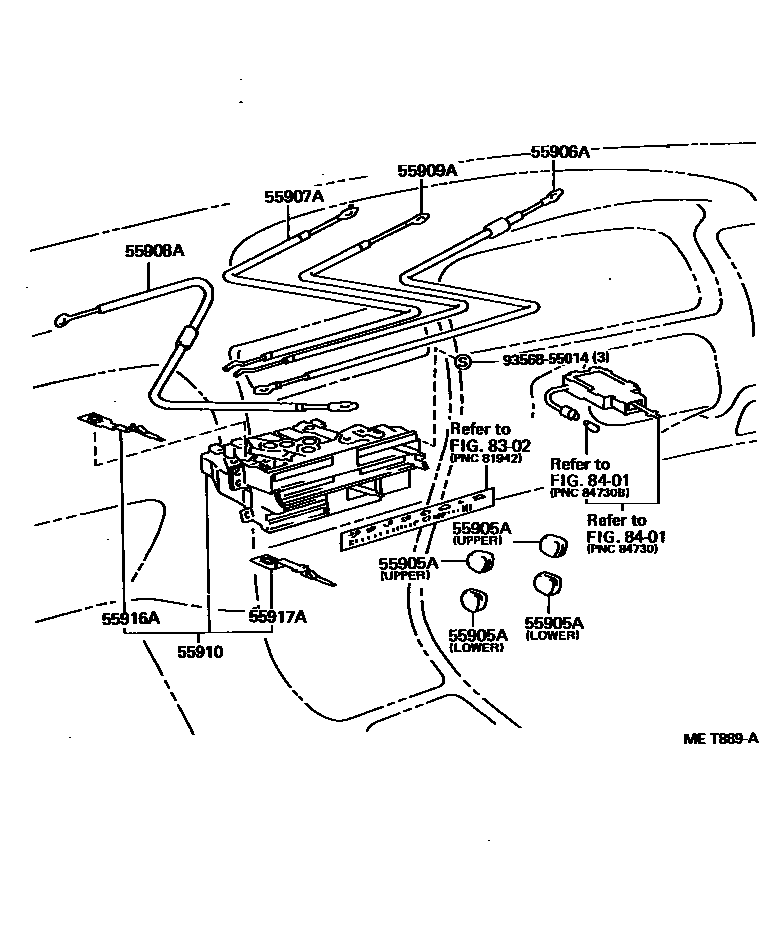

HEATING & AIR CONDITIONING - CONTROL & AIR DUCT

0001 1 0002 1

55905AKNOB, HEATER CONTROL

main55905-12140iEE101..RHD;EE101..HB..LHD;EE101..LHD..GLI;AE10#,CE100,EE100199205

UPPER

main55905-12150iEE101..RHD;EE101..HB..LHD;EE101..LHD..GLI;AE10#,CE100,EE100199205

LOWER

55906ACABLE SUB-ASSY, DEFROSTER DAMPER CONTROL

main55906-12330iAE10#,CE100,EE10#199205-199212

main55906-12350iAE10#,CE100,EE101..RHD199212

55907ACABLE SUB-ASSY, WATER VALVE CONTROL

main55907-12360iAE10#,CE100,EE101..RHD199205-199305

main55907-12361iAE10#,CE100,EE101..RHD199305

main55907-12400iAE10#,CE100,EE10#..LHD199205-199305

main55907-12401iAE10#,CE100,EE10#..LHD199305

55908ACABLE SUB-ASSY, AIR INLET DAMPER CONTROL

main55908-12260iAE10#,CE100,EE10#199205-199212

main55908-12280iAE10#,CE100,EE101..RHD199212

55909ACABLE SUB-ASSY, AIRMIX DAMPER CONTROL

main55909-12240iAE10#,CE100,EE10#199205-199305

main55909-12270iAE10#,CE100,EE10#199305

55910CONTROL ASSY, HEATER OR BOOST VENTILATOR

main55910-12550iAE10#,CE100,EE101..RHD199205-199212

sub55910-12551

sub55906-12350

main55910-12551iAE10#,CE100,EE101..RHD199212-199305

main55910-12570iAE10#,CE100,EE10#..LHD199205-199305

main55910-12571iAE10#,CE100,EE10#..LHD199305

main55910-12610iAE10#,CE100,EE101..RHD199305

55916ALEVER, COOLER CONTROL

main55916-12050iAE10#,CE100,EE101..RHD199212

55917ALEVER, TEMPERATURE DAMPER CONTROL

main55917-12130iAE101,CE100,EE101..LHD199605

8302

8401

9356855014

main93568-55014

11 parts on this diagram · 2 diagrams in section
