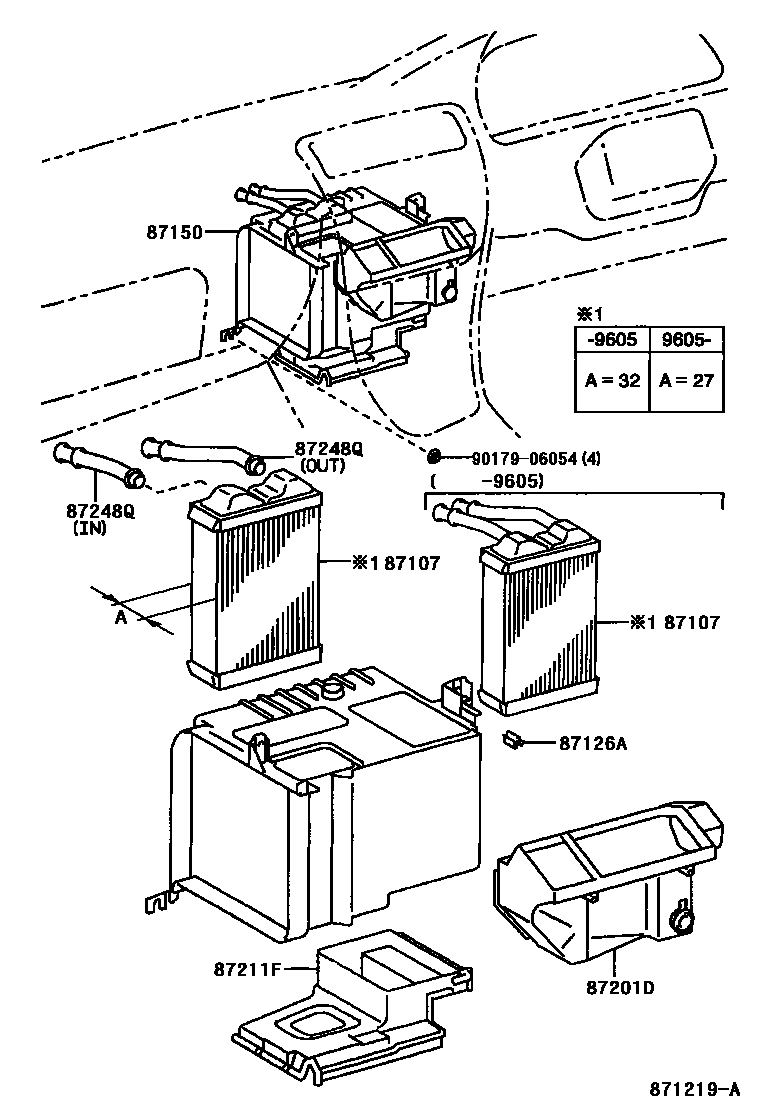

HEATING & AIR CONDITIONING - HEATER UNIT & BLOWER

0001 1RADIATOR 0002 1RADIATOR 0003 1BLOWER

87107UNIT SUB-ASSY, HEATER RADIATOR

main87107-12380iAE10#,CE100,EE101..RHD199205-199605

main87107-12480iAE10#,CE100,EE10#..LHD199205-199704

main87107-12490iAE10#,CE100,EE10#..LHD199205-199508

COLD SPEC

main87107-12491iAE101,CE100,EE101..LHD199508-199704

COLD SPEC

main87107-12500iAE101,CE100,EE101..RHD199605-199704

87126ACLAMP, HEATER CONTROL

main87126-12050×2iAE10#,CE100,EE10#199205

87150RADIATOR ASSY, HEATER

main87150-12660iAE10#,CE100,EE101..RHD199205-199503

main87150-12661iAE10#,CE100,EE101..RHD199503-199605

main87150-12662iAE101,CE100,EE101..RHD199605

sub87150-1A090

main87150-12680iAE10#,CE100,EE10#..LHD199205-199503

COLD SPEC

main87150-12681iAE10#,CE100,EE10#..LHD199503-199508

COLD SPEC

main87150-12682iAE101,CE100,EE101..LHD199508

COLD SPEC

main87150-12690iAE10#,CE100,EE10#..LHD199205-199503

main87150-12691iAE10#,CE100,EE10#..LHD199503

main87150-12711iAE101,CE100,EE101..LHD199505-199508

COLD SPEC & W(*80;DRIVER SIDE,PASSENGER SIDE)

main87150-12712iAE101,CE100,EE101..LHD199508

COLD SPEC & W(*80;DRIVER SIDE,PASSENGER SIDE)

main87150-1A060iAE101,CE100,EE101..LHD199505

W(*80;DRIVER SIDE,PASSENGER SIDE)

87201DDUCT SUB-ASSY, AIR

main87201-12380iAE10#,CE100,EE101..RHD199205

main87201-12390iAE10#,CE100,EE10#..LHD199205

COLD SPEC

main87201-12400iAE10#,CE100,EE10#..LHD199205

main87201-12410iAE101,CE100,EE101..LHD199505

COLD SPEC & W(*80;DRIVER SIDE,PASSENGER SIDE)

main87201-12540iAE101,CE100,EE101..LHD199505

W(*80;DRIVER SIDE,PASSENGER SIDE)

87211FDUCT, AIR

main87211-12160iAE10#,CE100,EE101..RHD199205

main87211-12180iAE10#,CE100,EE10#..LHD199205

main87211-12190iAE10#,CE100,EE10#..LHD199205

COLD SPEC

87248QPIPE, FRONT HEATER RADIATOR WATER

main87156-12020iAE101,CE100,EE101..RHD199605

IN

main87156-12030iAE101,CE100,EE101..RHD199605

OUT

9017906054

main90179-06054

7 parts on this diagram · 3 diagrams in section
