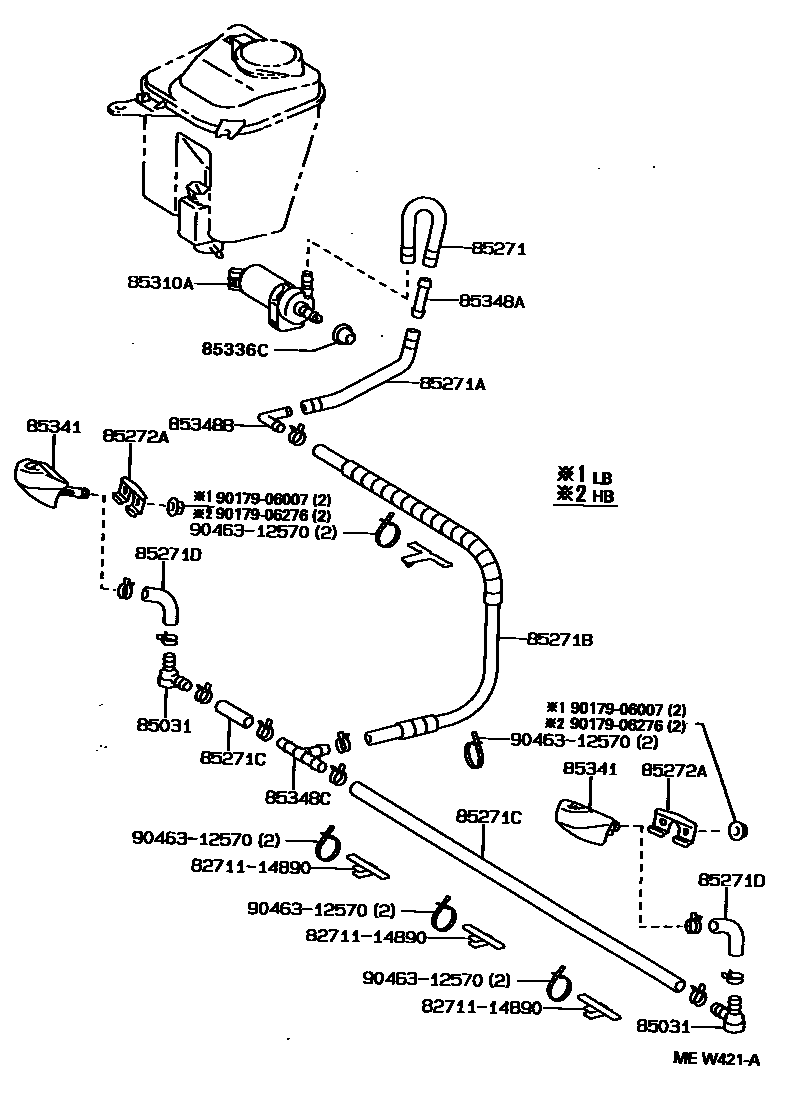

HEADLAMP CLEANER

85031VALVE, HEADLAMP CLEANER WASHER HOSE

85271HOSE, HEADLAMP CLEANER, NO.1

85271AHOSE, HEADLAMP CLEANER, NO.2

85271BHOSE, HEADLAMP CLEANER, NO.3

85271CHOSE, HEADLAMP CLEANER, NO.4

L=60,RH

L=1320(*H,L=900),LH

85271DHOSE, HEADLAMP CLEANER, NO.5

L=35

85272ACLAMP, HEADLAMP CLEANER, NO.1

main85272-12070i199205-199505

85310AMOTOR AND PUMP ASSY, HEADLAMP CLEANER WASHER

85336CPACKING, HEADLAMP CLEANER MOTOR

85341NOZZLE, HEADLAMP CLEANER WASHER

main85044-12070i199205-199505

85348AJOINT, HEADLAMP CLEANER HOSE, NO.1

85348BJOINT, HEADLAMP CLEANER HOSE, NO.2

85348CJOINT, HEADLAMP CLEANER HOSE, NO.3

8271114890WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

9017906007

9017906276

9046312570

17 parts on this diagram · 1 diagram in section
